Hello unraid shows the asus aura sync as a USB device to passthrough to vms on x570 mobo but can't find how to get it to work.... Has anyone figured this out yet, I can't find anything about it. If you need specs let me know but this is a cross platform question not an error persay

Edited February 10, 20206 yr by brmcdonald68s

Is it really a USB device?

If so, either attach it to the VM the usual method or pass-through a USB controller and plug it to there. Your X570 mobo should have onboard USB controller that can be stubbed and passed through to a VM.

no its just aura thats built into the MOBO it just shows up as a usb device

can you show us the info with the iommu groups from System Devices under the Tools tab? (you should be able to attach a text file in your reply)

Edited February 26, 20206 yr by MajorArchitect

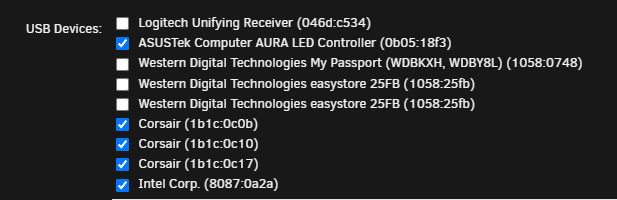

im actually having the same issue. I also have the Asus Prime X570-Pro MB and the "ASUSTeck Aura LED controller" does show up as  USB device to pass thru in the VM template but even doing this, it never works or shows up in iCue. I have followed multiple steps from videos and even from the corsair forums (https://forum.corsair.com/v3/showthread.php?t=192965) but still nothing. Im curious if the issue is that is a VM and not baremetal as i did get it to work before when I wasnt in Unraid.
i can post the IOMMU groups if required.
As a heads up, Im a noob with Unraid still, only been running it for like 6 months now.



PCI Devices and IOMMU Groups

IOMMU group 0:[1022:1482] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 1:[1022:1483] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge

IOMMU group 2:[1022:1483] 00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge

IOMMU group 3:[1022:1482] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 4:[1022:1482] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 5:[1022:1483] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge

IOMMU group 6:[1022:1482] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 7:[1022:1482] 00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 8:[1022:1482] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 9:[1022:1484] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]

IOMMU group 10:[1022:1482] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge

IOMMU group 11:[1022:1484] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]

IOMMU group 12:[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61)

[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)

IOMMU group 13:[1022:1440] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 0

[1022:1441] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 1

[1022:1442] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 2

[1022:1443] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 3

[1022:1444] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 4

[1022:1445] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 5

[1022:1446] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 6

[1022:1447] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 7

IOMMU group 14:[144d:a808] 01:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981/PM983

IOMMU group 15:[1022:57ad] 02:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse Switch Upstream

IOMMU group 16:[1022:57a3] 03:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

IOMMU group 17:[1022:57a3] 03:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

IOMMU group 18:[1022:57a3] 03:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

IOMMU group 19:[1022:57a4] 03:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

[1022:1485] 07:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP

[1022:149c] 07:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller

[1022:149c] 07:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller

IOMMU group 20:[1022:57a4] 03:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

[1022:7901] 08:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)

IOMMU group 21:[1022:57a4] 03:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge

[1022:7901] 09:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)

IOMMU group 22:[144d:a808] 04:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981/PM983

IOMMU group 23:[8086:095a] 05:00.0 Network controller: Intel Corporation Wireless 7265 (rev 61)

IOMMU group 24:[8086:1539] 06:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)

IOMMU group 25:[10de:1c30] 0a:00.0 VGA compatible controller: NVIDIA Corporation GP106GL [Quadro P2000] (rev a1)

[10de:10f1] 0a:00.1 Audio device: NVIDIA Corporation GP106 High Definition Audio Controller (rev a1)

IOMMU group 26:[1022:148a] 0b:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function

IOMMU group 27:[1022:1485] 0c:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP

IOMMU group 28:[1022:1486] 0c:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP

IOMMU group 29:[1022:149c] 0c:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller

IOMMU group 30:[1022:1487] 0c:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller

Edited August 31, 20205 yr by Kaos809
