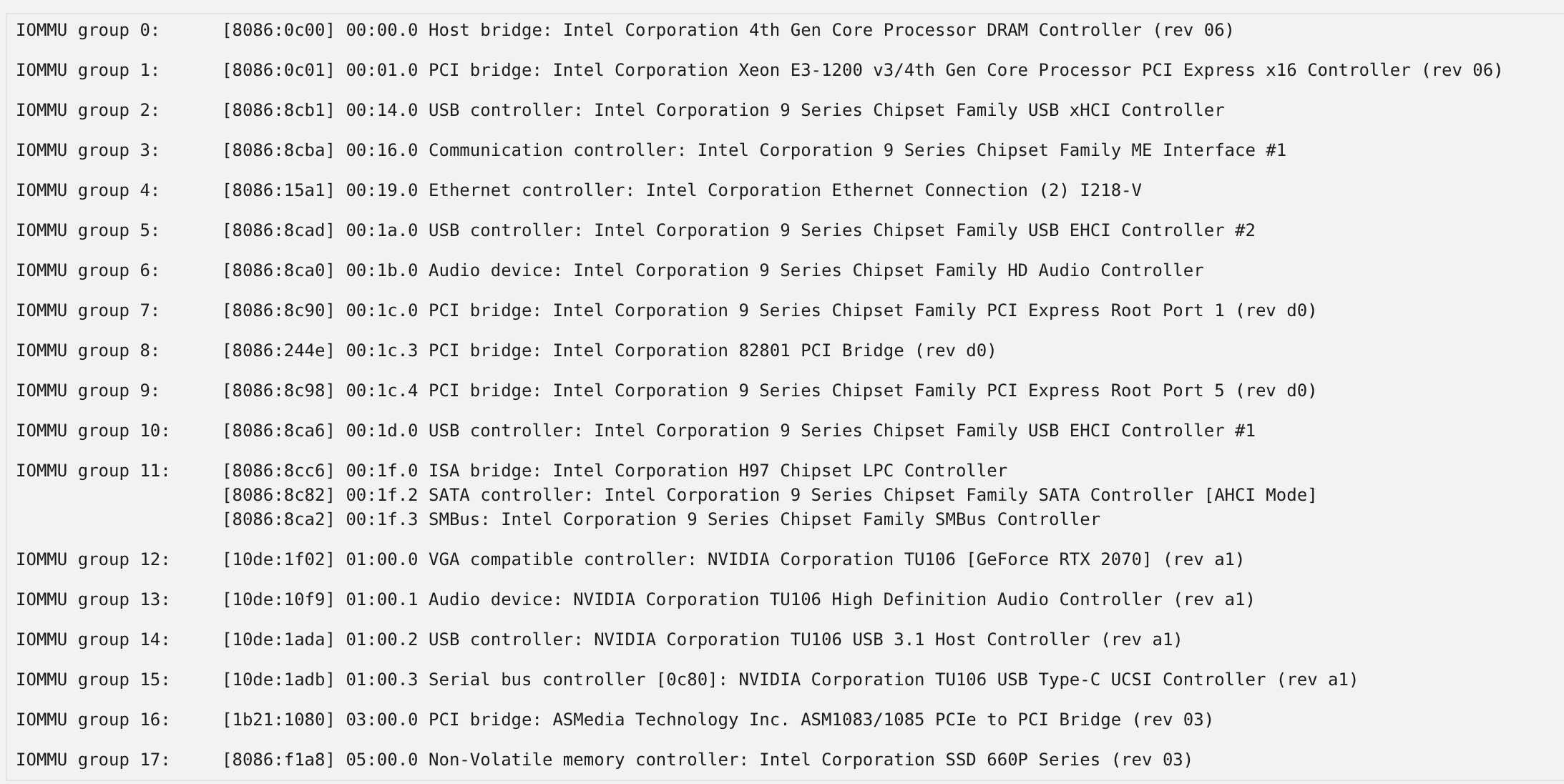

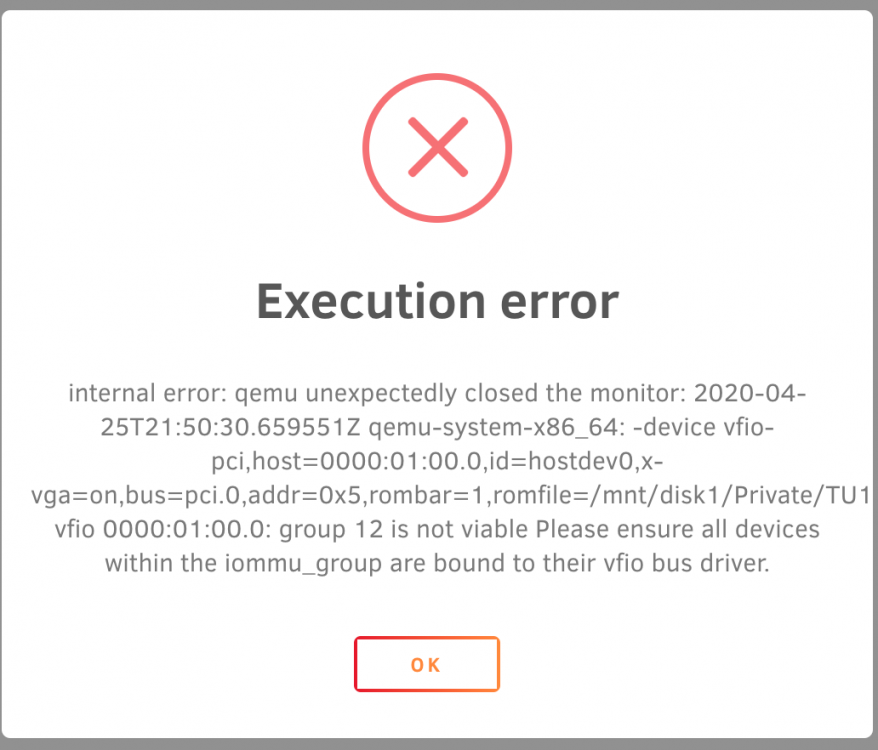

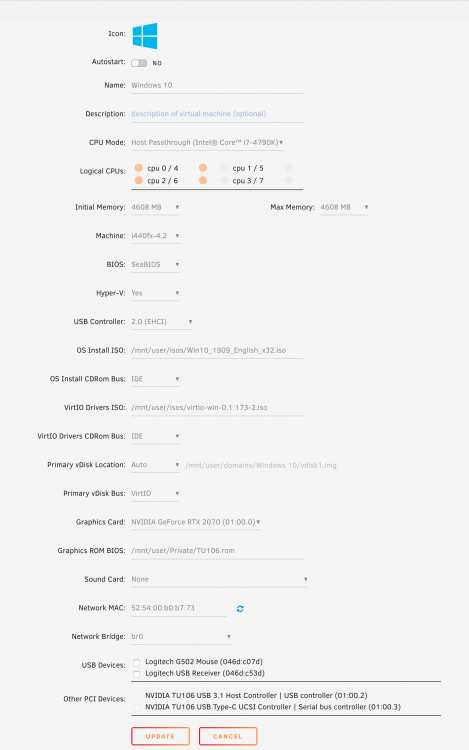

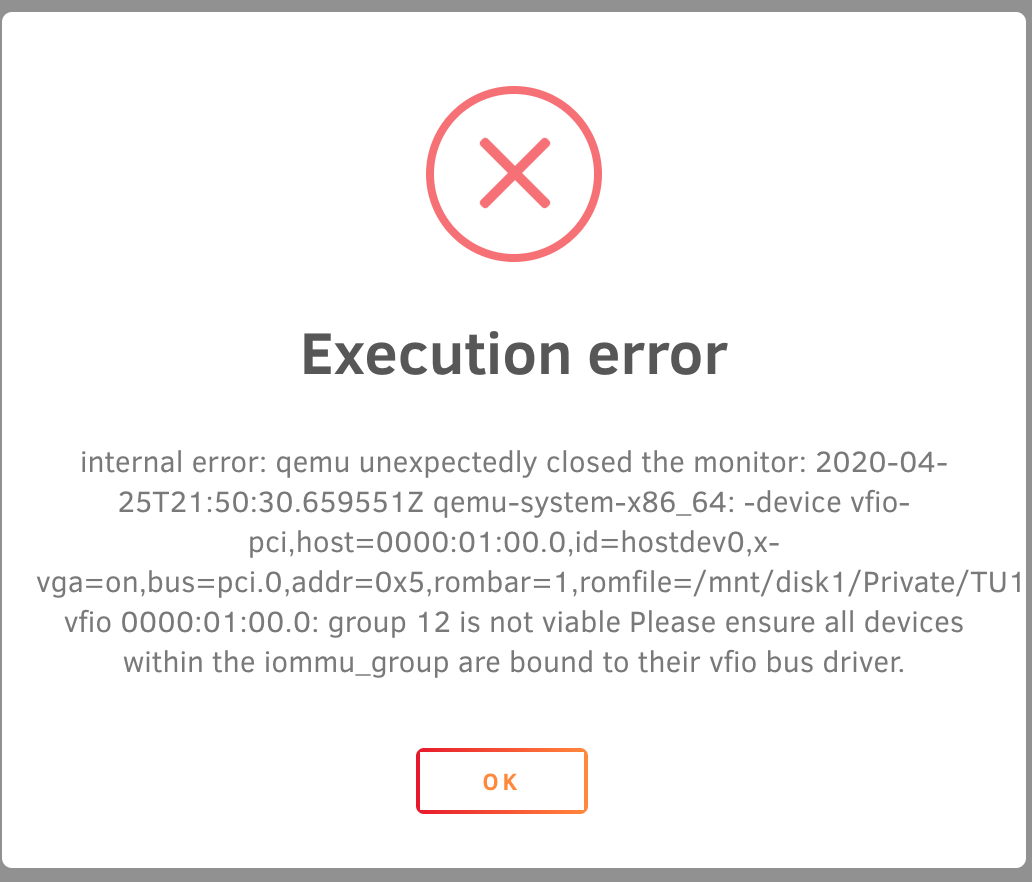

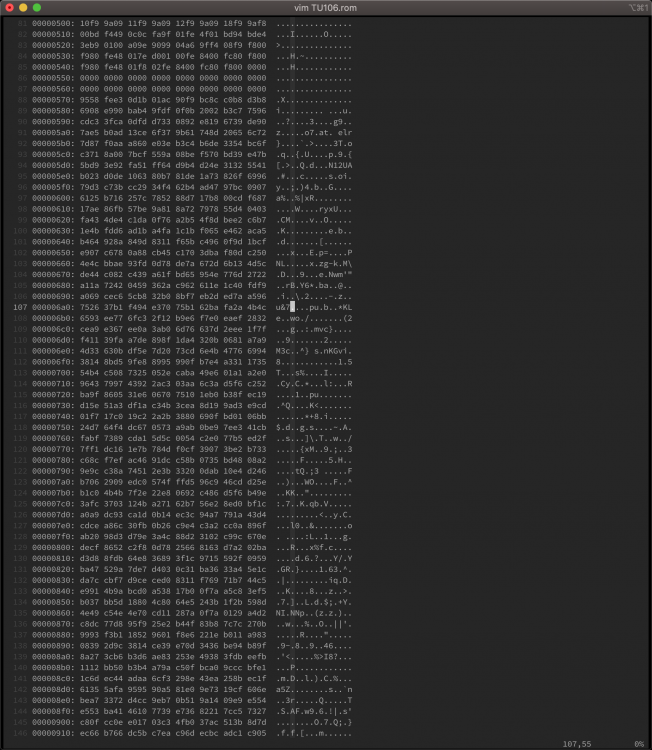

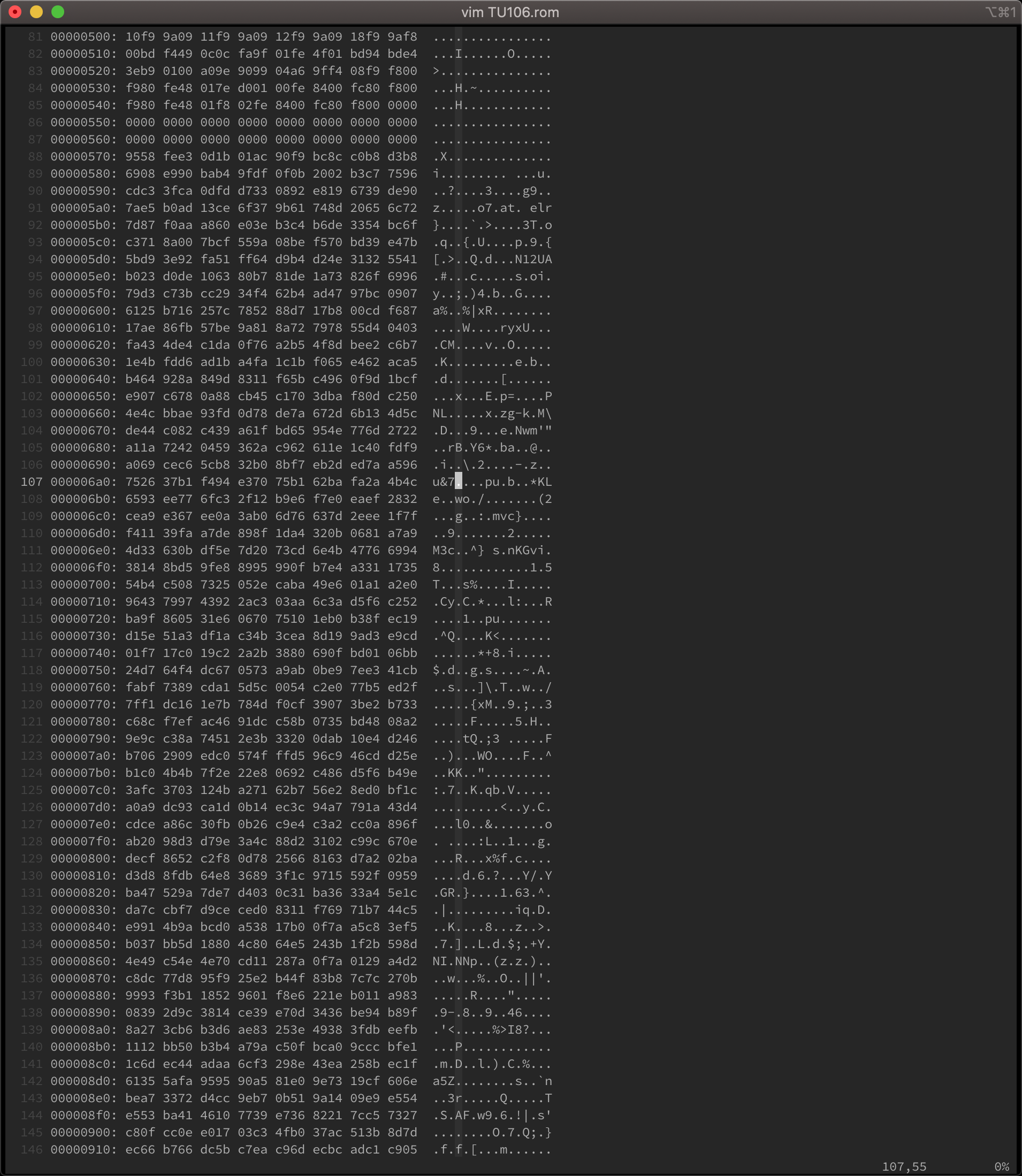

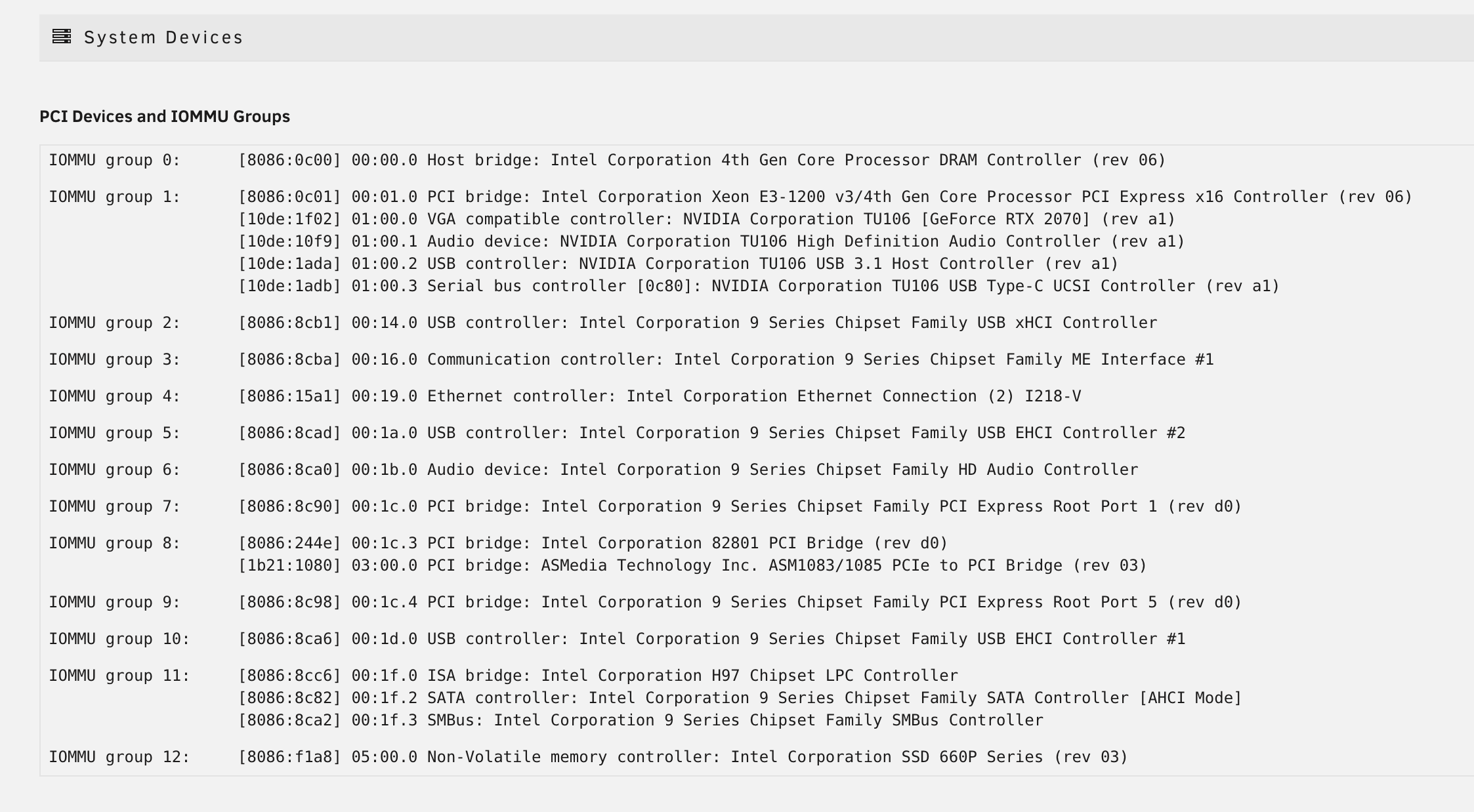

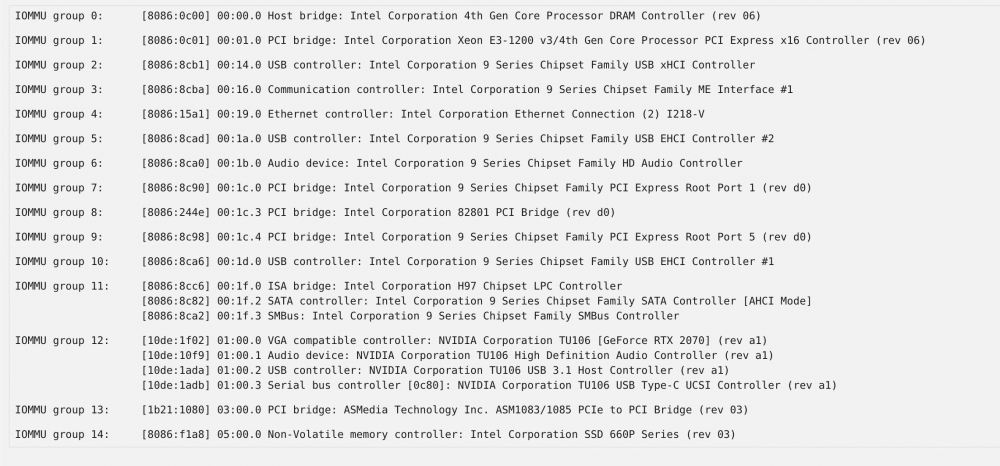

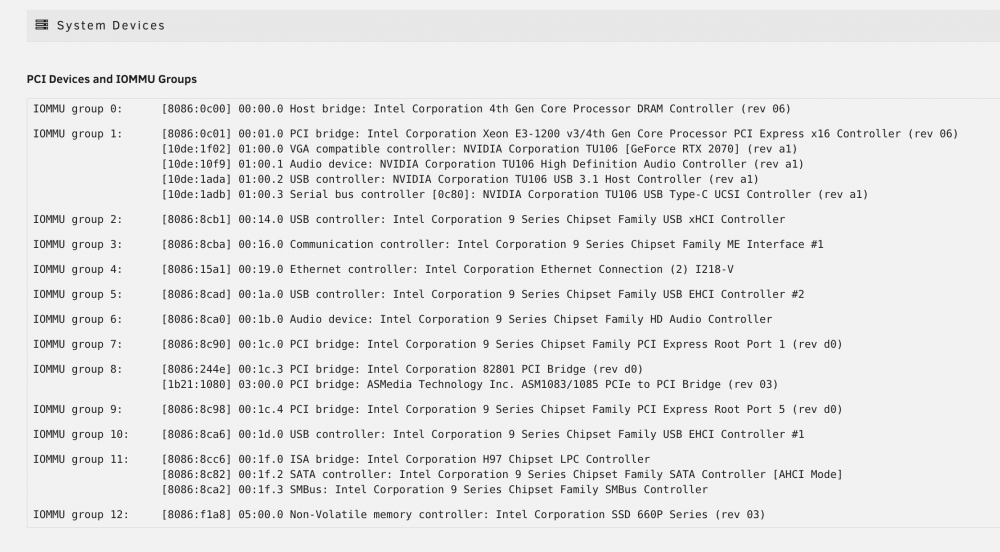

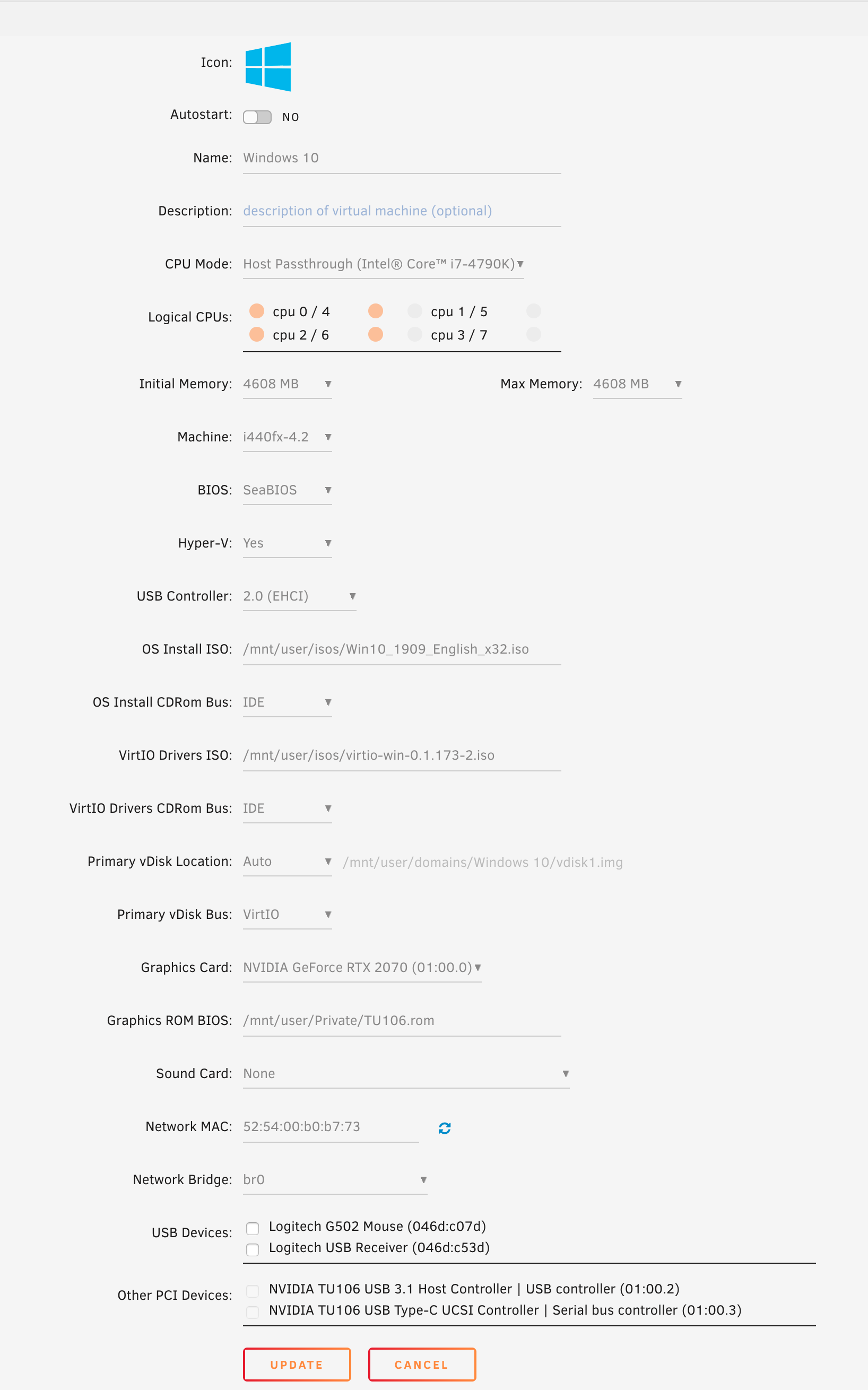

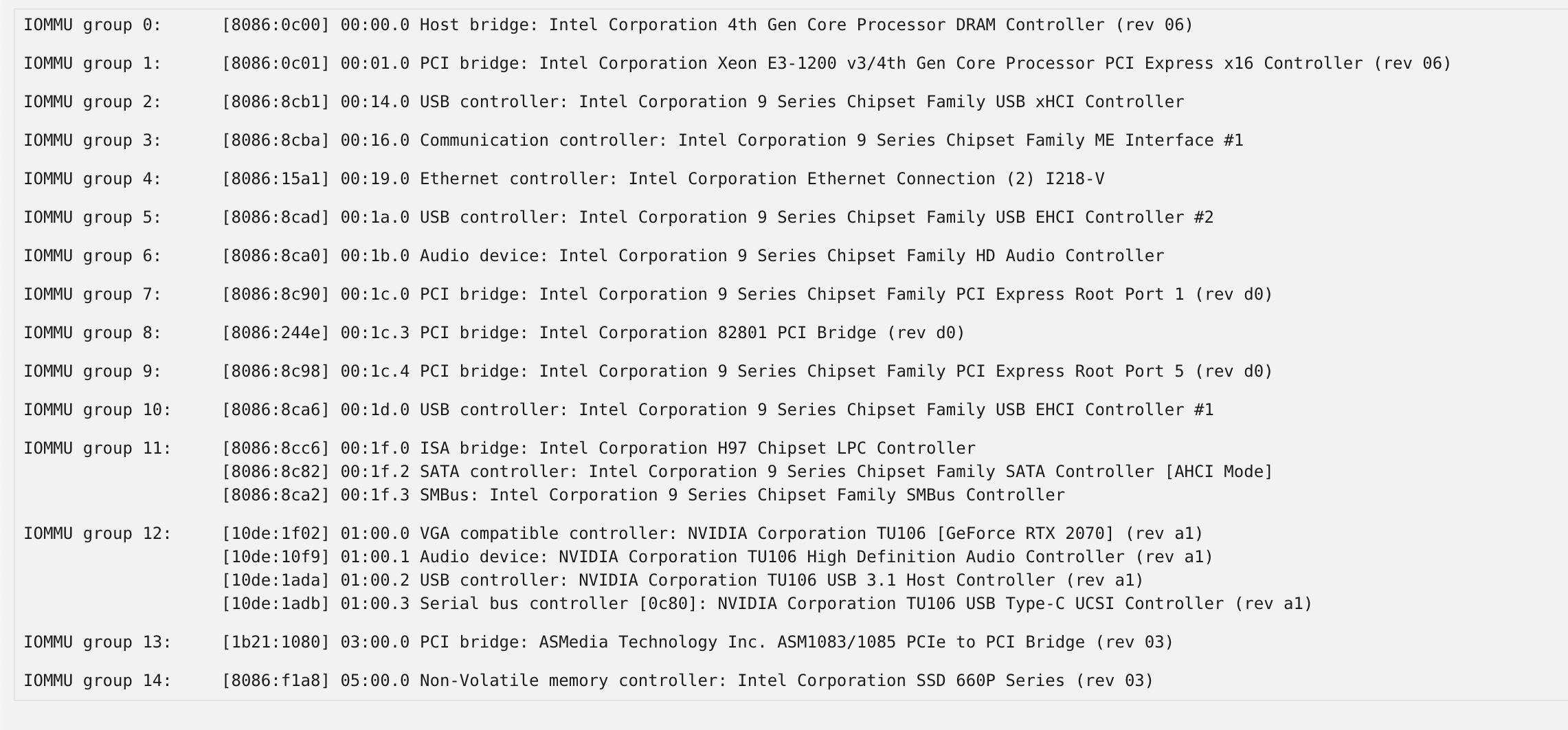

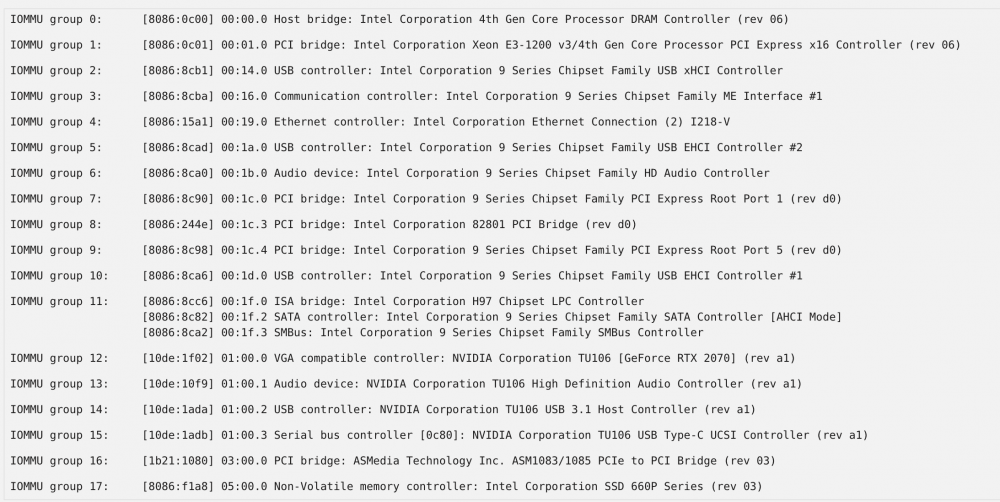

April 25, 20206 yr Hello, Im new to unraid. First first target is passthough my nv rtx 2070 to WIn and Ubuntu(Only one system will be run at the same time). My origional IOMMU group showns as : Basied on my understanding from youtube videos below, my IOMMU group 1 may not look right, so I switch to PCIe ACS override-downstream and got IOMMU group 12 which looks right to me. Then I got error: Afterwards, I update my Unraid OS to the following : kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot vfio-pci.ids=10de:1ada,10de:1adb The error goes away. I also tried set PCIe ACS override to Both without vfio-pci update: But Im still having black screen. The rom Im using right now is extract from GPU-Z I also tried remove header by myself The only line I can find from rom that starting with 'u' is line 107. So I removed the line 1-106 However, NONE of my attempts works. I would appriacate for any suggestion and help My Win 10 config:
April 26, 20206 yr 2 hours ago, RickD00 said: Basied on my understanding from youtube videos below, my IOMMU group 1 may not look right, so I switch to PCIe ACS override-downstream and got IOMMU group 12 which looks right to me. Hello, you were close when you got the Group 12 that I quoted from your post HOWEVER you were trying to only passthrough your RTX 2070s usb-c controller. vfio-pci.ids=10de:1ada,10de:1adb are your USB 3.1 controller and serial bus on your 2070. You need to be passing through the VGA Controller @ 10de:1f02 and your GPUs audio @ 10de:10f9. Also you must passthrough everything in group 12 including the RTX USB-C controller you were trying to passthrough before. Your vfio-pci.ids should look like this... vfio-pci.ids=10de:1f02,10de:10f9,10de:1ada,10de:1adb Once you do that make sure you select everything listed in Group 12 to passthrough in Unraid VM Win10 config PCI Devices. Hope this helps. Cheers!

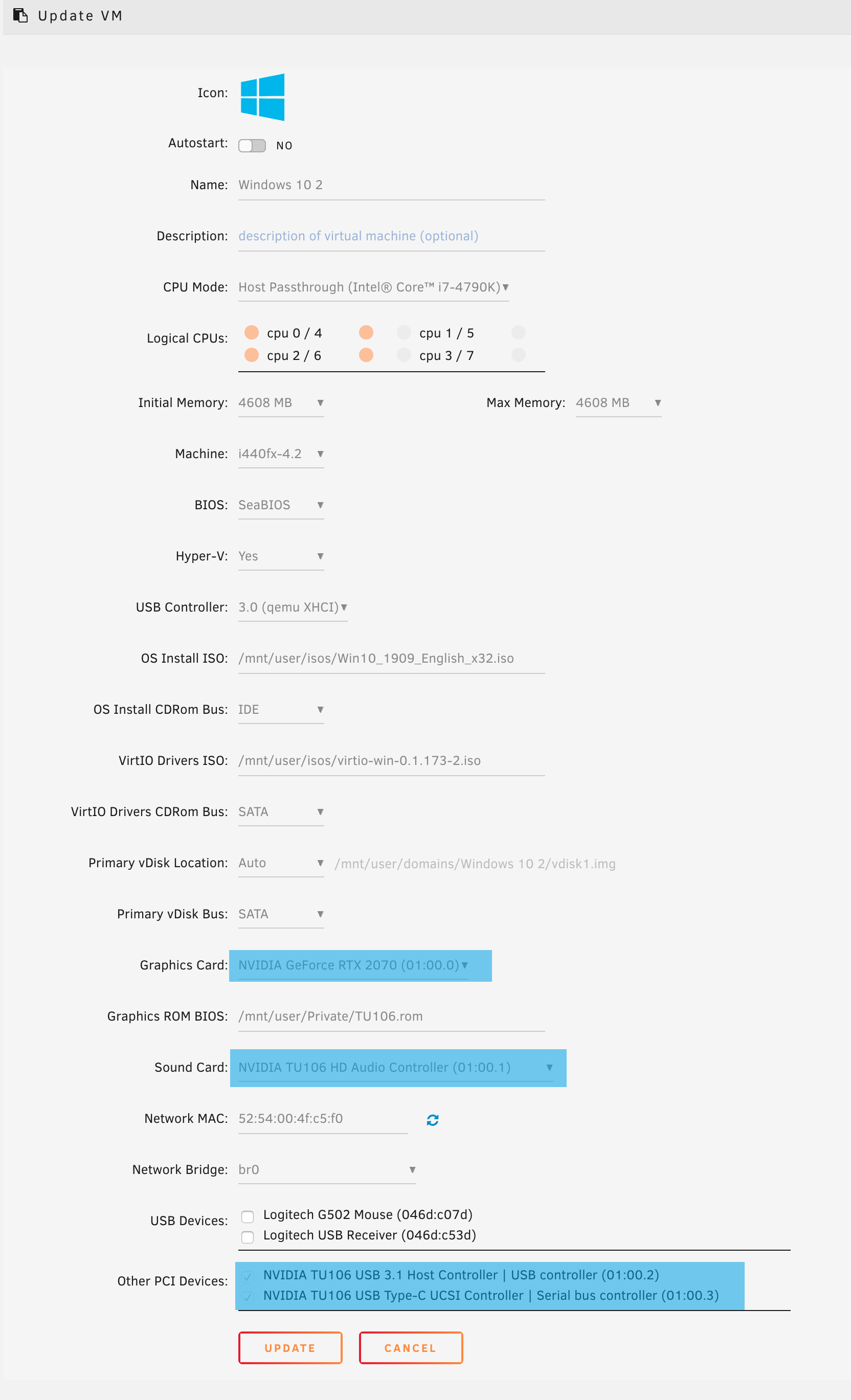

April 27, 20206 yr Author Hi @Carbongrip Thank you very much for the posting! I've updete vfio-pci.ids all group 12 and pass them into VM(as screenshot) But I still got a black screen Do you think this may related to gpu vbios ? Thanks!

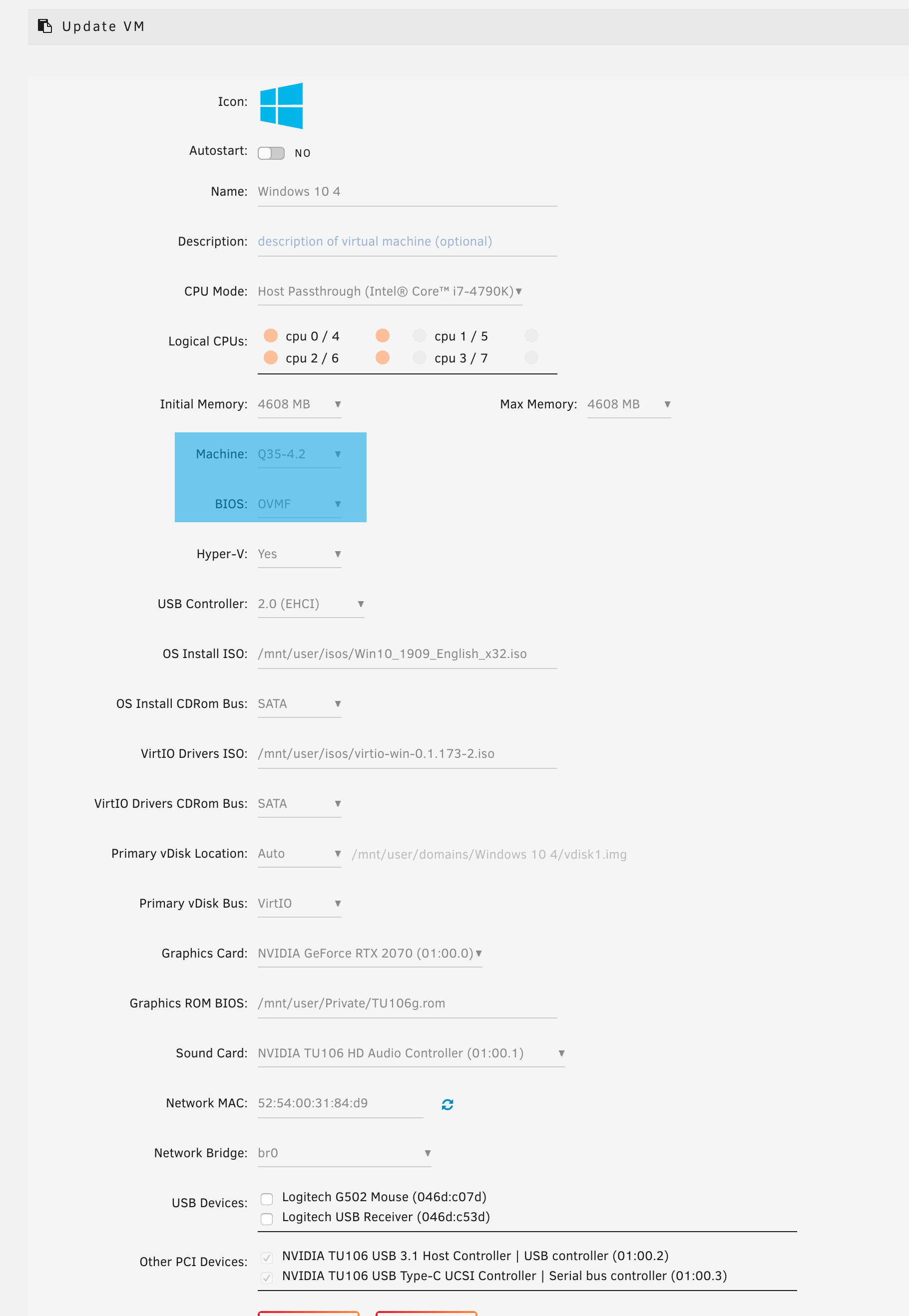

April 27, 20206 yr Wait you need to set BIOS to OVMF and Machine to Q35. Edited April 27, 20206 yr by Carbongrip
April 27, 20206 yr Author 10 minutes ago, Carbongrip said: Wait you need to set BIOS to OVMF and Machine to Q35. OVMF does not work somehow.. I tried it with VNC it was on UEFI Shell window. SeaBIOS worked with VNC. I just tried both OVMF/SeaBIOS with Q35. Still no luck
April 27, 20206 yr 4 minutes ago, RickD00 said: OVMF does not work somehow.. I tried it with VNC it was on UEFI Shell window. SeaBIOS worked with VNC. I just tried both OVMF/SeaBIOS with Q35. Still no luck If it was on a UEFI shell window then it couldn't find a boot device. You need to set the Install ISO as boot device in boot order.
April 27, 20206 yr Author 13 minutes ago, Carbongrip said: If it was on a UEFI shell window then it couldn't find a boot device. You need to set the Install ISO as boot device in boot order. That make sense! It should load ISO first. But I more concerned about black screen Do you have any suggestion on this? Thanks!
April 27, 20206 yr Author 10 hours ago, Carbongrip said: Remove the vbios and boot without it. Its not a requirement and is optional. Still no luck
April 28, 20206 yr On 4/27/2020 at 5:52 AM, RickD00 said: I tried it with VNC it was on UEFI Shell window Type "exit" in the UEFI shell window and "continue" in the BIOS that opens. VM reboots and now you should see the the hint to "press any button to boot from the install media". Keep in mind this hint only shows a couple seconds and without pressing any button you will end in the UEFI shell again. Starting a VM and not quickly enough connecting with VNC you will miss this part. Also your boot order might be wrong. Post the xml of the VM.
