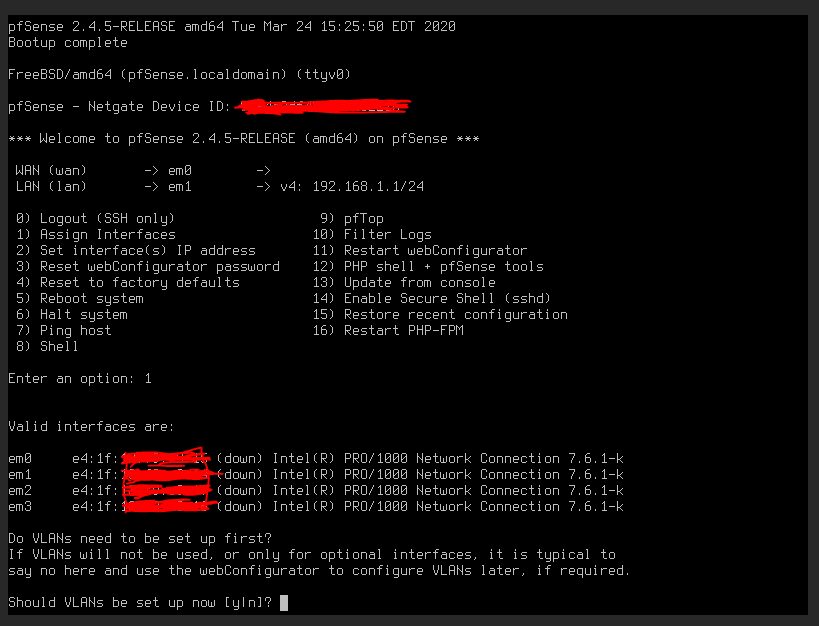

May 22, 20206 yr If you're having issues with your pfSense only seen 1 port, then do the following. 1) If you're looking for a guide go click here. 2) Once you are in part 3 of the SpaceInvader video to edit the XML do the follow: A. Remove the following code, the 'interface'. Quote <interface type='bridge'> <mac address='##:##:##:##:##:a#'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </interface> B. Go to the bottom section and make sure the BUS and the SLOT is the same for the 4 'pci' ports as the 'pci' from the FIRST port. C. ADD "multifunction='on'" to the FIRST PCI (port). D. Make sure the Functions starting with 0, go in increasing number. Example 0,1,2,3. Quote <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x07' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </source> <alias name='hostdev2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x2'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x1'/> </source> <alias name='hostdev3'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x3'/> </hostdev>
