Hi all.  Sorry for the long, first post but I had to vent out so I don't blow my brain out.   Running 6.8.3.



I've been running a first gen Ryzen 5 1600 server.   A Win10 VM is my daily driver, pushing 3 displays through a GTX 1070, audio flowing out of the motherboard's 1/8 audio jack to my speakers, and passing through USB ports.   Add a few dockers and a linux VM here and there.  Life was great!

I need more power I tell myself... so I bought a Ryzen 9 3900x.  I kept my same motherboard (Gigabyte B450 Aorus M) and RAM (2-32 GB sticks of G.Skill RipJaws DDR4@3000).

I flashed my BIOS to the latest and greatest, installed the CPU, removed my Win10 VM, added it back in.  All was going great.  The 1070 passed through... but I could only get sound out of the DisplayPort.  I also couldn't get ANY of the USB ports to pass through on the motherboard.  I even have an add-on USB 3.0 card (Sabrent CP-4PTU) and I can't pass that through either. (It appears as the add-on card rides on the motherboard's bus.)

I'm damn near there.  I've been struggling with this for 3 days now.  I've watched Space Invader One videos, used VFIO-PIC Config, messed with rcu_nocbs=0-23, tried out multifunction and downstream..... Every time I try to share something, the network doesn't come up or the system hangs.  I'm assuming I've passied through stuff that needs to be not passed through.



Then I found the thread about the custom kernel from Leoyzen where I can use append pcie_no_flr=1022:149c,1022:1487.   I got the USB ports ([AMD] Matisse USB 3.0 Host Controller) passed through and working but every time I tried to add the sound card ([AMD] Starship/Matisse HD Audio Controller), it locks up UnRaid.  What upsets me is... after messing with it, I can't get the USB to work again.  If I had the USB working, I could get a USB sound card to get me by.



Is there anything I can share that will hopefully give someone insight that could help me?



Here's what I have in my sysconfig:

append pcie_no_flr=1022:149c,1022:1487 vfio-pci.ids=1022:149c,1022:1487 initrd=/bzroot

Here's my VM:



<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='1'>
  <name>Windows 10</name>
  <uuid>4babd643-2762-4e91-2ee1-cb2b5be98406</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>16777216</memory>
  <currentMemory unit='KiB'>16777216</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>8</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='8'/>
    <vcpupin vcpu='1' cpuset='20'/>
    <vcpupin vcpu='2' cpuset='9'/>
    <vcpupin vcpu='3' cpuset='21'/>
    <vcpupin vcpu='4' cpuset='10'/>
    <vcpupin vcpu='5' cpuset='22'/>
    <vcpupin vcpu='6' cpuset='11'/>
    <vcpupin vcpu='7' cpuset='23'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-4.2'>hvm</type>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='custom' match='exact' check='full'>
    <model fallback='forbid'>qemu64</model>
    <topology sockets='1' cores='8' threads='1'/>
    <feature policy='require' name='x2apic'/>
    <feature policy='require' name='hypervisor'/>
    <feature policy='require' name='lahf_lm'/>
    <feature policy='disable' name='svm'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/Windows 10/vdisk1.img' index='2'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.173-2.iso' index='1'/>
      <backingStore/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <alias name='usb'/>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <alias name='usb'/>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <alias name='usb'/>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'>
      <alias name='pcie.0'/>
    </controller>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x8'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x9'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0xa'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0xb'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0xc'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/>
    </controller>
    <controller type='pci' index='6' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='6' port='0xd'/>
      <alias name='pci.6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/>
    </controller>
    <controller type='pci' index='7' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='7' port='0xe'/>
      <alias name='pci.7'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:1b:4f:1d'/>
      <source bridge='br0'/>
      <target dev='vnet0'/>
      <model type='virtio'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/0'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/0'>
      <source path='/dev/pts/0'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-1-Windows 10/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='mouse' bus='ps2'>
      <alias name='input0'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input1'/>
    </input>
    <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x06' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev0'/>
      <rom file='/mnt/disk1/isos/vbios/MSI.GTX1070.8192.161024.rom'/>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x06' slot='0x00' function='0x1'/>
      </source>
      <alias name='hostdev1'/>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x08' slot='0x00' function='0x3'/>
      </source>
      <alias name='hostdev2'/>
      <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>

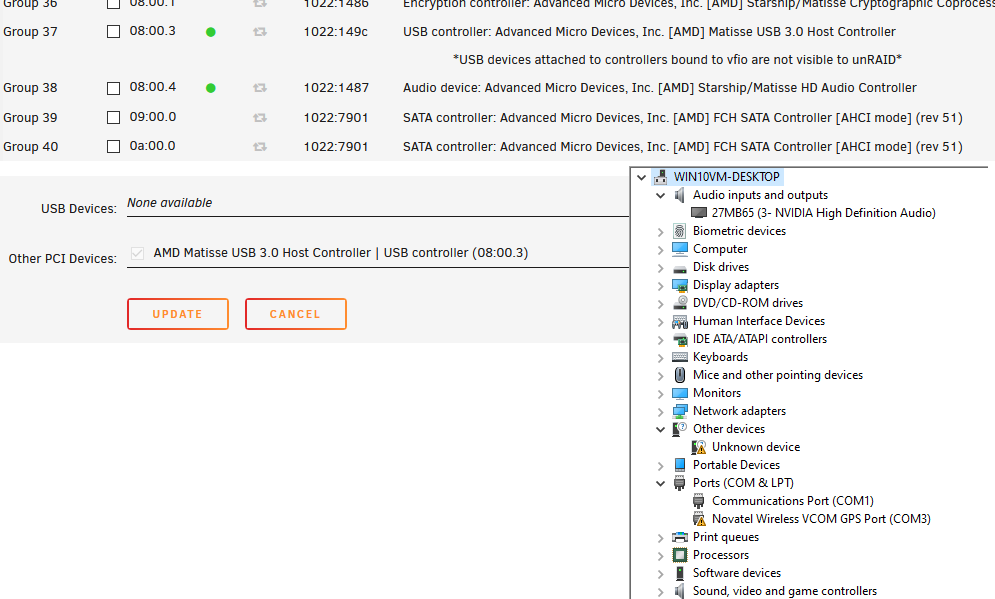

Got the USB passed through.  Device Manager was showing "usb xhci compliant host controller" and it couldn't load it into memory.  I removed the controller and rebooted the VM.  Turned it back off, added it again, and it was there and working.  I still don't have audio though...  Anybody?  Maybe it is pushing through and windows isn't seeing it correct?  Unknown device is ACPI\APP0005\3&2411E6FE&1.









Edited August 20, 20205 yr by Griminal
