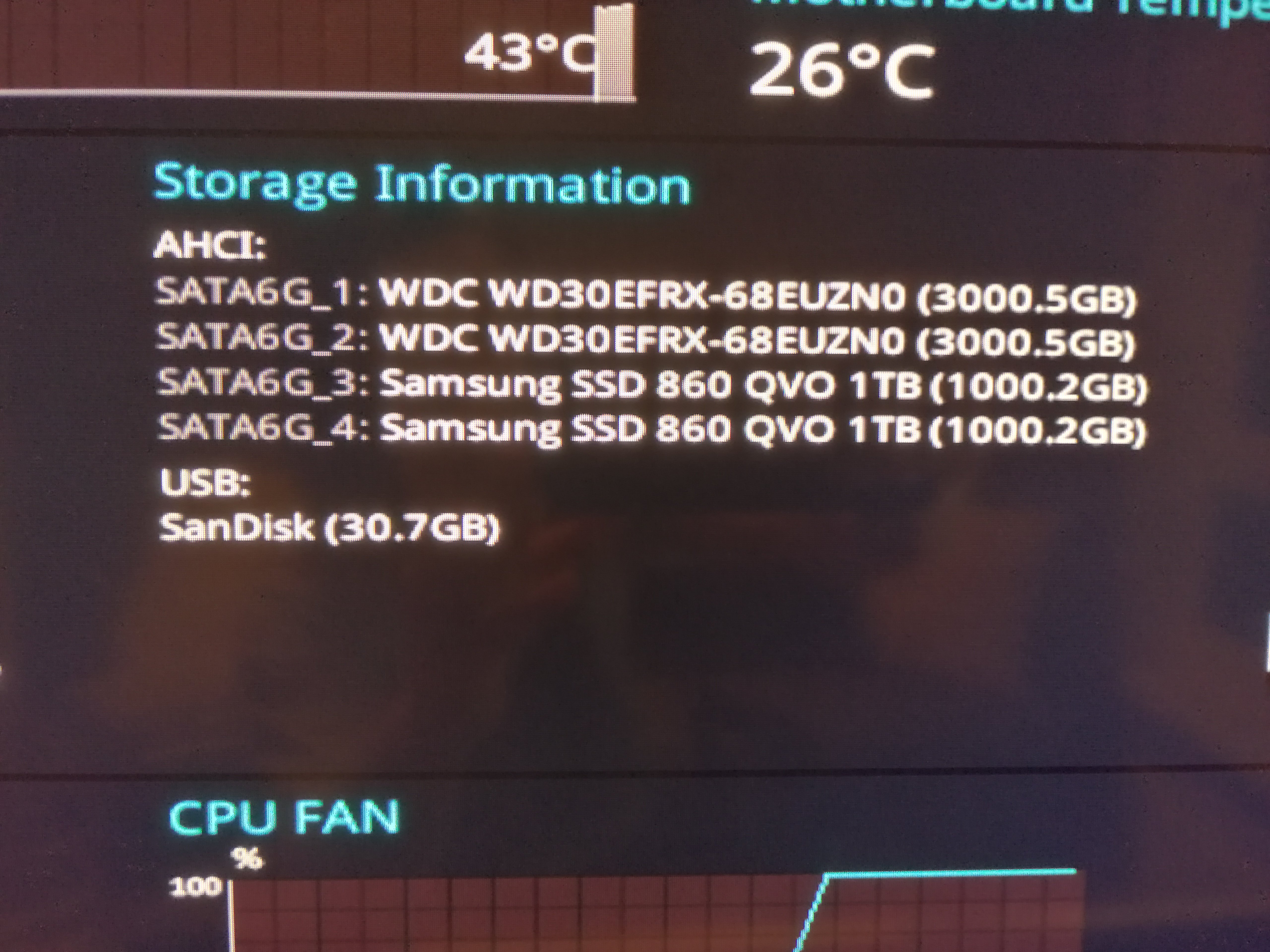

September 15, 20205 yr EDIT: It was vfio binding Hello. On a reboot all my drives disappeared. This has happened earlier, so I rebooted (this fixed it last time) but it didn't work. They are not visible as unnasigned devices. They are visible under SATA in my bios. I've reseated the sata power and data connectors on both ends. No errors in log. I'm dumbfounded. big-boss-syslog-20200915-1815.zip Edited September 15, 20205 yr by brin6thepayne
September 15, 20205 yr Community Expert Sep 15 20:13:03 BIG-BOSS kernel: ata1: SATA link down (SStatus 0 SControl 300) Sep 15 20:13:03 BIG-BOSS kernel: ata3: SATA link down (SStatus 0 SControl 300) Sep 15 20:13:03 BIG-BOSS kernel: ata2: SATA link down (SStatus 0 SControl 300) Strange they show up in the BIOS but don't see what can be done on the Unraid side.
September 15, 20205 yr Author 5 minutes ago, JorgeB said: Sep 15 20:13:03 BIG-BOSS kernel: ata1: SATA link down (SStatus 0 SControl 300) Sep 15 20:13:03 BIG-BOSS kernel: ata3: SATA link down (SStatus 0 SControl 300) Sep 15 20:13:03 BIG-BOSS kernel: ata2: SATA link down (SStatus 0 SControl 300) Strange they show up in the BIOS but don't see what can be done on the Unraid side. Yeah it's weird
September 15, 20205 yr Community Expert Yeah, and only 3 SATA ports are being detected, have you tried the new beta? Newer kernel might make a difference.
September 15, 20205 yr Author Updated to beta now. No dice. Attaching both diagnostics and log. Hey, JorgeB thanks for taking your time to look at this with me. I'm really pulling my hair out after spending an entire day working out a gpu kink only for this to start after that issue was resolved. big-boss-diagnostics-20200915-2042.zip big-boss-syslog-20200915-1842.zip
September 15, 20205 yr Author Sep 15 20:41:06 BIG-BOSS kernel: ahci 0000:07:00.0: version 3.0 Sep 15 20:41:06 BIG-BOSS kernel: ahci 0000:07:00.0: AHCI 0001.0301 32 slots 1 ports 6 Gbps 0x1 impl SATA mode Sep 15 20:41:06 BIG-BOSS kernel: ahci 0000:07:00.0: flags: 64bit ncq sntf ilck pm led clo only pmp fbs pio slum part Sep 15 20:41:06 BIG-BOSS kernel: scsi host1: ahci Sep 15 20:41:06 BIG-BOSS kernel: ata1: SATA max UDMA/133 abar m2048@0xf6d00000 port 0xf6d00100 irq 61 Sep 15 20:41:06 BIG-BOSS kernel: ahci 0000:0c:00.0: AHCI 0001.0301 32 slots 1 ports 6 Gbps 0x1 impl SATA mode Sep 15 20:41:06 BIG-BOSS kernel: ahci 0000:0c:00.0: flags: 64bit ncq sntf ilck pm led clo only pmp fbs pio slum part Sep 15 20:41:06 BIG-BOSS kernel: scsi host2: ahci Sep 15 20:41:06 BIG-BOSS kernel: ata2: SATA max UDMA/133 abar m2048@0xf7400000 port 0xf7400100 irq 63 Sep 15 20:41:06 BIG-BOSS kernel: ahci 0000:0d:00.0: AHCI 0001.0301 32 slots 1 ports 6 Gbps 0x1 impl SATA mode Sep 15 20:41:06 BIG-BOSS kernel: ahci 0000:0d:00.0: flags: 64bit ncq sntf ilck pm led clo only pmp fbs pio slum part Sep 15 20:41:06 BIG-BOSS kernel: scsi host3: ahci Sep 15 20:41:06 BIG-BOSS kernel: ata3: SATA max UDMA/133 abar m2048@0xf7300000 port 0xf7300100 irq 65 Sep 15 20:41:06 BIG-BOSS kernel: ata1: SATA link down (SStatus 0 SControl 300) Sep 15 20:41:06 BIG-BOSS kernel: ata3: SATA link down (SStatus 0 SControl 300) Sep 15 20:41:06 BIG-BOSS kernel: ata2: SATA link down (SStatus 0 SControl 300) Are you sure this says all SATA is down? This is on an ASUS X570 Pro-ACE which has 4x sata + u.s which can supply 4x sata via sas. Only using the four sata slots on the motherboard, nothing connected in the u.2 slot.
September 15, 20205 yr Author Well wouldn't you know. My GPU kink was the culprit here too. I swapped some cards around and removed one, so the vfio addresses changed, and vfio bound the sata controller instead of where the old gpu was......
September 16, 20205 yr Community Expert Yeah, that's why we ask for the full diags instead of just the syslog, and I should have asked for them before replying, the problem would be visible there.
