Hi all,

I made some research but couldn't find a satisfying solution.



Here is my challenge. I now have a 5GB/s internet connection at home. The caveat is the modem splits the bandwidth between the different connected devices. So basically up to 5 devices can have a maximum of 1GB/s each.



For that reason, I would like to connect up to 4 of my unraid NICs to the modem and assign each one of them to a specific Docker. Each of those docker would then have 1GB/s.

• eth0: unraid access
• eth1: Plex docker
• eth2: Jdownloader docker
• eth3: Deluge docker

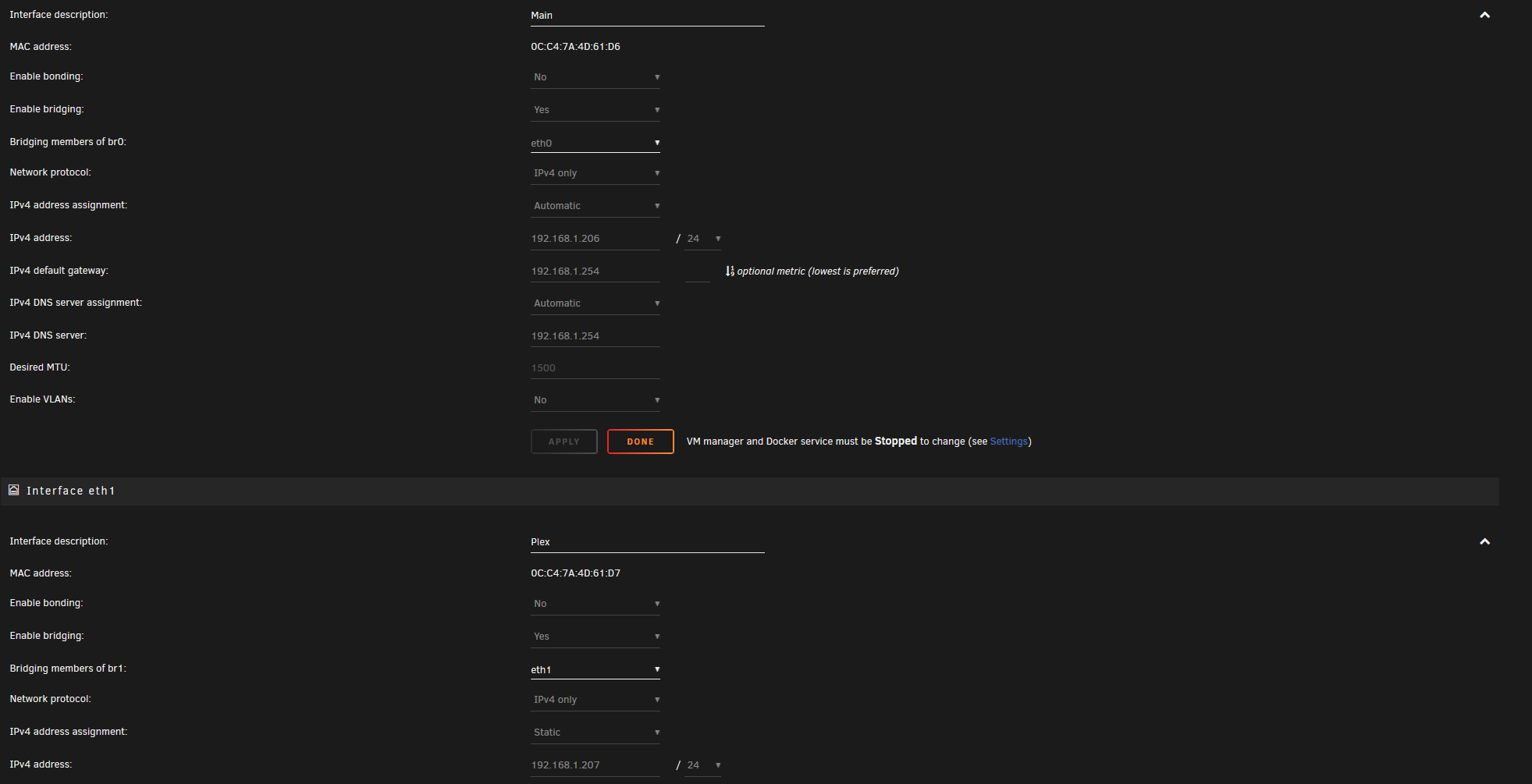

So I decided to start with the Plex Docker and I did setup my network interfaces as below:

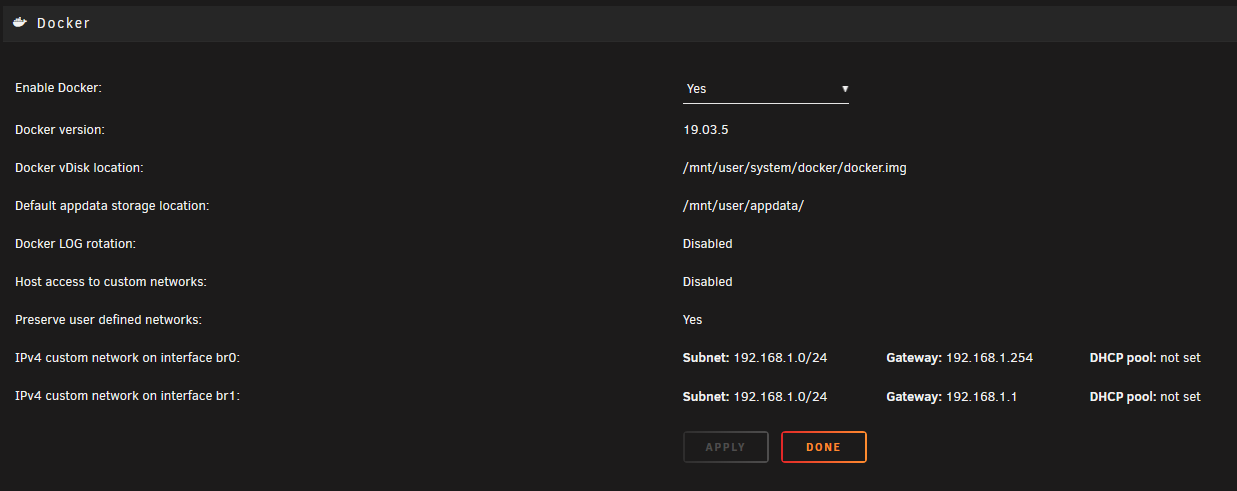

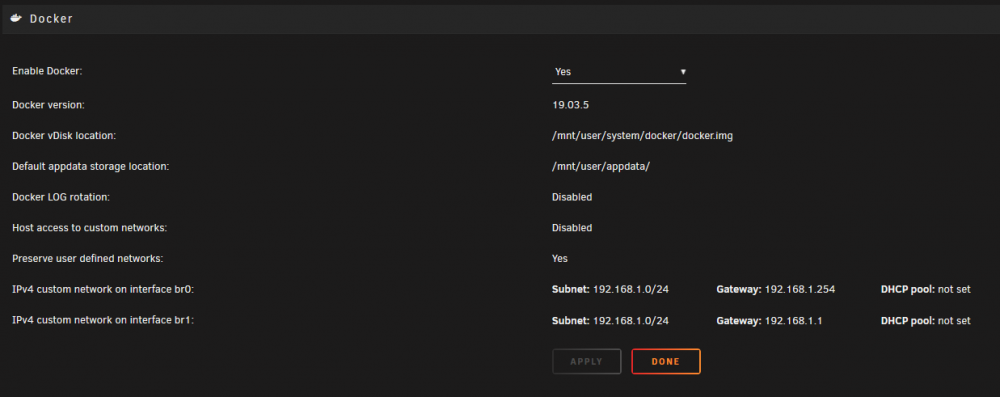

Then I had a quick look to my docker and could see the following (there is a typo in the second gateway but I fixed it)



So far so good.

However, when I setup my Plex docker, I can choose between Host, Bridge, Br0 and my custom proxynet.

How comes I cannot see BR1?



Thanks for your feedback!



What is the brand and model of the 'modem'?


Sent from my iPhone using Tapatalk

Hi, this is a modem provided by my French ISP called Livebox 5.

Any idea

Thanks

Sorry but I have no idea, I asked what is the ONU you’re using because I had a similar problem before which I solved, but unfortunately the solution can’t be done on yours. My isp provides a router with a SFP port and the ONU part is in there SFP stick so I just swap out the router then use my own 10gbps router and switche to solve it(everything I needed to use the internet is in the SFP module so I don’t need their router)
