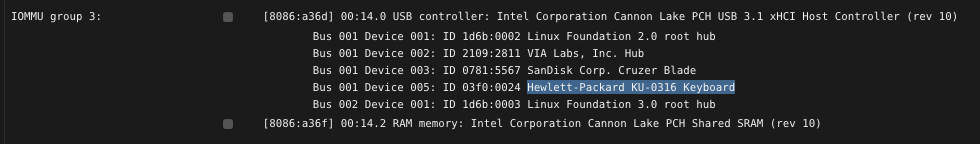

November 5, 20205 yr I want to pass a keyboard and mouse to my Windows 10 VM but they are of the same IOMMU group as a bunch of other things, including the unRaid USB stick. How can i separate the keyboard and mouse from the IOMMU group? I've tried all USB ports on my mother board and it doesn't change the group. Thanks!
November 6, 20205 yr Switching USB ports on the same controller won't change the IOMMU group. I'm thinking you're probably going to have to use the ACS Override patch to get that controller into its own group. Once it's in its own group, you should be able to select the devices individually in the VM settings. This video should be able to help you out: Edited November 6, 20205 yr by Vairfoley
November 6, 20205 yr Author 2 hours ago, Vairfoley said: Switching USB ports on the same controller won't change the IOMMU group. I'm thinking you're probably going to have to use the ACS Override patch to get that controller into its own group. Once it's in its own group, you should be able to select the devices individually in the VM settings. This video should be able to help you out: I already have the ACS override to Both to be able to pass through my graphicscard, which now works. I've tried all three options (Downstream, multi-function, both) but only Both works for me. And never was the USB separated sadly.
November 6, 20205 yr 5 hours ago, cagemaster said: never was the USB separated In that case, your only option is to add and passthrough a separate pcie usb card, or get a different motherboard that has multiple usb controllers on board, or possibly change the BIOS settings for the USB configuration.

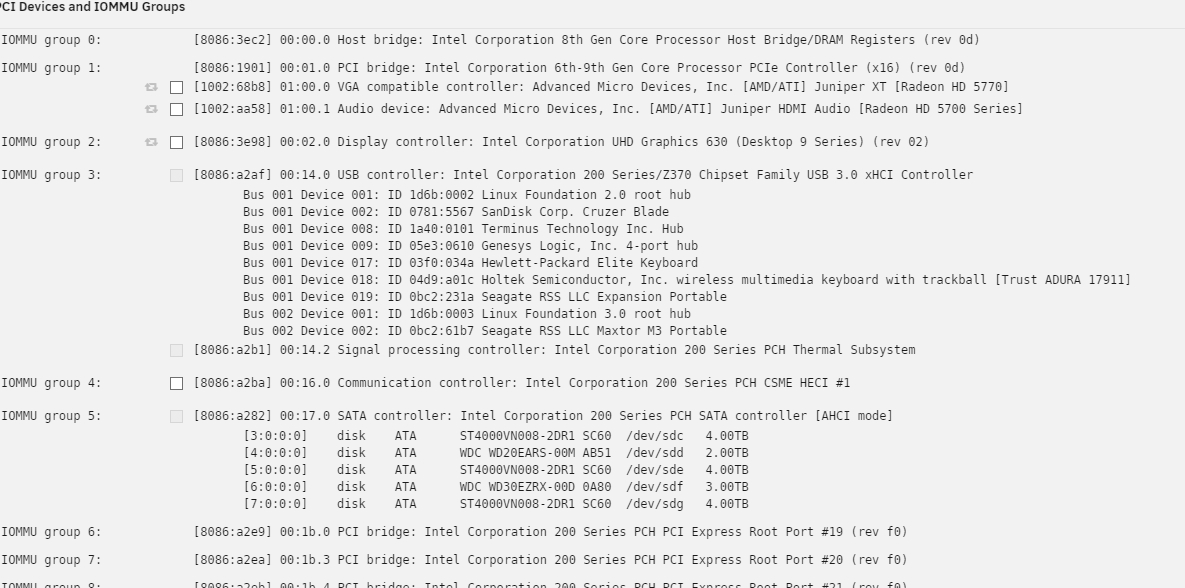

March 10, 20215 yr hello, guys, I have exactly the same issue. I watched the Space invaders' video, but there's one thing that he taken for granted : that you might have the number/code in the square bracket for any single row, but it's not..the number is one and any device is listed as Bus 00x and device 00x, therefore there's no chance to split them. even overraiding the PCIe ACS it doesn't change. Has been mentioned that you might replace the MB, but mine is a new model (AsRock B365M Pro ) with two NMVe slots and 6 SATA, so I don't want believe that the only chance is to replace it. I'm lloking for different suggestion / tips that can help me to solve the problem THX in advance for your support BR
March 10, 20215 yr Author Hi! I actually bought a USB PCIE device... There just is no way to split those busses if the MB doesn't support it.
March 20, 20215 yr Author 2 hours ago, cristiano1492 said: Confirmed. Bouth one, installed and works thx Great!!
