Hi,



Im an unexperienced linux user but i've managed to get Eve-NG installed has a VM.

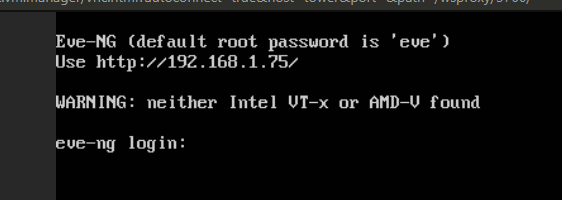

The issue is that Eve-ng is not recognizing AMD virtualization and it seems this is causing some issues loading some cisco images (VIOS) and even Windows images within Eve to run. I've confirmed that its active on BIOS.

Is there something missing?



domain type='kvm' id='24'>
  <name>EVE-NG</name>
  <uuid>11e9d867-9251-ade2-3747-213300138c4e</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Slackware" icon="slackware.png" os="slackware"/>
  </metadata>
  <memory unit='KiB'>8388608</memory>
  <currentMemory unit='KiB'>8388608</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>4</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
    <vcpupin vcpu='2' cpuset='2'/>
    <vcpupin vcpu='3' cpuset='3'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-4.2'>hvm</type>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='4' threads='1'/>
    <cache mode='passthrough'/>
  </cpu>
  <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>







root@eve-ng:~# lscpu
Architecture:          x86_64
CPU op-mode(s):        32-bit, 64-bit
Byte Order:            Little Endian
CPU(s):                4
On-line CPU(s) list:   0-3
Thread(s) per core:    1
Core(s) per socket:    4
Socket(s):             1
NUMA node(s):          1
Vendor ID:             GenuineIntel
CPU family:            6
Model:                 158
Model name:            Intel(R) Core(TM) i5-7600K CPU @ 3.80GHz
Stepping:              9
CPU MHz:               3791.877
BogoMIPS:              7583.75
L1d cache:             32K
L1i cache:             32K
L2 cache:              256K
L3 cache:              6144K
NUMA node0 CPU(s):     0-3




Edited November 16, 20205 yr by David Cordeiro
New issue

On Unraid itself it is active. So im guessing this has to do something with the VM itself. I've followed countless posts, exhausted every possibility i could find, my last chance is someone with more knowledge to help me on this.



Architecture:                    x86_64
CPU op-mode(s):                  32-bit, 64-bit
Byte Order:                      Little Endian
Address sizes:                   39 bits physical, 48 bits virtual
CPU(s):                          4
On-line CPU(s) list:             0-3
Thread(s) per core:              1
Core(s) per socket:              4
Socket(s):                       1
NUMA node(s):                    1
Vendor ID:                       GenuineIntel
CPU family:                      6
Model:                           158
Model name:                      Intel(R) Core(TM) i5-7600K CPU @ 3.80GHz
Stepping:                        9
CPU MHz:                         4128.502
CPU max MHz:                     4200.0000
CPU min MHz:                     800.0000
BogoMIPS:                        7584.00
Virtualization:                  VT-x
L1d cache:                       128 KiB
L1i cache:                       128 KiB
L2 cache:                        1 MiB
L3 cache:                        6 MiB
NUMA node0 CPU(s):               0-3


FIXED



3 Days later....



Modify the syslinux.cfg file to add this kernel argument.



1. Log in as root to your host OS (unraid) and edit syslinux.cfg.


     $ vi /boot/syslinux/syslinux.cfg

2. Modification is below in bold.


    label unRAID OS
      menu default
      kernel /bzimage
      append initrd=/bzroot kvm-intel.nested=1,/bzroot-gui

I just came across this old thread.  I was having issues with EVE-NG just crashing my server after a while.   Started reading on Nested kvm's which I didn't even know about.   Hopefully this fixes my issue.   If you are still around, any other tips and tricks with EVE?
