- Urgent
I've been encountering some weird performance issues with 6.10.0-rc2.
I'm using 1 Gbit/s connections both with my Unraid server and my Desktop PC.

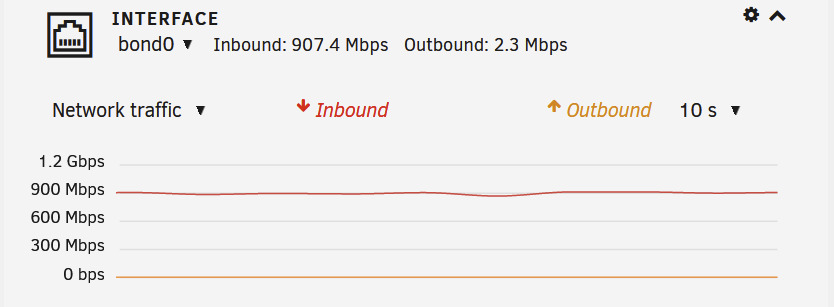

This is what it looks like transfering a file from my Kingston A2000 in my Unraid server to my Desktop PC (this is via FTP; the same goes for SMB):

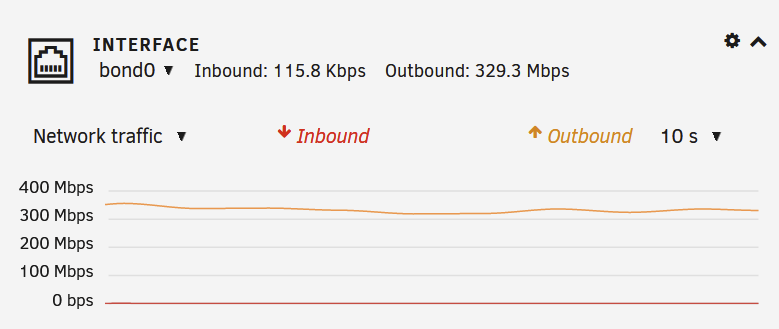

This is what it looks like transfering a file from my Desktop PC to my Unraid server via FTP (the same goes for SMB):
This is almost 3x faster, which should not be the case given that it's a working 1 Gbit/s connection to my router and going from my router to my Desktop PC.
And just for comparison's sake, this is an iperf3 test with my PC running as a server:
root@Tower:~# iperf3 -c 192.168.188.23 -u -p 5201 -b 1200m
Connecting to host 192.168.188.23, port 5201
[ 5] local 192.168.188.24 port 37706 connected to 192.168.188.23 port 5201
[ ID] Interval Transfer Bitrate Total Datagrams
[ 5] 0.00-1.00 sec 101 MBytes 843 Mbits/sec 72198
[ 5] 1.00-2.00 sec 99.8 MBytes 837 Mbits/sec 71662
[ 5] 2.00-3.00 sec 99.2 MBytes 832 Mbits/sec 71234
[ 5] 3.00-4.00 sec 87.9 MBytes 738 Mbits/sec 63157
[ 5] 4.00-5.00 sec 85.7 MBytes 719 Mbits/sec 61560
[ 5] 5.00-6.00 sec 87.2 MBytes 732 Mbits/sec 62639
[ 5] 6.00-7.00 sec 88.1 MBytes 739 Mbits/sec 63255
[ 5] 7.00-8.00 sec 85.4 MBytes 717 Mbits/sec 61368
[ 5] 8.00-9.00 sec 87.2 MBytes 732 Mbits/sec 62651
[ 5] 9.00-10.00 sec 86.0 MBytes 721 Mbits/sec 61754
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Jitter Lost/Total Datagrams
[ 5] 0.00-10.00 sec 907 MBytes 761 Mbits/sec 0.000 ms 0/651478 (0%) sender
[ 5] 0.00-10.00 sec 456 MBytes 383 Mbits/sec 0.052 ms 323474/651235 (50%) receiver
iperf Done.
root@Tower:~# iperf3 -c 192.168.188.23 -u -p 5201 -b 1200m -R
Connecting to host 192.168.188.23, port 5201
Reverse mode, remote host 192.168.188.23 is sending
[ 5] local 192.168.188.24 port 45272 connected to 192.168.188.23 port 5201
[ ID] Interval Transfer Bitrate Jitter Lost/Total Datagrams
[ 5] 0.00-1.00 sec 35.8 MBytes 300 Mbits/sec 0.059 ms 0/25697 (0%)
[ 5] 1.00-2.00 sec 40.3 MBytes 338 Mbits/sec 0.023 ms 0/28916 (0%)
[ 5] 2.00-3.00 sec 40.5 MBytes 340 Mbits/sec 0.023 ms 0/29101 (0%)
[ 5] 3.00-4.00 sec 40.8 MBytes 342 Mbits/sec 0.023 ms 0/29315 (0%)
[ 5] 4.00-5.00 sec 39.8 MBytes 334 Mbits/sec 0.023 ms 0/28560 (0%)
[ 5] 5.00-6.00 sec 40.3 MBytes 338 Mbits/sec 0.026 ms 0/28945 (0%)
[ 5] 6.00-7.00 sec 40.5 MBytes 340 Mbits/sec 0.025 ms 0/29082 (0%)
[ 5] 7.00-8.00 sec 40.7 MBytes 341 Mbits/sec 0.026 ms 0/29226 (0%)
[ 5] 8.00-9.00 sec 40.7 MBytes 341 Mbits/sec 0.025 ms 0/29221 (0%)
[ 5] 9.00-10.00 sec 40.6 MBytes 340 Mbits/sec 0.024 ms 0/29130 (0%)
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Jitter Lost/Total Datagrams
[ 5] 0.00-10.00 sec 400 MBytes 335 Mbits/sec 0.000 ms 0/287193 (0%) sender
[ 5] 0.00-10.00 sec 400 MBytes 335 Mbits/sec 0.024 ms 0/287193 (0%) receiver
iperf Done.
root@Tower:~#
And vice-versa with my Unraid server running as a server:
D:\Programme\iperf3>iperf3 -c 192.168.188.24 -u -p 5201 -b 1200m
Connecting to host 192.168.188.24, port 5201
[ 4] local 192.168.188.23 port 50135 connected to 192.168.188.24 port 5201
[ ID] Interval Transfer Bandwidth Total Datagrams
[ 4] 0.00-1.00 sec 99.1 MBytes 831 Mbits/sec 12688
[ 4] 1.00-2.00 sec 110 MBytes 923 Mbits/sec 14083
[ 4] 2.00-3.00 sec 110 MBytes 922 Mbits/sec 14073
[ 4] 3.00-4.00 sec 110 MBytes 919 Mbits/sec 14021
[ 4] 4.00-5.00 sec 107 MBytes 898 Mbits/sec 13699
[ 4] 5.00-6.00 sec 110 MBytes 923 Mbits/sec 14087
[ 4] 6.00-7.00 sec 110 MBytes 923 Mbits/sec 14089
[ 4] 7.00-8.00 sec 109 MBytes 916 Mbits/sec 13976
[ 4] 8.00-9.00 sec 110 MBytes 920 Mbits/sec 14035
[ 4] 9.00-10.00 sec 109 MBytes 913 Mbits/sec 13927
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bandwidth Jitter Lost/Total Datagrams
[ 4] 0.00-10.00 sec 1.06 GBytes 909 Mbits/sec 0.588 ms 5703/5954 (96%)
[ 4] Sent 5954 datagrams
iperf Done.
D:\Programme\iperf3>iperf3 -c 192.168.188.24 -u -p 5201 -b 1200m -R
Connecting to host 192.168.188.24, port 5201
Reverse mode, remote host 192.168.188.24 is sending
[ 4] local 192.168.188.23 port 54257 connected to 192.168.188.24 port 5201
[ ID] Interval Transfer Bandwidth Jitter Lost/Total Datagrams
[ 4] 0.00-1.00 sec 8.00 KBytes 65.5 Kbits/sec 102269683364.602 ms 0/1 (0%)
[ 4] 1.00-2.00 sec 0.00 Bytes 0.00 bits/sec 102269683364.602 ms 0/0 (0%)
[ 4] 2.00-3.01 sec 0.00 Bytes 0.00 bits/sec 102269683364.602 ms 0/0 (0%)
[ 4] 3.01-4.01 sec 0.00 Bytes 0.00 bits/sec 102269683364.602 ms 0/0 (0%)
[ 4] 4.01-5.01 sec 0.00 Bytes 0.00 bits/sec 102269683364.602 ms 0/0 (0%)
[ 4] 5.01-6.01 sec 0.00 Bytes 0.00 bits/sec 102269683364.602 ms 0/0 (0%)
[ 4] 6.01-7.00 sec 0.00 Bytes 0.00 bits/sec 102269683364.602 ms 0/0 (0%)
[ 4] 7.00-8.00 sec 0.00 Bytes 0.00 bits/sec 102269683364.602 ms 0/0 (0%)
[ 4] 8.00-9.01 sec 0.00 Bytes 0.00 bits/sec 102269683364.602 ms 0/0 (0%)
iperf3: error - unable to receive control message: Connection reset by peer
Something is clearly not working properly here, but I can't figure out what. This is a fresh install with just a couple of settings changed (like creating an FTP User and an SMB User) in addition to reinstalling my Docker containers. For this test though, Docker has been completely disabled.
I've attached a diagnostics file; maybe somebody can figure out what's going on.
