  • [6.9.1] Not all PCIe device show at System Devices page


    Vr2Io
    • Closed Minor

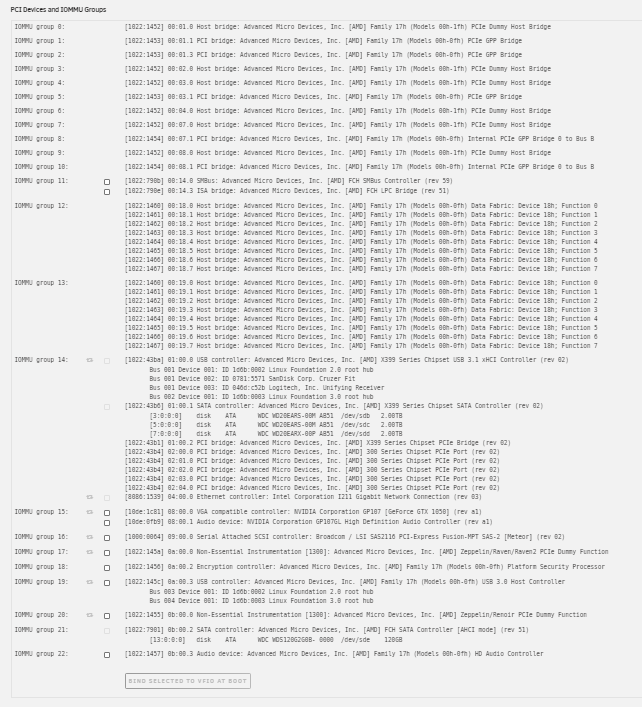

    Below device [ 4x : xx . x ] missing in Devices page, so I can't passthrough the device by GUI. I have try several change in BIOS or Unraid setting still no change.












    40:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Root Complex
    40:00.2 IOMMU: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) I/O Memory Management Unit
    40:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
    40:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
    40:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
    40:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
    40:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
    40:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
    40:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
    40:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
    40:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
    40:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
    41:00.0 Non-Volatile memory controller: Lite-On Technology Corporation Device 23f1 (rev 01)
    42:00.0 Ethernet controller: Intel Corporation 82599ES 10-Gigabit SFI/SFP+ Network Connection (rev 01)
    43:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Zeppelin/Raven/Raven2 PCIe Dummy Function
    43:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor
    43:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller
    44:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Zeppelin/Renoir PCIe Dummy Function
    44:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)






    User Feedback

    Recommended Comments

    John_M

    Posted

    Could it be that only the devices connected to NUMA node 0 are being displayed?

    • Like 1
    Vr2Io

    Posted

    3 hours ago, John_M said:

    Could it be that only the devices connected to NUMA node 0 are being displayed?

    Yes, you make the problem clear.




    ljm42

    Posted

    @Vr2Io would you please give me the output from this command?

    ls -1 /sys/kernel/iommu_groups/*/devices/

    also these:

    lspci -s 40:00.0
    lcpci -ns 40:00.0



    Vr2Io

    Posted

    8 hours ago, ljm42 said:

    @Vr2Io would you please give me the output from this command?


    ls -1 /sys/kernel/iommu_groups/*/devices/

    also these:


    lspci -s 40:00.0
    lcpci -ns 40:00.0



    Attach FYR, thanks !!

    lspci_-s.txt lspci_-ns.txt ls_-1.txt

    ljm42

    Posted

    Based on the output of this:
      ls -1 /sys/kernel/iommu_groups/*/devices/
    the [4x:xx.x] devices you are looking for are not in any IOMMU groups, so they aren't eligible to be bound to vfio-pci or passed through to a VM.



    I haven't seen devices like this that are completely outside of IOMMU groups. Open to suggestions here.

    • Thanks 1
    Vr2Io

    Posted (edited)

    Thanks. But this X399 platform haven't problem in previous Unraid version, no hardware have change.



    A NVMe is one of [4x:xx.x] devices which have passthrough to VM as boot media in past.



    May be I will try some previous Unraid version then feedback and followup.

    Edited by Vr2Io
    Vr2Io

    Posted (edited)

    I try different Unraid version, even new fresh install, but problem persist.

    So I try different BIOS setting again, finally setting IOMMU from default "AUTO" to "Enable" then problem solve.




    Edited by Vr2Io
    Vr2Io

    Posted

    Changed Status to Solved

    Vr2Io

    Posted

    Changed Status to Closed

    ljm42

    Posted

    Oh I missed the notification on this one. I am very glad you were able to figure it out!

    Vr2Io

    Posted

    Thank you found out the symptom, I never think it is BIOS IOMMU setting cause NUMA 1 device out of any IOMMU group.
