• No SMART reports for some of cache SSDs

    luzfcb

    By luzfcb

      • Minor

    Hello, on my Unraid 6.12.8, I have 2 1TB nvme SSDs from the same manufacturer, acting as cache using BTFS

    I recently noticed in the logs that apparently one of the SSDs might be dying.

    Mar 13 18:35:13 f kernel: btrfs_end_super_write: 282 callbacks suppressed
Mar 13 18:35:13 f kernel: BTRFS warning (device nvme0n1p1): lost page write due to IO error on /dev/nvme0n1p1 (-5)
Mar 13 18:35:13 f kernel: BTRFS error (device nvme0n1p1): bdev /dev/nvme0n1p1 errs: wr 326893147, rd 40441477, flush 23342600, corrupt 3, gen 0
Mar 13 18:35:13 f kernel: BTRFS error (device nvme0n1p1): error writing primary super block to device 1
Mar 13 18:35:13 f kernel: BTRFS error (device nvme0n1p1): bdev /dev/nvme0n1p1 errs: wr 326893148, rd 40441477, flush 23342600, corrupt 3, gen 0
Mar 13 18:35:13 f kernel: BTRFS error (device nvme0n1p1): bdev /dev/nvme0n1p1 errs: wr 326893149, rd 40441477, flush 23342600, corrupt 3, gen 0
Mar 13 18:35:13 f kernel: BTRFS warning (device nvme0n1p1): lost page write due to IO error on /dev/nvme0n1p1 (-5)
Mar 13 18:35:13 f kernel: BTRFS error (device nvme0n1p1): error writing primary super block to device 1




    When I click on the device name and then go to the Self-Test tab, and then click on Download, a .zip file is downloaded and inside it, there is a TXT file, that contains the result of the SMART analysis.

    It turns out that only on 1 of the SSDs, the TXT file contains the SMART test report, on the other SSD the TXT file only contains



    smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.1.74-Unraid] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org

Smartctl open device: /dev/nvme0 failed: No such device



    Questions:

    1 - Is this a bug?

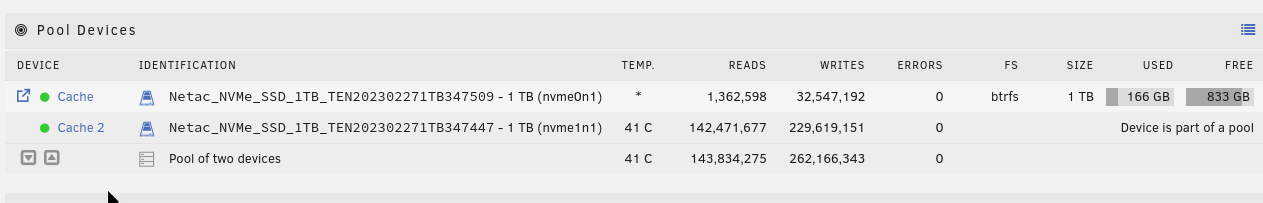

    2 - Why apparently only 1 of the SSDs is being used? ( Cache 2 is used but the )
    3 - In the Self-Test tab of Cache 2, when clicking SMART error log, the error is displayed:

    Num   ErrCount  SQId   CmdId  Status  PELoc          LBA  NSID    VS  Message
  0        106     0  0x0001  0x4004      -            0     0     -  Invalid Field in Command


    Why is the error not counted in "Pool Devices" -> "Errors" column?



    Some extra information:



    root@f:~# cat /etc/unraid-version
version="6.12.8"




    root@f:~# mount | grep nvm
/dev/nvme0n1p1 on /mnt/cache type btrfs (rw,noatime,ssd,discard=async,space_cache=v2,subvolid=5,subvol=/)



    root@f:~# ls /dev/ | grep nvm
nvme1
nvme1n1
nvme1n1p1

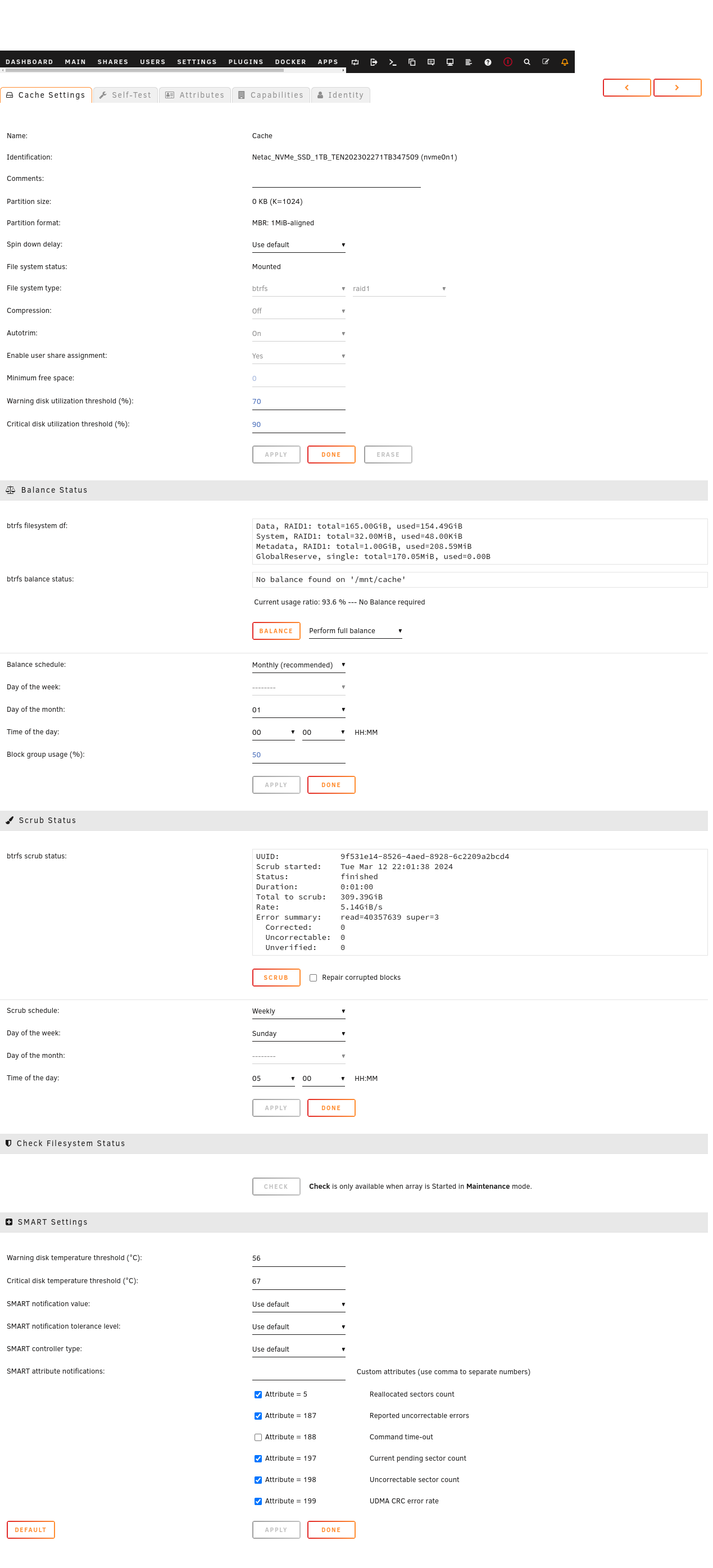

    Cache 1:

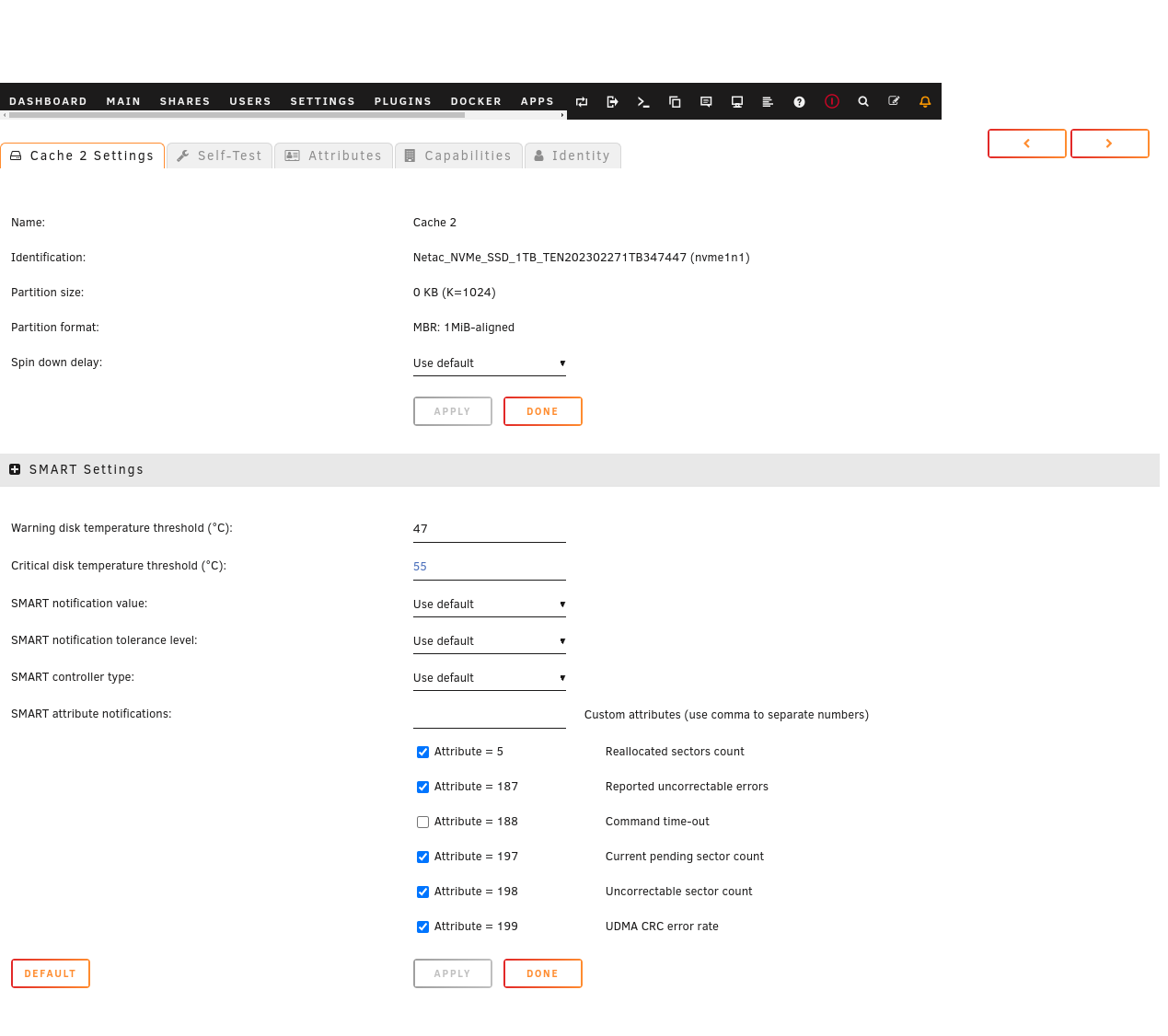

    Cache 2:


    .







    Go to reports Stable Releases

    User Feedback

    Recommended Comments

    JorgeB
    Quote

    It turns out that only on 1 of the SSDs, the TXT file contains the SMART test report, on the other SSD the TXT file only contains



    That, and all the other errors above, suggest the device dropped offline, please post the diagnostics.

    Link to comment
    Maik75

    Same issue here. Raid-1 SSD cache, 2 drives. One seems to be completely gone, there is no device under /dev anymore.

    Unraid reports "Healthy" and did not send any notification. BTRFS seems to be shot, again no error visible anywhere.

    This is highly dangerous behavior, to be honest. How can unraid report "Healthy" SMART when there isn´t even any smart data?







    The only indication is the missing temperature and the weirdly low number of reads/writes. The drive is not in the system anymore.



    Notice the lack of /dev/sdf:




    Discrepancy because visible in the UI as well, when looking at the SMART attributes for that drive:




    Again, how is this reported as "Healthy" and no notification whatsoever... I lost significant data probably, because the first drive of the cache seems to have a corrupted BTRFS as well.



    File system check in the UI is useless somehow as well. UI shows this (currently running):




    0 errors, nice isn´t it.



    This is the current log:. /dev/sdd seems shot too:




    Several ten thousands BTRFS errors..



    At this point I don´t trust the UI for either SMART or BTRFS status anymore.



    Serious problem in from my point of view.



    Maik.



    Link to comment
    JorgeB
    15 minutes ago, Maik75 said:

    Several ten thousands BTRFS errors..

    Same issue, one of your devices dropped offline, Unraid does not currently monitor pool devices, it's an old feature request of mine, for now you see here for better pool monitoring.

    Link to comment
    Maik75

    Maik75 0

    Posted (edited)

    I could accept the BTRFS issue - however what about the "SMART Healthy" information? If you display an utterly wrong information, then why display SMART for pool devices at all? This is misleading at least.

    Your own UI display for smart details shows "failed" btw, this I consider a bug. Why show "failed" in one part of the UI and "Healthy" in another?



    Edited by Maik75
    Link to comment
    JorgeB
    7 minutes ago, Maik75 said:

    however what about the "SMART Healthy" information?

    Since the device dropped offline there's no SMART, you need to reconnect the device to get that again.

    Link to comment
    Maik75

    Yes I understand that. Displaying "Healthy" for the drive in questions however seems like a serious UI bug, wouldn´t you agree?



    Link to comment
    JorgeB
    1 hour ago, Maik75 said:

    Displaying "Healthy" for the drive in questions however seems like a serious UI bug, wouldn´t you agree?

    I do, the only clue you get for now when a pool device drops, is that is stops showing the temp.

    Link to comment
