When attempting to pass through the 8111 network interface (Realtek RTL8111) to a virtual machine running on Unraid, the VM fails to start and QEMU throws an assertion failure related to PCI IRQ handling:
internal error: QEMU unexpectedly closed the monitor (vm='openwrt'): qxl_send_events: spice-server bug: guest stopped, ignoring qemu-system-x86_64: ../hw/pci/pci.c:1633: pci_irq_handler: Assertion 0 <= irq_num && irq_num < PCI_NUM_PINS' failed.
Steps to Reproduce:
Configure a virtual machine in Unraid.
Pass through the 8111 network interface (Realtek RTL8111) to the VM.
Start the virtual machine.
The VM fails to launch, and the error message appears in the log.
Expected Behavior:
The virtual machine should start successfully with the 8111 network interface passed through, without any errors related to PCI IRQ handling.
Actual Behavior:
The virtual machine fails to launch, and QEMU throws an assertion failure related to pci_irq_handler in pci.c.
Environment:
Host OS: Unraid
Guest OS: OpenWrt
Network Interface:
8125 (used for host connectivity)
8111 (passed through to VM, causing error)
Logs:
Feb 6 13:54:00 mewtwo rc.docker: Containers started.
Feb 6 13:55:40 mewtwo kernel: br0: port 2(vnet0) entered blocking state
Feb 6 13:55:40 mewtwo kernel: br0: port 2(vnet0) entered disabled state
Feb 6 13:55:40 mewtwo kernel: vnet0: entered allmulticast mode
Feb 6 13:55:40 mewtwo kernel: vnet0: entered promiscuous mode
Feb 6 13:55:40 mewtwo kernel: br0: port 2(vnet0) entered blocking state
Feb 6 13:55:40 mewtwo kernel: br0: port 2(vnet0) entered forwarding state
Feb 6 13:55:41 mewtwo kernel: pcieport 0000:00:1c.1: broken device, retraining non-functional downstream link at 2.5GT/s
Feb 6 13:55:42 mewtwo kernel: pcieport 0000:00:1c.1: retraining failed
Feb 6 13:55:43 mewtwo kernel: pcieport 0000:00:1c.1: Data Link Layer Link Active not set in 1000 msec
Feb 6 13:55:44 mewtwo kernel: pcieport 0000:00:1c.1: Data Link Layer Link Active not set in 1000 msec
Feb 6 13:55:44 mewtwo kernel: vfio-pci 0000:03:00.0: Unable to change power state from D0 to D3hot, device inaccessible
Feb 6 13:55:44 mewtwo kernel: br0: port 2(vnet0) entered disabled state
Feb 6 13:55:44 mewtwo kernel: vnet0 (unregistering): left allmulticast mode
Feb 6 13:55:44 mewtwo kernel: vnet0 (unregistering): left promiscuous mode
Feb 6 13:55:44 mewtwo kernel: br0: port 2(vnet0) entered disabled state
Feb 6 13:55:44 mewtwo kernel: vfio-pci 0000:03:00.0: Unable to change power state from D3cold to D0, device inaccessible
Feb 6 13:55:44 mewtwo kernel: vfio-pci 0000:03:00.0: Unable to change power state from D3cold to D0, device inaccessible
Feb 6 13:55:50 mewtwo kernel: vfio-pci 0000:03:00.0: Unable to change power state from D3cold to D0, device inaccessible

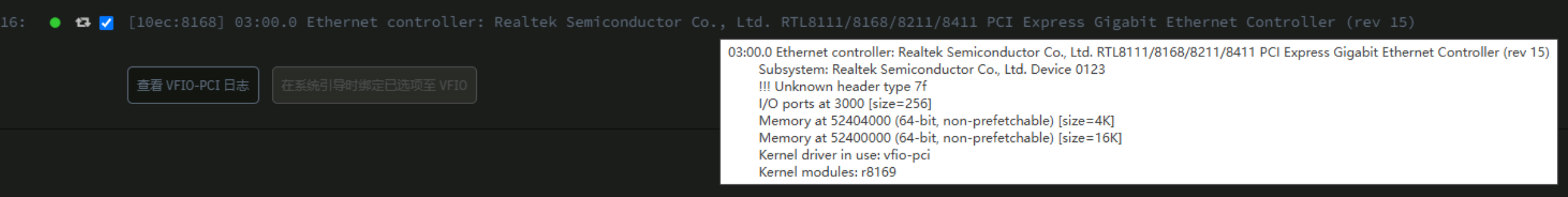

After a while of system startup, the 8111 graphics card displays "Unknown header type 7f" and The error message when creating a virtual machine changes to ‘internal error: Unknown PCI header type '127' for device '0000:03:00.0'
