It works perfectly. The TBS 6281 SE dual TNT tuner is detected perfectly with a kernel provded by unraid. I have simply use the unraid DVB plugin provided by https://forums.unraid.net/topic/46194-plugin-linuxserverio-unraid-dvb/ or directly https://github.com/linuxserver/Unraid-DVB-Plugin just installed the kernel with TBS, restarted my server, and immediately detected. Then I've just added the device /dev/dvb to the plex docker config. In plex, I simply did a full scan, configured a bit the calendar etc... and in less than 5 minutes I was able to record everything. I tested this configuration with an intel i5-6400t and a pentium celeron J4105. Results are completely different. with the i5 6400T, recording and transcoding is not even noticeable (less than 10% of load...) with the j4105, recording and trasncoding require more than 20-30% of CPU. Meanwhile if you are playing a content, you jump to 100% !! My main concerns was the mutlitasking. Plex with a celeron J4105 (or 4005 or 5005... same) has multiple limitations. The main one : the quicksync feature is not active (despite intel says it works). Consequence: playing a content requiring transcoding while recording DVB, push the platform at its limits. With the intel i5 6400T... you can do all an lot more at the same time. So pay attention to your architecture if you plan to use a DVB TBS tuner.

I've just bought a TBS 6281SE dual tuner pcie x1. I let you know later how it works. If anyone has something to share about it, please do not hesitate.

Hey Guys, Same for me. I wonder if can add a new fresh feature to my favorite unraid NAS with DVR etc... I already use plex for years and I have a premium access. Now I am looking for a pcie x1 DVBT card to add in my server to use DVR with my samsung TV. No HDHomeRun or any other kind of network tuner, I lack power plug, power cord and ethernet ports.... And it is absolutely horrible to see tons of cable around/behind your tv. So I just need a simple DVB tuner card to be able to record live DVB-t stream. I have the latest unraid with plex docker. Does anyone can share experience in this thread... good or bad. thanks

I switch to i5-6400t with motherboard GA-H110M-S2H.... I jump to 30/50W but at least it will work like I want. I am right now between 20 and 35W but too slow. Do you think this time I do a better choice ? I think I can really use the 20$ I invested in my legit (or not hahaha) lsi card to really mulitplex my 2.5 slow hard disks edit; I have returned to amazon my 23$ pciex1 sata card....

hum... I think I found the issue... my fucking motherboard asrock j4105M as a pcie 2.0 x16 port running at x1 speed !!!! this situation is just crazy !!! https://www.asrock.com/MB/Intel/J4105M/index.asp again a new return to amazon pff

..... seriously.... lol.... what can I do ? there is a setting somewhere? never seen that before.

controller link looks good... speedtest docker : SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] IBM (Broadcom / LSI) Serial Attached SCSI controller Type: Add-on Card in PCIe Slot 2 (x16 PCI Express) Current & Maximum Link Speed: 5GT/s width x1 (4 GB/s max throughput) Capabilities: storage pm pciexpress vpd msi msix bus_master cap_list rom Port 1: sdb 1TB Western Digital WD10JPVX Rev 08.01A08 Serial: WXW1A17AP02T (Disk 5) Port 2: sdc 1TB Western Digital WD10JPVX Rev 08.01A08 Serial: WXX1A178VD2Y (Disk 4) Port 3: sdd 1TB Western Digital WD10JPVX Rev 08.01A08 Serial: WXW1A17PTTNY (Disk 2) Port 4: sde 1TB Western Digital WD10JPVX Rev 01.01A01 Serial: WX81E73KEER4 (Disk 3) Port 5: sdf 1TB Seagate ST1000LM035 Rev LCM2 Serial: WL1FVK5S (Parity 2) Port 6: sdg 1TB Unknown HTS541010A9E662 Rev JA0AB5D0 Serial: JA8000ET03SZSS (Disk 1) Port 7: sdh 1TB Western Digital WD10JPVX Rev 08.01A08 Serial: WXW1A17APEXK (Disk 6) Port 8: sdi 1TB Seagate ST1000LM035 Rev LCM2 Serial: WL12V84C (Parity) lspci -vv results: 02:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] (rev 03) Subsystem: Broadcom / LSI SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 23 Region 0: I/O ports at e000 Region 1: Memory at 805c0000 (64-bit, non-prefetchable) Region 3: Memory at 80180000 (64-bit, non-prefetchable) Expansion ROM at 80100000 [disabled] Capabilities: [50] Power Management version 3 Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [68] Express (v2) Endpoint, MSI 00 DevCap: MaxPayload 4096 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0.000W DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+ RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ FLReset- MaxPayload 256 bytes, MaxReadReq 512 bytes DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend- LnkCap: Port #0, Speed 5GT/s, Width x8, ASPM L0s, Exit Latency L0s <64ns ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp- LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 5GT/s (ok), Width x1 (downgraded) TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Range BC, TimeoutDis+, LTR-, OBFF Not Supported AtomicOpsCap: 32bit- 64bit- 128bitCAS- DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled AtomicOpsCtl: ReqEn- LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis- Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance De-emphasis: -6dB LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1- EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest- Capabilities: [d0] Vital Product Data Not readable Capabilities: [a8] MSI: Enable- Count=1/1 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [c0] MSI-X: Enable+ Count=15 Masked- Vector table: BAR=1 offset=00002000 PBA: BAR=1 offset=00003800 Capabilities: [100 v1] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr- CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+ AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn- MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap- HeaderLog: 00000000 00000000 00000000 00000000 Capabilities: [138 v1] Power Budgeting <?> Capabilities: [150 v1] Single Root I/O Virtualization (SR-IOV) IOVCap: Migration-, Interrupt Message Number: 000 IOVCtl: Enable- Migration- Interrupt- MSE- ARIHierarchy+ IOVSta: Migration- Initial VFs: 16, Total VFs: 16, Number of VFs: 0, Function Dependency Link: 00 VF offset: 1, stride: 1, Device ID: 0072 Supported Page Size: 00000553, System Page Size: 00000001 Region 0: Memory at 00000000805c4000 (64-bit, non-prefetchable) Region 2: Memory at 00000000801c0000 (64-bit, non-prefetchable) VF Migration: offset: 00000000, BIR: 0 Capabilities: [190 v1] Alternative Routing-ID Interpretation (ARI) ARICap: MFVC- ACS-, Next Function: 0 ARICtl: MFVC- ACS-, Function Group: 0 Kernel driver in use: mpt3sas Kernel modules: mpt3sas I have CC the jpg of benchamrk results. I see 8 disks, with speed from 130 -> 60. So the average I imagine should be around 85/90. Still don't understand why parity check cap at 55MB/s. I have also included history of parity check. The 63MB/s was prior the LSI card installation (2 parity drives onboard SATA + 6 sata disk on pcie x1 card). 53MB/s is with all disks on LSI SAS 2008. 1 parity drive on port1, 1 parity drive on port0.

How can I test the link speed with the controller? I have check my MB bios, and force pcie 2.0 for the slot... in case of. Nothing change with AUTO mode. I have also disable ASPM? benchmarks are running.

another information, maybe relevant... during dd tests, write speed vary depending on where data is written on disk..... 130 to 70MB/s. read don't... always 50MB/s... even when I read the file written during the write test at 130MB/s for example. of course I do write and read tests on /mnt/disk[1-6] to not use my cache. I don't use a sata cache SDD drive but a pcie card with nvme SDD, which is far more efficient than the sata version... I would never go back on a sata sdd cache drive anymore !!!!

I have just upgrade my conf with a lsi sas 2008 and I can't figure out why read performance are worst with the LSI than with SATA. I have a LSI 9220-8i, H3-25113-03A. Write performance are better, for example if I do a dd test, write performs 30 to 40% faster. (tests done on the same drive). On my old 2.5 1T drive, I can reach more 130MB/s write speed at the beginning of the disk and around 70MB/s at the end. It was not possible to reach this level of performance with my sata card on regular load. With my sata card, I was able to have this kind of performance if I turn off all dockers and VM. But read performances are stuck at 50MB/s max.... on ALL drives. This is the first time I see disks faster during write than read. For example, if I do a parity check, I am stuck around 50MB/s because read is done at this speed. If I use my onboard sata (for parity disks) and pci sata 6x ports (for data disks), parity check is done at 65MB/s. please help. BTW, I have flash the latest firmware P20 yesterday, nothing changed. I have bought this card on ebay, from a seller with thousands of positive feedbacks. the card was delivered with the firmware 10.x.x.x Any idea where I can investigate?

thanks... I have never notice this settings (or I forgot, I installed my first unraid server more than a year ago). Why it is not enable by default ? or maybe you can add a tick box on the main page at the top of array(s).

HI all, I have a weird situation I did not had before. I built a small server with just 1 data disk, no parity. Every time this server is restarted, the array is not restarted automatically. I have to log in and click start array manually. One restarted, everything works perfectly, no error detected, no problem apparently. Do you have any idea why? is it possible to have an array with just one data disk ? Thanks for your responses.

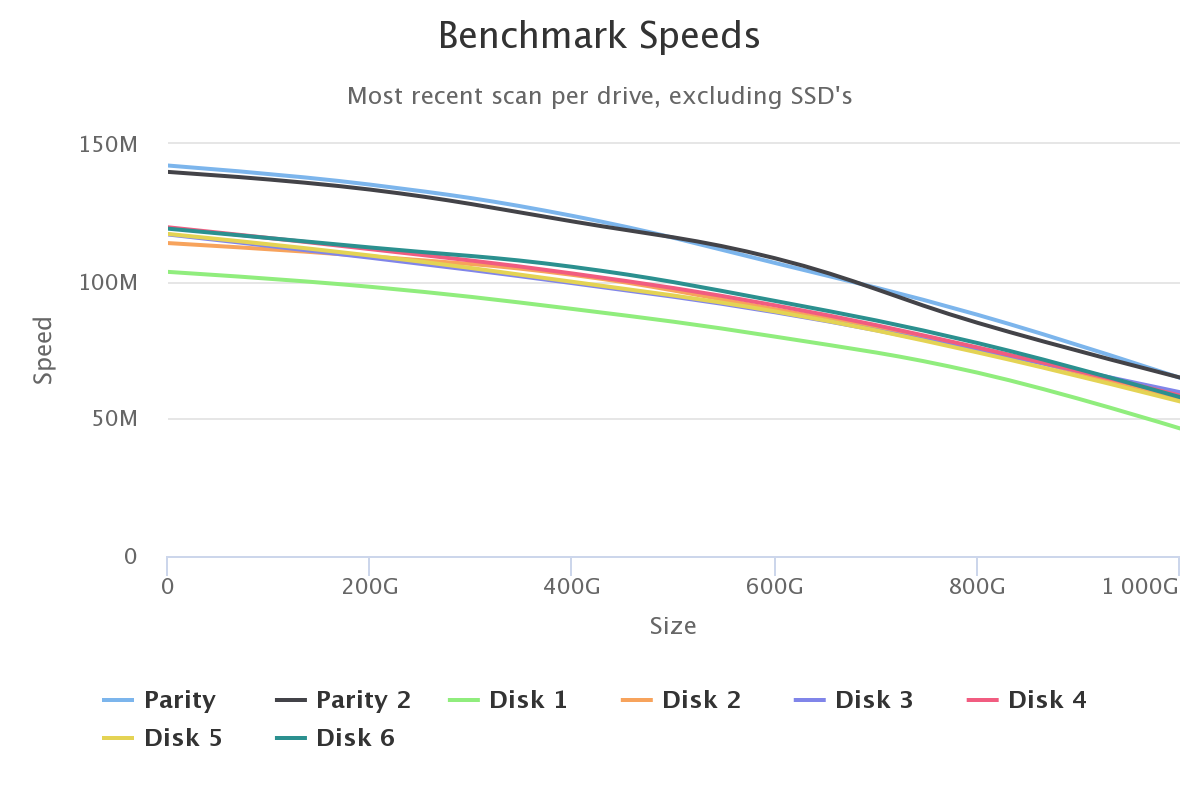

So, now I removed all WD smr disk and change the controller to use a 6 ports sata controller (3 sata + 3 sata multiplex). Bad performances disappeared and I am back on regular performance. replacing my 2 parity disk from wd smr to seagate were 2 very slow operations... 3 to 4 MB/s (see check history). I was not just only a replacement but a switch data/parity disk to use seagate disks for parity. then I replaced one by one all my WD SMR disk by WD CMR disk. You can see that slowly, the speed increase at each replacement (4 disks). all WD10SPZX replaced by WD10JPVX (I was lucky to find a guy selling 4 of them, completely new and cheap) the last graph is the speed disk test which also demonstrate the speed gap between old CMR and new SMR disk with western digital. Expect 30 to 40% more just during the speed test and 5 to 6 times better with unraid (12Mb/s compared to 65Mb/s during parity check). to conclude, for all unraid users, try to avoid as much as possible all SMR disk, especially in 2.5 format, performance are even worst in 2,5 compared to 3.5. Soon I wil replace my motherboard by the new intel j4125B with a pcie2 x16 port, allowing me to use a LSI SAS HBA 8-ports instead of my 4-6 ports sata card pciex1. I do not expect a huge performance gap (my disks are not that fast !!) but surely batter performance under heavy load or simultaneous access and less errors. Last point, a disk created mysteriously some errors when connect to my marvell data card. Impossible to reproduce those erros with crystal disk or any other smart tools... moreover, smart error reported by the marvel card was not reported anymore when connected to crystal disk on windows. So I replaced also the 8x sata port card (under warranty) and downgrade to a 6 ports card which do not create any error. Problem solved... hardware choices and configuration was the issue.

2 x ST1000LM035

are you sure about it? They perform better than my other CMR drives I have and based on list provided by seagate, LM015, LM024 and LM048 are confirmed SMR. LM035 are manufactured in 2016, apparently CMR. Do you know any tips to check the technology used?

last thing... maybe important for some people, but my setup with seagate CMR as parity drives consume 21 to 25W. (8 drives + ssd cache + motherboard) My setup with WD drives as parity consume 19 to 21 W. During sleep, the lowest I used to have with my old configuration was 15,6 W.... After 24 hours with this reorganisation of drives, during sleep I am above 17 W. My seagate CMR drives are LM035, so not the latest technology. and my WD SMR drives are form 2019 !!

It took me 3-4 days per parity disk to replace my 2 parity disk (wd blue SMR) by Seagate CMR. Around 3-4 Mb/s..... OMG so long. Almost a week for 2 disks !!!! BUT, I am now back on "regular" performance, around 65MB/s for parity check. Conclusion: NEVER USE SMR DISK FOR PARITY !!! SMR disks for parity with SMR disks for data... 15Mb/s CMR disks for parity with SMR disks for data... 65MB/s I have notice a limitation on 8 ports RTD1295 with port multiplexer. If I connect more than 3 drives on the port multiplexer, performance fall down significantly. Parity disk attached with sata onboard or pci ext sata card has no impact on performance. I have even tried to connect a parity drive on a multiplexed sata port... performance remains the same. Just the number of drives connected on a multiplexed port has impact on performance. So I recommend to not use the 8 ports pcie card with an RTD1295 but maximum 6 ports (3 sata ports + the 4th port is multiplexer with 3 sata). Performance are the same for 4 to 6 drives. Performance are bad to very bad with 7 or 8 drives !! and you will save money, in Europe sata 6 cards cost 20€... the 8 ports cost 45€. the 8 ports card does not worth it at all. I am replacing all my WD blue SMR disks by older WD blue (before 2018) with regular CMR technology. I will let you know impact on performance next week when all drivers are switched. On the 2nd hand market, they all cost the same price, so easy to sell my SMR to buy CMR without losing money. (they are all second hand since the beginning of my NAS) And I will also move my seagate CMR disk to data disk. I have notice a little increase of the noise level with seagate CMR compared to wd blue SMR when I ise them for parity. Not only during writes... the noise level is always higher with my seagate drives. The noise level is very important for me, my NAS is ia HTPC under my tv used for plex/pihole/torrent/openvpn/smb, that why I have designed my NAS with 2,5 disk instead of 3,5 because they do less noise.

Good to know. Thank you Johnnie for this precious information. I was not aware at all about this bottleneck in my configuration and maybe a lot of people can have the same issue without knowing it. I have an asrock mitx J5005 https://www.asrock.com/mb/Intel/J5005-ITX/index.asp It is a very cheap configuration, but it is so more powerfull than a NAS more expensive from qnap or synology (when it works haha). It is not easy to find a sata controller, with 8 disks on a pcie x1 port (this is the only port I have on my motherboard). Based on what you say I think I found where you look at in syslog file PCIE SATA CONTROLLER MARVELL Jul 22 09:43:31 Tower kernel: ata4.00: ATA-10: ST1000LM035-1RK172, WL12V84C, LCM2, max UDMA/100 Jul 22 09:43:31 Tower kernel: ata4.00: configured for UDMA/100 Jul 22 09:43:31 Tower kernel: ata5.00: ATA-10: WDC WD10SPZX-75Z10T2, WXG1A29LVT1Y, 03.01A03, max UDMA/133 Jul 22 09:43:31 Tower kernel: ata5.00: configured for UDMA/133 Jul 22 09:43:31 Tower kernel: ata6.00: ATA-10: ST1000LM035-1RK172, WL1FVK5S, LCM2, max UDMA/100 Jul 22 09:43:31 Tower kernel: ata6.00: configured for UDMA/100 Jul 22 09:43:31 Tower kernel: ata6.01: ATA-9: WDC WD10JPVX-75JC3T0, WX81E73KEER4, 01.01A01, max UDMA/133 Jul 22 09:43:31 Tower kernel: ata6.01: configured for UDMA/133 Jul 22 09:43:31 Tower kernel: ata6.02: ATA-10: WDC WD10SPZX-60Z10T0, WD-WX71A9849U04, 04.01A04, max UDMA/133 Jul 22 09:43:31 Tower kernel: ata6.02: configured for UDMA/133 this is the controller I bought Marvell 88SE9215 + JMicron JMB5xx 8 Ports https://www.amazon.fr/gp/product/B07ZT31GTD/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1 I should have bought the 6 ports version of this controller... it is the same without a JMicron JMB5xx sata multiplier !! As soon as my rebuild parity is done (at 5Mb/s... 2 days OMG !!!), I change how my disks are connected. Do you think using ST disks for parity disks and WD disks for data can help? Do you think ATA-8, ATA-9 or ATA-10 has any importance ? it is the ATA stack version, correct ? If I cannot avoid using a sata port multiplier, I assume I should at least use the same version of ATA compatibilty and also avoid mixing UDMA100 and UDMA133. BTW if you have any recommendation for another sata controller on pcie x1 port with 6 sata ports, do not hesitate. Thanks

What do you mean by "my controller configuration is not the best". Do you recommend I change anything? I do the dd test as soon as my array restart... partity rebuild, I tried to change 1 disk of parity, based on the rebuilt speed, I have not changed the right disk yet

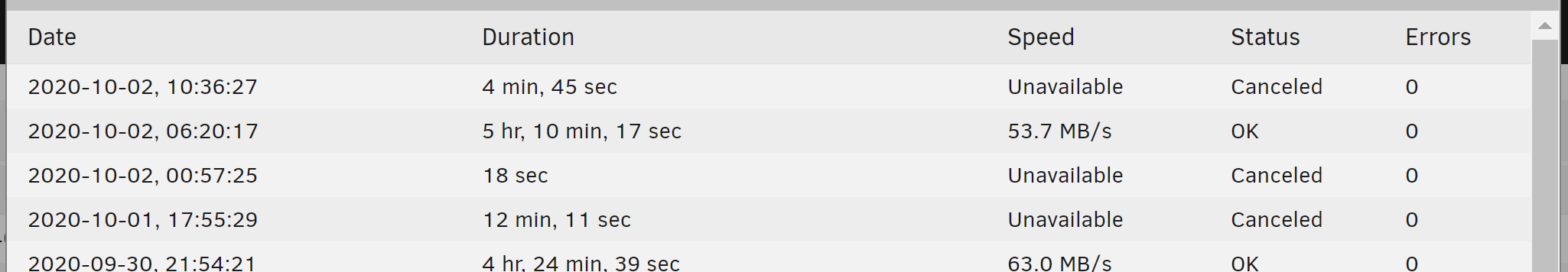

I totally agree and red tons of documentations about it. BUT, if you pay attention to the first image displaying check history dates and durations, you can notice that suddenly, after fixing errors, speed fall down. No disk were changed, the array is exactly the same than before. This is why I doubt my problem is related to hardware. But i might be possible that an hardware error suddenly raised during the xfs repair. I launch a complete surface test.

anyone has an idea why my unraid server is so slow managing disks ? I don't know where I can investigate... surely in the raid administration?

I have just run a diskspeed... nothing really interesting. All dockers were running during the test but with no a really few activity. The 2 parity disk looks slower than others..... but at least 45M in read and write. I am not sure disk are really the sourvce of this issue.

The array did not restart automatically and I clicked a button in the interface.

all issues appeared after I clicked "repair array". Maybe there is an issue not covered completely by the repair ?

I tried diskspeed already. I had weird results showing different disk slow everytime I tried. The speed gap detection is really an issue, with different disj never ending the process... I tried also to check diskpeed with hdparm, but it did not show any disk slower than another. Do you know anything thing I can do to get a deeper analysis (and log) next time I do a parity check? I am not used at all with mdadm. I do a new diskspeed benchmark later today when my server is free to use.
