John Detter

To finish up this post, I still don't really know what the exact issue was. I reconfigured my network so that my unraid machine is connected using an RJ45 transmitter instead of a DAC to the switch and the problem has completely gone away. If anyone else is experiencing this issue, I would suggest trying different connectors earlier in the debugging process. Its possible that my switch didn't like the direct attach copper cable I was using or it didn't like the original JR45 transceiver that I was using. If I had to start over I would definitely start with: 1. Connect to the unraid machine directly using a DAC cable. This requires buying 2 10G nics, but they're super cheap on ebay so this is worth it for debugging. Set a static IP to both the unraid machine and the test machine. Use iperf3 to test the connection speed - this eliminates your storage as a bottleneck. You can download iperf3 for unraid using the NerdPack plugin. 2. If you're still not getting the full speed, swap out your direct attach copper cables and/or transceivers for different brands. I'm not sure if the MikroTik switch I'm using was fussy about the hardware I was using, but after swapping out the DAC and using transceivers instead the problem has gone away. 3. Also measure your ethernet cable runs if you're using RJ45 transceivers, it seems like most entry-level transceivers only go up to 30 meters through CAT6a cable. Copying from Unraid is no longer an issue, the cache pool is now the bottleneck for the connection: Writing to the array is now slower than reading, which is what I originally expected (New Folder is in an Unraid cache pool): Thank you @Vr2Io for your suggestions, they helped move me along to the correct config 🙂

I was able to load up the Solarflare configuration utility and disable flow control, unfortunately it doesn't appear to have made a difference. I also turned off LSO and it didn't seem to help. I ordered a Mellanox Connect X-3 to replace this card, hopefully I have better luck with that. Its just strange to me that this card performs normally under Ubuntu 18.04 but doesn't work under Unraid. I am going to hold onto the Solarflare card and either use it under Windows or for another client machine (likely just going to stay in my test bench). I've also increased the send/receive tcp buffer sizes in the sysctl.conf file, that hasn't helped either. I also completely disabled flow control in the switch as well, also didn't make a difference. I'm not really sure what else to try Thanks again for the help 🙂

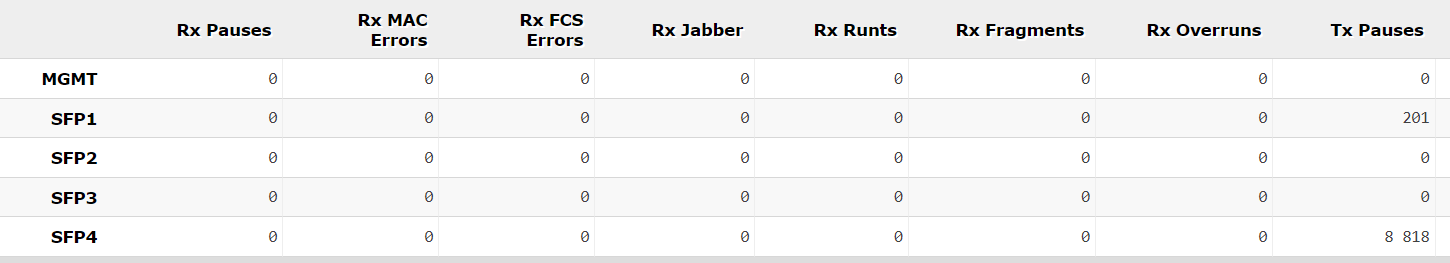

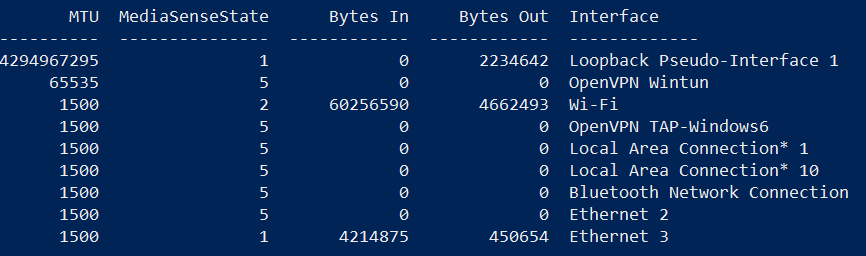

Ah, I did not notice the retry count - thanks for pointing that out. The MTU on my windows machine is the standard MTU (Ethernet 3 - 1500): I also confirmed in Unraid that it is set to the default MTU in the network settings, which I also confirmed in the syslog. I can see in my MikroTik switch that there are Tx Pauses, which I'm assuming is a symptom/cause of the retries: Could this also be a problem caused by the switch? I guess its also possible that its a bad DAC SFP+ cable, I don't have an extra one to try on hand but I could get one. Thanks for the input 🙂 - John

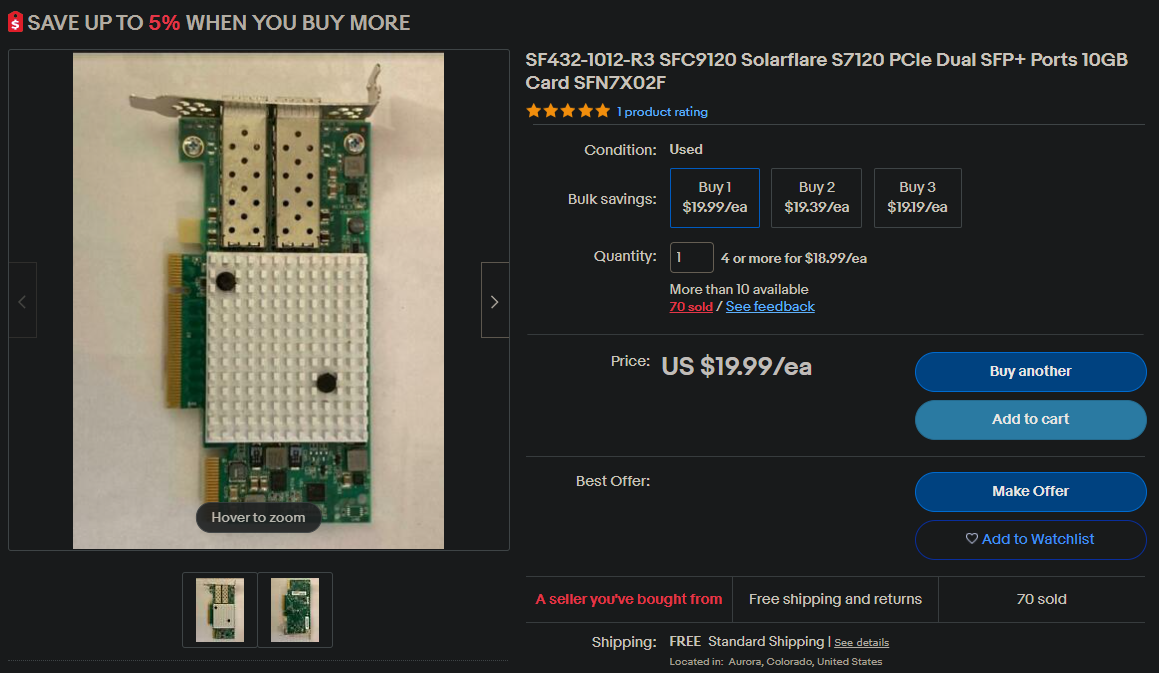

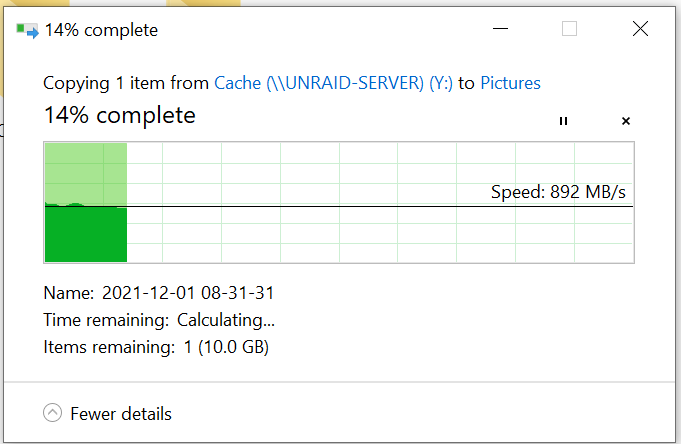

Hello everyone! I recently attempted to upgrade my Unraid machine to 10gbps networking. This is the card that I bought off of ebay: https://www.ebay.com/itm/164688767051 (Screenshot in case the listing is taken down) Originally I was super impressed with the write speeds, I only have a 2.5gbps network adapter to test with and I'm getting almost the full speed. I am using an SSD cache-only share to test this: But the read speeds are very slow, slower than a 1G connection: At first I thought the issue must be samba or my local windows 11 install, so I tried SFTP and got the exact same results, writing to the array is fast, reading is slow. After about 6 hours of debugging, I was able to figure out that the cache is performing just fine and I have narrowed it down to the network card. Running iperf3 on Unraid gives the expected results when Unraid is the server (again the max speed I'm expecting is 2.5Gbps because of my network adapter): When I set Unraid to be the client, I get the very slow network results: However, what is strange is that when I connect to the Unraid machine from a computer running with a 1Gbps card, I get the full 1Gbps speeds both in Samba, sftp and in iperf3. Extra Details: The Unraid machine and my test client are connected using a MikroTik switch: https://www.amazon.com/MikroTik-CRS305-1G-4S-Gigabit-Ethernet-RouterOS/dp/B07LFKGP1L The MikroTik switch is set to SwitchOS mode, I have also tried RouterOS mode and it performs the same. The raid contains 7 hard disks, 4 SSDs, 2 of the hard disks are parity disks Things I've tried so far: - I put the Solarflare network card into another desktop machine running Ubuntu 18.04 and it was able to perform the iperf3 test at the full expected speed. This makes me think the card and the switch are working as expected. - Swapping the PCI slot that the network card is attached to - The Unraid server is connected to the MikroTik switch using a DAC SFP+ cable - The test server is connected to the MikroTik switch using a 2.5Gbps to USB-C network adapter => CAT6 RJ45 cable => 10gbps RJ45 transceiver, I have swapped out the CAT6 cable for other cables and it has had no effect. - I have upgraded the firmware on the Solarflare card to the latest available. This was done using the solarflare firmware update tool available on Windows. I have also attached my anonymous diagnostics, but I'm not sure if they will be much help here. I have read through more than 20 other unraid posts complaining about a similar issue, but I wasn't able to find a solution to this problem. Does anyone know how to fix this, or any ideas to move forward on debugging this? I have provided as much information as possible, but if you have more questions please let me know. Thanks for the help and thanks for reading, John unraid-server-diagnostics-20211211-1621.zip

After taking out the crucial sticks it seems like I keep getting 1 sync error on the same sector, so now I'm running a correcting check and then I'll run another parity check to see if I get 0 sync errors. It does seem to be one of the crucial sticks causing the issue. I'm about 90% sure the problem is solved now, just need to buy some more ram. Thank you everyone for the help! :)

First parity sync resulted in 0 sync errors, another parity sync is in progress right now but it looks like there 3 errors so far so it seems like the problem hasn't gone away. I guess it has to be the ram? The only thing I moved to the new motherboard is the disks + ram + psu. I'm just going to run a parity sync with the kingston sticks in to see if I can get consistent results, I believe I was still getting sync errors with the crucial sticks.

Small update: I did still get errors after removing half of the ram. I've transplanted the system onto a different mobo/cpu combo that I had and so far it actually has no sync errors, I will update again later today/tomorrow with the results of the parity check that's running right now. However if I do get a small number of parity sync errors it is possible that those are legitimate errors right? I suppose I need to do 2 consecutive parity checks and see if the errors are consistent? (either no errors or same amount of errors with same sectors).

Ok, I will give that a try and post the results later today.

I actually do have another motherboard I can plug everything into, do I just move over all of the ram + disks + USB drive to the new board and then run a parity sync?

@Spies Good point I will give that a try

I ran memtest86 for over 24 hours and no issues, its still running now and I will probably keep it running until tomorrow. The only thing left I could think of is maybe swapping out sata cables? Also this is non-ECC ram which I know is not ideal, but this is the second time I've run this test for over 24 hours and never had an issue. I agree that it would make a lot of sense if it was a ram issue but it seems like memtest can't reproduce the issue, is there anything else I should try before buying new ram?

Alright I will start that now, I will let it run for 24 hours and then post the results tomorrow.

Here is the result of the second run: unraid-server-diagnostics-20200711-0629.zip Any help would be much appreciated, I'm really out of things to try.

(posting parity check result 1/2) The day got away from me a bit, but here are the diagnostics from the run that just finished: unraid-server-diagnostics-20200710-1418.zip There were 2000+ errors in my latest run: I have another run going right now. I'm a bit surprised that there were so many sync errors, I've never had this many before. I'm running another non-correcting check now, I will try to post that later today when it finishes.

@johnnie.black There is a parity check running right now that will be finished soon so I will grab the diagnostics from that and then do another parity check right after. These should be non-correcting checks right? If these 2 consecutive tests return with no sync errors should I keep running until I get a run with errors? (the sync errors do not appear after every consecutive run). Thanks for the quick reply.
