Those are anonymized. The Xs (and 0/1) are unique values. They aren’t actually just one off.

Hello, I have identified an issue that seems to affect my USB enclosure which uses a Jmicron USB bridge (ID 152d:0567 JMicron Technology Corp.) This causes unRAID to see all disks in the enclosure as having the same serial number. After some troubleshooting, I was able to determine that this was because udev was not able to obtain the serials through the ata_id utility. After much finagling, I was able to compile a patched version of ata_id and upon replacing it, the disks now correctly show up with unique serials. This was fixed upstream quite a while ago, but never made it into the Slackware distro: https://github.com/systemd/systemd/issues/2362 The patch itself is quite small: https://github.com/harendra-kumar/systemd/commit/75feb52379f80c3df354b85d1df3274fdde5fccd I'd love to see this included in the latest version of unRAID if possible! Otherwise please point me in the right direction as to how I should properly override the /lib/udev/ata_id file. It needs to be quite early in the boot process before udev triggers, otherwise I need to retrigger udev and start the array every time. I compiled a patched version of ata_id and added an install script that triggers udev in my /boot/extra directory, and it correctly passes the serial numbers through after the fix. --- Demonstration of issue: When I put my two drives in my DAS, udev cannot distinguish between any of my drives even though they have unique serials. Same thing happens with assigned drives. # udevadm info --query=all --name=/dev/sdb | grep -i serial E: ID_SERIAL=Samsung_SSD_850_EVO_500G_202006054D01-0:1 E: ID_SERIAL_SHORT=202006054D01 # udevadm info --query=all --name=/dev/sda | grep -i serial E: ID_SERIAL=Samsung_SSD_850_EVO_500G_202006054D01-0:0 E: ID_SERIAL_SHORT=202006054D01 However, hdparm -I correctly identifies the disks uniquely: # hdparm -I /dev/sda | grep -i serial Serial Number: S3PTNF0JXXXXXX0 # hdparm -I /dev/sdb | grep -i serial Serial Number: S3PTNF0JXXXXXX1

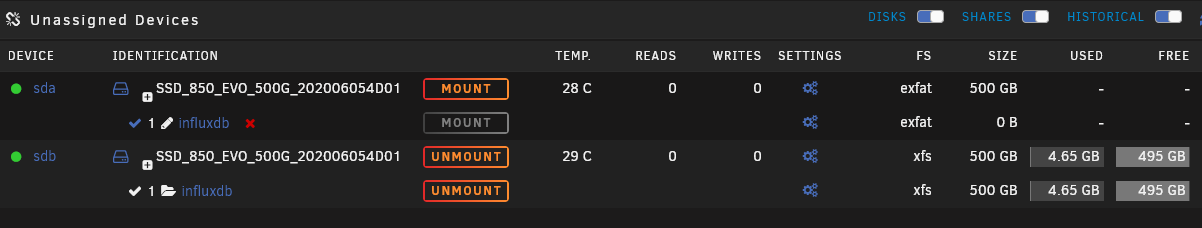

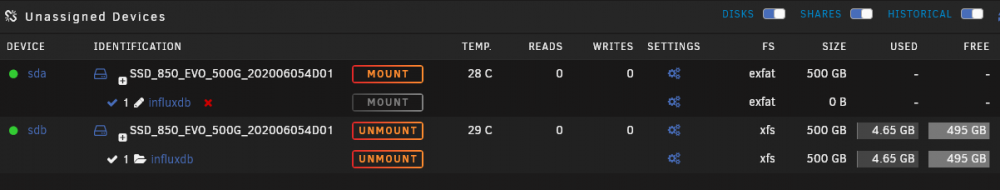

Running into a somewhat strange situation... when I put my two drives in my DAS, udev cannot distinguish between any of my drives even though they have unique serials. # udevadm info --query=all --name=/dev/sdb | grep -i serial E: ID_SERIAL=Samsung_SSD_850_EVO_500G_202006054D01-0:1 E: ID_SERIAL_SHORT=202006054D01 # udevadm info --query=all --name=/dev/sda | grep -i serial E: ID_SERIAL=Samsung_SSD_850_EVO_500G_202006054D01-0:0 E: ID_SERIAL_SHORT=202006054D01 However, hdparm -I correctly identifies the disks uniquely: # hdparm -I /dev/sda | grep -i serial Serial Number: S3PTNF0JXXXXXX0 # hdparm -I /dev/sdb | grep -i serial Serial Number: S3PTNF0JXXXXXX1 This makes it really difficult to use unassigned devices, as it seems to try and automount drives on top of one another. Any help would be greatly appreciated! It looks like a similar issue exists in unRAID itself with the serial not showing up correctly, but unRAID is still correctly able to distinguish between them using the -0:N suffixes. --- Edit: I've solved this. The bug is with the JMicron enclosure. (ID 152d:0567 JMicron Technology Corp.) https://github.com/systemd/systemd/issues/2362#issuecomment-178079214 https://github.com/harendra-kumar/systemd/commit/75feb52379f80c3df354b85d1df3274fdde5fccd I rebuilt `ata_id` and replaced `/lib/udev/ata_id` and now it successfully passes the serials through!
