Dinglestains

Thanks. I'll check it out. Is there a way to get these two drives mounted if I'm not worried about recovering any data that may have been on them?

Thanks for trying to help me out. I've searched Unraid apps and don't see one named UFS Explorer. Is this an app I'll need to use on a Windows PC and pull the drive out of the server to check out? Also, any idea how I can get the other drive mounted?

Here's the output for this one. root@AdamNAS:~# xfs_repair -v /dev/sdt1 Phase 1 - find and verify superblock... - block cache size set to 12287368 entries Phase 2 - using internal log - zero log... zero_log: head block 0 tail block 0 - scan filesystem freespace and inode maps... clearing needsrepair flag and regenerating metadata sb_icount 204160, counted 32 sb_ifree 186, counted 29 sb_fdblocks 3646991750, counted 2929199533 - found root inode chunk Phase 3 - for each AG... - scan and clear agi unlinked lists... - process known inodes and perform inode discovery... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - agno = 4 - agno = 5 - agno = 6 - agno = 7 - agno = 8 - agno = 9 - agno = 10 - process newly discovered inodes... Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - check for inodes claiming duplicate blocks... - agno = 0 - agno = 2 - agno = 6 - agno = 4 - agno = 10 - agno = 1 - agno = 7 - agno = 8 - agno = 9 - agno = 3 - agno = 5 Phase 5 - rebuild AG headers and trees... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - agno = 4 - agno = 5 - agno = 6 - agno = 7 - agno = 8 - agno = 9 - agno = 10 - reset superblock... Phase 6 - check inode connectivity... - resetting contents of realtime bitmap and summary inodes - traversing filesystem ... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - agno = 4 - agno = 5 - agno = 6 - agno = 7 - agno = 8 - agno = 9 - agno = 10 - traversal finished ... - moving disconnected inodes to lost+found ... Phase 7 - verify and correct link counts... SB summary counter sanity check failed Metadata corruption detected at 0x47c2cb, xfs_sb block 0x0/0x200 libxfs_bwrite: write verifier failed on xfs_sb bno 0x0/0x1 SB summary counter sanity check failed Metadata corruption detected at 0x47c2cb, xfs_sb block 0x0/0x200 libxfs_bwrite: write verifier failed on xfs_sb bno 0x0/0x1 xfs_repair: Releasing dirty buffer to free list! xfs_repair: Refusing to write a corrupt buffer to the data device! xfs_repair: Lost a write to the data device! fatal error -- File system metadata writeout failed, err=117. Re-run xfs_repair. root@AdamNAS:~#

The output of that one was too large where I couldn't scroll to the beginning. Any idea where I can find the full output of the command to share?

Thanks. Here's what I get when I enter those two commands. root@AdamNAS:~# xfs_repair -v /dev/sdt1 Phase 1 - find and verify superblock... - block cache size set to 12287368 entries Phase 2 - using internal log - zero log... * ERROR: mismatched uuid in log * SB : 5039051f-fbf5-4a89-bc8a-d051d362681c * log: 1f85b4a8-9091-00d4-8094-6d04e9d2bca1 zero_log: head block 412672 tail block 2262025269 ERROR: The filesystem has valuable metadata changes in a log which needs to be replayed. Mount the filesystem to replay the log, and unmount it before re-running xfs_repair. If you are unable to mount the filesystem, then use the -L option to destroy the log and attempt a repair. Note that destroying the log may cause corruption -- please attempt a mount of the filesystem before doing this. root@AdamNAS:~# wipefs /dev/sdp1 root@AdamNAS:~#

Will this clear anything on the drive if there was something? Just want to know before I try running them.

Is this correct? root@AdamNAS:~# blkid /dev/sda1: LABEL_FATBOOT="UNRAID" LABEL="UNRAID" UUID="2736-60C3" BLOCK_SIZE="512" TYPE="vfat" /dev/loop1: TYPE="squashfs" /dev/sdy1: UUID="2a2cca95-85bc-499d-a01d-5bc27078dddd" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="7e31c44b-f123-40dd-a67e-5992250dac55" /dev/sdf1: UUID="75f9d0ec-3a38-433e-b12b-7c0cddc37b44" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="139e5605-cf3f-462a-bae1-0699343b183e" /dev/md9p1: UUID="01d2b033-56eb-4a92-8140-e7a2c67c723e" BLOCK_SIZE="512" TYPE="xfs" /dev/md24p1: UUID="5cbca378-bebc-4350-b0ae-9a25b89694ef" BLOCK_SIZE="512" TYPE="xfs" /dev/sdab1: UUID="5cbca378-bebc-4350-b0ae-9a25b89694ef" BLOCK_SIZE="512" TYPE="xfs" /dev/nvme0n1p1: UUID="344c99ee-b4f3-4f0f-b5e7-7aaee08452db" UUID_SUB="909b61da-ebe7-48df-b330-3b9ef31d34a2" BLOCK_SIZE="4096" TYPE="btrfs" /dev/md15p1: UUID="a35a64da-1fc6-4f28-be6a-a8be2635cfa5" BLOCK_SIZE="512" TYPE="xfs" /dev/sdo1: UUID="a2c39444-e2c1-4e83-9774-2d256d5731c6" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="feeb342c-6327-49f2-a12d-1fb2bbc211a4" /dev/sdw1: UUID="c824f10f-5b50-48ab-9a98-5b2bee9959ec" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="c70a31ee-1968-4173-848d-147c33045def" /dev/sdd1: UUID="7a894f21-5d44-4d0a-9c3b-baa0b302946a" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="9d94fbfe-f13a-45b4-837b-82667e5ecafe" /dev/md2p1: UUID="5c3f92e6-0b17-4086-809b-f72ce2324007" BLOCK_SIZE="512" TYPE="xfs" /dev/md18p1: UUID="47686ff8-cb47-46fc-8f1d-a6936eab73cc" BLOCK_SIZE="512" TYPE="xfs" /dev/sdm1: UUID="b8947b2a-5d63-4579-a200-64ff0edd0b4c" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="d32a0e1e-1bb5-4b81-bbf5-bc56ae66488e" /dev/sdu1: UUID="939316bb-0aee-4c42-a23f-3839a624e325" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="41f4fe70-c973-427f-9791-2a652067d59a" /dev/sdb1: UUID="7cac0bbb-7684-4770-81eb-a895d087e38d" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="4ffe5da3-d79c-417e-aa6b-4740c6f092ec" /dev/md5p1: UUID="a97b1e67-ef02-4cb2-b8d2-8127b90269af" BLOCK_SIZE="512" TYPE="xfs" /dev/md20p1: UUID="fa6c6f67-cd60-4455-8be1-e75f19bbda88" BLOCK_SIZE="512" TYPE="xfs" /dev/sdk1: UUID="adf5de3b-0356-4037-8014-e5589c82c679" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="e4e6b69b-e60c-4848-a1eb-63a7540c2f5b" /dev/md11p1: UUID="612ec3b3-438d-4dc6-a970-d93ccbe3d49d" BLOCK_SIZE="512" TYPE="xfs" /dev/sds1: UUID="a35a64da-1fc6-4f28-be6a-a8be2635cfa5" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="667314ed-7221-4313-a555-07b7e1aea25f" /dev/md8p1: UUID="319360c3-4cf1-4169-a0eb-ba7a59bde24d" BLOCK_SIZE="512" TYPE="xfs" /dev/md23p1: UUID="5e0928e9-591a-4557-a88b-02bc2512b85e" BLOCK_SIZE="512" TYPE="xfs" /dev/md14p1: UUID="c8a417b0-ac7b-43a3-9c1b-602a6660f499" BLOCK_SIZE="512" TYPE="xfs" /dev/sdi1: UUID="01d2b033-56eb-4a92-8140-e7a2c67c723e" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="41e27694-0d4e-4533-b2df-dcc5a4c335ee" /dev/sdq1: UUID="c8a417b0-ac7b-43a3-9c1b-602a6660f499" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="32d2d244-ad46-44b7-8800-c4681355d25c" /dev/md1p1: UUID="75f9d0ec-3a38-433e-b12b-7c0cddc37b44" BLOCK_SIZE="512" TYPE="xfs" /dev/sdz1: UUID="82df71e7-39c0-496a-a478-2e993805fe84" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="61dd3ba6-23a7-4a9d-aa39-557b1a5d4838" /dev/md17p1: UUID="939316bb-0aee-4c42-a23f-3839a624e325" BLOCK_SIZE="512" TYPE="xfs" /dev/sdg1: UUID="dc259314-267a-4920-a063-c4da71bb36c9" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="a8706993-478e-4e4b-a2a9-4924e3bf6de6" /dev/md4p1: UUID="b8947b2a-5d63-4579-a200-64ff0edd0b4c" BLOCK_SIZE="512" TYPE="xfs" /dev/loop0: TYPE="squashfs" /dev/sdx1: UUID="fa6c6f67-cd60-4455-8be1-e75f19bbda88" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="f342fc87-40a9-4e1e-9f4d-42a054aaaf6e" /dev/sdaa1: UUID="5e0928e9-591a-4557-a88b-02bc2512b85e" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="4795e3a7-7c38-4e16-b077-2033ded1ea3a" /dev/md10p1: UUID="dc259314-267a-4920-a063-c4da71bb36c9" BLOCK_SIZE="512" TYPE="xfs" /dev/md7p1: UUID="adf5de3b-0356-4037-8014-e5589c82c679" BLOCK_SIZE="512" TYPE="xfs" /dev/sdn1: UUID="9bc821c4-c5ce-4ea1-8a4d-9bbc38ab963f" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="5380f5c8-95cb-4b07-a58c-3ca630ea44c0" /dev/md22p1: UUID="2a2cca95-85bc-499d-a01d-5bc27078dddd" BLOCK_SIZE="512" TYPE="xfs" /dev/sdv1: UUID="47686ff8-cb47-46fc-8f1d-a6936eab73cc" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="13461bc2-ce77-42b8-8283-24f95b6cb381" /dev/sdl1: UUID="a97b1e67-ef02-4cb2-b8d2-8127b90269af" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="9446ecdc-334b-46a8-ab1b-957ca576b7ac" /dev/sdt1: UUID="5039051f-fbf5-4a89-bc8a-d051d362681c" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="592f0896-bd2e-4b74-a617-864794da6b81" /dev/md16p1: UUID="82df71e7-39c0-496a-a478-2e993805fe84" BLOCK_SIZE="512" TYPE="xfs" /dev/sdj1: UUID="319360c3-4cf1-4169-a0eb-ba7a59bde24d" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="f0f7ef4d-fe93-41d0-bbad-2faf7200fe4f" /dev/md3p1: UUID="7cac0bbb-7684-4770-81eb-a895d087e38d" BLOCK_SIZE="512" TYPE="xfs" /dev/sdr1: UUID="612ec3b3-438d-4dc6-a970-d93ccbe3d49d" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="8d261e3e-6664-4167-8004-20ee2410e00f" /dev/md19p1: UUID="9bc821c4-c5ce-4ea1-8a4d-9bbc38ab963f" BLOCK_SIZE="512" TYPE="xfs" /dev/sdh1: UUID="5c3f92e6-0b17-4086-809b-f72ce2324007" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="d1c02c79-3e45-4804-8ec9-be020223bb68" /dev/md6p1: UUID="7a894f21-5d44-4d0a-9c3b-baa0b302946a" BLOCK_SIZE="512" TYPE="xfs" /dev/md21p1: UUID="c824f10f-5b50-48ab-9a98-5b2bee9959ec" BLOCK_SIZE="512" TYPE="xfs" /dev/md12p1: UUID="a2c39444-e2c1-4e83-9774-2d256d5731c6" BLOCK_SIZE="512" TYPE="xfs" /dev/loop2: UUID="3d262e10-4bbb-4e31-81d3-9fd8d2ea4482" UUID_SUB="cae900b1-0a19-4150-bcd1-ef25d0a4575b" BLOCK_SIZE="4096" TYPE="btrfs" /dev/sde1: PARTUUID="14d387da-b710-49d3-8a91-345dcf9458fb" /dev/sdc1: PARTUUID="dfe0aca6-eac0-4d67-b17c-a27e44e4e4af" /dev/loop3: UUID="80d91b4d-599f-409f-a343-e5e028ac3f84" UUID_SUB="685c96dd-d859-4b16-9386-d6f5d193702c" BLOCK_SIZE="4096" TYPE="btrfs" /dev/sdp1: PARTUUID="c2b135b9-8332-11ed-9f01-841b7729c4a2" root@AdamNAS:~#

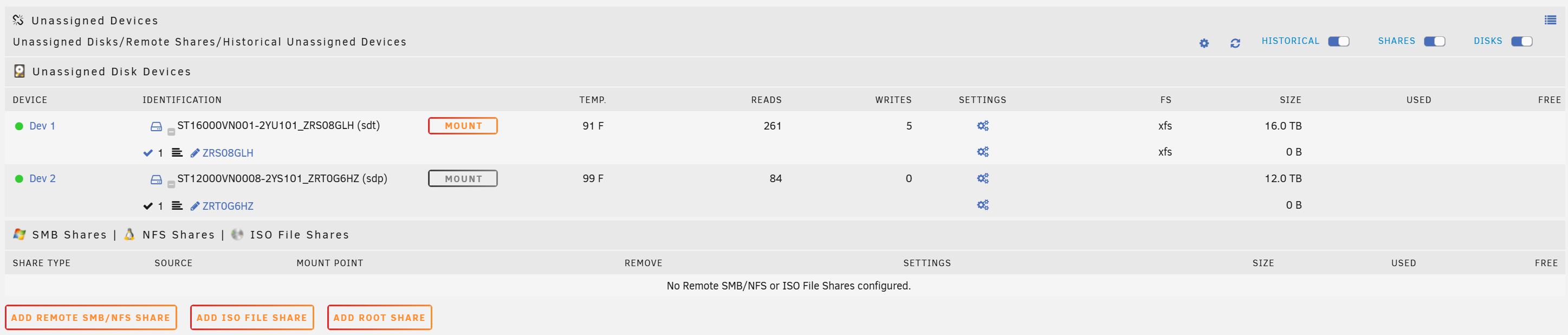

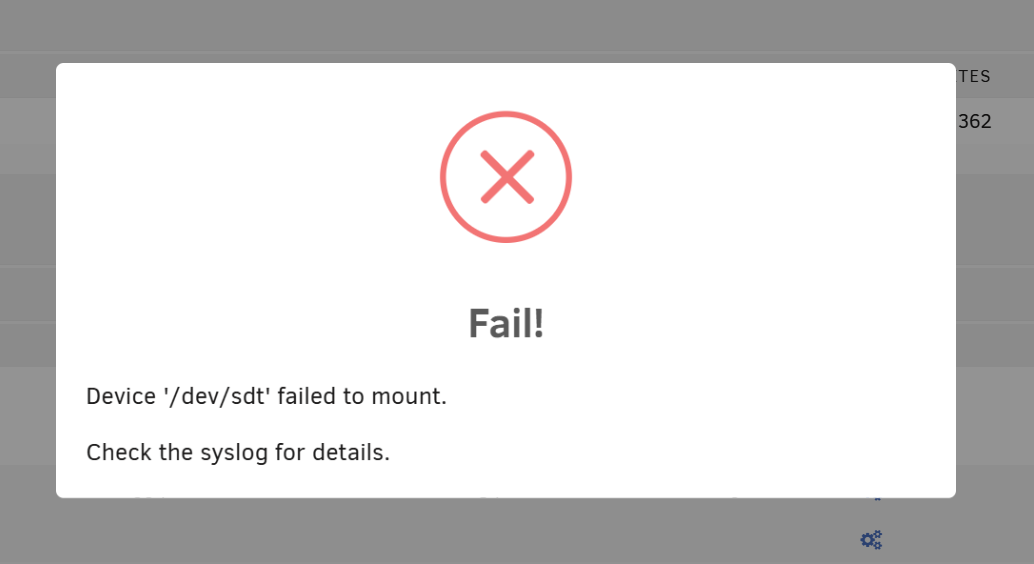

I have two disks that I can't get mounted. I don't recall these two disks being unmounted in the past. I just happened to look in the Main tab in Unraid today and noticed both of these weren't mounted. The log tells me that I should run xfs repair on the disk. That doesn't appear to help anyone from what I've been able to read in the comments. The Mount button is greyed out on the other disk ("Dev 2") so I don't know how I can even attempt to mount it. Any idea how I can get these two drives mounted? Also, did I lose any data or was all of the data recovered using my other drives? Below are screenshots showing the unmounted disks and the error I receive when I attempt to mount "Dev 1." I've also attached the Unraid log. adamnas-syslog-20250917-0122.zip

That’s a good idea. I thought about building a second server to back up everything at another family members house. Might be a project that I do later. I just looked and I’m at 75TB used now so I’ve used more than I thought.

I backup my important files to another PC and to cloud storage. This Unraid server is mainly to host media files that can be replaced. It would be a long painful process to replace them but I'm not willing to pay for ~40 TB of cloud storage or whatever I'm using now.

Thanks for reviewing all of these for me. I think one of the drives in this server might be older than the 12 year old disk 24. I know there was a smaller (like 2 TB) drive I shucked a long time ago and I think its running still with no SMART warnings/errors. What would you recommend I do with these drives then? I don't really have any use for them and that's why I just added them all to the Unraid server. I guess the Windows Storage Space I had used a lot more space for redundancy because I didn't have nearly this much capacity in Windows Storage Space. I did add 12 12TB disks when I bought the server though so that probably would've made a big difference.

The disks with SMART warnings are disks 11, 15, 18, 23, and 24. Are the numbers all you needed to see how bad the errors are?

Thanks for the information. I wish I had read or asked for advice before formatting the drive. Nothing critical and just more annoying than anything to lose the files. I do wish Unraid made it simpler to bring a drive back online after something simple as it coming unplugged.

Just for future knowledge, what should I have done in that situation? I don't know why it popped up the prompt to format the drive. I just thought it was getting it ready to rebuild. So weird that it takes it offline even after I inserted it back in within ~10 mins and rebooted the server. I have 5 disks that have some type of SMART warnings. I have so many because I transferred them over from my previous Windows Storage Space server. I added 12 12TB drives when I built the new 36-bay server and switched from Windows Storage Spaces to Unraid. Do you recommend I replace the drives with SMART warnings? I didn't ever take them seriously. Some of them may still be covered by a warranty and I might be able to get replacements from the manufacturer.

I don't think the files were that important. I store a bunch of files on the share and I don't really know what files went missing. My important files are backed up to cloud storage so I'm not worried about losing anything important. I've attached the diagnostics from my server. I kind of assumed that the format shouldn't have occurred after I started noticing some files missing. It should be media that I can recover with time but I wish I knew what files were missing. adamnas-diagnostics-20250313-2027.zip
