nyanmisaka

It means the GuC/HuC firmware is not ready or the Linux kernel is < 6.2. https://jellyfin.org/docs/general/administration/hardware-acceleration/intel#configure-and-verify-lp-mode-on-linux

Jellyfin AV1 Hw/Sw Encoding Preview

The GPU firmware loading is broken in Linux 6.1, which is required by the QuickSync. So it makes no sense to use "force_probe".

https://jellyfin.org/docs/general/administration/hardware-acceleration/intel/#official-docker Read the step 1 and 2. Set the correct "group-add" value.

You didn't use the deb installation package, right? jellyfin user comes with the jellyfin-server*.deb package. If you use portable jellyfin build, you need to add the current user to the render group. usermod -aG render $USER usermod -aG video $USER

Correct. Linux 6.2 is the first version that has full ARC support at kernel level. -17 device failed error means your current kernel driver doesn't support QSV yet. You have to wait Unraid to update its kernel.

You didn't set the correct permissions to allow Jellyfin to access /dev/dri/renderD128. We have detailed instructions on setting up hardware acceleration. On host: sudo usermod -aG render jellyfin sudo usermod -aG video jellyfin Docker: https://jellyfin.org/docs/general/administration/hardware-acceleration/intel/#configure-with-linux-virtualization Also, use QSV instead of VA-API.

Please share the ffmpeg transcode log file.

The OneVPL runtime is required for using QSV AV1 encoder, which is not supported by legacy MediaSDK. https://www.intel.com/content/www/us/en/developer/articles/technical/onevpl-in-ffmpeg-for-great-streaming-on-intel-gpus.html Jellyfin's ffmpeg 6.0 builds support OneVPL and bundled its runtime. https://github.com/jellyfin/jellyfin-ffmpeg/releases/tag/v6.0-1

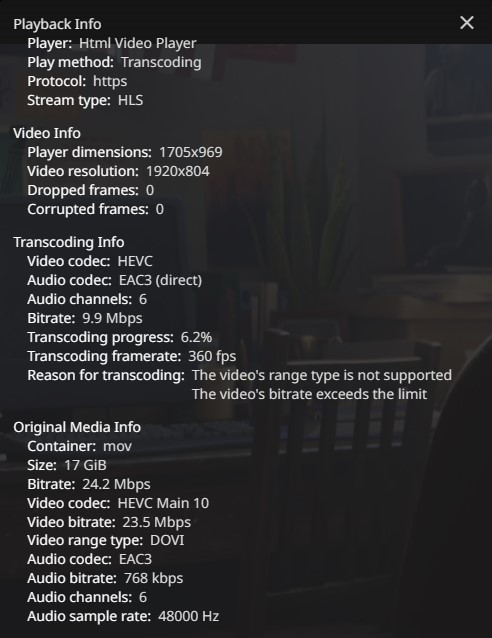

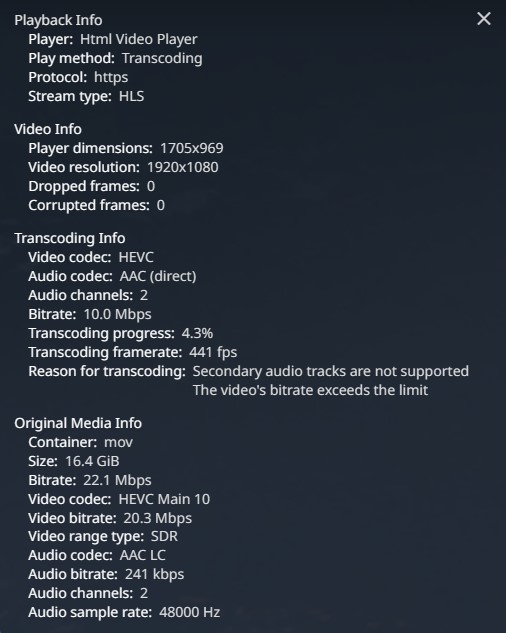

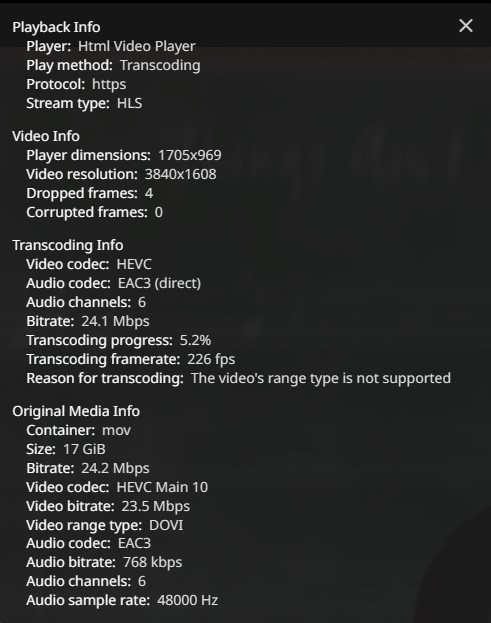

Are you sure the FFmpeg cli used in Tdarr is the optimal? I don't see any reason you only get ~220fps (1080p?) on Arc. In Jellyfin you can get 600fps 1080p and 180~200fps 4k even with tone-mapping enabled. Also the unoptimized FFmpeg cli can result in high CPU usage.

We updated our Jellyfin docs with more tips and instructions for the new ARC GPU. https://jellyfin.org/docs/general/administration/hardware-acceleration/intel#arc-gpu-support

Switch to the dev/unstable 10.9 branch you will get HDR and DoVi P5 tone-mapping out of the box. https://github.com/linuxserver/docker-mods/pull/544#issuecomment-1407467569 https://hub.docker.com/r/linuxserver/jellyfin/tags

Ryzen 7 5700G I'd like to upgrade to the 7040 series Zen 4 desktop APU in the future, which should supports PCIe 4.0/5.0.

$ strings /usr/lib/plexmediaserver/lib/dri/iHD_drv_video.so | grep "iHD driver" Intel iHD driver for Intel(R) Gen Graphics - 22.4.4 (2bbbd9b) media-driver 22.4.4 They don't enable libmfx/libvpl in their FFmpeg build configs. So they use VA-API on Intel.

https://forums.plex.tv/t/anybody-get-hw-transcoding-working-with-the-a380-on-ubunutu/823618 I doubt it will work on Plex as they are still using outdated Intel UMD drivers and libs that don't match the upstream 6.2 kernel. And yes Plex only support VA-API interface instead of QuickSync interface in their modified FFmpeg.

I think since 6.1 is the new LTS, they'll upgrade to it first.

Please refer to the motherboard manual. Most of the Intel boards have this option. And here's the guidance of enabling ASPM on MSI Z690 motherboard with ARC A380.

14th Gen Core seems to be the best choice for you. But without the VRAM cap the ARC A770 LE 16GB can do even more than iGPU. I use AMD APU on my server because it is energy efficient. This prompted me to choose ARC and enable ASPM in BIOS to avoid high power consumption at idle state. 130 bucks, MSI low profile A380. I don't gaming on it so it fits my use case perfectly. What I said is DG2 can match x265 software encoder at "medium preset" as per the slide from Intel. With slower presets I think x265 encoder is still the best but the FPS can be very slow even on modern processors. Yes but not quite, I also made some tweaks to Jellyfin's FFmpeg to unleash its fullest potential on both Linux and Windows. Yes, on supported clients such as Android App and Safari the HEVC->HEVC transcoding is supported out of the box. I used MS Edge with our web client preview for the FPS demonstration.

Sure. But I don't have an ETA on it.

It seems you don't understand how hardware transcoding works. Here's the main steps: Read Video.mkv => Demux => Raw HEVC bitstream => HW decoder => Decode frames to VRAM => Apply HW scaling/deinterlace/tonemapping filters in VRAM => HW encoder => Encode frames from VRAM => Raw H264 bitstream => HLS/DASH muxer => Write to your transcode temp folder => Play in your browsers and clients For high res content such as 4k the "Decode frames to VRAM" step costs VRAM a lot (800MB~1GB per video). So I was not talking about the capacity of your /tmp folder or RAM. It doesn't help the VRAM that used by HW decoder. Use RAM as the backup of VRAM at driver level is feasible but it is extremely slow, which involves too much memory copy-back between your VRAM and RAM through PCIe. Resizable BAR doesn't help too in this use case. That's why VRAM on high-end dGPUs is getting bigger and bigger. It seems Plex don't have plan to transcode to HEVC any time soon from their last reply in r/plex. I write code for Jellyfin so I added the HEVC encode back in 2020 and I use it for myself to save bandwidth.

@FlyingTexan @jsrk The main difference between iGPU and dGPU is the VRAM capacity and iGPU uses your RAM as VRAM, which means dGPU may run out of VRAM but iGPU won't. So you can't compare an entry level card ARC A380 6GB and iGPU directly when is comes to the maximum transcoding capacity. Just buy an ARC A770 LE with 16GB VRAM if you really need that capacity. In short, the advantages of ARC GPU are encoding quality, peak performance, as well as the QSV AV1 HW encoder that Jellyfin has planned to enable in the future. As for the quality, ARC / DG2 GPU can match the x265 SW encoder medium preset in many aspects but it's predecessor DG1 / Xe / UHD7xx series can't. Otherwise there's a huge performance penalty you will get on DG1 / Xe / UHD7xx. See https://github.com/intel/media-delivery/blob/master/doc/benchmarks/intel-data-center-gpu-flex-series/intel-data-center-gpu-flex-series.rst I used many recent Intel GPU such as Xe 96EU, DG1 MAX, ARC A380. Only the A380 can get such a decent performance without sacrificing the quality. I was thinking of buying the Quadro A2000 low profile card for my server but I find it is less efficiency and over priced than ARC in terms of video transcoding. Jellyfin 10.8.9 transcoding: 4k HEVC SDR -> 1080p HEVC SDR: up to 450fps 4k HEVC DOVI P5 -> 1080p HEVC SDR: up to 360fps 4k HEVC DOVI P5 -> 4k HEVC SDR: up to 230fps

@jsrk The dmesg log has already noticed you where to download the firmware. https://git.kernel.org/pub/scm/linux/kernel/git/firmware/linux-firmware.git/tree/i915 Find the dg2*.bin and download them with "plain" button to `/usr/lib/firmware`. Update the initramfs and then reboot.

Jellyfin 10.8.9 docker already supports using Quick Sync and VA-API on Intel Arc / DG2. On Windows you only need to install the latest driver from Intel. On Linux you need at least Linux 6.2 kernel. With this version you don't need to hack the Jellyfin build script. If you compile the kernel with an old config file make sure these new MEI configs are set: CONFIG_INTEL_MEI=m CONFIG_INTEL_MEI_ME=m CONFIG_INTEL_MEI_TXE=m CONFIG_INTEL_MEI_GSC=m CONFIG_INTEL_MEI_HDCP=m CONFIG_INTEL_MEI_PXP=m CONFIG_INTEL_MEI_WDT=m Then check these to make sure that the GuC/HuC firmware is loaded without any FAIL or ERROR. # dmesg | grep i915 # cat /sys/kernel/debug/dri/0/gt/uc/guc_info # cat /sys/kernel/debug/dri/0/gt/uc/huc_info See also: https://github.com/jellyfin/jellyfin-ffmpeg/releases https://bbs.archlinux.org/viewtopic.php?id=279799 https://gitlab.freedesktop.org/drm/intel/-/issues/7732

Yes the mesa-va-driver from Debian bullseye has been updated to 20.1. But jellyfin official container doesn't include any non-free drivers such as intel's iHD driver for QSV.

Actually those 1 yrs+ posts are outdated. We have supported HDR10 TM on QSV in the later versions of 10.7. And with the release of 10.8 (alpha5), both VPP and OpenCL tone-mapping impl got much improved in terms of speed and stability. Current status of HDR tone-mapping support are as follows: https://jellyfin.org/docs/general/administration/hardware-acceleration.html#configuring-opencl--cuda--intel-vpp-tone-mapping
