Wu23333

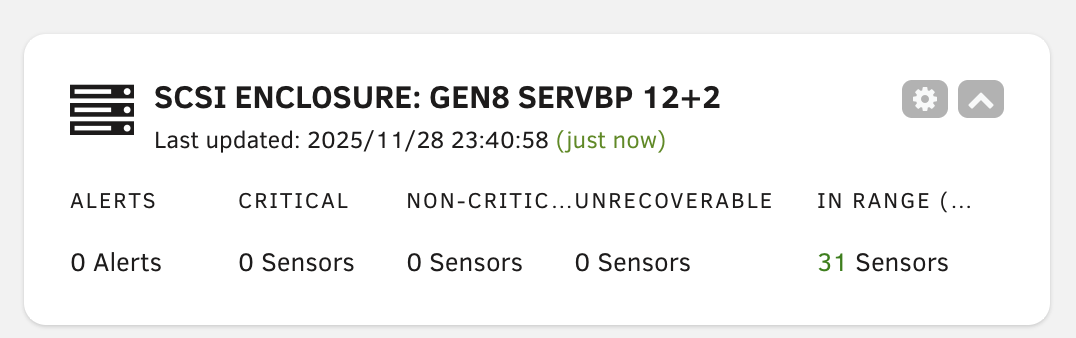

@Rysz works for me, thanks

glad to hear that, it'll be much more convenient. And thanks again for your excellent plugin!

@Rysz @minkshaman Good news! I compiled sg3_utils in debug mode and did some GDB work, found the crash is due to a simple null pointer issue. Then I applied a quick fix for this, re-compile it and replaced the Unraid's sg_ses binary, and now it works! Here's the patch and the compiled sg_ses binary, an custom script may needed to replace the Unraid's binary on system startup. $ diff -u src/sg_ses.c.old src/sg_ses.c --- src/sg_ses.c.old 2025-11-28 23:26:36.834129707 +0800 +++ src/sg_ses.c 2025-11-28 23:27:50.410288483 +0800 @@ -6780,7 +6780,7 @@ if (jsp->pr_as_json) { jo2p = sgj_new_unattached_object_r(jsp); sgj_js_nv_ihexstr(jsp, jo2p, et_sn, jrp->etype, NULL, cp); - sgj_js_nv_s(jsp, jo2p, "descriptor", (const char *)(ed_bp + 4)); + if (ed_bp) sgj_js_nv_s(jsp, jo2p, "descriptor", (const char *)(ed_bp + 4)); sgj_js_nv_i(jsp, jo2p, "element_number", jrp->indiv_i); sgj_js_nv_i(jsp, jo2p, "overall", (int)(-1 == jrp->indiv_i)); sgj_js_nv_b(jsp, jo2p, "individual", (-1 != jrp->indiv_i)); sg_ses

@Rysz Thanks for the relay. I understand that this outdated backplane does indeed have many issues. I plan to try debugging sg_ses, though I don't hold out much hope. Additionally, here is the output with -vvvvvv: root@Tower:~# sg_ses -vvvvvv --all --json --no-time /dev/sg12 open /dev/sg12 with flags=0x802 check_file_type: file descriptor is sg device set_pt_file_handle: sg driver version 3.05.36 so choose v3 inquiry cdb: [12 00 00 00 24 00] do_scsi_pt: is_nvme=0, is_sg=1, is_bsg=0 duration=0 ms request sense cdb: [03 00 00 00 fc 00] do_scsi_pt: is_nvme=0, is_sg=1, is_bsg=0 duration=0 ms request sense: pass-through requested 252 bytes (data-in), got 18 bytes Receive diagnostic results command for Configuration (SES) diagnostic page Receive diagnostic results cdb: [1c 01 01 ff fc 00] do_scsi_pt: is_nvme=0, is_sg=1, is_bsg=0 duration=0 ms Receive diagnostic results: pass-through requested 65532 bytes (data-in), got 260 bytes Receive diagnostic results: response: 00 01 00 01 00 00 00 00 00 11 00 05 44 50 01 43 80 ...........DP.C. 10 34 f3 94 80 48 50 20 20 20 20 20 20 47 65 6e 38 4...HP Gen8 20 20 53 65 72 76 42 50 20 31 32 2b 32 33 2e 33 30 ServBP 12+23.30 30 4d 61 78 69 6d 20 49 6e 74 65 67 72 61 74 65 64 Maxim Integrated 40 20 50 72 6f 64 75 63 74 73 2c 20 49 6e 63 2e 00 Products, Inc.. 50 17 0e 00 20 07 01 00 20 0e 01 00 20 18 01 00 20 ... ... ... ... 60 19 18 00 20 44 72 69 76 65 20 42 61 79 20 20 20 ... Drive Bay 70 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 80 00 00 00 00 45 6e 63 6c 6f 73 75 72 65 20 53 65 ....Enclosure Se 90 72 76 69 63 65 20 43 6f 6e 74 72 6f 6c 6c 65 72 rvice Controller a0 00 00 00 00 45 6e 63 6c 6f 73 75 72 65 20 20 20 ....Enclosure b0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 c0 00 00 00 00 53 41 53 20 45 78 70 61 6e 64 65 72 ....SAS Expander d0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 e0 00 00 00 00 53 41 53 20 45 78 70 61 6e 64 65 72 ....SAS Expander f0 20 50 68 79 20 20 20 20 20 20 20 20 20 20 20 20 Phy 100 00 00 00 00 .... Receive diagnostic results command for Enclosure Status (SES) diagnostic page Receive diagnostic results cdb: [1c 01 02 ff fc 00] do_scsi_pt: is_nvme=0, is_sg=1, is_bsg=0 duration=0 ms Receive diagnostic results: pass-through requested 65532 bytes (data-in), got 192 bytes Receive diagnostic results: response: 00 02 00 00 bc 00 00 00 00 00 00 00 00 05 80 40 00 ..............@. 10 05 80 40 00 01 80 40 00 01 80 40 00 05 80 40 00 ..@...@...@...@. 20 01 80 40 00 01 80 40 00 01 80 40 00 01 80 40 00 ..@...@...@...@. 30 05 80 40 00 05 80 40 00 05 80 40 00 05 00 00 00 ..@...@...@..... 40 05 00 00 00 00 00 00 00 01 00 01 00 00 00 00 00 ................ 50 01 00 00 00 00 00 00 00 01 00 00 00 00 00 00 00 ................ 60 01 20 00 00 01 20 00 00 01 20 00 00 01 20 00 00 . ... ... ... .. 70 01 20 00 00 01 20 00 00 01 20 00 00 01 20 00 00 . ... ... ... .. 80 01 20 00 00 01 20 00 00 01 20 00 00 01 20 00 00 . ... ... ... .. 90 01 20 00 00 01 20 00 00 25 00 00 00 25 00 00 00 . ... ..%...%... a0 01 11 00 00 01 11 01 00 01 11 02 00 01 11 03 00 ................ b0 01 11 00 00 01 11 01 00 01 11 02 00 01 11 03 00 ................ Receive diagnostic results command for Element Descriptor (SES) diagnostic page Receive diagnostic results cdb: [1c 01 07 ff fc 00] do_scsi_pt: is_nvme=0, is_sg=1, is_bsg=0 duration=0 ms Receive diagnostic results: Fixed format, current; Sense key: Illegal Request Additional sense: Invalid command operation code Raw sense data (in hex), sb_len=18, calculated_len=18 70 00 05 00 00 00 00 0a 00 00 00 00 20 00 00 00 00 00 Receive diagnostic results: pass-through requested 65532 bytes (data-in), got 0 bytes Attempt to fetch Element Descriptor (SES) diagnostic page failed Illegal request, Invalid opcode, type: sense key + asc,ascq Element Descriptor page not available Receive diagnostic results command for Additional Element Status (SES-2) diagnostic page Receive diagnostic results cdb: [1c 01 0a ff fc 00] do_scsi_pt: is_nvme=0, is_sg=1, is_bsg=0 duration=0 ms Receive diagnostic results: pass-through requested 65532 bytes (data-in), got 576 bytes Receive diagnostic results: response: 00 0a 00 02 3c 00 00 00 00 16 22 01 01 01 01 00 01 ...<....."...... 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 20 00 00 00 00 00 00 00 00 00 00 00 00 16 22 01 02 .............".. 30 01 01 00 02 00 00 00 00 00 00 00 00 00 00 00 00 ................ 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50 16 22 01 03 01 01 00 03 00 00 00 01 50 01 43 80 ."..........P.C. 60 34 f3 94 80 50 01 43 80 34 f3 94 83 00 00 00 00 4...P.C.4....... 70 00 00 00 00 16 22 01 04 01 01 00 04 00 00 00 01 .....".......... 80 50 01 43 80 34 f3 94 80 50 01 43 80 34 f3 94 84 P.C.4...P.C.4... 90 00 00 00 00 00 00 00 00 16 22 01 05 01 01 00 05 ........."...... a0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ b0 00 00 00 00 00 00 00 00 00 00 00 00 16 22 01 06 .............".. c0 01 01 00 06 00 00 00 01 50 01 43 80 34 f3 94 80 ........P.C.4... d0 50 01 43 80 34 f3 94 86 00 00 00 00 00 00 00 00 P.C.4........... e0 16 22 01 07 01 01 00 07 00 00 00 01 50 01 43 80 ."..........P.C. f0 34 f3 94 80 50 01 43 80 34 f3 94 87 00 00 00 00 4...P.C.4....... 100 00 00 00 00 16 22 01 08 01 01 00 08 00 00 00 01 .....".......... 110 50 01 43 80 34 f3 94 80 50 01 43 80 34 f3 94 88 P.C.4...P.C.4... 120 00 00 00 00 00 00 00 00 16 22 01 09 01 01 00 09 ........."...... 130 00 00 00 01 50 01 43 80 34 f3 94 80 50 01 43 80 ....P.C.4...P.C. 140 34 f3 94 89 00 00 00 00 00 00 00 00 16 22 01 0a 4............".. 150 01 01 00 0a 00 00 00 00 00 00 00 00 00 00 00 00 ................ 160 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 170 16 22 01 0b 01 01 00 0b 00 00 00 00 00 00 00 00 .".............. 180 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 190 00 00 00 00 16 22 01 0c 01 01 00 0c 00 00 00 00 .....".......... 1a0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 1b0 00 00 00 00 00 00 00 00 16 22 01 0d 01 01 00 0d ........."...... 1c0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 1d0 00 00 00 00 00 00 00 00 00 00 00 00 16 22 01 0e .............".. 1e0 01 01 00 0e 00 00 00 00 00 00 00 00 00 00 00 00 ................ 1f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 200 16 3e 01 01 18 40 00 00 50 01 43 80 34 f3 94 80 .>[email protected]... 210 ff 01 ff 02 ff 03 ff 04 ff 05 ff 06 ff 07 ff 08 ................ 220 ff 09 ff 0a ff 0b ff 0c ff 0d ff 0e ff ff ff ff ................ 230 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................ warning: aes slot already in use, keep existing AES+8 dropping AES+512 [length=64, oi=1, ei=1, aes_i=14] warning: join_aes_helper: off end of ae page Dump of join array, each line is a row. Lines start with [<element_type>: <type_hdr_index>,<elem_ind_within>] '-1' indicates overall element or not applicable. [0x17: 0,-1] ei_ioe,_eoe,_aess=0,-1,-1 dsn=-1 ES+8 [0x17: 0,0] ei_ioe,_eoe,_aess=1,0,0 dsn=1 ES+12 AES+8 [0x17: 0,1] ei_ioe,_eoe,_aess=2,1,1 dsn=2 ES+16 AES+44 [0x17: 0,2] ei_ioe,_eoe,_aess=3,2,2 dsn=3 ES+20 AES+80 [0x17: 0,3] ei_ioe,_eoe,_aess=4,3,3 dsn=4 ES+24 AES+116 [0x17: 0,4] ei_ioe,_eoe,_aess=5,4,4 dsn=5 ES+28 AES+152 [0x17: 0,5] ei_ioe,_eoe,_aess=6,5,5 dsn=6 ES+32 AES+188 [0x17: 0,6] ei_ioe,_eoe,_aess=7,6,6 dsn=7 ES+36 AES+224 [0x17: 0,7] ei_ioe,_eoe,_aess=8,7,7 dsn=8 ES+40 AES+260 [0x17: 0,8] ei_ioe,_eoe,_aess=9,8,8 dsn=9 ES+44 AES+296 [0x17: 0,9] ei_ioe,_eoe,_aess=10,9,9 dsn=10 ES+48 AES+332 [0x17: 0,10] ei_ioe,_eoe,_aess=11,10,10 dsn=11 ES+52 AES+368 [0x17: 0,11] ei_ioe,_eoe,_aess=12,11,11 dsn=12 ES+56 AES+404 [0x17: 0,12] ei_ioe,_eoe,_aess=13,12,12 dsn=13 ES+60 AES+440 [0x17: 0,13] ei_ioe,_eoe,_aess=14,13,13 dsn=14 ES+64 AES+476 [0x7: 1,-1] ei_ioe,_eoe,_aess=15,-1,-1 dsn=-1 ES+68 [0x7: 1,0] ei_ioe,_eoe,_aess=16,14,14 dsn=-1 ES+72 [0xe: 2,-1] ei_ioe,_eoe,_aess=17,-1,-1 dsn=-1 ES+76 [0xe: 2,0] ei_ioe,_eoe,_aess=18,15,-1 dsn=-1 ES+80 [0x18: 3,-1] ei_ioe,_eoe,_aess=19,-1,-1 dsn=-1 ES+84 [0x18: 3,0] ei_ioe,_eoe,_aess=20,16,15 dsn=-1 ES+88 [0x19: 4,-1] ei_ioe,_eoe,_aess=21,-1,-1 dsn=-1 ES+92 [0x19: 4,0] ei_ioe,_eoe,_aess=22,17,-1 dsn=-1 ES+96 [0x19: 4,1] ei_ioe,_eoe,_aess=23,18,-1 dsn=-1 ES+100 [0x19: 4,2] ei_ioe,_eoe,_aess=24,19,-1 dsn=-1 ES+104 [0x19: 4,3] ei_ioe,_eoe,_aess=25,20,-1 dsn=-1 ES+108 [0x19: 4,4] ei_ioe,_eoe,_aess=26,21,-1 dsn=-1 ES+112 [0x19: 4,5] ei_ioe,_eoe,_aess=27,22,-1 dsn=-1 ES+116 [0x19: 4,6] ei_ioe,_eoe,_aess=28,23,-1 dsn=-1 ES+120 [0x19: 4,7] ei_ioe,_eoe,_aess=29,24,-1 dsn=-1 ES+124 [0x19: 4,8] ei_ioe,_eoe,_aess=30,25,-1 dsn=-1 ES+128 [0x19: 4,9] ei_ioe,_eoe,_aess=31,26,-1 dsn=-1 ES+132 [0x19: 4,10] ei_ioe,_eoe,_aess=32,27,-1 dsn=-1 ES+136 [0x19: 4,11] ei_ioe,_eoe,_aess=33,28,-1 dsn=-1 ES+140 [0x19: 4,12] ei_ioe,_eoe,_aess=34,29,-1 dsn=-1 ES+144 [0x19: 4,13] ei_ioe,_eoe,_aess=35,30,-1 dsn=-1 ES+148 [0x19: 4,14] ei_ioe,_eoe,_aess=36,31,-1 dsn=-1 ES+152 [0x19: 4,15] ei_ioe,_eoe,_aess=37,32,-1 dsn=-1 ES+156 [0x19: 4,16] ei_ioe,_eoe,_aess=38,33,-1 dsn=-1 ES+160 [0x19: 4,17] ei_ioe,_eoe,_aess=39,34,-1 dsn=-1 ES+164 [0x19: 4,18] ei_ioe,_eoe,_aess=40,35,-1 dsn=-1 ES+168 [0x19: 4,19] ei_ioe,_eoe,_aess=41,36,-1 dsn=-1 ES+172 [0x19: 4,20] ei_ioe,_eoe,_aess=42,37,-1 dsn=-1 ES+176 [0x19: 4,21] ei_ioe,_eoe,_aess=43,38,-1 dsn=-1 ES+180 [0x19: 4,22] ei_ioe,_eoe,_aess=44,39,-1 dsn=-1 ES+184 [0x19: 4,23] ei_ioe,_eoe,_aess=45,40,-1 dsn=-1 ES+188 >> ES len=192, ED len=0, AES len=576, TI len=0 >> join_arr elements=46, eip_count=14, eiioe_count=14 broken_ei=0 Segmentation fault sg_ses -vvvvvv --all --json --no-time /dev/sg12

Same issue, I have a HP Gen8 Server's 12+2 backplane, sg_ses --all --no-time /dev/sg12 success, but when I run sg_ses --all --json --no-time /dev/sg12 got Segmentation fault

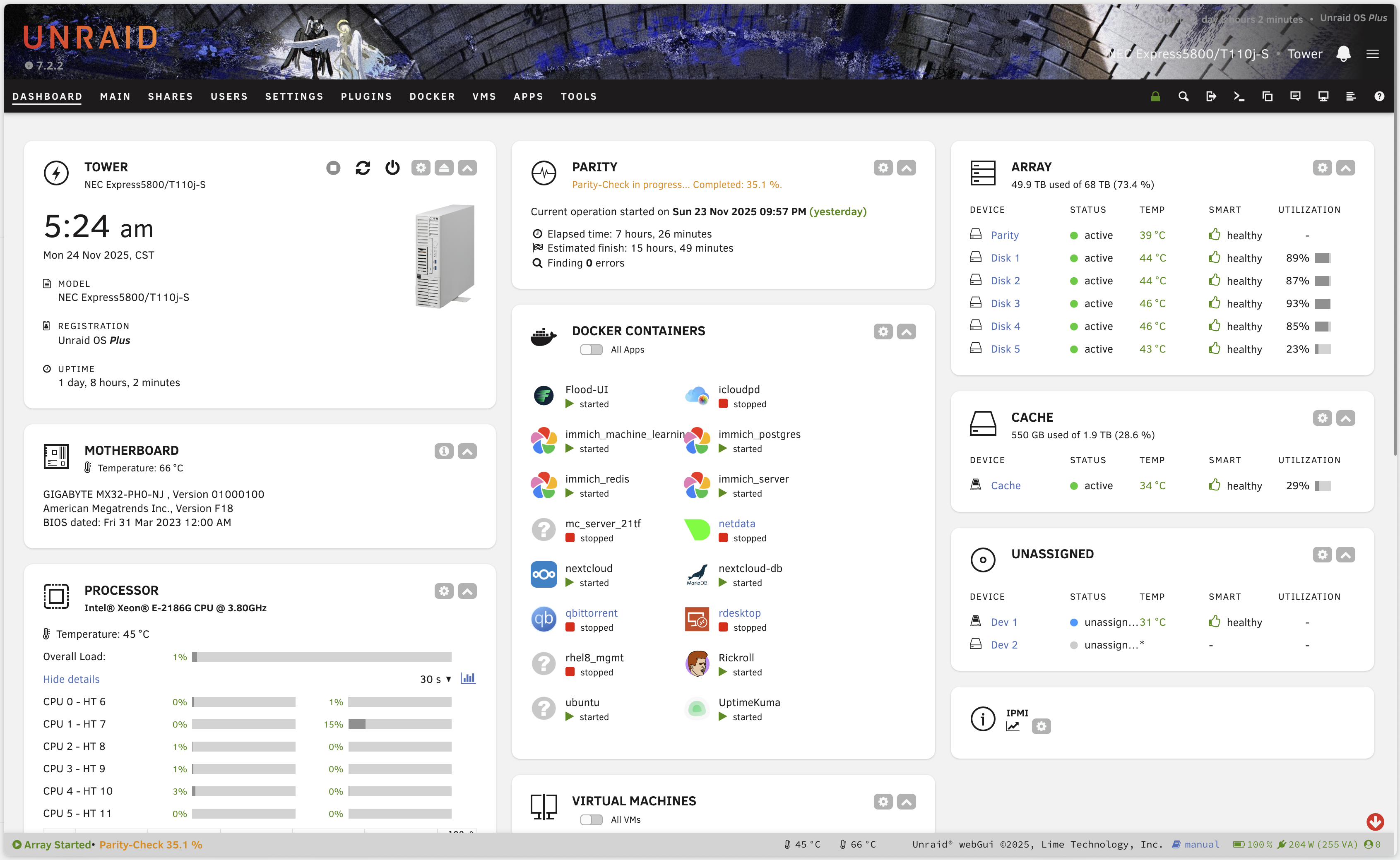

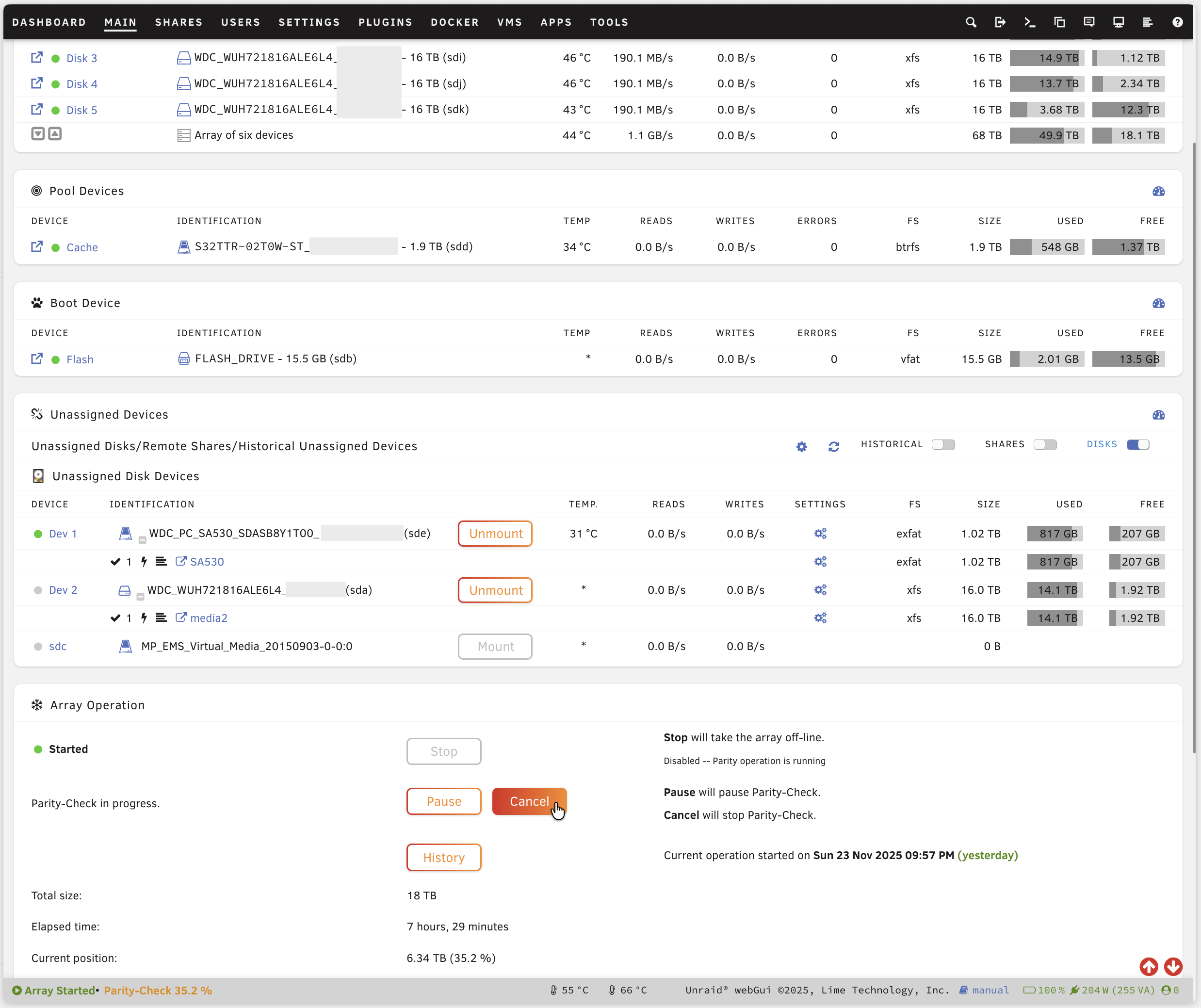

After developing a simple custom CSS plugin (https://forums.unraid.net/topic/195276-plugin-simple-custom-webui-css-plugin-for-unraid-72/) that works on Unraid 7.2+, I spent some time refining my personal CSS code and releasing it here as a theme. It now features a more modern look for pages like Dashboard and Main, with improved rounded gradient borders for buttons, while remaining compatible with both White and Black base themes. I intentionally limited the scope of the CSS to avoid breaking the display of various third-party plugins, but if you still encounter issues, feel free to provide feedback here. This theme is only tested on 7.2+, If you're using an older Unraid version (≤7.1.4), you can still reference specific sections of my CSS (e.g., Buttons) with some adaptation and use Skitals's Theme Engine plugin to apply the CSS. Installation: First, install the Custom CSS plugin: Input this URL in “PLUGINS => Install Plugin tab” to Install: https://raw.githubusercontent.com/WuSiYu/unraid-custom-css/refs/heads/master/custom.css.plg Then navigate to SETTINGS => Custom WebUI CSS, paste the content from this file, and apply: https://github.com/WuSiYu/unraid-custom-css/blob/master/example.css Screenshots (hi-res images: https://github.com/WuSiYu/unraid-custom-css?tab=readme-ov-file#usage-and-configuration): Better button style: 2025/11/24 v0.1.0 initial release 2025/11/25 v0.2.0 update: gradient button color text (not supported on firefox, will fallback to v0.1.0 style), accent on special buttons: new Tab style:

@Kinqdos @m33ts4k0z @rustyshakelford2 If you only need custom CSS, I wrote a small plugin that works on 7.2+: https://forums.unraid.net/topic/195276-plugin-simple-custom-webui-css-plugin-for-unraid-72/ It’s NOT a replacement for Theme Engine, since it doesn’t have any features other than injecting the CSS code you provided.

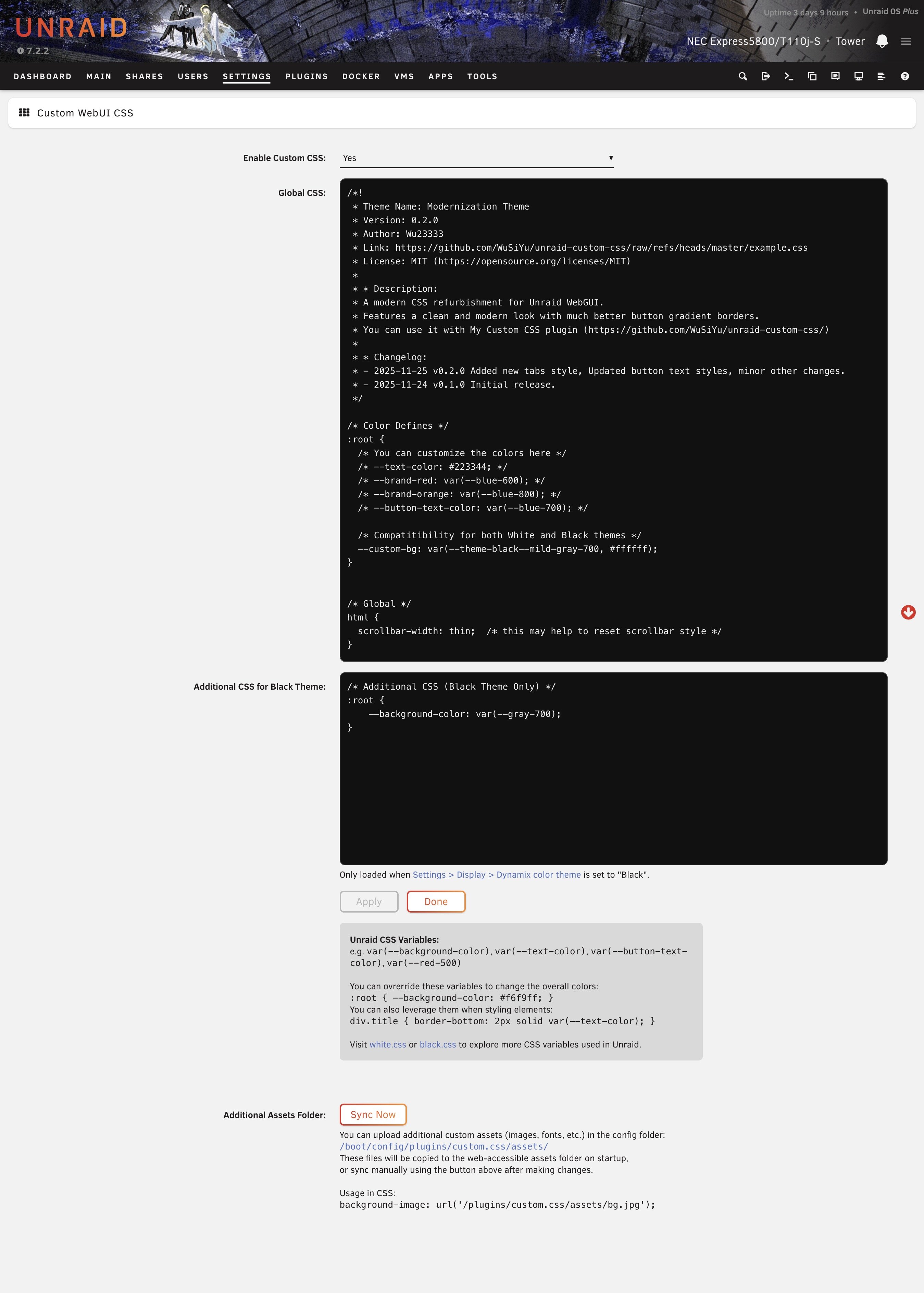

I had been using Theme Engine for years to deploy my custom CSS and style the Unraid WebUI the way I like, but unfortunately it no longer works on Unraid 7.2+. Since my needs are very simple—just injecting my own custom CSS—I created this lightweight plugin. It provides a settings page where you can paste your CSS, and it loads it into the <head> of every page. Update: As well as these features: Global CSS Injection "Black Theme" specific CSS (only loaded when Unraid theme is set to 'black') Additional assets (e.g. background images) folder, sync from Flash to Web Dir I’m sharing it here in case anyone else needs the same functionality. 25/12/05: Now available in CA: Custom WebUI CSS Input this URL in "PLUGINS => Install Plugin tab" to Install: https://raw.githubusercontent.com/WuSiYu/unraid-custom-css/refs/heads/master/custom.css.plg GitHub repo: https://github.com/WuSiYu/unraid-custom-css Note: This is NOT a replacement for Theme Engine. It only provides simple CSS injection and has only been tested on Unraid 7.2+. For versions ≤ 7.1.4, it’s recommended to continue using the Theme Engine plugin. I’ve also uploaded my personal custom styling CSS Theme to the GitHub repo as an example. If you’re interested, you can check it out here: https://github.com/WuSiYu/unraid-custom-css/blob/master/example.css More details please visit the Theme thread: https://forums.unraid.net/topic/195294-theme-modernization-theme-for-unraid-webui-72-and-a-simple-custom-css-plugin/ CHANGES ## 2025.11.29 - Minor update config file logic to match unraid's suggestion. - Minor improvements and bug fixes. ## 2025.11.26 - Added separate editor for "Black Theme" specific CSS. - Black Theme CSS is only loaded when Unraid theme is set to 'black'. - Added additional assets folder and sync feature. - Added Enable/Disable dropdown menu. ## 2025.11.22 - Inital release.

I think the intel_gpu_top is i915-only and may not support xe driver (at least the dg1 ones). For alternative, you can use nvtop tool (yes it support intel gpus): differ from the unraid's package description, it actually not depends on Intel-GPU-TOP, it implemented xe support by it's own and works nearly well for dg1
