Reid B

That seems to have worked. It is showing up as a USB device in my Windows VM with the correct information under USB View. The control software for it wont see it still, but I don't think that is an Unraid issue. I will look for help from their community for this. Thank you for your help.

I borrowed a PCI USB card from a friend to try that, Unraid see's it as an extension of the USB network. I cannot seem to pass through the entirety of the PCI card, just the Hub 3-1. Still doesn't seem to work with or without the auto-connect options.

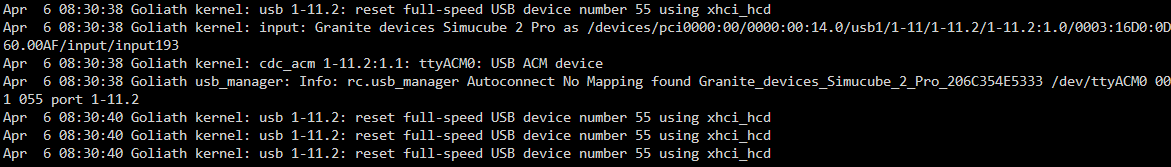

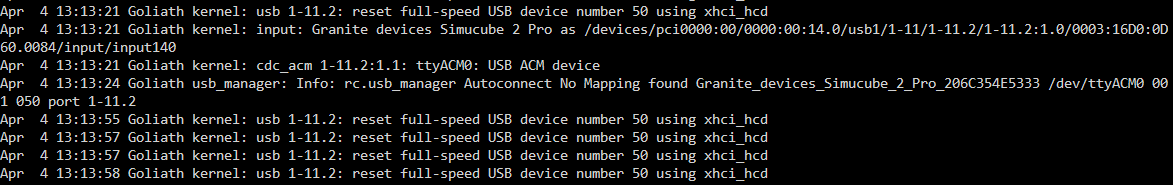

Here is what it says

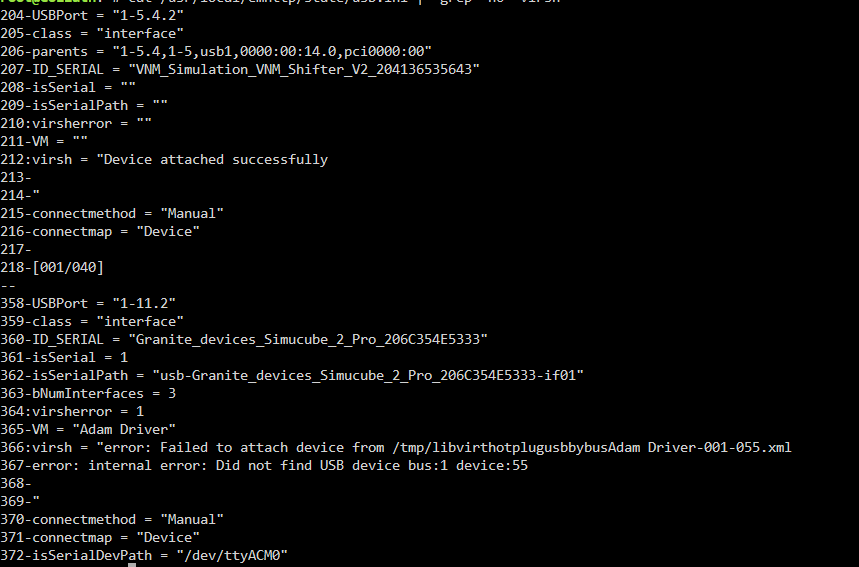

I created and ran the file as instructed, and get this error. The device is still listed as device 55 and that's what it is written as in the script, so I'm not sure where the 45 comes from. Although the UI no longer says Virsh error when I attach the device.

Adding in the serial connection option did not get it working. I do not have any USB PCI cards. I am basically passing every USB device through I can, so I am happy to pass all my devices through on the hubs.

Bus 001 Device 055: ID 16d0:0d60 MCS Simucube 2 Pro Device Descriptor: bLength 18 bDescriptorType 1 bcdUSB 2.00 bDeviceClass 0 bDeviceSubClass 0 bDeviceProtocol 0 bMaxPacketSize0 64 idVendor 0x16d0 MCS idProduct 0x0d60 bcdDevice 2.00 iManufacturer 1 Granite devices iProduct 2 Simucube 2 Pro iSerial 3 206C354E5333 bNumConfigurations 1 Configuration Descriptor: bLength 9 bDescriptorType 2 wTotalLength 0x007c bNumInterfaces 0 bConfigurationValue 1 iConfiguration 2 Simucube 2 Pro bmAttributes 0xc0 Self Powered MaxPower 100mA Interface Association: bLength 8 bDescriptorType 11 bFirstInterface 0 bInterfaceCount 1 bFunctionClass 3 Human Interface Device bFunctionSubClass 0 bFunctionProtocol 0 iFunction 0 can't get device qualifier: Resource temporarily unavailable can't get debug descriptor: Resource temporarily unavailable Device Status: 0x0001 Self Powered

I have not added any entries to the xml manually, should I? I also cant find any information on how much bandwidth it needs, it is a servo motor. This is all I can find in their documentation about USB usage. The device has its own external power supply and I have tried several motherboard USB slots as well as a powered USB hub. I also tested the device on a machine running windows naively and it works fine. I have no other peripherals plugged in through the wheel, so I feel like it should just be using the X axis. Here is the output from the query:

See attached, thank you. goliath-diagnostics-20240404-1732.zip

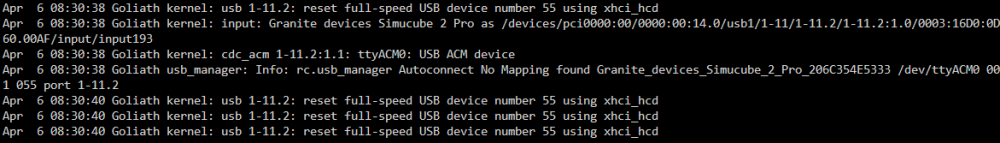

Sorry I ran that after rebooting the VM where it says its connected, but detaching and re-attaching and then running the command here is the output.

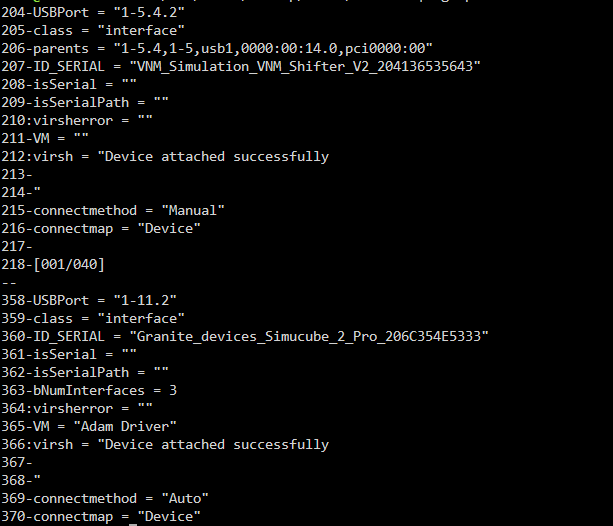

By enabled serial in the mapping do you mean the "Connect as serial only" option? If that is the case then no. I do have the pass through selected as part of the VM settings, I set it up like that initially but had the issues and installed the plugin to try and troubleshoot. Here is the output of the command

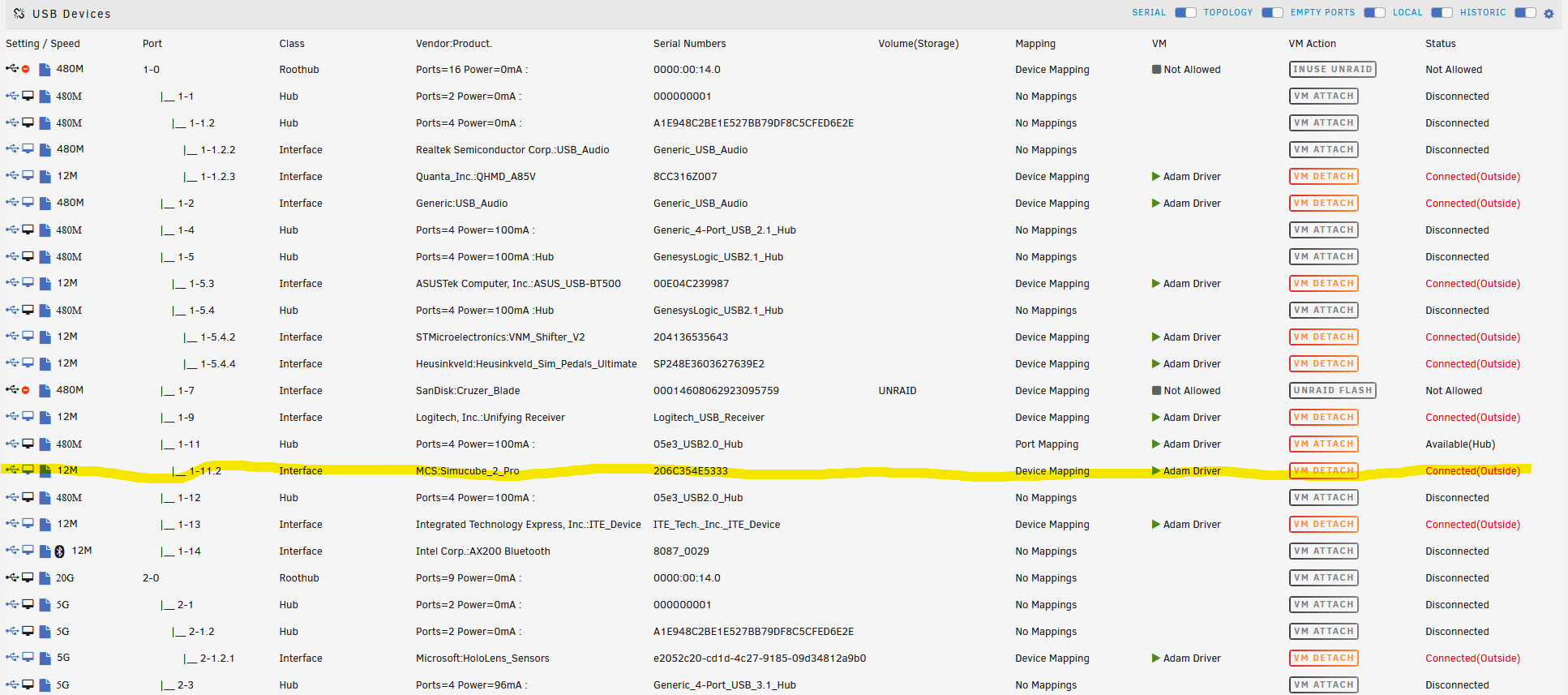

Hello, I'm having issues passing through one specific USB device to my windows VM. The device will not show up in the windows device manager. When i start the VM it says its connected, but the log says "no mapping found". If I detach and re-attach it I get a Virsh error, which I'm not sure what that means or what might cause it. I have the device and the 1-11 port already set up to auto connect on plugin and VM startup. All other devices seem to be working fine except this one. Any ideas what might be the issue?
