mmm2000

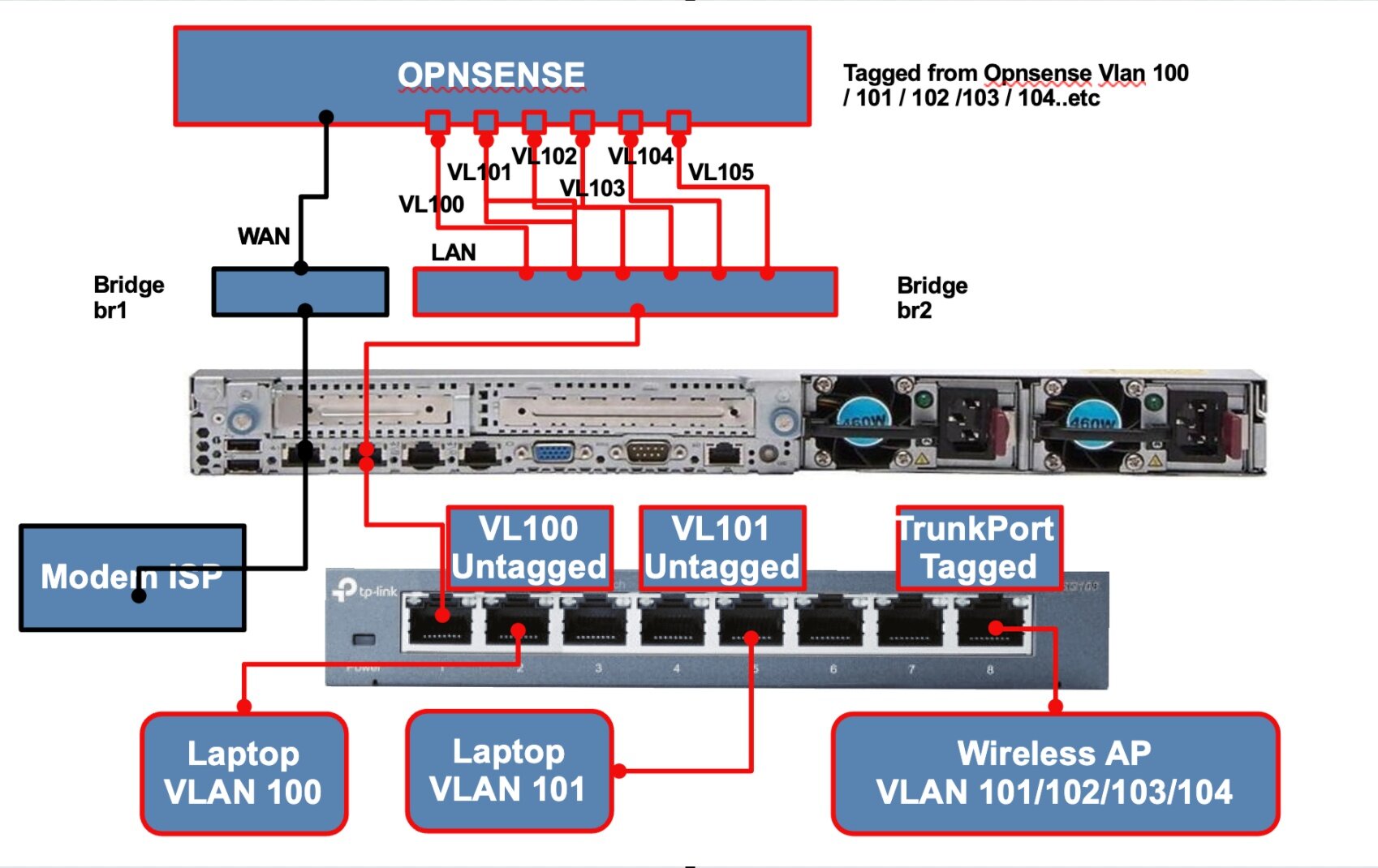

Hi, I need your help to point me if it was discussed and if there is a solution, or to help me with an advise of following issue. I already searched but I could not find the answer unfortunately. Most probably missed a post with the soluiton. I apologies for taking your time with this but if you have the answer please point me to it. I need to create, like in vmware, a switch port or bridge and pass all the VLAN traffic, to act like a trunk port. Attached there is a picture with what to be achieved. Basically the OPNsense will manage multiple VLAN's. The VLAN ports will be handled by one physically interface part of a bridge. In ESXI this was achieved by assigning the VM virtual interfaces to virtual switch and setting the switch to vlanID to 4095. Issue: Assigne the OPNsense virtual interfaces to Unraid bridge is not passing the Vlans. Once I have configured the VLAN in the OPNsense I lose the conectivity. I have the same configuration in ESXI and it is funcitonal. Question’s: 1) Is there Unraid design explained regarding networking, bridging, VLAN handling, trunk ports..etc? 1) How can I configure the bridge in trunk mode to pass tagged traffic? 2) How can I trace the bridge traffic and ports e.g tcpdump...etc. If I need to provide additional information please let me know. Thank you for your help,
