matguy

It's a browser issue. This whole time it's been Chrome not showing the page right. Opened in Firefox and it's great. I had re-seated the CPU, then replaced the NIC and at one point the drive list of un-assigned slots showed up, then couldn't get it to come up again. Had an epiphany and tried Firefox, worked great. Actually works in a different instance of Chrome, even. Holy hell.

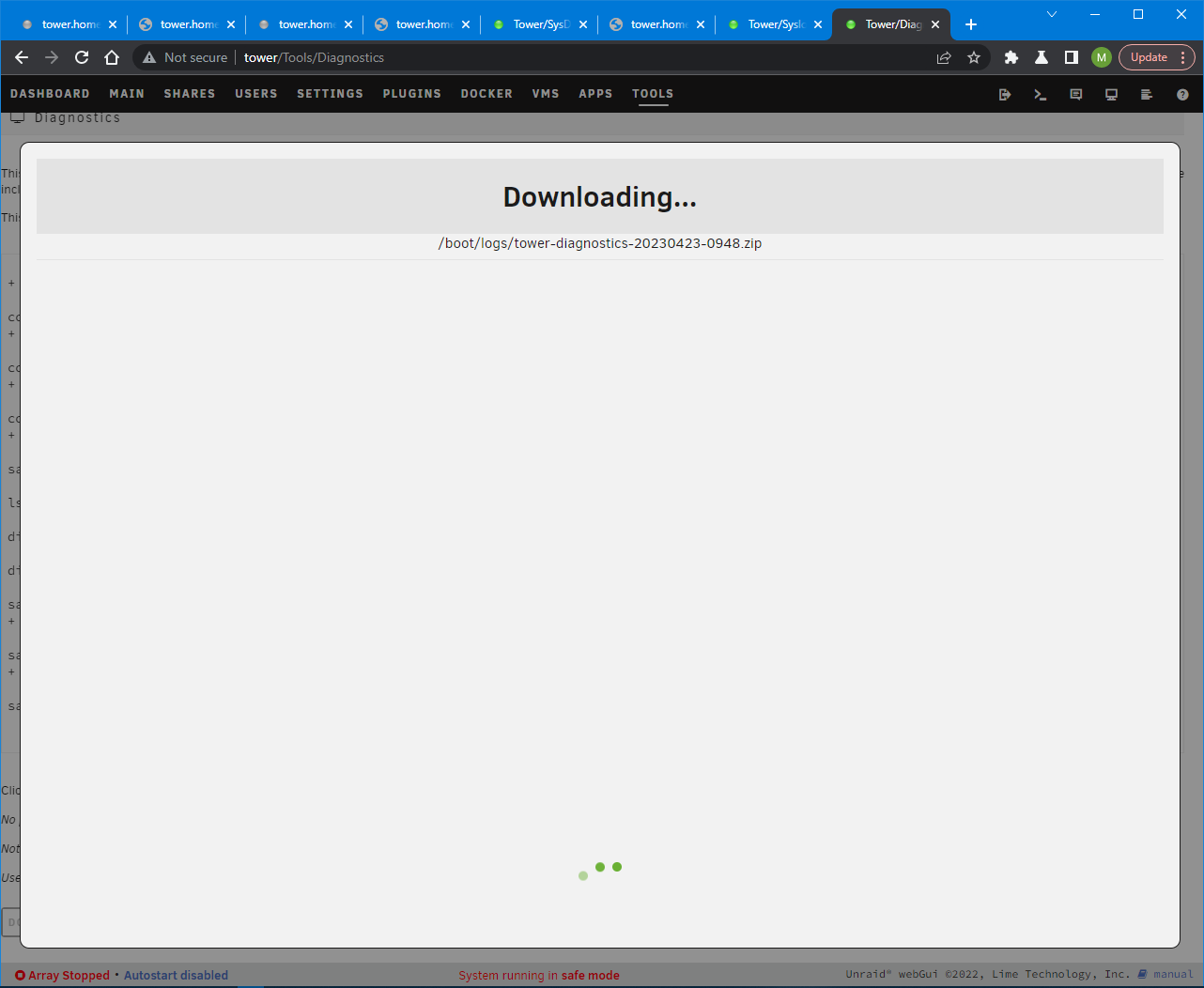

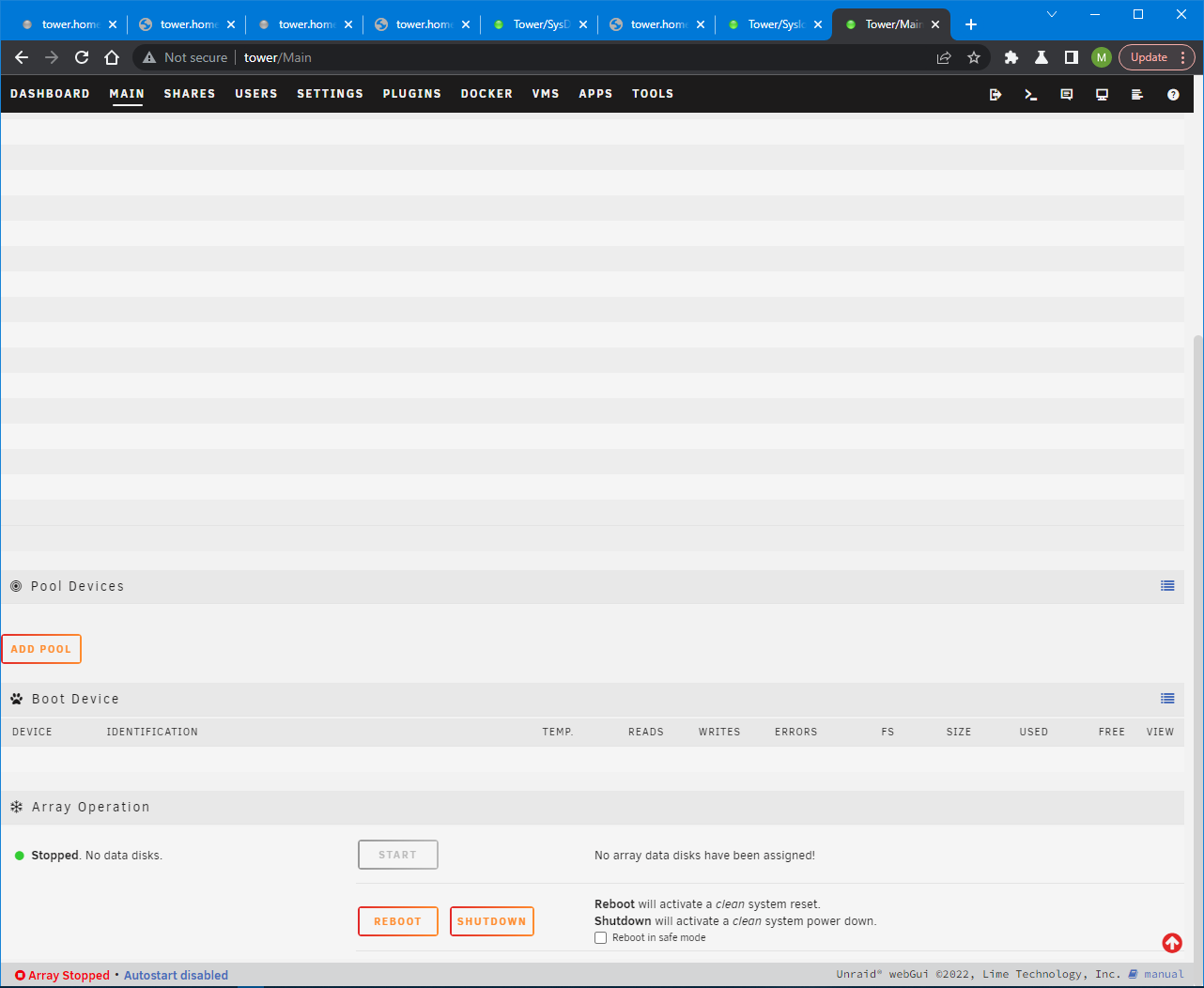

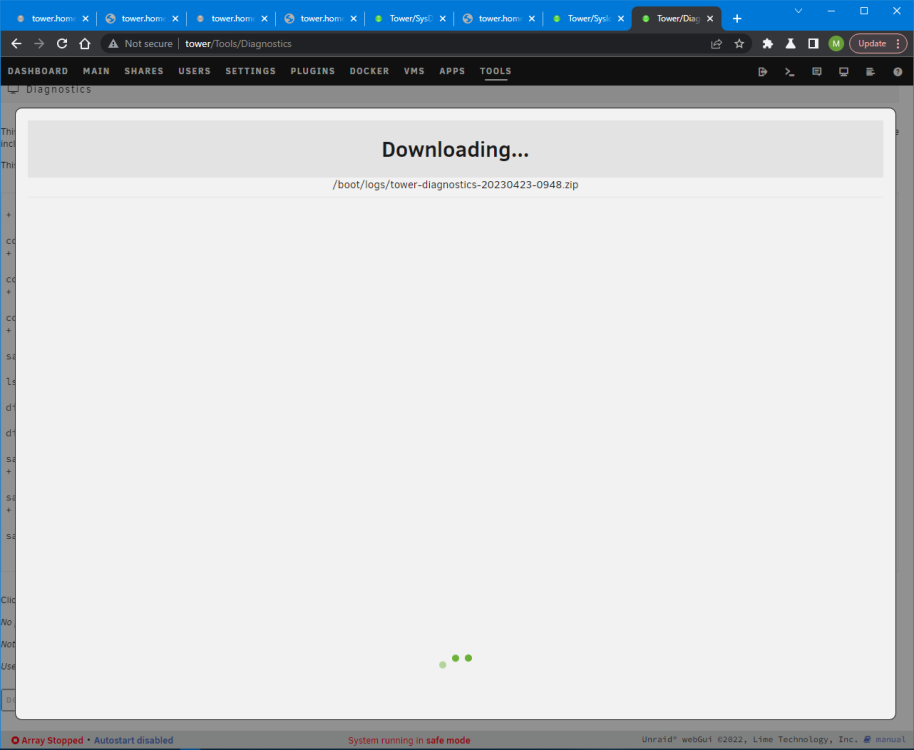

Safe mode looks about the same. Still no disks showing, but with the added "System running in safe mode" at the bottom of the screen. Started a diagnostics download, it's been sitting like this for the last 10 minutes or so. I'm about to at least re-seat the CPU, though you'd think that a CPU connection issue would kinda be an all-or-nothing situation. I might have another CPU that would work in this board sitting around to swap out. Still trying stuff. Just strange that it got weird like that all of a sudden. Also going to try a different NIC. Shouldn't be the issue, but, never know. It's something I can try.

I did try safe mode earlier, I'll try it again and post a complete diagnostics.

Version: 6.11.5 Trial expires in 29 days 22 hours 53 minutes • Unraid OS Trial Purchase Key Media server•Tower DASHBOARD MAIN SHARES USERS SETTINGS PLUGINS DOCKER VMS APPS TOOLS System Log Apr 22 12:22:09 Tower kernel: microcode: microcode updated early to revision 0x21, date = 2019-02-13 Apr 22 12:22:09 Tower kernel: Linux version 5.19.17-Unraid (root@Develop) (gcc (GCC) 12.2.0, GNU ld version 2.39-slack151) #2 SMP PREEMPT_DYNAMIC Wed Nov 2 11:54:15 PDT 2022 Apr 22 12:22:09 Tower kernel: Command line: BOOT_IMAGE=/bzimage initrd=/bzroot Apr 22 12:22:09 Tower kernel: x86/fpu: Supporting XSAVE feature 0x001: 'x87 floating point registers' Apr 22 12:22:09 Tower kernel: x86/fpu: Supporting XSAVE feature 0x002: 'SSE registers' Apr 22 12:22:09 Tower kernel: x86/fpu: Supporting XSAVE feature 0x004: 'AVX registers' Apr 22 12:22:09 Tower kernel: x86/fpu: xstate_offset[2]: 576, xstate_sizes[2]: 256 Apr 22 12:22:09 Tower kernel: x86/fpu: Enabled xstate features 0x7, context size is 832 bytes, using 'standard' format. Apr 22 12:22:09 Tower kernel: signal: max sigframe size: 1776 Apr 22 12:22:09 Tower kernel: BIOS-provided physical RAM map: Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x0000000000000000-0x000000000009ebff] usable Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x000000000009ec00-0x000000000009ffff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000000e0000-0x00000000000fffff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x0000000000100000-0x000000001fffffff] usable Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x0000000020000000-0x00000000201fffff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x0000000020200000-0x0000000040003fff] usable Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x0000000040004000-0x0000000040004fff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x0000000040005000-0x00000000cc3c1fff] usable Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000cc3c2000-0x00000000cc99bfff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000cc99c000-0x00000000cc9abfff] ACPI data Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000cc9ac000-0x00000000ccad0fff] ACPI NVS Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000ccad1000-0x00000000cd7f4fff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000cd7f5000-0x00000000cd7f5fff] usable Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000cd7f6000-0x00000000cd838fff] ACPI NVS Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000cd839000-0x00000000cdc6bfff] usable Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000cdc6c000-0x00000000cdff3fff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000cdff4000-0x00000000cdffffff] usable Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000cf000000-0x00000000df1fffff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000f8000000-0x00000000fbffffff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000fec00000-0x00000000fec00fff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000fed00000-0x00000000fed03fff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000fed1c000-0x00000000fed1ffff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000fee00000-0x00000000fee00fff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x00000000ff000000-0x00000000ffffffff] reserved Apr 22 12:22:09 Tower kernel: BIOS-e820: [mem 0x0000000100000000-0x000000021fdfffff] usable Apr 22 12:22:09 Tower kernel: NX (Execute Disable) protection: active Apr 22 12:22:09 Tower kernel: SMBIOS 2.7 present. Apr 22 12:22:09 Tower kernel: DMI: System manufacturer System Product Name/P8Z77-V LK, BIOS 1402 03/21/2014 Apr 22 12:22:09 Tower kernel: tsc: Fast TSC calibration using PIT Apr 22 12:22:09 Tower kernel: tsc: Detected 3309.885 MHz processor Apr 22 12:22:09 Tower kernel: e820: update [mem 0x00000000-0x00000fff] usable ==> reserved Apr 22 12:22:09 Tower kernel: e820: remove [mem 0x000a0000-0x000fffff] usable Apr 22 12:22:09 Tower kernel: last_pfn = 0x21fe00 max_arch_pfn = 0x400000000 Apr 22 12:22:09 Tower kernel: x86/PAT: Configuration [0-7]: WB WC UC- UC WB WP UC- WT Apr 22 12:22:09 Tower kernel: e820: update [mem 0xcf000000-0xffffffff] usable ==> reserved Apr 22 12:22:09 Tower kernel: last_pfn = 0xce000 max_arch_pfn = 0x400000000 Apr 22 12:22:09 Tower kernel: found SMP MP-table at [mem 0x000fd8a0-0x000fd8af] Apr 22 12:22:09 Tower kernel: RAMDISK: [mem 0x76242000-0x7fffffff] Apr 22 12:22:09 Tower kernel: ACPI: Early table checksum verification disabled Apr 22 12:22:09 Tower kernel: ACPI: RSDP 0x00000000000F0490 000024 (v02 ALASKA) Apr 22 12:22:09 Tower kernel: ACPI: XSDT 0x00000000CC99F078 00006C (v01 ALASKA A M I 01072009 AMI 00010013) Apr 22 12:22:09 Tower kernel: ACPI: FACP 0x00000000CC9AA160 00010C (v05 ALASKA A M I 01072009 AMI 00010013) Apr 22 12:22:09 Tower kernel: ACPI: DSDT 0x00000000CC99F180 00AFDF (v02 ALASKA A M I 00000022 INTL 20051117) Apr 22 12:22:09 Tower kernel: ACPI: FACS 0x00000000CCACF080 000040 Apr 22 12:22:09 Tower kernel: ACPI: APIC 0x00000000CC9AA270 000072 (v03 ALASKA A M I 01072009 AMI 00010013) Apr 22 12:22:09 Tower kernel: ACPI: FPDT 0x00000000CC9AA2E8 000044 (v01 ALASKA A M I 01072009 AMI 00010013) Apr 22 12:22:09 Tower kernel: ACPI: MCFG 0x00000000CC9AA330 00003C (v01 ALASKA A M I 01072009 MSFT 00000097) Apr 22 12:22:09 Tower kernel: ACPI: HPET 0x00000000CC9AA370 000038 (v01 ALASKA A M I 01072009 AMI. 00000005) Apr 22 12:22:09 Tower kernel: ACPI: SSDT 0x00000000CC9AA3A8 00036D (v01 SataRe SataTabl 00001000 INTL 20091112) Apr 22 12:22:09 Tower kernel: ACPI: DMAR 0x00000000CC9ABBB8 0000B8 (v01 INTEL SNB 00000001 INTL 00000001) Apr 22 12:22:09 Tower kernel: ACPI: SSDT 0x00000000CC9AA770 0009AA (v01 PmRef Cpu0Ist 00003000 INTL 20051117) Apr 22 12:22:09 Tower kernel: ACPI: SSDT 0x00000000CC9AB120 000A92 (v01 PmRef CpuPm 00003000 INTL 20051117) Apr 22 12:22:09 Tower kernel: ACPI: Reserving FACP table memory at [mem 0xcc9aa160-0xcc9aa26b] Apr 22 12:22:09 Tower kernel: ACPI: Reserving DSDT table memory at [mem 0xcc99f180-0xcc9aa15e] Apr 22 12:22:09 Tower kernel: ACPI: Reserving FACS table memory at [mem 0xccacf080-0xccacf0bf] Apr 22 12:22:09 Tower kernel: ACPI: Reserving APIC table memory at [mem 0xcc9aa270-0xcc9aa2e1] Apr 22 12:22:09 Tower kernel: ACPI: Reserving FPDT table memory at [mem 0xcc9aa2e8-0xcc9aa32b] Apr 22 12:22:09 Tower kernel: ACPI: Reserving MCFG table memory at [mem 0xcc9aa330-0xcc9aa36b] Apr 22 12:22:09 Tower kernel: ACPI: Reserving HPET table memory at [mem 0xcc9aa370-0xcc9aa3a7] Apr 22 12:22:09 Tower kernel: ACPI: Reserving SSDT table memory at [mem 0xcc9aa3a8-0xcc9aa714] Apr 22 12:22:09 Tower kernel: ACPI: Reserving DMAR table memory at [mem 0xcc9abbb8-0xcc9abc6f] Apr 22 12:22:09 Tower kernel: ACPI: Reserving SSDT table memory at [mem 0xcc9aa770-0xcc9ab119] Apr 22 12:22:09 Tower kernel: ACPI: Reserving SSDT table memory at [mem 0xcc9ab120-0xcc9abbb1] Apr 22 12:22:09 Tower kernel: No NUMA configuration found Apr 22 12:22:09 Tower kernel: Faking a node at [mem 0x0000000000000000-0x000000021fdfffff] Apr 22 12:22:09 Tower kernel: NODE_DATA(0) allocated [mem 0x21fdf1000-0x21fdf4fff] Apr 22 12:22:09 Tower kernel: Zone ranges: Apr 22 12:22:09 Tower kernel: DMA [mem 0x0000000000001000-0x0000000000ffffff] Apr 22 12:22:09 Tower kernel: DMA32 [mem 0x0000000001000000-0x00000000ffffffff] Apr 22 12:22:09 Tower kernel: Normal [mem 0x0000000100000000-0x000000021fdfffff] Apr 22 12:22:09 Tower kernel: Movable zone start for each node Apr 22 12:22:09 Tower kernel: Early memory node ranges Apr 22 12:22:09 Tower kernel: node 0: [mem 0x0000000000001000-0x000000000009dfff] Apr 22 12:22:09 Tower kernel: node 0: [mem 0x0000000000100000-0x000000001fffffff] Apr 22 12:22:09 Tower kernel: node 0: [mem 0x0000000020200000-0x0000000040003fff] Apr 22 12:22:09 Tower kernel: node 0: [mem 0x0000000040005000-0x00000000cc3c1fff] Apr 22 12:22:09 Tower kernel: node 0: [mem 0x00000000cd7f5000-0x00000000cd7f5fff] Apr 22 12:22:09 Tower kernel: node 0: [mem 0x00000000cd839000-0x00000000cdc6bfff] Apr 22 12:22:09 Tower kernel: node 0: [mem 0x00000000cdff4000-0x00000000cdffffff] Apr 22 12:22:09 Tower kernel: node 0: [mem 0x0000000100000000-0x000000021fdfffff] Apr 22 12:22:09 Tower kernel: Initmem setup node 0 [mem 0x0000000000001000-0x000000021fdfffff] Apr 22 12:22:09 Tower kernel: On node 0, zone DMA: 1 pages in unavailable ranges Apr 22 12:22:09 Tower kernel: On node 0, zone DMA: 98 pages in unavailable ranges Apr 22 12:22:09 Tower kernel: On node 0, zone DMA32: 512 pages in unavailable ranges Apr 22 12:22:09 Tower kernel: On node 0, zone DMA32: 1 pages in unavailable ranges Apr 22 12:22:09 Tower kernel: On node 0, zone DMA32: 5171 pages in unavailable ranges Apr 22 12:22:09 Tower kernel: On node 0, zone DMA32: 67 pages in unavailable ranges Apr 22 12:22:09 Tower kernel: On node 0, zone DMA32: 904 pages in unavailable ranges Apr 22 12:22:09 Tower kernel: On node 0, zone Normal: 8192 pages in unavailable ranges Apr 22 12:22:09 Tower kernel: On node 0, zone Normal: 512 pages in unavailable ranges Apr 22 12:22:09 Tower kernel: Reserving Intel graphics memory at [mem 0xcf200000-0xdf1fffff] Apr 22 12:22:09 Tower kernel: ACPI: PM-Timer IO Port: 0x408 Apr 22 12:22:09 Tower kernel: ACPI: LAPIC_NMI (acpi_id[0xff] high edge lint[0x1]) Apr 22 12:22:09 Tower kernel: IOAPIC[0]: apic_id 2, version 32, address 0xfec00000, GSI 0-23 Apr 22 12:22:09 Tower kernel: ACPI: INT_SRC_OVR (bus 0 bus_irq 0 global_irq 2 dfl dfl) Apr 22 12:22:09 Tower kernel: ACPI: INT_SRC_OVR (bus 0 bus_irq 9 global_irq 9 high level) Apr 22 12:22:09 Tower kernel: ACPI: Using ACPI (MADT) for SMP configuration information Apr 22 12:22:09 Tower kernel: ACPI: HPET id: 0x8086a701 base: 0xfed00000 Apr 22 12:22:09 Tower kernel: TSC deadline timer available Apr 22 12:22:09 Tower kernel: smpboot: Allowing 4 CPUs, 0 hotplug CPUs Apr 22 12:22:09 Tower kernel: [mem 0xdf200000-0xf7ffffff] available for PCI devices Apr 22 12:22:09 Tower kernel: Booting paravirtualized kernel on bare hardware Apr 22 12:22:09 Tower kernel: clocksource: refined-jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 1910969940391419 ns Apr 22 12:22:09 Tower kernel: setup_percpu: NR_CPUS:256 nr_cpumask_bits:256 nr_cpu_ids:4 nr_node_ids:1 Apr 22 12:22:09 Tower kernel: percpu: Embedded 55 pages/cpu s185960 r8192 d31128 u524288 Apr 22 12:22:09 Tower kernel: pcpu-alloc: s185960 r8192 d31128 u524288 alloc=1*2097152 Apr 22 12:22:09 Tower kernel: pcpu-alloc: [0] 0 1 2 3 Apr 22 12:22:09 Tower kernel: Fallback order for Node 0: 0 Apr 22 12:22:09 Tower kernel: Built 1 zonelists, mobility grouping on. Total pages: 1984496 Apr 22 12:22:09 Tower kernel: Policy zone: Normal Apr 22 12:22:09 Tower kernel: Kernel command line: BOOT_IMAGE=/bzimage initrd=/bzroot Apr 22 12:22:09 Tower kernel: Unknown kernel command line parameters "BOOT_IMAGE=/bzimage", will be passed to user space. Apr 22 12:22:09 Tower kernel: Dentry cache hash table entries: 1048576 (order: 11, 8388608 bytes, linear) Apr 22 12:22:09 Tower kernel: Inode-cache hash table entries: 524288 (order: 10, 4194304 bytes, linear) Apr 22 12:22:09 Tower kernel: mem auto-init: stack:off, heap alloc:off, heap free:off Apr 22 12:22:09 Tower kernel: Memory: 7669008K/8064632K available (12295K kernel code, 1681K rwdata, 3916K rodata, 1836K init, 1820K bss, 395368K reserved, 0K cma-reserved) Apr 22 12:22:09 Tower kernel: SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 Apr 22 12:22:09 Tower kernel: Kernel/User page tables isolation: enabled Apr 22 12:22:09 Tower kernel: ftrace: allocating 41888 entries in 164 pages Apr 22 12:22:09 Tower kernel: ftrace: allocated 164 pages with 3 groups Apr 22 12:22:09 Tower kernel: Dynamic Preempt: voluntary Apr 22 12:22:09 Tower kernel: rcu: Preemptible hierarchical RCU implementation. Apr 22 12:22:09 Tower kernel: rcu: RCU event tracing is enabled. Apr 22 12:22:09 Tower kernel: rcu: RCU restricting CPUs from NR_CPUS=256 to nr_cpu_ids=4. Apr 22 12:22:09 Tower kernel: Trampoline variant of Tasks RCU enabled. Apr 22 12:22:09 Tower kernel: Rude variant of Tasks RCU enabled. Apr 22 12:22:09 Tower kernel: Tracing variant of Tasks RCU enabled. Apr 22 12:22:09 Tower kernel: rcu: RCU calculated value of scheduler-enlistment delay is 100 jiffies. Apr 22 12:22:09 Tower kernel: rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4 Apr 22 12:22:09 Tower kernel: NR_IRQS: 16640, nr_irqs: 456, preallocated irqs: 16 Apr 22 12:22:09 Tower kernel: rcu: srcu_init: Setting srcu_struct sizes based on contention. Apr 22 12:22:09 Tower kernel: Console: colour VGA+ 80x25 Apr 22 12:22:09 Tower kernel: printk: console [tty0] enabled Apr 22 12:22:09 Tower kernel: ACPI: Core revision 20220331 Apr 22 12:22:09 Tower kernel: clocksource: hpet: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 133484882848 ns Apr 22 12:22:09 Tower kernel: APIC: Switch to symmetric I/O mode setup Apr 22 12:22:09 Tower kernel: DMAR: Host address width 36 Apr 22 12:22:09 Tower kernel: DMAR: DRHD base: 0x000000fed90000 flags: 0x0 Apr 22 12:22:09 Tower kernel: DMAR: dmar0: reg_base_addr fed90000 ver 1:0 cap c0000020e60262 ecap f0101a Apr 22 12:22:09 Tower kernel: DMAR: DRHD base: 0x000000fed91000 flags: 0x1 Apr 22 12:22:09 Tower kernel: DMAR: dmar1: reg_base_addr fed91000 ver 1:0 cap c9008020660262 ecap f0105a Apr 22 12:22:09 Tower kernel: DMAR: RMRR base: 0x000000cc91e000 end: 0x000000cc92ffff Apr 22 12:22:09 Tower kernel: DMAR: RMRR base: 0x000000cf000000 end: 0x000000df1fffff Apr 22 12:22:09 Tower kernel: DMAR-IR: IOAPIC id 2 under DRHD base 0xfed91000 IOMMU 1 Apr 22 12:22:09 Tower kernel: DMAR-IR: HPET id 0 under DRHD base 0xfed91000 Apr 22 12:22:09 Tower kernel: DMAR-IR: Queued invalidation will be enabled to support x2apic and Intr-remapping. Apr 22 12:22:09 Tower kernel: DMAR-IR: Enabled IRQ remapping in x2apic mode Apr 22 12:22:09 Tower kernel: x2apic enabled Apr 22 12:22:09 Tower kernel: Switched APIC routing to cluster x2apic. Apr 22 12:22:09 Tower kernel: ..TIMER: vector=0x30 apic1=0 pin1=2 apic2=-1 pin2=-1 Apr 22 12:22:09 Tower kernel: clocksource: tsc-early: mask: 0xffffffffffffffff max_cycles: 0x2fb5c68957f, max_idle_ns: 440795256703 ns Apr 22 12:22:09 Tower kernel: Calibrating delay loop (skipped), value calculated using timer frequency.. 6619.77 BogoMIPS (lpj=3309885) Apr 22 12:22:09 Tower kernel: pid_max: default: 32768 minimum: 301 Apr 22 12:22:09 Tower kernel: Mount-cache hash table entries: 16384 (order: 5, 131072 bytes, linear) Apr 22 12:22:09 Tower kernel: Mountpoint-cache hash table entries: 16384 (order: 5, 131072 bytes, linear) Apr 22 12:22:09 Tower kernel: x86/cpu: VMX (outside TXT) disabled by BIOS Apr 22 12:22:09 Tower kernel: CPU0: Thermal monitoring enabled (TM1) Apr 22 12:22:09 Tower kernel: process: using mwait in idle threads Apr 22 12:22:09 Tower kernel: Last level iTLB entries: 4KB 512, 2MB 8, 4MB 8 Apr 22 12:22:09 Tower kernel: Last level dTLB entries: 4KB 512, 2MB 32, 4MB 32, 1GB 0 Apr 22 12:22:09 Tower kernel: Spectre V1 : Mitigation: usercopy/swapgs barriers and __user pointer sanitization Apr 22 12:22:09 Tower kernel: Spectre V2 : Mitigation: Retpolines Apr 22 12:22:09 Tower kernel: Spectre V2 : Spectre v2 / SpectreRSB mitigation: Filling RSB on context switch Apr 22 12:22:09 Tower kernel: Spectre V2 : Spectre v2 / SpectreRSB : Filling RSB on VMEXIT Apr 22 12:22:09 Tower kernel: Spectre V2 : Enabling Restricted Speculation for firmware calls Apr 22 12:22:09 Tower kernel: Spectre V2 : mitigation: Enabling conditional Indirect Branch Prediction Barrier Apr 22 12:22:09 Tower kernel: Speculative Store Bypass: Mitigation: Speculative Store Bypass disabled via prctl Apr 22 12:22:09 Tower kernel: MDS: Mitigation: Clear CPU buffers Apr 22 12:22:09 Tower kernel: MMIO Stale Data: Unknown: No mitigations Apr 22 12:22:09 Tower kernel: SRBDS: Vulnerable: No microcode Apr 22 12:22:09 Tower kernel: Freeing SMP alternatives memory: 24K Apr 22 12:22:09 Tower kernel: smpboot: CPU0: Intel(R) Core(TM) i5-3550 CPU @ 3.30GHz (family: 0x6, model: 0x3a, stepping: 0x9) Apr 22 12:22:09 Tower kernel: cblist_init_generic: Setting adjustable number of callback queues. Apr 22 12:22:09 Tower kernel: cblist_init_generic: Setting shift to 2 and lim to 1. Apr 22 12:22:09 Tower kernel: cblist_init_generic: Setting shift to 2 and lim to 1. Apr 22 12:22:09 Tower kernel: cblist_init_generic: Setting shift to 2 and lim to 1. Apr 22 12:22:09 Tower kernel: Performance Events: PEBS fmt1+, IvyBridge events, 16-deep LBR, full-width counters, Intel PMU driver. Apr 22 12:22:09 Tower kernel: ... version: 3 Apr 22 12:22:09 Tower kernel: ... bit width: 48 Apr 22 12:22:09 Tower kernel: ... generic registers: 8 Apr 22 12:22:09 Tower kernel: ... value mask: 0000ffffffffffff Apr 22 12:22:09 Tower kernel: ... max period: 00007fffffffffff Apr 22 12:22:09 Tower kernel: ... fixed-purpose events: 3 Apr 22 12:22:09 Tower kernel: ... event mask: 00000007000000ff Apr 22 12:22:09 Tower kernel: Estimated ratio of average max frequency by base frequency (times 1024): 1086 Apr 22 12:22:09 Tower kernel: rcu: Hierarchical SRCU implementation. Apr 22 12:22:09 Tower kernel: rcu: Max phase no-delay instances is 400. Apr 22 12:22:09 Tower kernel: smp: Bringing up secondary CPUs ... Apr 22 12:22:09 Tower kernel: x86: Booting SMP configuration: Apr 22 12:22:09 Tower kernel: .... node #0, CPUs: #1 #2 #3 Apr 22 12:22:09 Tower kernel: smp: Brought up 1 node, 4 CPUs Apr 22 12:22:09 Tower kernel: smpboot: Max logical packages: 1 Apr 22 12:22:09 Tower kernel: smpboot: Total of 4 processors activated (26479.08 BogoMIPS) Apr 22 12:22:09 Tower kernel: devtmpfs: initialized Apr 22 12:22:09 Tower kernel: x86/mm: Memory block size: 128MB Apr 22 12:22:09 Tower kernel: ACPI: PM: Registering ACPI NVS region [mem 0xcc9ac000-0xccad0fff] (1200128 bytes) Apr 22 12:22:09 Tower kernel: ACPI: PM: Registering ACPI NVS region [mem 0xcd7f6000-0xcd838fff] (274432 bytes) Apr 22 12:22:09 Tower kernel: clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 1911260446275000 ns Apr 22 12:22:09 Tower kernel: futex hash table entries: 1024 (order: 4, 65536 bytes, linear) Apr 22 12:22:09 Tower kernel: pinctrl core: initialized pinctrl subsystem Apr 22 12:22:09 Tower kernel: NET: Registered PF_NETLINK/PF_ROUTE protocol family Apr 22 12:22:09 Tower kernel: thermal_sys: Registered thermal governor 'fair_share' Apr 22 12:22:09 Tower kernel: thermal_sys: Registered thermal governor 'bang_bang' Apr 22 12:22:09 Tower kernel: thermal_sys: Registered thermal governor 'step_wise' Apr 22 12:22:09 Tower kernel: thermal_sys: Registered thermal governor 'user_space' Apr 22 12:22:09 Tower kernel: cpuidle: using governor ladder Apr 22 12:22:09 Tower kernel: cpuidle: using governor menu Apr 22 12:22:09 Tower kernel: ACPI FADT declares the system doesn't support PCIe ASPM, so disable it Apr 22 12:22:09 Tower kernel: PCI: MMCONFIG for domain 0000 [bus 00-3f] at [mem 0xf8000000-0xfbffffff] (base 0xf8000000) Apr 22 12:22:09 Tower kernel: PCI: MMCONFIG at [mem 0xf8000000-0xfbffffff] reserved in E820 Apr 22 12:22:09 Tower kernel: pmd_set_huge: Cannot satisfy [mem 0xf8000000-0xf8200000] with a huge-page mapping due to MTRR override. Apr 22 12:22:09 Tower kernel: PCI: Using configuration type 1 for base access Apr 22 12:22:09 Tower kernel: core: PMU erratum BJ122, BV98, HSD29 workaround disabled, HT off Apr 22 12:22:09 Tower kernel: ENERGY_PERF_BIAS: Set to 'normal', was 'performance' Apr 22 12:22:09 Tower kernel: kprobes: kprobe jump-optimization is enabled. All kprobes are optimized if possible. Apr 22 12:22:09 Tower kernel: HugeTLB: can optimize 7 vmemmap pages for hugepages-2048kB Apr 22 12:22:09 Tower kernel: HugeTLB registered 2.00 MiB page size, pre-allocated 0 pages Apr 22 12:22:09 Tower kernel: raid6: sse2x4 gen() 14988 MB/s Apr 22 12:22:09 Tower kernel: raid6: sse2x2 gen() 14794 MB/s Apr 22 12:22:09 Tower kernel: raid6: sse2x1 gen() 11005 MB/s Apr 22 12:22:09 Tower kernel: raid6: using algorithm sse2x4 gen() 14988 MB/s Apr 22 12:22:09 Tower kernel: raid6: .... xor() 7866 MB/s, rmw enabled Apr 22 12:22:09 Tower kernel: raid6: using ssse3x2 recovery algorithm Apr 22 12:22:09 Tower kernel: ACPI: Added _OSI(Module Device) Apr 22 12:22:09 Tower kernel: ACPI: Added _OSI(Processor Device) Apr 22 12:22:09 Tower kernel: ACPI: Added _OSI(3.0 _SCP Extensions) Apr 22 12:22:09 Tower kernel: ACPI: Added _OSI(Processor Aggregator Device) Apr 22 12:22:09 Tower kernel: ACPI: Added _OSI(Linux-Dell-Video) Apr 22 12:22:09 Tower kernel: ACPI: Added _OSI(Linux-Lenovo-NV-HDMI-Audio) Apr 22 12:22:09 Tower kernel: ACPI: Added _OSI(Linux-HPI-Hybrid-Graphics) Apr 22 12:22:09 Tower kernel: ACPI: 4 ACPI AML tables successfully acquired and loaded Apr 22 12:22:09 Tower kernel: ACPI: Dynamic OEM Table Load: Apr 22 12:22:09 Tower kernel: ACPI: SSDT 0xFFFF888100C38000 00083B (v01 PmRef Cpu0Cst 00003001 INTL 20051117) Apr 22 12:22:09 Tower kernel: ACPI: Dynamic OEM Table Load: Apr 22 12:22:09 Tower kernel: ACPI: SSDT 0xFFFF888100D80400 000303 (v01 PmRef ApIst 00003000 INTL 20051117) Apr 22 12:22:09 Tower kernel: ACPI: Dynamic OEM Table Load: Apr 22 12:22:09 Tower kernel: ACPI: SSDT 0xFFFF888100BF2200 000119 (v01 PmRef ApCst 00003000 INTL 20051117) Apr 22 12:22:09 Tower kernel: ACPI: Interpreter enabled Apr 22 12:22:09 Tower kernel: ACPI: PM: (supports S0 S3 S5) Apr 22 12:22:09 Tower kernel: ACPI: Using IOAPIC for interrupt routing Apr 22 12:22:09 Tower kernel: PCI: Using host bridge windows from ACPI; if necessary, use "pci=nocrs" and report a bug Apr 22 12:22:09 Tower kernel: PCI: Using E820 reservations for host bridge windows Apr 22 12:22:09 Tower kernel: ACPI: Enabled 10 GPEs in block 00 to 3F Apr 22 12:22:09 Tower kernel: ACPI: PM: Power Resource [FN00] Apr 22 12:22:09 Tower kernel: ACPI: PM: Power Resource [FN01] Apr 22 12:22:09 Tower kernel: ACPI: PM: Power Resource [FN02] Apr 22 12:22:09 Tower kernel: ACPI: PM: Power Resource [FN03] Apr 22 12:22:09 Tower kernel: ACPI: PM: Power Resource [FN04] Apr 22 12:22:09 Tower kernel: ACPI: PCI Root Bridge [PCI0] (domain 0000 [bus 00-3e]) Apr 22 12:22:09 Tower kernel: acpi PNP0A08:00: _OSC: OS supports [ExtendedConfig ASPM ClockPM Segments MSI HPX-Type3] Apr 22 12:22:09 Tower kernel: acpi PNP0A08:00: _OSC: platform does not support [PME] Apr 22 12:22:09 Tower kernel: acpi PNP0A08:00: _OSC: OS now controls [AER PCIeCapability LTR] Apr 22 12:22:09 Tower kernel: acpi PNP0A08:00: FADT indicates ASPM is unsupported, using BIOS configuration Apr 22 12:22:09 Tower kernel: PCI host bridge to bus 0000:00 Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: root bus resource [io 0x0000-0x0cf7 window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: root bus resource [io 0x0d00-0xffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: root bus resource [mem 0x000a0000-0x000bffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: root bus resource [mem 0x000d0000-0x000e7fff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: root bus resource [mem 0xdf200000-0xfeafffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: root bus resource [bus 00-3e] Apr 22 12:22:09 Tower kernel: pci 0000:00:00.0: [8086:0150] type 00 class 0x060000 Apr 22 12:22:09 Tower kernel: pci 0000:00:01.0: [8086:0151] type 01 class 0x060400 Apr 22 12:22:09 Tower kernel: pci 0000:00:01.0: PME# supported from D0 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: [8086:0155] type 01 class 0x060400 Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: PME# supported from D0 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:02.0: [8086:0152] type 00 class 0x030000 Apr 22 12:22:09 Tower kernel: pci 0000:00:02.0: reg 0x10: [mem 0xf7400000-0xf77fffff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:00:02.0: reg 0x18: [mem 0xe0000000-0xefffffff 64bit pref] Apr 22 12:22:09 Tower kernel: pci 0000:00:02.0: reg 0x20: [io 0xf000-0xf03f] Apr 22 12:22:09 Tower kernel: pci 0000:00:02.0: Video device with shadowed ROM at [mem 0x000c0000-0x000dffff] Apr 22 12:22:09 Tower kernel: pci 0000:00:14.0: [8086:1e31] type 00 class 0x0c0330 Apr 22 12:22:09 Tower kernel: pci 0000:00:14.0: reg 0x10: [mem 0xf7c00000-0xf7c0ffff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:00:14.0: PME# supported from D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:16.0: [8086:1e3a] type 00 class 0x078000 Apr 22 12:22:09 Tower kernel: pci 0000:00:16.0: reg 0x10: [mem 0xf7c1a000-0xf7c1a00f 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:00:16.0: PME# supported from D0 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:1a.0: [8086:1e2d] type 00 class 0x0c0320 Apr 22 12:22:09 Tower kernel: pci 0000:00:1a.0: reg 0x10: [mem 0xf7c18000-0xf7c183ff] Apr 22 12:22:09 Tower kernel: pci 0000:00:1a.0: PME# supported from D0 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:1b.0: [8086:1e20] type 00 class 0x040300 Apr 22 12:22:09 Tower kernel: pci 0000:00:1b.0: reg 0x10: [mem 0xf7c10000-0xf7c13fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:00:1b.0: PME# supported from D0 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.0: [8086:1e10] type 01 class 0x060400 Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.0: PME# supported from D0 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.0: Enabling MPC IRBNCE Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.0: Intel PCH root port ACS workaround enabled Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: [8086:1e18] type 01 class 0x060400 Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: PME# supported from D0 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: Enabling MPC IRBNCE Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: Intel PCH root port ACS workaround enabled Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: [8086:244e] type 01 class 0x060401 Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: PME# supported from D0 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: [8086:1e1e] type 01 class 0x060400 Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: PME# supported from D0 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: Enabling MPC IRBNCE Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: Intel PCH root port ACS workaround enabled Apr 22 12:22:09 Tower kernel: pci 0000:00:1d.0: [8086:1e26] type 00 class 0x0c0320 Apr 22 12:22:09 Tower kernel: pci 0000:00:1d.0: reg 0x10: [mem 0xf7c17000-0xf7c173ff] Apr 22 12:22:09 Tower kernel: pci 0000:00:1d.0: PME# supported from D0 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.0: [8086:1e44] type 00 class 0x060100 Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.2: [8086:1e02] type 00 class 0x010601 Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.2: reg 0x10: [io 0xf0b0-0xf0b7] Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.2: reg 0x14: [io 0xf0a0-0xf0a3] Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.2: reg 0x18: [io 0xf090-0xf097] Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.2: reg 0x1c: [io 0xf080-0xf083] Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.2: reg 0x20: [io 0xf060-0xf07f] Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.2: reg 0x24: [mem 0xf7c16000-0xf7c167ff] Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.2: PME# supported from D3hot Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.3: [8086:1e22] type 00 class 0x0c0500 Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.3: reg 0x10: [mem 0xf7c15000-0xf7c150ff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.3: reg 0x20: [io 0xf040-0xf05f] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.0: PCI bridge to [bus 01] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: [8086:10fb] type 00 class 0x020000 Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: reg 0x10: [mem 0xf7980000-0xf79fffff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: reg 0x18: [io 0xe020-0xe03f] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: reg 0x20: [mem 0xf7a04000-0xf7a07fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: reg 0x30: [mem 0xf7900000-0xf797ffff pref] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: PME# supported from D0 D3hot Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: reg 0x184: [mem 0x00000000-0x00003fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: VF(n) BAR0 space: [mem 0x00000000-0x000fffff 64bit] (contains BAR0 for 64 VFs) Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: reg 0x190: [mem 0x00000000-0x00003fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: VF(n) BAR3 space: [mem 0x00000000-0x000fffff 64bit] (contains BAR3 for 64 VFs) Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: [8086:10fb] type 00 class 0x020000 Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: reg 0x10: [mem 0xf7880000-0xf78fffff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: reg 0x18: [io 0xe000-0xe01f] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: reg 0x20: [mem 0xf7a00000-0xf7a03fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: reg 0x30: [mem 0xf7800000-0xf787ffff pref] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: PME# supported from D0 D3hot Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: reg 0x184: [mem 0x00000000-0x00003fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: VF(n) BAR0 space: [mem 0x00000000-0x000fffff 64bit] (contains BAR0 for 64 VFs) Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: reg 0x190: [mem 0x00000000-0x00003fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: VF(n) BAR3 space: [mem 0x00000000-0x000fffff 64bit] (contains BAR3 for 64 VFs) Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: PCI bridge to [bus 02] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: bridge window [io 0xe000-0xefff] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: bridge window [mem 0xf7800000-0xf7afffff] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: bridge has subordinate 02 but max busn 03 Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.0: PCI bridge to [bus 03] Apr 22 12:22:09 Tower kernel: pci 0000:04:00.0: [10ec:8168] type 00 class 0x020000 Apr 22 12:22:09 Tower kernel: pci 0000:04:00.0: reg 0x10: [io 0xd000-0xd0ff] Apr 22 12:22:09 Tower kernel: pci 0000:04:00.0: reg 0x18: [mem 0xf0004000-0xf0004fff 64bit pref] Apr 22 12:22:09 Tower kernel: pci 0000:04:00.0: reg 0x20: [mem 0xf0000000-0xf0003fff 64bit pref] Apr 22 12:22:09 Tower kernel: pci 0000:04:00.0: supports D1 D2 Apr 22 12:22:09 Tower kernel: pci 0000:04:00.0: PME# supported from D0 D1 D2 D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: PCI bridge to [bus 04] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: bridge window [io 0xd000-0xdfff] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: bridge window [mem 0xf0000000-0xf00fffff 64bit pref] Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: [1b21:1080] type 01 class 0x060401 Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: PCI bridge to [bus 05-06] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: bridge window [io 0x0000-0x0cf7 window] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: bridge window [io 0x0d00-0xffff window] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: bridge window [mem 0x000a0000-0x000bffff window] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: bridge window [mem 0x000d0000-0x000e7fff window] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: bridge window [mem 0xdf200000-0xfeafffff window] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci_bus 0000:06: extended config space not accessible Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: PCI bridge to [bus 06] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: bridge window [io 0x0000-0x0cf7 window] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: bridge window [io 0x0d00-0xffff window] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: bridge window [mem 0x000a0000-0x000bffff window] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: bridge window [mem 0x000d0000-0x000e7fff window] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: bridge window [mem 0xdf200000-0xfeafffff window] (subtractive decode) Apr 22 12:22:09 Tower kernel: pci 0000:07:00.0: [1b21:1042] type 00 class 0x0c0330 Apr 22 12:22:09 Tower kernel: pci 0000:07:00.0: reg 0x10: [mem 0xf7b00000-0xf7b07fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:07:00.0: PME# supported from D3hot D3cold Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: PCI bridge to [bus 07] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: bridge window [mem 0xf7b00000-0xf7bfffff] Apr 22 12:22:09 Tower kernel: ACPI: PCI: Interrupt link LNKA configured for IRQ 11 Apr 22 12:22:09 Tower kernel: ACPI: PCI: Interrupt link LNKB configured for IRQ 10 Apr 22 12:22:09 Tower kernel: ACPI: PCI: Interrupt link LNKC configured for IRQ 15 Apr 22 12:22:09 Tower kernel: ACPI: PCI: Interrupt link LNKD configured for IRQ 3 Apr 22 12:22:09 Tower kernel: ACPI: PCI: Interrupt link LNKE configured for IRQ 0 Apr 22 12:22:09 Tower kernel: ACPI: PCI: Interrupt link LNKE disabled Apr 22 12:22:09 Tower kernel: ACPI: PCI: Interrupt link LNKF configured for IRQ 5 Apr 22 12:22:09 Tower kernel: ACPI: PCI: Interrupt link LNKG configured for IRQ 6 Apr 22 12:22:09 Tower kernel: ACPI: PCI: Interrupt link LNKH configured for IRQ 14 Apr 22 12:22:09 Tower kernel: iommu: Default domain type: Passthrough Apr 22 12:22:09 Tower kernel: SCSI subsystem initialized Apr 22 12:22:09 Tower kernel: libata version 3.00 loaded. Apr 22 12:22:09 Tower kernel: ACPI: bus type USB registered Apr 22 12:22:09 Tower kernel: usbcore: registered new interface driver usbfs Apr 22 12:22:09 Tower kernel: usbcore: registered new interface driver hub Apr 22 12:22:09 Tower kernel: usbcore: registered new device driver usb Apr 22 12:22:09 Tower kernel: pps_core: LinuxPPS API ver. 1 registered Apr 22 12:22:09 Tower kernel: pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <[email protected]> Apr 22 12:22:09 Tower kernel: PTP clock support registered Apr 22 12:22:09 Tower kernel: PCI: Using ACPI for IRQ routing Apr 22 12:22:09 Tower kernel: PCI: pci_cache_line_size set to 64 bytes Apr 22 12:22:09 Tower kernel: e820: reserve RAM buffer [mem 0x0009ec00-0x0009ffff] Apr 22 12:22:09 Tower kernel: e820: reserve RAM buffer [mem 0x40004000-0x43ffffff] Apr 22 12:22:09 Tower kernel: e820: reserve RAM buffer [mem 0xcc3c2000-0xcfffffff] Apr 22 12:22:09 Tower kernel: e820: reserve RAM buffer [mem 0xcd7f6000-0xcfffffff] Apr 22 12:22:09 Tower kernel: e820: reserve RAM buffer [mem 0xcdc6c000-0xcfffffff] Apr 22 12:22:09 Tower kernel: e820: reserve RAM buffer [mem 0xce000000-0xcfffffff] Apr 22 12:22:09 Tower kernel: e820: reserve RAM buffer [mem 0x21fe00000-0x21fffffff] Apr 22 12:22:09 Tower kernel: pci 0000:00:02.0: vgaarb: setting as boot VGA device Apr 22 12:22:09 Tower kernel: pci 0000:00:02.0: vgaarb: bridge control possible Apr 22 12:22:09 Tower kernel: pci 0000:00:02.0: vgaarb: VGA device added: decodes=io+mem,owns=io+mem,locks=none Apr 22 12:22:09 Tower kernel: vgaarb: loaded Apr 22 12:22:09 Tower kernel: hpet0: at MMIO 0xfed00000, IRQs 2, 8, 0, 0, 0, 0, 0, 0 Apr 22 12:22:09 Tower kernel: hpet0: 8 comparators, 64-bit 14.318180 MHz counter Apr 22 12:22:09 Tower kernel: clocksource: Switched to clocksource tsc-early Apr 22 12:22:09 Tower kernel: FS-Cache: Loaded Apr 22 12:22:09 Tower kernel: pnp: PnP ACPI init Apr 22 12:22:09 Tower kernel: system 00:00: [mem 0xfed40000-0xfed44fff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:01: [io 0x0680-0x069f] has been reserved Apr 22 12:22:09 Tower kernel: system 00:01: [io 0x1000-0x100f] has been reserved Apr 22 12:22:09 Tower kernel: system 00:01: [io 0xffff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:01: [io 0xffff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:01: [io 0x0400-0x0453] has been reserved Apr 22 12:22:09 Tower kernel: system 00:01: [io 0x0458-0x047f] has been reserved Apr 22 12:22:09 Tower kernel: system 00:01: [io 0x0500-0x057f] has been reserved Apr 22 12:22:09 Tower kernel: system 00:01: [io 0x164e-0x164f] has been reserved Apr 22 12:22:09 Tower kernel: system 00:03: [io 0x0454-0x0457] has been reserved Apr 22 12:22:09 Tower kernel: system 00:04: [io 0x0290-0x029f] has been reserved Apr 22 12:22:09 Tower kernel: system 00:05: [io 0x04d0-0x04d1] has been reserved Apr 22 12:22:09 Tower kernel: pnp 00:06: [dma 0 disabled] Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xfed1c000-0xfed1ffff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xfed10000-0xfed17fff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xfed18000-0xfed18fff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xfed19000-0xfed19fff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xf8000000-0xfbffffff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xfed20000-0xfed3ffff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xfed90000-0xfed93fff] could not be reserved Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xfed45000-0xfed8ffff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xff000000-0xffffffff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xfee00000-0xfeefffff] could not be reserved Apr 22 12:22:09 Tower kernel: system 00:07: [mem 0xdf200000-0xdf200fff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:08: [mem 0x20000000-0x201fffff] has been reserved Apr 22 12:22:09 Tower kernel: system 00:08: [mem 0x40004000-0x40004fff] has been reserved Apr 22 12:22:09 Tower kernel: pnp: PnP ACPI: found 9 devices Apr 22 12:22:09 Tower kernel: clocksource: acpi_pm: mask: 0xffffff max_cycles: 0xffffff, max_idle_ns: 2085701024 ns Apr 22 12:22:09 Tower kernel: NET: Registered PF_INET protocol family Apr 22 12:22:09 Tower kernel: IP idents hash table entries: 131072 (order: 8, 1048576 bytes, linear) Apr 22 12:22:09 Tower kernel: tcp_listen_portaddr_hash hash table entries: 4096 (order: 4, 65536 bytes, linear) Apr 22 12:22:09 Tower kernel: Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) Apr 22 12:22:09 Tower kernel: TCP established hash table entries: 65536 (order: 7, 524288 bytes, linear) Apr 22 12:22:09 Tower kernel: TCP bind hash table entries: 65536 (order: 8, 1048576 bytes, linear) Apr 22 12:22:09 Tower kernel: TCP: Hash tables configured (established 65536 bind 65536) Apr 22 12:22:09 Tower kernel: UDP hash table entries: 4096 (order: 5, 131072 bytes, linear) Apr 22 12:22:09 Tower kernel: UDP-Lite hash table entries: 4096 (order: 5, 131072 bytes, linear) Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: max bus depth: 2 pci_try_num: 3 Apr 22 12:22:09 Tower kernel: pci 0000:00:01.0: PCI bridge to [bus 01] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: BAR 7: no space for [mem size 0x00100000 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: BAR 7: failed to assign [mem size 0x00100000 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: BAR 10: no space for [mem size 0x00100000 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: BAR 10: failed to assign [mem size 0x00100000 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: BAR 7: no space for [mem size 0x00100000 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: BAR 7: failed to assign [mem size 0x00100000 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: BAR 10: no space for [mem size 0x00100000 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: BAR 10: failed to assign [mem size 0x00100000 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: PCI bridge to [bus 02] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: bridge window [io 0xe000-0xefff] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: bridge window [mem 0xf7800000-0xf7afffff] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.0: PCI bridge to [bus 03] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: PCI bridge to [bus 04] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: bridge window [io 0xd000-0xdfff] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: bridge window [mem 0xf0000000-0xf00fffff 64bit pref] Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: PCI bridge to [bus 06] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: PCI bridge to [bus 05-06] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: PCI bridge to [bus 07] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: bridge window [mem 0xf7b00000-0xf7bfffff] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: No. 2 try to assign unassigned res Apr 22 12:22:09 Tower kernel: release child resource [mem 0xf7800000-0xf787ffff pref] Apr 22 12:22:09 Tower kernel: release child resource [mem 0xf7880000-0xf78fffff 64bit] Apr 22 12:22:09 Tower kernel: release child resource [mem 0xf7900000-0xf797ffff pref] Apr 22 12:22:09 Tower kernel: release child resource [mem 0xf7980000-0xf79fffff 64bit] Apr 22 12:22:09 Tower kernel: release child resource [mem 0xf7a00000-0xf7a03fff 64bit] Apr 22 12:22:09 Tower kernel: release child resource [mem 0xf7a04000-0xf7a07fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: resource 14 [mem 0xf7800000-0xf7afffff] released Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: PCI bridge to [bus 02] Apr 22 12:22:09 Tower kernel: clipped [mem size 0x00018000] to [mem size 0x00010000] for e820 entry [mem 0x000e0000-0x000fffff] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: BAR 14: assigned [mem 0xdf300000-0xdf9fffff] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.0: PCI bridge to [bus 01] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: BAR 0: assigned [mem 0xdf300000-0xdf37ffff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: BAR 6: assigned [mem 0xdf380000-0xdf3fffff pref] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: BAR 0: assigned [mem 0xdf400000-0xdf47ffff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: BAR 6: assigned [mem 0xdf480000-0xdf4fffff pref] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: BAR 4: assigned [mem 0xdf500000-0xdf503fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: BAR 7: assigned [mem 0xdf504000-0xdf603fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: BAR 10: assigned [mem 0xdf604000-0xdf703fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: BAR 4: assigned [mem 0xdf704000-0xdf707fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: BAR 7: assigned [mem 0xdf708000-0xdf807fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: BAR 10: assigned [mem 0xdf808000-0xdf907fff 64bit] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: PCI bridge to [bus 02] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: bridge window [io 0xe000-0xefff] Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: bridge window [mem 0xdf300000-0xdf9fffff] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.0: PCI bridge to [bus 03] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: PCI bridge to [bus 04] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: bridge window [io 0xd000-0xdfff] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: bridge window [mem 0xf0000000-0xf00fffff 64bit pref] Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: PCI bridge to [bus 06] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: PCI bridge to [bus 05-06] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: PCI bridge to [bus 07] Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: bridge window [mem 0xf7b00000-0xf7bfffff] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: resource 4 [io 0x0000-0x0cf7 window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: resource 5 [io 0x0d00-0xffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: resource 6 [mem 0x000a0000-0x000bffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: resource 7 [mem 0x000d0000-0x000e7fff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:00: resource 8 [mem 0xdf200000-0xfeafffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:02: resource 0 [io 0xe000-0xefff] Apr 22 12:22:09 Tower kernel: pci_bus 0000:02: resource 1 [mem 0xdf300000-0xdf9fffff] Apr 22 12:22:09 Tower kernel: pci_bus 0000:04: resource 0 [io 0xd000-0xdfff] Apr 22 12:22:09 Tower kernel: pci_bus 0000:04: resource 2 [mem 0xf0000000-0xf00fffff 64bit pref] Apr 22 12:22:09 Tower kernel: pci_bus 0000:05: resource 4 [io 0x0000-0x0cf7 window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:05: resource 5 [io 0x0d00-0xffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:05: resource 6 [mem 0x000a0000-0x000bffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:05: resource 7 [mem 0x000d0000-0x000e7fff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:05: resource 8 [mem 0xdf200000-0xfeafffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:06: resource 4 [io 0x0000-0x0cf7 window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:06: resource 5 [io 0x0d00-0xffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:06: resource 6 [mem 0x000a0000-0x000bffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:06: resource 7 [mem 0x000d0000-0x000e7fff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:06: resource 8 [mem 0xdf200000-0xfeafffff window] Apr 22 12:22:09 Tower kernel: pci_bus 0000:07: resource 1 [mem 0xf7b00000-0xf7bfffff] Apr 22 12:22:09 Tower kernel: pci 0000:00:02.0: BIOS left Intel GPU interrupts enabled; disabling Apr 22 12:22:09 Tower kernel: pci 0000:00:1a.0: quirk_usb_early_handoff+0x0/0x63b took 15333 usecs Apr 22 12:22:09 Tower kernel: pci 0000:00:1d.0: quirk_usb_early_handoff+0x0/0x63b took 15552 usecs Apr 22 12:22:09 Tower kernel: pci 0000:04:00.0: CLS mismatch (64 != 32), using 64 bytes Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: Disabling ASPM L0s/L1 Apr 22 12:22:09 Tower kernel: DMAR: No ATSR found Apr 22 12:22:09 Tower kernel: Unpacking initramfs... Apr 22 12:22:09 Tower kernel: DMAR: No SATC found Apr 22 12:22:09 Tower kernel: DMAR: IOMMU feature pgsel_inv inconsistent Apr 22 12:22:09 Tower kernel: DMAR: IOMMU feature pass_through inconsistent Apr 22 12:22:09 Tower kernel: DMAR: dmar0: Using Queued invalidation Apr 22 12:22:09 Tower kernel: DMAR: dmar1: Using Queued invalidation Apr 22 12:22:09 Tower kernel: pci 0000:00:00.0: Adding to iommu group 0 Apr 22 12:22:09 Tower kernel: pci 0000:00:01.0: Adding to iommu group 1 Apr 22 12:22:09 Tower kernel: pci 0000:00:01.1: Adding to iommu group 1 Apr 22 12:22:09 Tower kernel: pci 0000:00:02.0: Adding to iommu group 2 Apr 22 12:22:09 Tower kernel: pci 0000:00:14.0: Adding to iommu group 3 Apr 22 12:22:09 Tower kernel: pci 0000:00:16.0: Adding to iommu group 4 Apr 22 12:22:09 Tower kernel: pci 0000:00:1a.0: Adding to iommu group 5 Apr 22 12:22:09 Tower kernel: pci 0000:00:1b.0: Adding to iommu group 6 Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.0: Adding to iommu group 7 Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.4: Adding to iommu group 8 Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.5: Adding to iommu group 9 Apr 22 12:22:09 Tower kernel: pci 0000:00:1c.7: Adding to iommu group 10 Apr 22 12:22:09 Tower kernel: pci 0000:00:1d.0: Adding to iommu group 11 Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.0: Adding to iommu group 12 Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.2: Adding to iommu group 12 Apr 22 12:22:09 Tower kernel: pci 0000:00:1f.3: Adding to iommu group 12 Apr 22 12:22:09 Tower kernel: pci 0000:02:00.0: Adding to iommu group 1 Apr 22 12:22:09 Tower kernel: pci 0000:02:00.1: Adding to iommu group 1 Apr 22 12:22:09 Tower kernel: pci 0000:04:00.0: Adding to iommu group 13 Apr 22 12:22:09 Tower kernel: pci 0000:05:00.0: Adding to iommu group 9 Apr 22 12:22:09 Tower kernel: pci 0000:07:00.0: Adding to iommu group 14 Apr 22 12:22:09 Tower kernel: DMAR: Intel(R) Virtualization Technology for Directed I/O Apr 22 12:22:09 Tower kernel: PCI-DMA: Using software bounce buffering for IO (SWIOTLB) Apr 22 12:22:09 Tower kernel: software IO TLB: mapped [mem 0x00000000c83c2000-0x00000000cc3c2000] (64MB) Apr 22 12:22:09 Tower kernel: workingset: timestamp_bits=40 max_order=21 bucket_order=0 Apr 22 12:22:09 Tower kernel: squashfs: version 4.0 (2009/01/31) Phillip Lougher Apr 22 12:22:09 Tower kernel: fuse: init (API version 7.36) Apr 22 12:22:09 Tower kernel: xor: automatically using best checksumming function avx Apr 22 12:22:09 Tower kernel: Key type asymmetric registered Apr 22 12:22:09 Tower kernel: Block layer SCSI generic (bsg) driver version 0.4 loaded (major 250) Apr 22 12:22:09 Tower kernel: io scheduler mq-deadline registered Apr 22 12:22:09 Tower kernel: io scheduler kyber registered Apr 22 12:22:09 Tower kernel: io scheduler bfq registered Apr 22 12:22:09 Tower kernel: IPMI message handler: version 39.2 Apr 22 12:22:09 Tower kernel: Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled Apr 22 12:22:09 Tower kernel: 00:06: ttyS0 at I/O 0x3f8 (irq = 4, base_baud = 115200) is a 16550A Apr 22 12:22:09 Tower kernel: tsc: Refined TSC clocksource calibration: 3309.719 MHz Apr 22 12:22:09 Tower kernel: clocksource: tsc: mask: 0xffffffffffffffff max_cycles: 0x2fb5294632d, max_idle_ns: 440795265502 ns Apr 22 12:22:09 Tower kernel: clocksource: Switched to clocksource tsc Apr 22 12:22:09 Tower kernel: Freeing initrd memory: 161528K Apr 22 12:22:09 Tower kernel: lp: driver loaded but no devices found Apr 22 12:22:09 Tower kernel: Hangcheck: starting hangcheck timer 0.9.1 (tick is 180 seconds, margin is 60 seconds). Apr 22 12:22:09 Tower kernel: AMD-Vi: AMD IOMMUv2 functionality not available on this system - This is not a bug. Apr 22 12:22:09 Tower kernel: loop: module loaded Apr 22 12:22:09 Tower kernel: Rounding down aligned max_sectors from 4294967295 to 4294967288 Apr 22 12:22:09 Tower kernel: db_root: cannot open: /etc/target Apr 22 12:22:09 Tower kernel: VFIO - User Level meta-driver version: 0.3 Apr 22 12:22:09 Tower kernel: ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver Apr 22 12:22:09 Tower kernel: ehci-pci: EHCI PCI platform driver Apr 22 12:22:09 Tower kernel: ehci-pci 0000:00:1a.0: EHCI Host Controller Apr 22 12:22:09 Tower kernel: ehci-pci 0000:00:1a.0: new USB bus registered, assigned bus number 1 Apr 22 12:22:09 Tower kernel: ehci-pci 0000:00:1a.0: debug port 2 Apr 22 12:22:09 Tower kernel: ehci-pci 0000:00:1a.0: irq 23, io mem 0xf7c18000 Apr 22 12:22:09 Tower kernel: ehci-pci 0000:00:1a.0: USB 2.0 started, EHCI 1.00 Apr 22 12:22:09 Tower kernel: hub 1-0:1.0: USB hub found Apr 22 12:22:09 Tower kernel: hub 1-0:1.0: 2 ports detected Apr 22 12:22:09 Tower kernel: ehci-pci 0000:00:1d.0: EHCI Host Controller Apr 22 12:22:09 Tower kernel: ehci-pci 0000:00:1d.0: new USB bus registered, assigned bus number 2 Apr 22 12:22:09 Tower kernel: ehci-pci 0000:00:1d.0: debug port 2 Apr 22 12:22:09 Tower kernel: ehci-pci 0000:00:1d.0: irq 23, io mem 0xf7c17000 Apr 22 12:22:09 Tower kernel: ehci-pci 0000:00:1d.0: USB 2.0 started, EHCI 1.00 Apr 22 12:22:09 Tower kernel: hub 2-0:1.0: USB hub found Apr 22 12:22:09 Tower kernel: hub 2-0:1.0: 2 ports detected Apr 22 12:22:09 Tower kernel: ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver Apr 22 12:22:09 Tower kernel: ohci-pci: OHCI PCI platform driver Apr 22 12:22:09 Tower kernel: uhci_hcd: USB Universal Host Controller Interface driver Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:00:14.0: xHCI Host Controller Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:00:14.0: new USB bus registered, assigned bus number 3 Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:00:14.0: hcc params 0x20007181 hci version 0x100 quirks 0x000000000000b930 Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:00:14.0: xHCI Host Controller Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:00:14.0: new USB bus registered, assigned bus number 4 Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:00:14.0: Host supports USB 3.0 SuperSpeed Apr 22 12:22:09 Tower kernel: hub 3-0:1.0: USB hub found Apr 22 12:22:09 Tower kernel: hub 3-0:1.0: 4 ports detected Apr 22 12:22:09 Tower kernel: hub 4-0:1.0: USB hub found Apr 22 12:22:09 Tower kernel: hub 4-0:1.0: 4 ports detected Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:07:00.0: xHCI Host Controller Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:07:00.0: new USB bus registered, assigned bus number 5 Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:07:00.0: hcc params 0x0200f180 hci version 0x96 quirks 0x0000000000080000 Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:07:00.0: xHCI Host Controller Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:07:00.0: new USB bus registered, assigned bus number 6 Apr 22 12:22:09 Tower kernel: xhci_hcd 0000:07:00.0: Host supports USB 3.0 SuperSpeed Apr 22 12:22:09 Tower kernel: hub 5-0:1.0: USB hub found Apr 22 12:22:09 Tower kernel: hub 5-0:1.0: 2 ports detected Apr 22 12:22:09 Tower kernel: usb usb6: We don't know the algorithms for LPM for this host, disabling LPM. Apr 22 12:22:09 Tower kernel: hub 6-0:1.0: USB hub found Apr 22 12:22:09 Tower kernel: hub 6-0:1.0: 2 ports detected Apr 22 12:22:09 Tower kernel: usbcore: registered new interface driver usb-storage Apr 22 12:22:09 Tower kernel: i8042: PNP: No PS/2 controller found. Apr 22 12:22:09 Tower kernel: mousedev: PS/2 mouse device common for all mice Apr 22 12:22:09 Tower kernel: usbcore: registered new interface driver synaptics_usb Apr 22 12:22:09 Tower kernel: input: PC Speaker as /devices/platform/pcspkr/input/input0 Apr 22 12:22:09 Tower kernel: rtc_cmos 00:02: RTC can wake from S4 Apr 22 12:22:09 Tower kernel: rtc_cmos 00:02: registered as rtc0 Apr 22 12:22:09 Tower kernel: rtc_cmos 00:02: setting system clock to 2023-04-22T19:21:39 UTC (1682191299) Apr 22 12:22:09 Tower kernel: rtc_cmos 00:02: alarms up to one month, y3k, 242 bytes nvram, hpet irqs Apr 22 12:22:09 Tower kernel: intel_pstate: Intel P-state driver initializing Apr 22 12:22:09 Tower kernel: hid: raw HID events driver (C) Jiri Kosina Apr 22 12:22:09 Tower kernel: usbcore: registered new interface driver usbhid Apr 22 12:22:09 Tower kernel: usbhid: USB HID core driver Apr 22 12:22:09 Tower kernel: ipip: IPv4 and MPLS over IPv4 tunneling driver Apr 22 12:22:09 Tower kernel: NET: Registered PF_INET6 protocol family Apr 22 12:22:09 Tower kernel: Segment Routing with IPv6 Apr 22 12:22:09 Tower kernel: RPL Segment Routing with IPv6 Apr 22 12:22:09 Tower kernel: In-situ OAM (IOAM) with IPv6 Apr 22 12:22:09 Tower kernel: 9pnet: Installing 9P2000 support Apr 22 12:22:09 Tower kernel: microcode: sig=0x306a9, pf=0x2, revision=0x21 Apr 22 12:22:09 Tower kernel: microcode: Microcode Update Driver: v2.2. Apr 22 12:22:09 Tower kernel: IPI shorthand broadcast: enabled Apr 22 12:22:09 Tower kernel: sched_clock: Marking stable (13996801307, 9253271)->(14076428057, -70373479) Apr 22 12:22:09 Tower kernel: registered taskstats version 1 Apr 22 12:22:09 Tower kernel: Btrfs loaded, crc32c=crc32c-generic, zoned=no, fsverity=no Apr 22 12:22:09 Tower kernel: usb 1-1: new high-speed USB device number 2 using ehci-pci Apr 22 12:22:09 Tower kernel: usb 3-1: new low-speed USB device number 2 using xhci_hcd Apr 22 12:22:09 Tower kernel: usb 2-1: new high-speed USB device number 2 using ehci-pci Apr 22 12:22:09 Tower kernel: hub 1-1:1.0: USB hub found Apr 22 12:22:09 Tower kernel: hub 1-1:1.0: 6 ports detected Apr 22 12:22:09 Tower kernel: hub 2-1:1.0: USB hub found Apr 22 12:22:09 Tower kernel: hub 2-1:1.0: 8 ports detected Apr 22 12:22:09 Tower kernel: input: Lenovo Lenovo Calliope USB Keyboard as /devices/pci0000:00/0000:00:14.0/usb3/3-1/3-1:1.0/0003:17EF:608C.0001/input/input1 Apr 22 12:22:09 Tower kernel: hid-generic 0003:17EF:608C.0001: input,hidraw0: USB HID v1.11 Keyboard [Lenovo Lenovo Calliope USB Keyboard] on usb-0000:00:14.0-1/input0 Apr 22 12:22:09 Tower kernel: input: Lenovo Lenovo Calliope USB Keyboard System Control as /devices/pci0000:00/0000:00:14.0/usb3/3-1/3-1:1.1/0003:17EF:608C.0002/input/input2 Apr 22 12:22:09 Tower kernel: input: Lenovo Lenovo Calliope USB Keyboard Consumer Control as /devices/pci0000:00/0000:00:14.0/usb3/3-1/3-1:1.1/0003:17EF:608C.0002/input/input3 Apr 22 12:22:09 Tower kernel: hid-generic 0003:17EF:608C.0002: input,hidraw1: USB HID v1.11 Device [Lenovo Lenovo Calliope USB Keyboard] on usb-0000:00:14.0-1/input1 Apr 22 12:22:09 Tower kernel: usb 3-3: new full-speed USB device number 3 using xhci_hcd Apr 22 12:22:09 Tower kernel: usb 2-1.6: new high-speed USB device number 3 using ehci-pci Apr 22 12:22:09 Tower kernel: usb 3-3: device descriptor read/64, error -71 Apr 22 12:22:09 Tower kernel: usb-storage 2-1.6:1.0: USB Mass Storage device detected Apr 22 12:22:09 Tower kernel: scsi host0: usb-storage 2-1.6:1.0 Apr 22 12:22:09 Tower kernel: usb 3-3: device descriptor read/64, error -71 Apr 22 12:22:09 Tower kernel: usb 3-3: new full-speed USB device number 4 using xhci_hcd Apr 22 12:22:09 Tower kernel: usb 3-3: device descriptor read/64, error -71 Apr 22 12:22:09 Tower kernel: usb 3-3: device descriptor read/64, error -71 Apr 22 12:22:09 Tower kernel: usb usb3-port3: attempt power cycle Apr 22 12:22:09 Tower kernel: usb 3-3: new full-speed USB device number 5 using xhci_hcd Apr 22 12:22:09 Tower kernel: usb 3-3: Device not responding to setup address. Apr 22 12:22:09 Tower kernel: usb 3-3: Device not responding to setup address. Apr 22 12:22:09 Tower kernel: usb 3-3: device not accepting address 5, error -71 Apr 22 12:22:09 Tower kernel: usb 3-3: new full-speed USB device number 6 using xhci_hcd Apr 22 12:22:09 Tower kernel: usb 3-3: Device not responding to setup address. Apr 22 12:22:09 Tower kernel: usb 3-3: Device not responding to setup address. Apr 22 12:22:09 Tower kernel: usb 3-3: device not accepting address 6, error -71 Apr 22 12:22:09 Tower kernel: usb usb3-port3: unable to enumerate USB device Apr 22 12:22:09 Tower kernel: floppy0: no floppy controllers found Apr 22 12:22:09 Tower kernel: Freeing unused kernel image (initmem) memory: 1836K Apr 22 12:22:09 Tower kernel: Write protecting the kernel read-only data: 18432k Apr 22 12:22:09 Tower kernel: Freeing unused kernel image (text/rodata gap) memory: 2040K Apr 22 12:22:09 Tower kernel: Freeing unused kernel image (rodata/data gap) memory: 180K Apr 22 12:22:09 Tower kernel: rodata_test: all tests were successful Apr 22 12:22:09 Tower kernel: Run /init as init process Apr 22 12:22:09 Tower kernel: with arguments: Apr 22 12:22:09 Tower kernel: /init Apr 22 12:22:09 Tower kernel: with environment: Apr 22 12:22:09 Tower kernel: HOME=/ Apr 22 12:22:09 Tower kernel: TERM=linux Apr 22 12:22:09 Tower kernel: BOOT_IMAGE=/bzimage Apr 22 12:22:09 Tower kernel: scsi 0:0:0:0: Direct-Access PNY USB 2.0 FD PMAP PQ: 0 ANSI: 6 Apr 22 12:22:09 Tower kernel: sd 0:0:0:0: Attached scsi generic sg0 type 0 Apr 22 12:22:09 Tower kernel: sd 0:0:0:0: [sda] 30302208 512-byte logical blocks: (15.5 GB/14.4 GiB) Apr 22 12:22:09 Tower kernel: sd 0:0:0:0: [sda] Write Protect is off Apr 22 12:22:09 Tower kernel: sd 0:0:0:0: [sda] Mode Sense: 23 00 00 00 Apr 22 12:22:09 Tower kernel: sd 0:0:0:0: [sda] No Caching mode page found Apr 22 12:22:09 Tower kernel: sd 0:0:0:0: [sda] Assuming drive cache: write through Apr 22 12:22:09 Tower kernel: sda: sda1 Apr 22 12:22:09 Tower kernel: sd 0:0:0:0: [sda] Attached SCSI removable disk Apr 22 12:22:09 Tower kernel: random: crng init done Apr 22 12:22:09 Tower kernel: loop0: detected capacity change from 0 to 241472 Apr 22 12:22:09 Tower kernel: loop1: detected capacity change from 0 to 39792 Apr 22 12:22:09 Tower kernel: NET: Registered PF_UNIX/PF_LOCAL protocol family Apr 22 12:22:09 Tower kernel: input: Power Button as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/input/input4 Apr 22 12:22:09 Tower kernel: ACPI: button: Power Button [PWRB] Apr 22 12:22:09 Tower kernel: input: Power Button as /devices/LNXSYSTM:00/LNXPWRBN:00/input/input5 Apr 22 12:22:09 Tower kernel: ACPI: button: Power Button [PWRF] Apr 22 12:22:09 Tower kernel: thermal LNXTHERM:00: registered as thermal_zone0 Apr 22 12:22:09 Tower kernel: ACPI: thermal: Thermal Zone [TZ00] (28 C) Apr 22 12:22:09 Tower kernel: thermal LNXTHERM:01: registered as thermal_zone1 Apr 22 12:22:09 Tower kernel: ACPI: thermal: Thermal Zone [TZ01] (30 C) Apr 22 12:22:09 Tower kernel: ixgbe: Intel(R) 10 Gigabit PCI Express Network Driver Apr 22 12:22:09 Tower kernel: ixgbe: Copyright (c) 1999-2016 Intel Corporation. Apr 22 12:22:09 Tower kernel: Linux agpgart interface v0.103 Apr 22 12:22:09 Tower kernel: ahci 0000:00:1f.2: version 3.0 Apr 22 12:22:09 Tower kernel: i801_smbus 0000:00:1f.3: SMBus using PCI interrupt Apr 22 12:22:09 Tower kernel: ahci 0000:00:1f.2: AHCI 0001.0300 32 slots 6 ports 6 Gbps 0x0 impl SATA mode Apr 22 12:22:09 Tower kernel: i2c i2c-0: 1/4 memory slots populated (from DMI) Apr 22 12:22:09 Tower kernel: ahci 0000:00:1f.2: flags: 64bit ncq led clo pio slum part ems apst Apr 22 12:22:09 Tower kernel: i2c i2c-0: Successfully instantiated SPD at 0x53 Apr 22 12:22:09 Tower kernel: scsi host1: ahci Apr 22 12:22:09 Tower kernel: scsi host2: ahci Apr 22 12:22:09 Tower kernel: scsi host3: ahci Apr 22 12:22:09 Tower kernel: scsi host4: ahci Apr 22 12:22:09 Tower kernel: scsi host5: ahci Apr 22 12:22:09 Tower kernel: scsi host6: ahci Apr 22 12:22:09 Tower kernel: ata1: DUMMY Apr 22 12:22:09 Tower kernel: ata2: DUMMY Apr 22 12:22:09 Tower kernel: ata3: DUMMY Apr 22 12:22:09 Tower kernel: ata4: DUMMY Apr 22 12:22:09 Tower kernel: ata5: DUMMY Apr 22 12:22:09 Tower kernel: ata6: DUMMY Apr 22 12:22:09 Tower kernel: r8169 0000:04:00.0: can't disable ASPM; OS doesn't have ASPM control Apr 22 12:22:09 Tower kernel: r8169 0000:04:00.0 eth0: RTL8168f/8111f, c8:60:00:c3:ad:4e, XID 480, IRQ 35 Apr 22 12:22:09 Tower kernel: r8169 0000:04:00.0 eth0: jumbo features [frames: 9194 bytes, tx checksumming: ko] Apr 22 12:22:09 Tower kernel: ACPI: bus type drm_connector registered Apr 22 12:22:09 Tower kernel: RAPL PMU: API unit is 2^-32 Joules, 3 fixed counters, 163840 ms ovfl timer Apr 22 12:22:09 Tower kernel: RAPL PMU: hw unit of domain pp0-core 2^-16 Joules Apr 22 12:22:09 Tower kernel: RAPL PMU: hw unit of domain package 2^-16 Joules Apr 22 12:22:09 Tower kernel: RAPL PMU: hw unit of domain pp1-gpu 2^-16 Joules Apr 22 12:22:09 Tower kernel: cryptd: max_cpu_qlen set to 1000 Apr 22 12:22:09 Tower kernel: AVX version of gcm_enc/dec engaged. Apr 22 12:22:09 Tower kernel: AES CTR mode by8 optimization enabled Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: Multiqueue Enabled: Rx Queue count = 4, Tx Queue count = 4 XDP Queue count = 0 Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: 32.000 Gb/s available PCIe bandwidth (5.0 GT/s PCIe x8 link) Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: MAC: 2, PHY: 14, SFP+: 3, PBA No: G18786-002 Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: 00:1b:21:ca:7c:38 Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: Intel(R) 10 Gigabit Network Connection Apr 22 12:22:09 Tower kernel: i915 0000:00:02.0: [drm] VT-d active for gfx access Apr 22 12:22:09 Tower kernel: i915 0000:00:02.0: vgaarb: deactivate vga console Apr 22 12:22:09 Tower kernel: Console: switching to colour dummy device 80x25 Apr 22 12:22:09 Tower kernel: i915 0000:00:02.0: [drm] Transparent Hugepage mode 'huge=within_size' Apr 22 12:22:09 Tower kernel: i915 0000:00:02.0: [drm] DMAR active, disabling use of stolen memory Apr 22 12:22:09 Tower kernel: i915 0000:00:02.0: vgaarb: changed VGA decodes: olddecodes=io+mem,decodes=io+mem:owns=io+mem Apr 22 12:22:09 Tower kernel: [drm] Initialized i915 1.6.0 20201103 for 0000:00:02.0 on minor 0 Apr 22 12:22:09 Tower kernel: ACPI: video: Video Device [GFX0] (multi-head: yes rom: no post: no) Apr 22 12:22:09 Tower kernel: input: Video Bus as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:00/input/input6 Apr 22 12:22:09 Tower kernel: fbcon: i915drmfb (fb0) is primary device Apr 22 12:22:09 Tower kernel: Console: switching to colour frame buffer device 128x48 Apr 22 12:22:09 Tower kernel: i915 0000:00:02.0: [drm] fb0: i915drmfb frame buffer device Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.1: Multiqueue Enabled: Rx Queue count = 4, Tx Queue count = 4 XDP Queue count = 0 Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.1: 32.000 Gb/s available PCIe bandwidth (5.0 GT/s PCIe x8 link) Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.1: MAC: 2, PHY: 1, PBA No: G18786-002 Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.1: 00:1b:21:ca:7c:39 Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.1: Intel(R) 10 Gigabit Network Connection Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.1: complete Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: complete Apr 22 12:22:09 Tower kernel: r8169 0000:04:00.0: can't disable ASPM; OS doesn't have ASPM control Apr 22 12:22:09 Tower kernel: r8169 0000:04:00.0 eth0: RTL8168f/8111f, c8:60:00:c3:ad:4e, XID 480, IRQ 35 Apr 22 12:22:09 Tower kernel: r8169 0000:04:00.0 eth0: jumbo features [frames: 9194 bytes, tx checksumming: ko] Apr 22 12:22:09 Tower kernel: ixgbe: Intel(R) 10 Gigabit PCI Express Network Driver Apr 22 12:22:09 Tower kernel: ixgbe: Copyright (c) 1999-2016 Intel Corporation. Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: Multiqueue Enabled: Rx Queue count = 4, Tx Queue count = 4 XDP Queue count = 0 Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: 32.000 Gb/s available PCIe bandwidth (5.0 GT/s PCIe x8 link) Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: MAC: 2, PHY: 14, SFP+: 3, PBA No: G18786-002 Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: 00:1b:21:ca:7c:38 Apr 22 12:22:09 Tower kernel: ixgbe 0000:02:00.0: Intel(R) 10 Gigabit Network Connection Apr 22 12:22:10 Tower rsyslogd: [origin software="rsyslogd" swVersion="8.2102.0" x-pid="831" x-info="https://www.rsyslog.com"] start Apr 22 12:22:10 Tower kernel: ixgbe 0000:02:00.1: Multiqueue Enabled: Rx Queue count = 4, Tx Queue count = 4 XDP Queue count = 0 Apr 22 12:22:10 Tower kernel: ixgbe 0000:02:00.1: 32.000 Gb/s available PCIe bandwidth (5.0 GT/s PCIe x8 link) Apr 22 12:22:10 Tower kernel: ixgbe 0000:02:00.1: MAC: 2, PHY: 1, PBA No: G18786-002 Apr 22 12:22:10 Tower kernel: ixgbe 0000:02:00.1: 00:1b:21:ca:7c:39 Apr 22 12:22:10 Tower kernel: ixgbe 0000:02:00.1: Intel(R) 10 Gigabit Network Connection Apr 22 12:22:10 Tower rc.inet1: ip -4 addr add 127.0.0.1/8 dev lo Apr 22 12:22:10 Tower rc.inet1: ip -6 addr add ::1/128 dev lo Apr 22 12:22:10 Tower rc.inet1: ip link set lo up Apr 22 12:22:10 Tower kernel: MII link monitoring set to 100 ms Apr 22 12:22:10 Tower rc.inet1: ip link add name bond0 type bond mode 1 miimon 100 Apr 22 12:22:10 Tower rc.inet1: ip link set bond0 up Apr 22 12:22:10 Tower rc.inet1: ip link set eth0 master bond0 down Apr 22 12:22:10 Tower kernel: RTL8211E Gigabit Ethernet r8169-0-400:00: attached PHY driver (mii_bus:phy_addr=r8169-0-400:00, irq=MAC) Apr 22 12:22:10 Tower kernel: r8169 0000:04:00.0 eth0: Link is Down Apr 22 12:22:10 Tower kernel: bond0: (slave eth0): Enslaving as a backup interface with a down link Apr 22 12:22:11 Tower rc.inet1: ip link set eth1 master bond0 down Apr 22 12:22:11 Tower kernel: ixgbe 0000:02:00.0: registered PHC device on eth1 Apr 22 12:22:11 Tower kernel: bond0: (slave eth1): Enslaving as a backup interface with a down link Apr 22 12:22:11 Tower rc.inet1: ip link set eth2 master bond0 down Apr 22 12:22:11 Tower kernel: ixgbe 0000:02:00.1: registered PHC device on eth2 Apr 22 12:22:11 Tower kernel: ixgbe 0000:02:00.0 eth1: detected SFP+: 3 Apr 22 12:22:11 Tower kernel: bond0: (slave eth2): Enslaving as a backup interface with a down link Apr 22 12:22:11 Tower kernel: ixgbe 0000:02:00.0 eth1: NIC Link is Up 10 Gbps, Flow Control: RX/TX Apr 22 12:22:11 Tower kernel: bond0: (slave eth1): link status definitely up, 10000 Mbps full duplex Apr 22 12:22:11 Tower kernel: bond0: (slave eth1): making interface the new active one Apr 22 12:22:11 Tower kernel: bond0: active interface up! Apr 22 12:22:11 Tower kernel: IPv6: ADDRCONF(NETDEV_CHANGE): bond0: link becomes ready Apr 22 12:22:14 Tower rc.inet1: ip link add name br0 type bridge stp_state 0 forward_delay 0 Apr 22 12:22:14 Tower kernel: bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this. Apr 22 12:22:14 Tower rc.inet1: ip link set br0 up Apr 22 12:22:14 Tower rc.inet1: ip link set bond0 down Apr 22 12:22:14 Tower rc.inet1: ip -4 addr flush dev bond0 Apr 22 12:22:14 Tower rc.inet1: ip link set bond0 promisc on master br0 up Apr 22 12:22:14 Tower kernel: device bond0 entered promiscuous mode Apr 22 12:22:14 Tower kernel: device eth1 entered promiscuous mode Apr 22 12:22:14 Tower kernel: br0: port 1(bond0) entered blocking state Apr 22 12:22:14 Tower kernel: br0: port 1(bond0) entered disabled state Apr 22 12:22:14 Tower kernel: br0: port 1(bond0) entered blocking state Apr 22 12:22:14 Tower kernel: br0: port 1(bond0) entered forwarding state Apr 22 12:22:15 Tower rc.inet1: ip -4 addr add 192.168.100.113/255.255.0.0 dev br0 Apr 22 12:22:15 Tower rc.inet1: ip link set br0 up Apr 22 12:22:15 Tower rc.inet1: ip -4 route add default via 192.168.100.1 dev br0 Apr 22 12:22:15 Tower mcelog: failed to prefill DIMM database from DMI data Apr 22 12:22:15 Tower mcelog: Kernel does not support page offline interface Apr 22 12:22:15 Tower elogind-daemon[1003]: New seat seat0. Apr 22 12:22:15 Tower elogind-daemon[1003]: Watching system buttons on /dev/input/event5 (Power Button) Apr 22 12:22:15 Tower elogind-daemon[1003]: Watching system buttons on /dev/input/event4 (Power Button) Apr 22 12:22:15 Tower elogind-daemon[1003]: Watching system buttons on /dev/input/event1 (Lenovo Lenovo Calliope USB Keyboard) Apr 22 12:22:15 Tower elogind-daemon[1003]: Watching system buttons on /dev/input/event2 (Lenovo Lenovo Calliope USB Keyboard System Control) Apr 22 12:22:15 Tower sshd[1026]: Server listening on 0.0.0.0 port 22. Apr 22 12:22:15 Tower sshd[1026]: Server listening on :: port 22. Apr 22 12:22:15 Tower ntpd[1038]: ntpd [email protected] Fri Jun 3 04:17:10 UTC 2022 (1): Starting Apr 22 12:22:15 Tower ntpd[1038]: Command line: /usr/sbin/ntpd -g -u ntp:ntp Apr 22 12:22:15 Tower ntpd[1038]: ---------------------------------------------------- Apr 22 12:22:15 Tower ntpd[1038]: ntp-4 is maintained by Network Time Foundation, Apr 22 12:22:15 Tower ntpd[1038]: Inc. (NTF), a non-profit 501(c)(3) public-benefit Apr 22 12:22:15 Tower ntpd[1038]: corporation. Support and training for ntp-4 are Apr 22 12:22:15 Tower ntpd[1038]: available at https://www.nwtime.org/support Apr 22 12:22:15 Tower ntpd[1038]: ---------------------------------------------------- Apr 22 12:22:15 Tower ntpd[1040]: proto: precision = 0.049 usec (-24) Apr 22 12:22:15 Tower ntpd[1040]: basedate set to 2022-05-22 Apr 22 12:22:15 Tower ntpd[1040]: gps base set to 2022-05-22 (week 2211) Apr 22 12:22:15 Tower ntpd[1040]: Listen normally on 0 lo 127.0.0.1:123 Apr 22 12:22:15 Tower ntpd[1040]: Listen normally on 1 br0 192.168.100.113:123 Apr 22 12:22:15 Tower ntpd[1040]: Listen normally on 2 lo [::1]:123 Apr 22 12:22:15 Tower ntpd[1040]: Listening on routing socket on fd #19 for interface updates Apr 22 12:22:15 Tower ntpd[1040]: kernel reports TIME_ERROR: 0x41: Clock Unsynchronized Apr 22 12:22:15 Tower ntpd[1040]: kernel reports TIME_ERROR: 0x41: Clock Unsynchronized Apr 22 12:22:15 Tower acpid: starting up with netlink and the input layer Apr 22 12:22:15 Tower acpid: 1 rule loaded Apr 22 12:22:15 Tower acpid: waiting for events: event logging is off Apr 22 12:22:15 Tower crond[1061]: /usr/sbin/crond 4.5 dillon's cron daemon, started with loglevel notice Apr 22 12:22:15 Tower smbd[1073]: [2023/04/22 12:22:15.594871, 0] ../../source3/smbd/server.c:1741(main) Apr 22 12:22:15 Tower smbd[1073]: smbd version 4.17.3 started. Apr 22 12:22:15 Tower smbd[1073]: Copyright Andrew Tridgell and the Samba Team 1992-2022 Apr 22 12:22:15 Tower wsdd2[1087]: starting. Apr 22 12:22:15 Tower winbindd[1088]: [2023/04/22 12:22:15.689691, 0] ../../source3/winbindd/winbindd.c:1440(main) Apr 22 12:22:15 Tower winbindd[1088]: winbindd version 4.17.3 started. Apr 22 12:22:15 Tower winbindd[1088]: Copyright Andrew Tridgell and the Samba Team 1992-2022 Apr 22 12:22:15 Tower winbindd[1090]: [2023/04/22 12:22:15.693481, 0] ../../source3/winbindd/winbindd_cache.c:3116(initialize_winbindd_cache) Apr 22 12:22:15 Tower winbindd[1090]: initialize_winbindd_cache: clearing cache and re-creating with version number 2 Apr 22 12:22:16 Tower root: Installing plugins Apr 22 12:22:16 Tower root: Installing language packs Apr 22 12:22:16 Tower root: Starting go script Apr 22 12:22:16 Tower root: Starting emhttpd Apr 22 12:22:16 Tower emhttpd: Unraid(tm) System Management Utility version 6.11.5 Apr 22 12:22:16 Tower emhttpd: Copyright (C) 2005-2022, Lime Technology, Inc. Apr 22 12:22:16 Tower emhttpd: shcmd (3): /usr/local/emhttp/webGui/scripts/update_access Apr 22 12:22:16 Tower sshd[1026]: Received signal 15; terminating. Apr 22 12:22:17 Tower emhttpd: shcmd (5): modprobe md-mod super=/boot/config/super.dat Apr 22 12:22:17 Tower kernel: md: unRAID driver 2.9.25 installed Apr 22 12:22:17 Tower emhttpd: Trial key detected, GUID: 154B-00EE-0700-9C3077E59C20 FILE: /boot/config/Trial.key Apr 22 12:22:17 Tower emhttpd: Device inventory: Apr 22 12:22:17 Tower emhttpd: PNY_USB_2.0_FD_07009C3077E59C20-0:0 (sda) 512 30302208 Apr 22 12:22:17 Tower kernel: mdcmd (1): import 0 Apr 22 12:22:17 Tower kernel: mdcmd (2): import 1 Apr 22 12:22:17 Tower kernel: mdcmd (3): import 2 Apr 22 12:22:17 Tower kernel: mdcmd (4): import 3 Apr 22 12:22:17 Tower kernel: mdcmd (5): import 4 Apr 22 12:22:17 Tower kernel: mdcmd (6): import 5 Apr 22 12:22:17 Tower kernel: mdcmd (7): import 6 Apr 22 12:22:17 Tower kernel: mdcmd (8): import 7 Apr 22 12:22:17 Tower kernel: mdcmd (9): import 8 Apr 22 12:22:17 Tower kernel: mdcmd (10): import 9 Apr 22 12:22:17 Tower kernel: mdcmd (11): import 10 Apr 22 12:22:17 Tower kernel: mdcmd (12): import 11 Apr 22 12:22:17 Tower kernel: mdcmd (13): import 12 Apr 22 12:22:17 Tower kernel: mdcmd (14): import 13 Apr 22 12:22:17 Tower kernel: mdcmd (15): import 14 Apr 22 12:22:17 Tower kernel: mdcmd (16): import 15 Apr 22 12:22:17 Tower kernel: mdcmd (17): import 16 Apr 22 12:22:17 Tower kernel: mdcmd (18): import 17 Apr 22 12:22:17 Tower kernel: mdcmd (19): import 18 Apr 22 12:22:17 Tower kernel: mdcmd (20): import 19 Apr 22 12:22:17 Tower kernel: mdcmd (21): import 20 Apr 22 12:22:17 Tower kernel: mdcmd (22): import 21 Apr 22 12:22:17 Tower kernel: mdcmd (23): import 22 Apr 22 12:22:17 Tower kernel: mdcmd (24): import 23 Apr 22 12:22:17 Tower kernel: mdcmd (25): import 24 Apr 22 12:22:17 Tower kernel: mdcmd (26): import 25 Apr 22 12:22:17 Tower kernel: mdcmd (27): import 26 Apr 22 12:22:17 Tower kernel: mdcmd (28): import 27 Apr 22 12:22:17 Tower kernel: mdcmd (29): import 28 Apr 22 12:22:17 Tower kernel: mdcmd (30): import 29 Apr 22 12:22:17 Tower emhttpd: import flash device: sda Apr 22 12:22:17 Tower emhttpd: read SMART /dev/sda Apr 22 12:22:17 Tower emhttpd: Starting services... Apr 22 12:22:17 Tower emhttpd: shcmd (8): /etc/rc.d/rc.samba restart Apr 22 12:22:17 Tower wsdd2[1087]: 'Terminated' signal received. Apr 22 12:22:17 Tower winbindd[1092]: [2023/04/22 12:22:17.616230, 0] ../../source3/winbindd/winbindd_dual.c:1957(winbindd_sig_term_handler) Apr 22 12:22:17 Tower winbindd[1092]: Got sig[15] terminate (is_parent=0) Apr 22 12:22:17 Tower winbindd[1090]: [2023/04/22 12:22:17.616242, 0] ../../source3/winbindd/winbindd_dual.c:1957(winbindd_sig_term_handler) Apr 22 12:22:17 Tower winbindd[1090]: Got sig[15] terminate (is_parent=1) Apr 22 12:22:17 Tower wsdd2[1087]: terminating. Apr 22 12:22:20 Tower root: Starting Samba: /usr/sbin/smbd -D Apr 22 12:22:20 Tower smbd[1247]: [2023/04/22 12:22:20.917726, 0] ../../source3/smbd/server.c:1741(main) Apr 22 12:22:20 Tower smbd[1247]: smbd version 4.17.3 started. Apr 22 12:22:20 Tower smbd[1247]: Copyright Andrew Tridgell and the Samba Team 1992-2022 Apr 22 12:22:20 Tower root: /usr/sbin/wsdd2 -d Apr 22 12:22:20 Tower wsdd2[1261]: starting. Apr 22 12:22:20 Tower root: /usr/sbin/winbindd -D Apr 22 12:22:21 Tower winbindd[1262]: [2023/04/22 12:22:21.008842, 0] ../../source3/winbindd/winbindd.c:1440(main) Apr 22 12:22:21 Tower winbindd[1262]: winbindd version 4.17.3 started. Apr 22 12:22:21 Tower winbindd[1262]: Copyright Andrew Tridgell and the Samba Team 1992-2022 Apr 22 12:22:21 Tower winbindd[1264]: [2023/04/22 12:22:21.012337, 0] ../../source3/winbindd/winbindd_cache.c:3116(initialize_winbindd_cache) Apr 22 12:22:21 Tower winbindd[1264]: initialize_winbindd_cache: clearing cache and re-creating with version number 2 Apr 22 12:22:21 Tower emhttpd: shcmd (12): /etc/rc.d/rc.avahidaemon start Apr 22 12:22:21 Tower root: Starting Avahi mDNS/DNS-SD Daemon: /usr/sbin/avahi-daemon -D Apr 22 12:22:21 Tower avahi-daemon[1281]: Found user 'avahi' (UID 61) and group 'avahi' (GID 214). Apr 22 12:22:21 Tower avahi-daemon[1281]: Successfully dropped root privileges. Apr 22 12:22:21 Tower avahi-daemon[1281]: avahi-daemon 0.8 starting up. Apr 22 12:22:21 Tower avahi-daemon[1281]: Successfully called chroot(). Apr 22 12:22:21 Tower avahi-daemon[1281]: Successfully dropped remaining capabilities. Apr 22 12:22:21 Tower avahi-daemon[1281]: Loading service file /services/sftp-ssh.service. Apr 22 12:22:21 Tower avahi-daemon[1281]: Loading service file /services/smb.service. Apr 22 12:22:21 Tower avahi-daemon[1281]: Loading service file /services/ssh.service. Apr 22 12:22:21 Tower avahi-daemon[1281]: Joining mDNS multicast group on interface br0.IPv4 with address 192.168.100.113. Apr 22 12:22:21 Tower avahi-daemon[1281]: New relevant interface br0.IPv4 for mDNS. Apr 22 12:22:21 Tower avahi-daemon[1281]: Joining mDNS multicast group on interface lo.IPv6 with address ::1. Apr 22 12:22:21 Tower avahi-daemon[1281]: New relevant interface lo.IPv6 for mDNS. Apr 22 12:22:21 Tower avahi-daemon[1281]: Joining mDNS multicast group on interface lo.IPv4 with address 127.0.0.1. Apr 22 12:22:21 Tower avahi-daemon[1281]: New relevant interface lo.IPv4 for mDNS. Apr 22 12:22:21 Tower avahi-daemon[1281]: Network interface enumeration completed. Apr 22 12:22:21 Tower avahi-daemon[1281]: Registering new address record for 192.168.100.113 on br0.IPv4. Apr 22 12:22:21 Tower avahi-daemon[1281]: Registering new address record for ::1 on lo.*. Apr 22 12:22:21 Tower avahi-daemon[1281]: Registering new address record for 127.0.0.1 on lo.IPv4. Apr 22 12:22:21 Tower emhttpd: shcmd (13): /etc/rc.d/rc.avahidnsconfd start Apr 22 12:22:21 Tower root: Starting Avahi mDNS/DNS-SD DNS Server Configuration Daemon: /usr/sbin/avahi-dnsconfd -D Apr 22 12:22:21 Tower avahi-dnsconfd[1292]: Successfully connected to Avahi daemon. Apr 22 12:22:21 Tower emhttpd: Autostart disabled Apr 22 12:22:21 Tower emhttpd: shcmd (18): /etc/rc.d/rc.php-fpm start Apr 22 12:22:21 Tower root: Starting php-fpm done Apr 22 12:22:21 Tower emhttpd: shcmd (19): /etc/rc.d/rc.nginx start Apr 22 12:22:21 Tower root: Starting Nginx server daemon... Apr 22 12:22:22 Tower avahi-daemon[1281]: Server startup complete. Host name is Tower.local. Local service cookie is 1329103874. Apr 22 12:22:22 Tower avahi-daemon[1281]: Service "Tower" (/services/ssh.service) successfully established. Apr 22 12:22:22 Tower avahi-daemon[1281]: Service "Tower" (/services/smb.service) successfully established. Apr 22 12:22:22 Tower avahi-daemon[1281]: Service "Tower" (/services/sftp-ssh.service) successfully established. Apr 22 12:27:57 Tower ntpd[1040]: kernel reports TIME_ERROR: 0x41: Clock Unsynchronized Apr 22 12:28:53 Tower webGUI: Successful login user root from 192.168.100.189 Log size: 5000 TextErrorWarningSystemArrayLogin Array Stopped•Autostart disabledUnraid® webGui ©2022, Lime Technology, Inc. manual

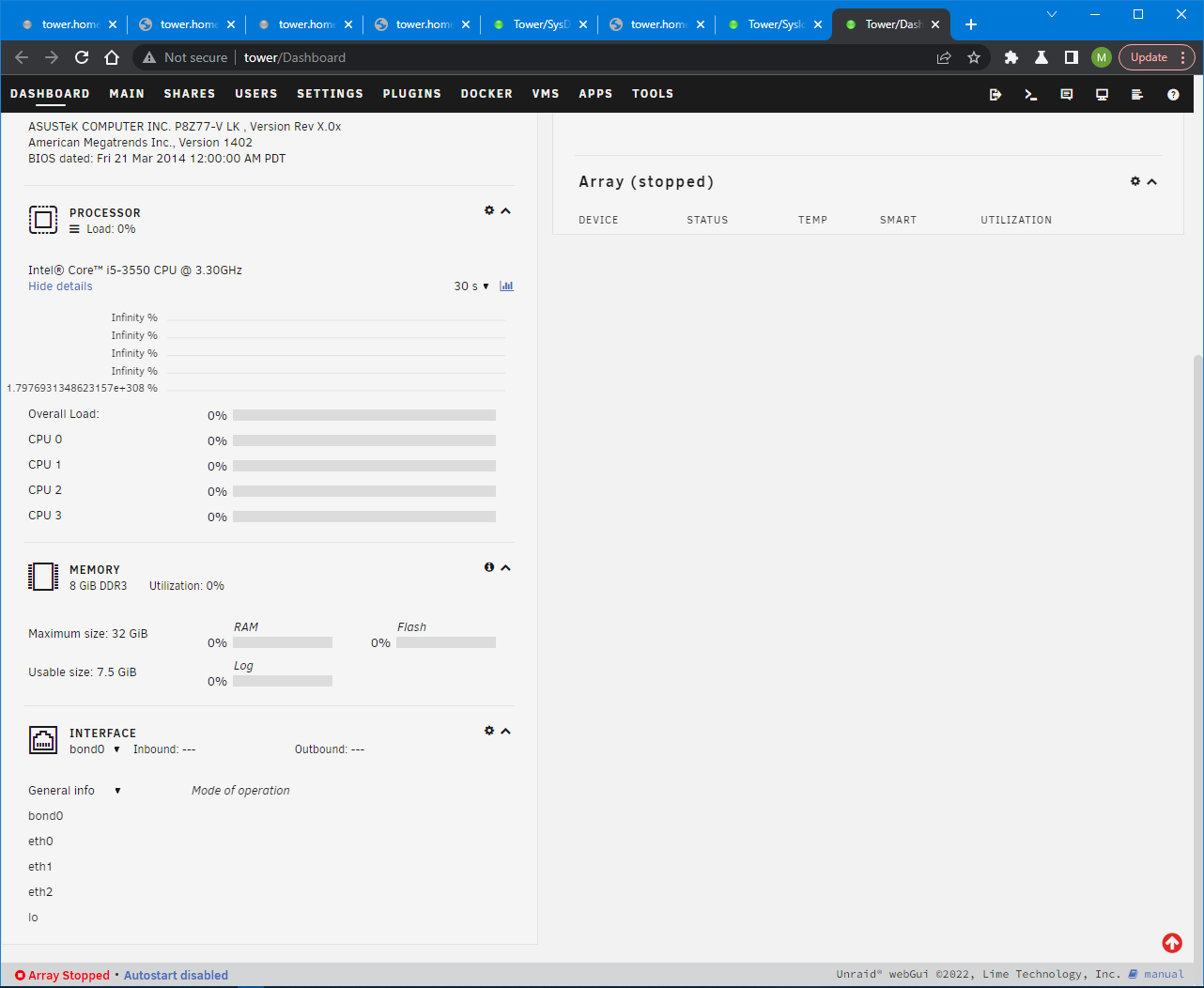

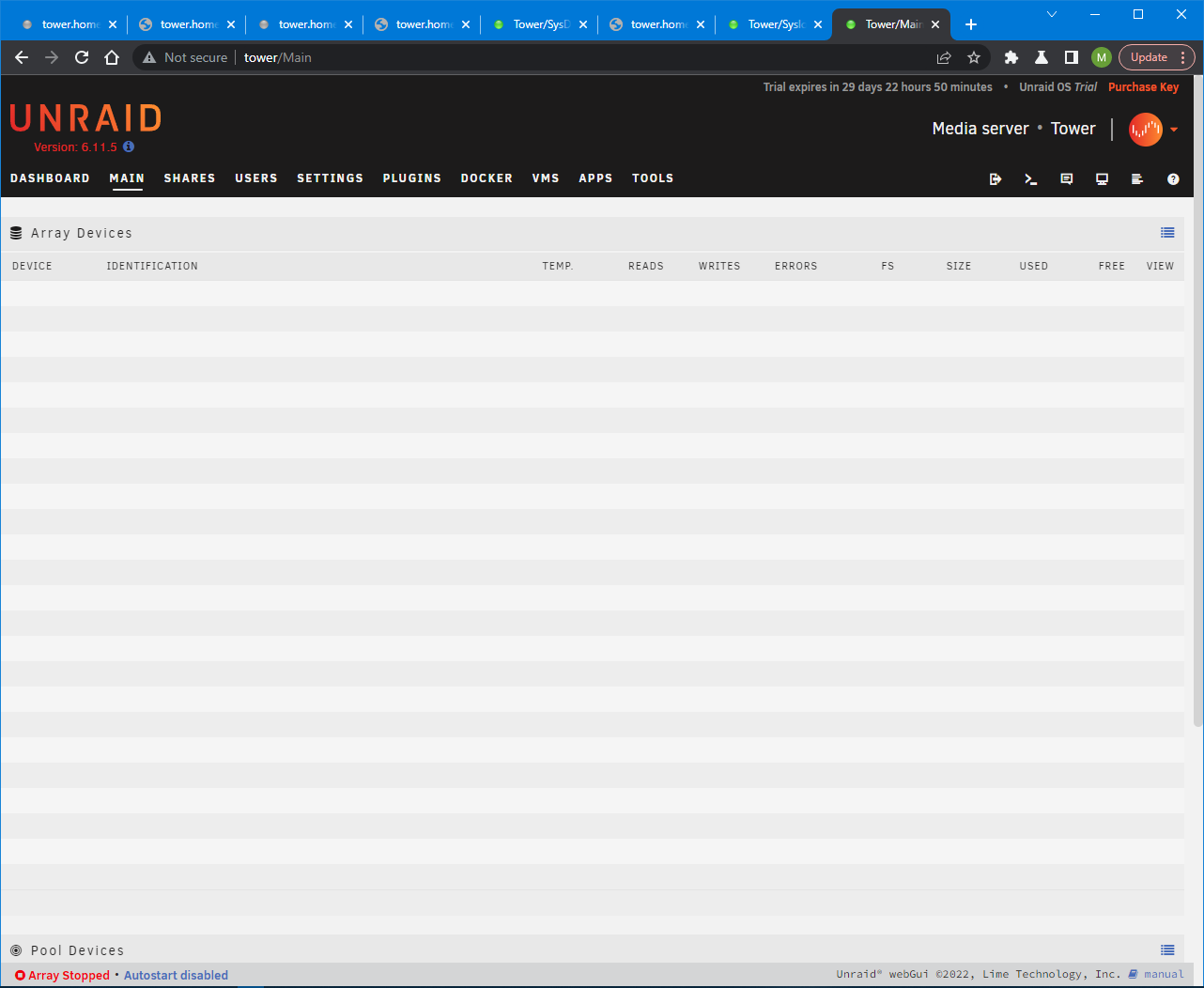

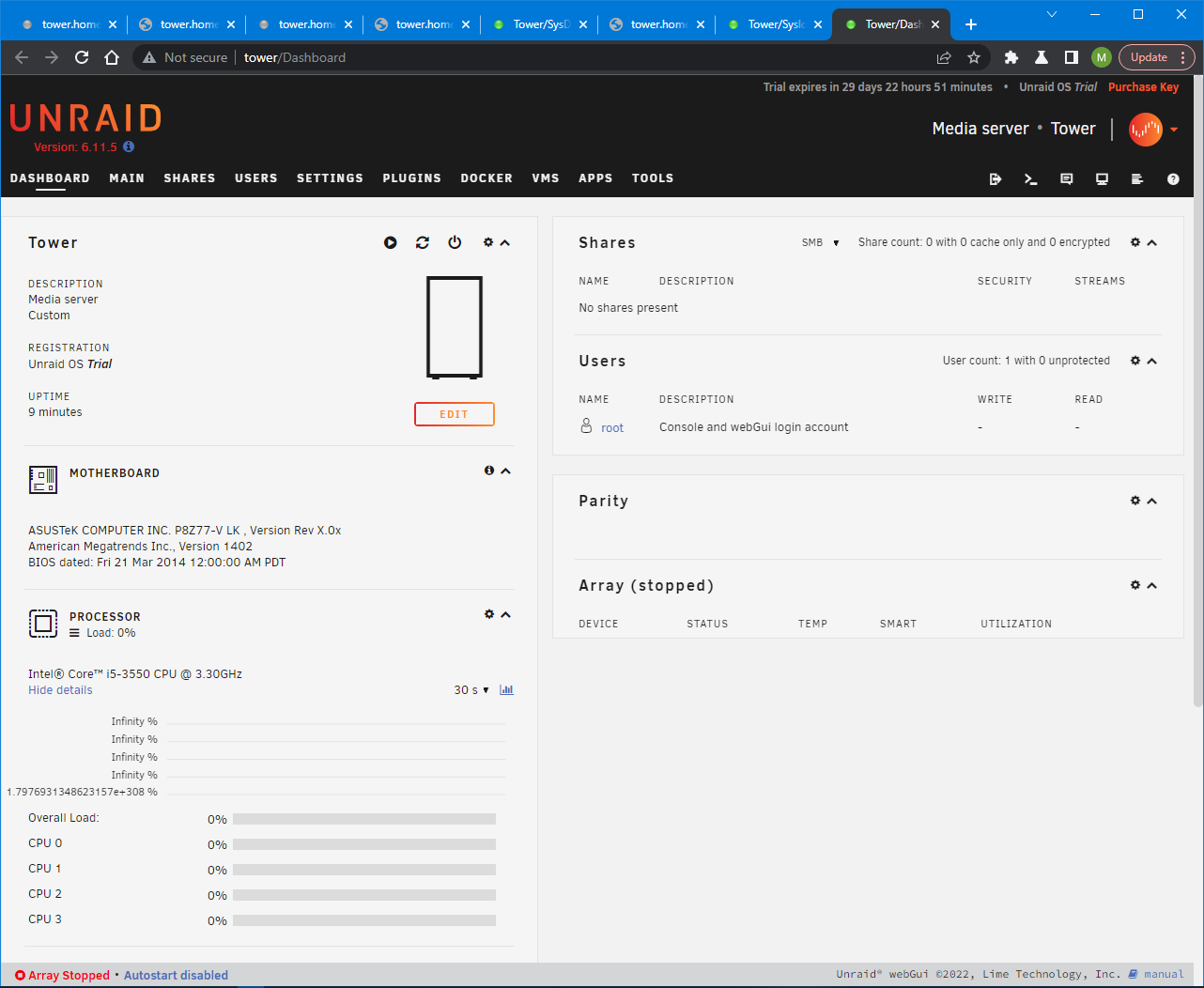

Well, this one is interesting. Have been running the same basic config of UnRAID for at least 10 years, upgrading both the hardware and OS over time. Of course, I've had various issues here and there, but always able to be resolved. This one, not so much... yet. I periodically check my drive stats on the Main page for full drives, failed drives, temp, etc. Last night the drive list was blank. No disks showing including the cache drives, boot USB. Nothing. Array was still available over SMB, though. The Dashboard page was similarly devoid of information. Wouldn't show CPU usage, temperature, memory usage, network usage, etc. But, it showed the up-time. And at 220+ days I figure I'll reboot it. After reboot it has the same issue. I notice the CPU usage stats are odd, they show usage as "Infinity %" with a total usage of "1.7976931348623157e+308 %" Sure, I assume that's "Infinity %" x 4 CPU Cores? Anyway, I fully shut down to see if a cold boot might make things happy. Well, I'm assuming coincidentally that's when my slightly over-loaded power supply decided to give up the ghost (11x spinning drives, LSI SAS, Dual 10Gb nic on a 500w PSU... yeah.) New 600w power supply put in, boots right up... but same behavior. Had stopped the array before either the reboot or the shut-down and after the power supply replacement it says incorrect array config, which is understandable that one drive might not be getting power or something through the rats nest of adapters and Y cables. But I can't see the config to see what's not happy. System log (which I can only get from the Tools menu, the pop-up window from the header menu brings up a blank page that never populates) shows a few errors. Some with disks, one with a USB device: "usb 3-3: device descriptor read/64, error -71" I pull my LSI SAS card that's the drive controller for about half of my disks, and the NVMe adapter for my cache. Same behavior. I moved the BOOT USB to a different port/controller, error stays on the same USB port, boot moves with the physical move. Still the same behavior. I also pulled all disks from controllers, same behavior. I built a new USB boot drive with a clean install of 6.10.3 (was running 6.10.2, but only back to 6.10.3 was available with the builder utility.) With a clean install the same behavior persists. It's not an UnRAID config issue. I reset the BIOS, same. I updated the BIOS, same. I reduced to a single CPU core, same. I pulled one DIMM at a time, same. I turned off all temperature and fan monitors, same. I'm sure I've tried other things and forgotten at this point. I also "upgraded" the plain 6.10.3 install to 6.11.5, as you probably guessed, still doing the same thing. I'm hammering at the "Trial" install to reduce the likelihood that I lose my config on my licensed USB drive. The USB 3-3 device could have been failing this whole time and not be related at all. Whatever it is, I'm kind of stumped. I'd kind of like to nail it down to the actual issue and maybe replace the Motherboard or CPU, but not both, if I can help it. Especially if it's one of those: "Oh, this happens when [x] is being stupid, here's how to fix it..." kind of things. Any ideas? Basic system hardware that hasn't moved, yet. ASUS P8Z77-V LK Motherboard , BIOS Version 1402 dated: Fri 21 Mar 2014 12:00:00 AM PDT 16GB of DDR3 (2x8GB, these have been tested individually) Intel® Core™ i5-3550 CPU @ 3.30GHz Intel 82599ES Dual 10-Gigabit SFP+ NIC Will dump SysLog in to next post.

Not really. It would mainly be academic since I don't have any end devices that could really saturate it in "normal life", anyway. If I get around to upgrading my UnRaid hardware then I might try to tackle it a bit harder.

These are various generations of I3 and I7. In this test the iperf3 process on the I3-4160 (in an Optiplex 9020) stayed around 13% and the I7-7700 (Optiplex 7050) barely showed 2% for the faster transfer, the other direction the I3 sat around 20% and the I7 peaked at 3% for the slower transfer.

Between my machine and the media PC (through 2 QNAP switches) iperf3 showed 4.39Gb one direction and 5.39Gb the other.

Windows machines, but that does give me hope that it'll work and give me an idea of a possible fix. Thanks. I'll give it a try.

Media PC didn't like the 10gTek optics, either. Looks like there's a different version for Intel. That's annoying.

Tried a direct test from my computer to the media computer using the fiber I have running (my desktop is about 3 feet from its switch and the Media PC is less than a foot from its switch), just taking the switches out of the loop, but my x520 does not like the 10gTek SFP+ optics. Being its the same card in the Media PC and my kid's computer, I didn't even try with them. Goes in to full error mode even through a reset, though the Amazon description says "Intel" and a review does mention using it with an x520... maybe I'll look in to this more. But, I did a DAC between the media PC and my kid's computer, being they're about 15 feet (as the tucked cable runs) from each-other and got about the same 500MB/s in NetIO and about 400MB/s with file transfers (both SATA SSD, Pioneer, of course.) I wouldn't expect the (non RAID) SATA SSD to SATA SSD transfer to be any quicker, of course, but I was hoping NetIO would move a bit more. But, the whole point was the switches, anyway, and it doesn't sound like they're the limiting point in the data transfer that I can see, at least not lower than I can seem to measure with the end equipment I'm using.
