flowermoron Posted February 17, 2021 Share Posted February 17, 2021 (edited) i want to do link aggregation, my unraid motherboard has 2 ethernet ports & my linksys switch supports it i dont know where to start & what to do exactly, should i enable it only with unraid or on the switch, or is it both? plz help! my motherboard P9D WS | Servers & Workstations | ASUS Global my switch Linksys Business LGS318P 16-Port Gigabit PoE+ (125W) Smart Managed Switch + 2x Gigabit SFP/RJ45 Combo Ports Edited February 17, 2021 by flowermoron Quote Link to comment
flowermoron Posted February 17, 2021 Author Share Posted February 17, 2021 i have found this on youtube https://www.youtube.com/watch?v=nOwPDQrgDAI hes using another nas but is it the same? Quote Link to comment

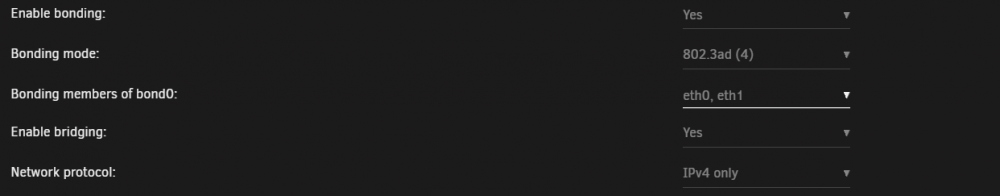

SimonF Posted February 17, 2021 Share Posted February 17, 2021 You need to do on both switch and server. My switch is Zyxel but you need to define LAG and put the ports into a Group, bonding mode will have to match your switch mode. on the server set bonding. Quote Link to comment
flowermoron Posted February 17, 2021 Author Share Posted February 17, 2021 ok i think i got working, it connects & everything but is there anyway to test the speed or bandwidth? Quote Link to comment
SimonF Posted February 17, 2021 Share Posted February 17, 2021 You will only get max 1Gb for a session, you would need to run multiple iperfs to different IPs. Two sessions to two different clients should run both NICs at 1Gb. Quote Link to comment
flowermoron Posted February 17, 2021 Author Share Posted February 17, 2021 (edited) its all working well, can access shares & all is cool.. for now Quote You will only get max 1Gb for a session, you would need to run multiple iperfs to different IPs. Two sessions to two different clients should run both NICs at 1Gb. well i have multiple users using unraid accessing files, wont link aggregation help a little? Edited February 17, 2021 by flowermoron Quote Link to comment
SimonF Posted February 17, 2021 Share Posted February 17, 2021 29 minutes ago, flowermoron said: its all working well, can access shares & all is cool.. for now well i have multiple users using unraid accessing files, wont link aggregation help a little? Yes It will help as clients will be split between the nics. But a single client PC to server will only ever get 1Gb. Quote Link to comment
flowermoron Posted February 17, 2021 Author Share Posted February 17, 2021 (edited) 4 hours ago, SimonF said: Yes It will help as clients will be split between the nics. But a single client PC to server will only ever get 1Gb. great! what more do you need for a home server Edited February 17, 2021 by flowermoron 1 Quote Link to comment
