Hello,

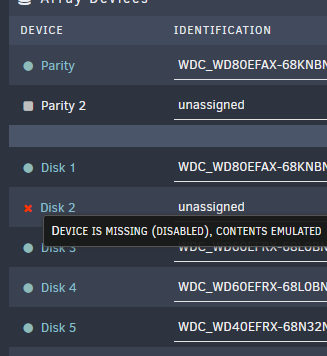

Had a drive (WD RED 6TB) fail, replacement drive arrived today but when i try to set it into the same slot (Disk 2) as the previous drive I get "The replacement disk must be as big or bigger than the original." and can't start the array.





Original Disk: WD RED 6TB (WD60EFRX)

Replacement: WD RED Pro 6TB (WD6003FFBX)



Specs:
ASUSTeK COMPUTER INC. TUF B450M-PLUS GAMING

AMD Ryzen 5 2600

LSI 6Gbps SAS HBA LSI 9200-8i



/dev/sdh:
 max sectors   = 11721045168/11721045168, HPA is disabled





Any help would be appreciated!

avalon-diagnostics-20210325-1815.zip

Edited March 25, 20215 yr by RedSpider

Tools -> Diagnostics. Post the zip file.



2 minutes ago, John_M said:

Tools -> Diagnostics. Post the zip file.



Added

There's a lot of this in your log:



Mar 25 18:11:00 Avalon kernel: sd 10:0:6:0: Power-on or device reset occurred
### [PREVIOUS LINE REPEATED 1 TIMES] ###



Check/replace power and data cables to the new disk.



31 minutes ago, John_M said:

There's a lot of this in your log:



Mar 25 18:11:00 Avalon kernel: sd 10:0:6:0: Power-on or device reset occurred
### [PREVIOUS LINE REPEATED 1 TIMES] ###



Check/replace power and data cables to the new disk.



Thanks for the reply. Drives are mounted in drive bays, so there are no cables to each disk - i have however checked (and reseated) the SAS / Power cables to the backplanes.

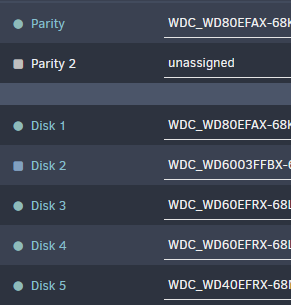

I am able to add the drive to the array in another slot, just not the same slot the failed drive was in.



Updated logs attached following system boot after checking power/data cables

avalon-diagnostics-20210325-1915.zip

Edited March 25, 20215 yr by RedSpider

Current 6TB disk is the correct size (for 6TB), but the disk that failed for some reason was larger than normal:



[sizeSb] => 5860765964



This is the normal size for 6TB:



[sizeSb] => 5860522532



You'll need to replace it with an 8TB drive, or manually copy the data and do a new config.

2 minutes ago, JorgeB said:

Current 6TB disk is the correct size (for 6TB), but the disk that failed for some reason was larger than normal:

hmmm, interesting. Any idea what would cause this?





An unusually large disk? Shucked disks can sometimes have a different size, but they are usually a little smaller, don't remember ever seeing a slightly larger disk.

1 minute ago, JorgeB said:

An unusually large disk? Shucked disks can sometimes have a different size, but they are usually a little smaller, don't remember ever seeing a slightly larger disk.



Typical - just my luck 😆 Thanks for the help - will order an 8TB and see what happens!

It looks as though you've fixed the resetting problem. I hope you can re-purpose the disk somewhere else.
