Mount Unraid Share inside a unRaid Ubuntu Linux VM on same System

[Michael Haf]

Hello all,



so I created a new Ubuntu Server 20.04 VM where unRaid is the Host for this one.

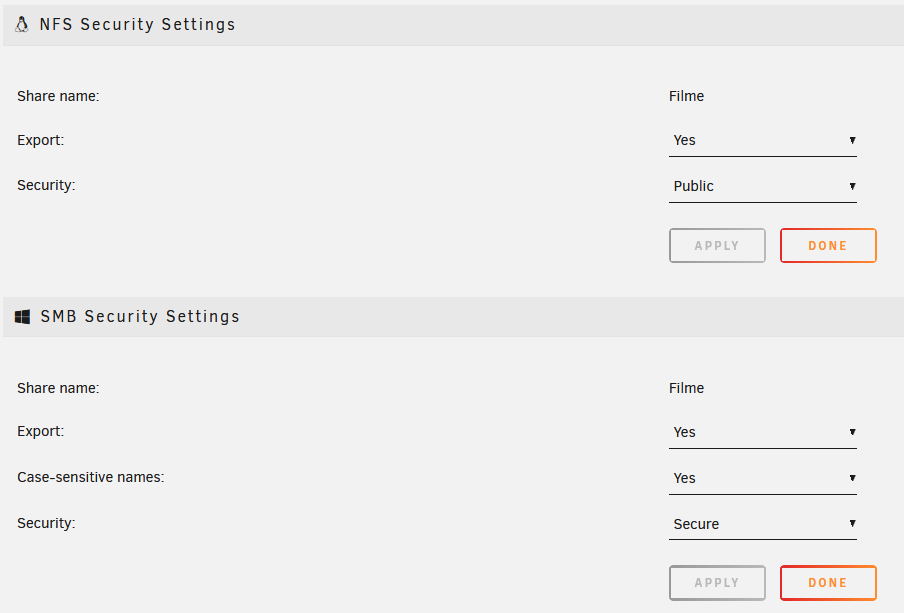

And I created a few shares with SMB and NFS support:



This should make the share visible to all system around. There should be no firewalls around, as I have not setup anything for unRaid nor the Ubuntu VM.

I seem to not get the share mount though.

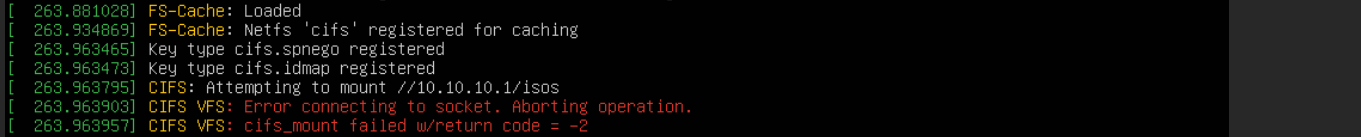

When testing I get:

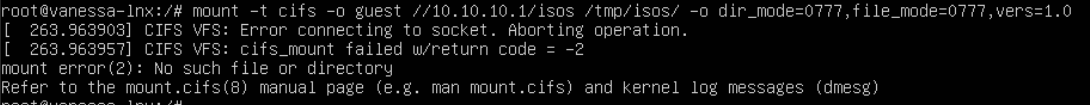

When mounting I get:

it does not matter if I take a known user or not, same results. Irrelevat of the SMB version: 1.0, 1.2, 3.0

and



It seem though like the VM does not reach the Share allthough on the same host system.



Someone, any ideas ...













[JonathanM]

As far as shares are concerned, there is no difference between a VM and a normal desktop, same rules apply. Is the VM getting an IP from the same subnet as Unraid from your DHCP server? Can you ping from the VM to Unraid and vice versa?

[SimonF]

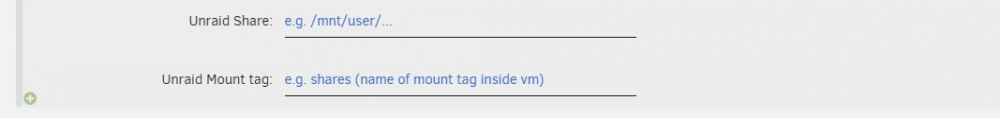

With linux vms you can have a share as a mount point.



Edited May 2, 2021 by SimonF

[JonathanM]

2 hours ago, SimonF said:

With linux vms you can have a share as a mount point.



Yes, but unless things have changed, performance was abysmal using that method.



I'd love to see some updated benchmarks though.

[Michael Haf]

Hello all! And thank you all for your feedback.



@jonathanm: Yes, I can ping in both directions. So the machines are visible to each other and as they all are on the same Host there should be no blocking of any kind.

@SimonF: I will gain have a look into this option, allthough I wanted the CIFS share for this design.



So, any ideas why the unRaid Samba is blocking me out?



[SimonF]

42 minutes ago, Michael Haf said:

Hello all! And thank you all for your feedback.



@jonathanm: Yes, I can ping in both directions. So the machines are visible to each other and as they all are on the same Host there should be no blocking of any kind.

@SimonF: I will gain have a look into this option, allthough I wanted the CIFS share for this design.



So, any ideas why the unRaid Samba is blocking me out?



Hi @Michael Haf



I have just created a test share and mounted on a Ubuntu Desktop running on same host, Worked fine for me using your commands just changed IP.



Only difference was on smbclient -L //IP rather than \\
