Install Boot Loop - Ubuntu VM Nvme Passthrough


4 posts in this topic Last Reply

Recommended Posts

Posted (edited)

Hi there,



I'm fairly new to Unraid, Im trying to create a Ubuntu VM on a separate NVME  detached from the array.

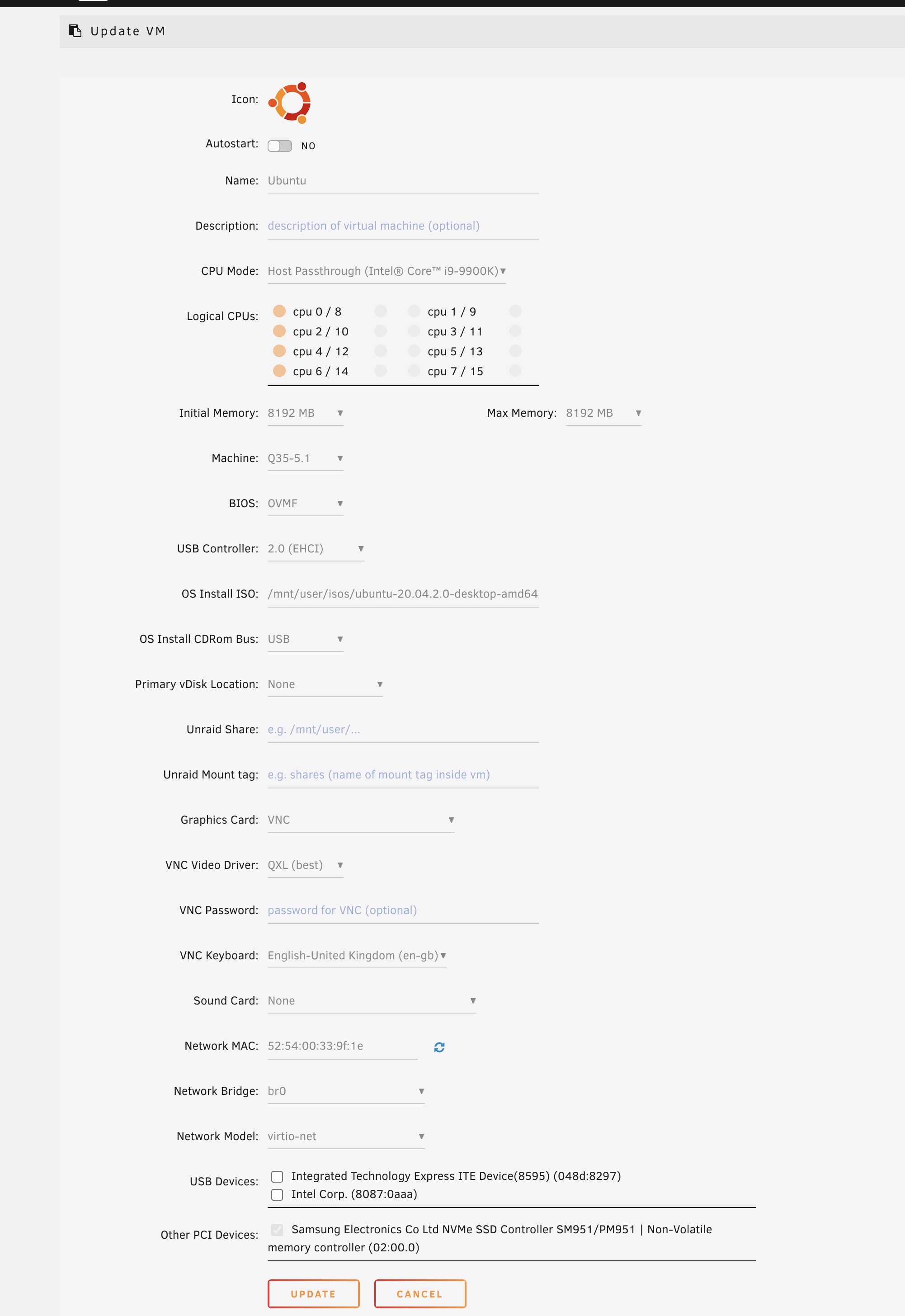

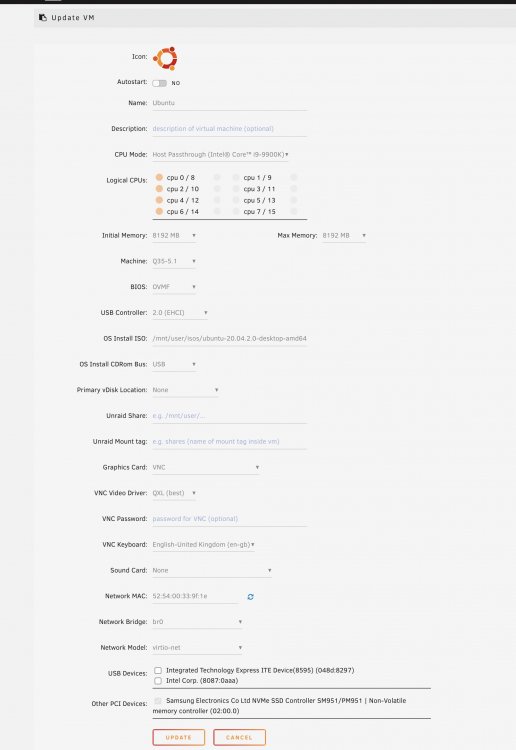

I have passed through the NVME drive to the VM and successfully installed Ubuntu however once it's installed I can't seem to boot from it. It constantly cycles back to the install.

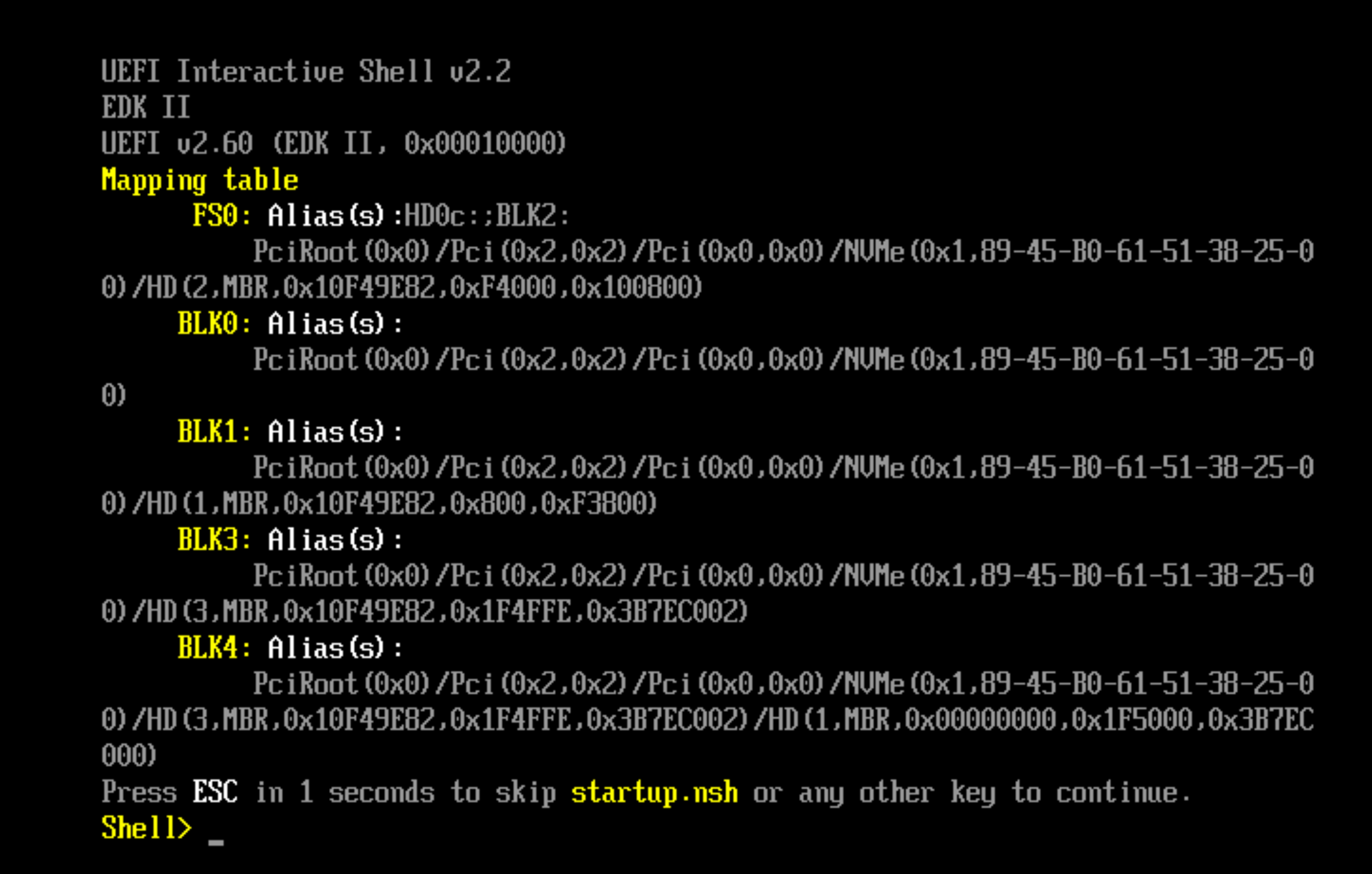

Once I remove the installation media from the VM settings (expecting the boot laser to kick in), I just get 'no bootable media' or just a shell prompt.  I have tried using SeaBios, reinstalling a number of times with no joy.



Anyone have any ideas?








Edited by Ainsley
Link to post
Posted (edited)

Since you don't have a primary vDisk specified, did you configure a boot disk anywhere? I'm not sure whether you need to enter the OVMF Setup and select the NVMe device as the boot disk or specify it in the XML, but it needs to be configured somewhere.



Edited by John_M
typo
Link to post

Hi @John_M


Thanks for your reply.

Do you know how I can set the boot device? Is there an XML block Im missing?

If I boot from the nvme normally without unraid, it doesn’t boot either.



Many thanks for your help.

Link to post

It isn't something I do, myself, as I don't need the extra speed and I don't want to dedicate a whole SSD to one VM but have you tried entering the OVMF Setup and trying to select it there, as I suggested? I believe any edits you make there will be stored in the emulated nvram associated with the VM. If that doesn't work then you will need to edit your XML. Perhaps this thread will point you in the right direction.

Link to post
