Kizers Second Build - For his Day Care Lady


kizer

Recommended Posts

Looks like its time to build another machine for a friend this time. To start

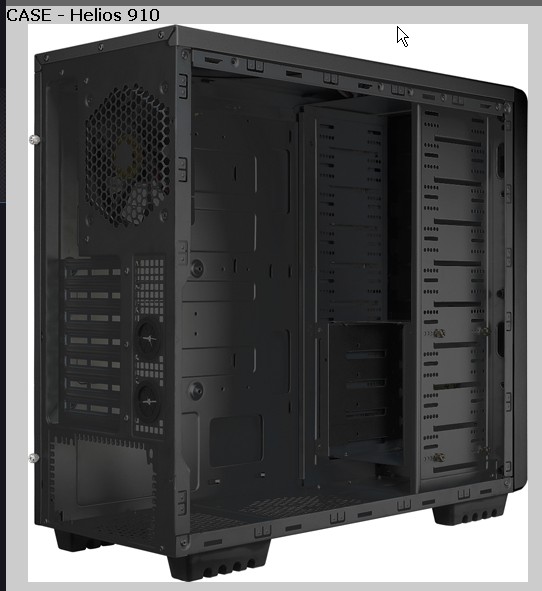

AZZA Helios 910 Black Japanese SECC Steel ATX Mid Tower Computer Case

http://www.newegg.com/Product/Product.aspx?Item=N82E16811517007



CORSAIR Builder Series CX430 CMPSU-430CX 430W ATX12V Active PFC Power Supply

http://www.newegg.com/Product/Product.aspx?Item=N82E16817139017



Kingston 2GB 240-Pin DDR2 SDRAM DDR2 800 (PC2 6400) Desktop Memory Model KVR800D2/2GR

http://www.newegg.com/Product/Product.aspx?Item=N82E16820134797



AMD Sempron 140 Sargas 2.7GHz Socket AM3 45W Single-Core Processor SDX140HBGQBOX

http://www.newegg.com/Product/Product.aspx?Item=N82E16819103698



BIOSTAR A760G M2+ SOCKET AM2+/AM3 MOTHERBOARD AMD CHIPS

http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=370478094229&ssPageName=STRK:MEWAX:IT



I have nearly the same build except my case is a Cooler Master 590, but since they don't exist anymore I had to come up with something else. $271.00 for everything not including Drives, USB stick or license. They don't know it yet, but this this lady and her huband take pretty good care of my kid after school so I figured I'd help them get started on digitizing their collection opposed to having 3 or 4 portable USB drives.



Darn it I have to calculate in the price of some Sata cables. LOL

Link to comment

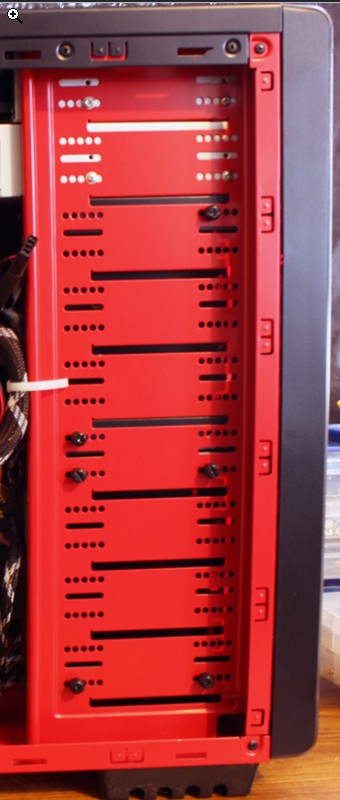

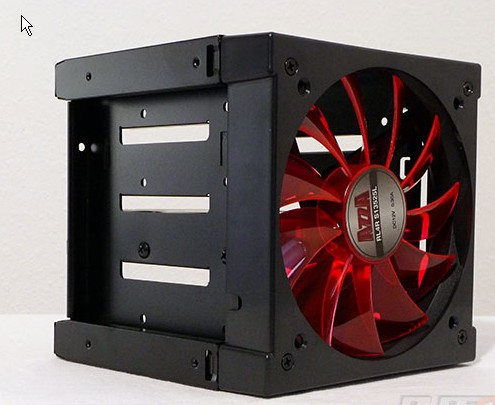

It may hold 12 externals with 5x3s or after-market 4x3s...I only have 2 of the Azza 4x3 cages - with no space for a 3rd Azza cage (you can see where the 4x3s mount in the photo).  Possibly another after-market 3x2?



Also for those outside of North America, these are sold as the Super Flower SF-800 and Evo SF-800.  Directron previously sold these in the US (out of stock).



Another review and more photos

http://www.topreviewshop.com/azza_helios_910r_case



Link to comment

Could you remove the bottom screws in the lowest cage and just lower it down and only use the top screws so it would sit on the bottom of the case or would that still not afford you more space for a 3rd cage. Do you have a link to the cages? I looked and I can't seem to find them easily on NewEgg.



mbryanr,

Thanks for all your info so far it has been very helpful

Link to comment

I "think" you can move the cage downward and fit 3 total...  I haven't had the need yet, and didn't want to give mis-information regarding the number of cages.



I emailed [email protected] directly.  They received my electronic check on 3/8 and it was at my house on 3/10 (California -> North Carolina).  Very good service if somewhat indirect.



Here is a link to the order form (my google docs account)



Azza Order Form

<let me know if the download is okay as I'm behind a proxy at work {which sometimes fusses about uploads/downloads to google docs} ;)

Link to comment

Actually no, but that would of been a very good one thou.



I did noticed yesterday that you can't fit 3 cages in it without some work. It looks like you would have to trim a lower piece of sheet metal off, but would be hidden with the front cover to fit 3 AZZA cages in. If you used any other cage you would have to fold down flat the hard drive rails.



I'll post up some pics soon. I spent some time on the case last night wireing things up for the intended person

Link to comment
