March 29, 201115 yr v4.7 I added two 1tb FALS disks this morning to the SUPERMICRO AOC-SASLP-MV8 card on cables P2 and P3. P0 and P1 were already in use. Login will not appear with Putty. No results when pinging the IP from Windows cmd. Browser interface will not load. I'm thinking I'll just hard powerdown, disconnect the two new disks, and reboot. Make sure things are how they should be, proper powerdown, then add a single disk. Repeat until things are fine. Preclear reports from the two disks: ========================================================================1.8 == invoked as: ./preclear_disk.sh -A /dev/sdc == WDC WD1001FALS-00J7B1 WD-WMATV1718224 == Disk /dev/sdc has been successfully precleared == with a starting sector of 64 == Ran 1 cycle == == Using :Read block size = 8225280 Bytes == Last Cycle's Pre Read Time : 3:18:43 (83 MB/s) == Last Cycle's Zeroing time : 2:59:26 (92 MB/s) == Last Cycle's Post Read Time : 6:38:58 (41 MB/s) == Last Cycle's Total Time : 12:58:13 == == Total Elapsed Time 12:58:13 == == Disk Start Temperature: 21C == == Current Disk Temperature: -->43<--C, == ============================================================================ ** Changed attributes in files: /tmp/smart_start_sdc /tmp/smart_finish_sdc ATTRIBUTE NEW_VAL OLD_VAL FAILURE_THRESHOLD STATUS RAW_VALUE Seek_Error_Rate = 100 200 0 ok 0 Temperature_Celsius = 107 129 0 ok 43 No SMART attributes are FAILING_NOW 0 sectors were pending re-allocation before the start of the preclear. 0 sectors were pending re-allocation after pre-read in cycle 1 of 1. 0 sectors were pending re-allocation after zero of disk in cycle 1 of 1. 0 sectors are pending re-allocation at the end of the preclear, the number of sectors pending re-allocation did not change. 0 sectors had been re-allocated before the start of the preclear. 0 sectors are re-allocated at the end of the preclear, the number of sectors re-allocated did not change. ============================================================================ ========================================================================1.8 == invoked as: ./preclear_disk.sh -A /dev/sdc == WDC WD1001FALS-00J7B0 WD-WMATV0748505 == Disk /dev/sdc has been successfully precleared == with a starting sector of 64 == Ran 1 cycle == == Using :Read block size = 8225280 Bytes == Last Cycle's Pre Read Time : 3:29:12 (79 MB/s) == Last Cycle's Zeroing time : 3:09:31 (87 MB/s) == Last Cycle's Post Read Time : 6:56:35 (40 MB/s) == Last Cycle's Total Time : 13:36:25 == == Total Elapsed Time 13:36:25 == == Disk Start Temperature: 20C == == Current Disk Temperature: -->44<--C, == ============================================================================ ** Changed attributes in files: /tmp/smart_start_sdc /tmp/smart_finish_sdc ATTRIBUTE NEW_VAL OLD_VAL FAILURE_THRESHOLD STATUS RAW_VALUE Temperature_Celsius = 106 130 0 ok 44 No SMART attributes are FAILING_NOW 0 sectors were pending re-allocation before the start of the preclear. 0 sectors were pending re-allocation after pre-read in cycle 1 of 1. 0 sectors were pending re-allocation after zero of disk in cycle 1 of 1. 0 sectors are pending re-allocation at the end of the preclear, the number of sectors pending re-allocation did not change. 0 sectors had been re-allocated before the start of the preclear. 0 sectors are re-allocated at the end of the preclear, the number of sectors re-allocated did not change. ============================================================================
March 29, 201115 yr Author it sounds like the USB drive got kicked from the primary boot device. Oof! Checking...

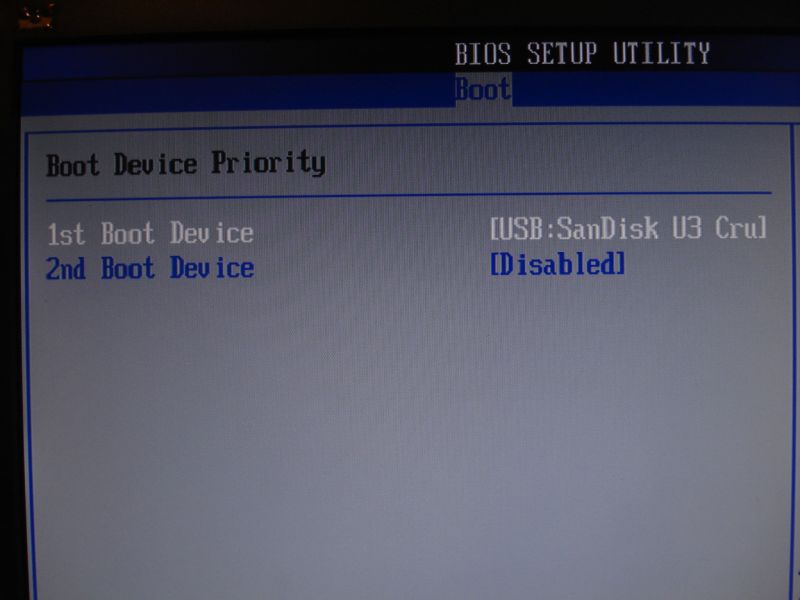

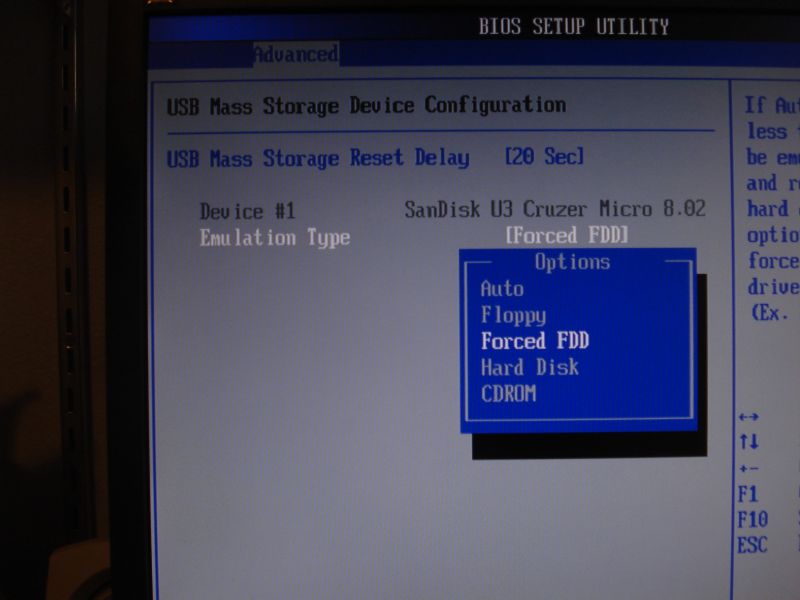

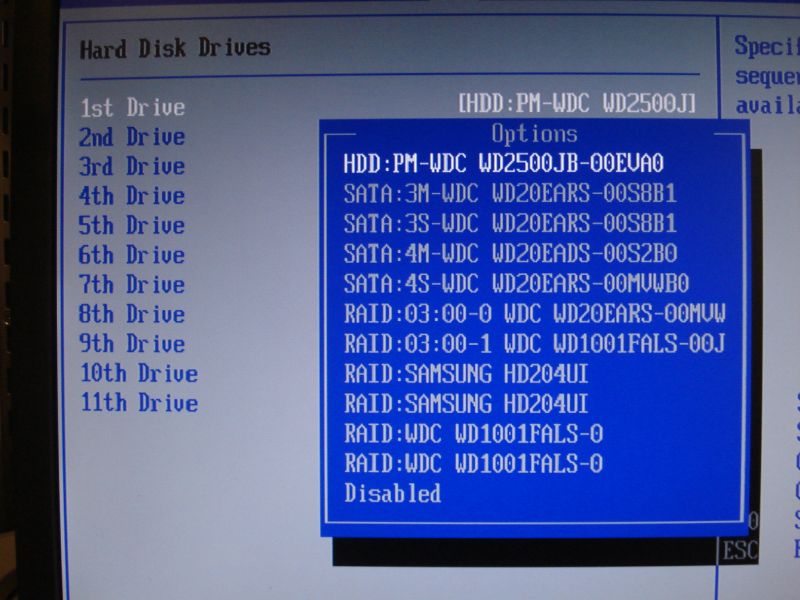

March 29, 201115 yr Author Something odd here: You can see the SanDisk is the only boot device. But it's set to Forced FDD. I think that's wrong. At least the bios is seeing the new disks that I added.
March 29, 201115 yr Forced FDD should be ok, it is what I use (using MB slots only)....but http://lime-technology.com/forum/index.php?topic=9209.msg91639#msg91639 1. Forced FDD or "Auto"? 2. Boot/Hard Disks -> disable all except the flash 3. Boot Device Priority (only the flash) Edit: and....I forgot: http://lime-technology.com/forum/index.php?topic=10769.msg102838#msg102838
March 29, 201115 yr Author Forced FDD should be ok, it is what I use (using MB slots only)....but http://lime-technology.com/forum/index.php?topic=9209.msg91639#msg91639 1. Forced FDD or "Auto"? 2. Boot/Hard Disks -> disable all except the flash 3. Boot Device Priority (only the flash) Edit: and....I forgot: http://lime-technology.com/forum/index.php?topic=10769.msg102838#msg102838 Tried Auto for the disk type, but it would not boot. The other two settings were already in place. The LED on the SanDisk does light up.
March 29, 201115 yr Author Not sure what happened there. I confirmed the SanDisk was in Forced FDD mode, as it was when I first checked the bios. Confirmed the other settings were correct. It booted just fine. Thanks for the help.
