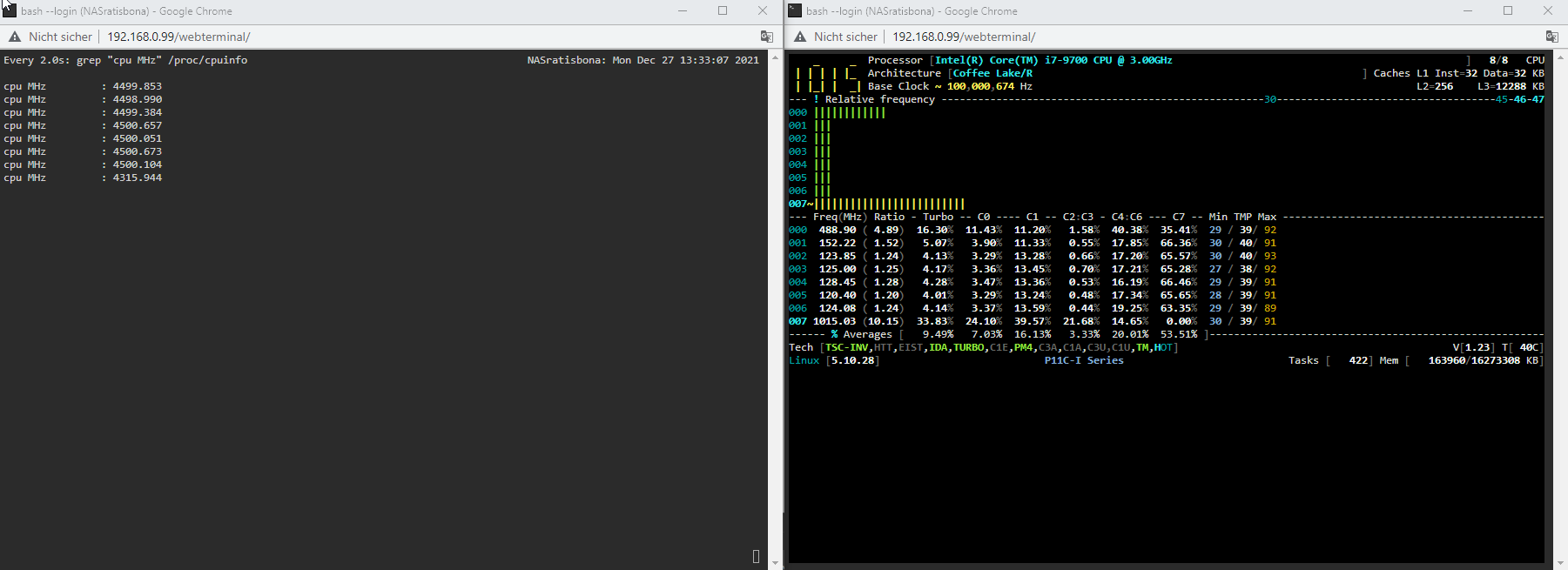

Hi guys, im wondering how to see the 'real' CPU frequency. I tried two different approaches and got different frequencies. Maybe someone can make the things clear. As can be seen in the picture below i tried two different methods. The rigth one is via 'corefreq-cli'.
Best regards, Mathias

The one on the left is the real frequency each core is running at.

@Squid what are the frequencies on the right side ? On load  the frequencies go up ...

The relative frequency is computed from the processor performance counters.

Those are sampled over a period, default 1 second; the previous sample being substracted to the current, you are getting a relative frequency.



Press [ ! ] to toggle the frequency mode: relative to absolute Hertz
