ARRAY DISKS NOT MOUNTING

[victoryvj]

Hello I’ve built my first Unraid server and I just keep running into issues when after parity check and restarting the server.



System info:



Model: Custom

M/B: Gigabyte Technology Co., Ltd. X570 I AORUS PRO WIFI Version x.x - s/n: Default string

BIOS: American Megatrends Inc. Version F32. Dated: 01/18/2021

CPU: AMD Ryzen 7 5700G with Radeon Graphics @ 3800 MHz

HVM: Enabled

IOMMU: Enabled

Cache: 512 KiB, 4 MB, 16 MB

Memory: 32 GiB DDR4 (max. installable capacity 128 GiB)

Network: bond0: fault-tolerance (active-backup), mtu 1500

eth0: 1000 Mbps, full duplex, mtu 1500

Kernel: Linux 5.10.28-Unraid x86_64



I’ve reinstalled version 6.9.2 three times now. Each time I’ve setup my cache drives, my arrays, mapped Remote SMBs, etc. This last time I’ve was able to download and restore from an Unraid.net backup. The issue I’m having now is the 2 of my WDC 4TB drives that were added to the array are not mounting and Unraid is telling me to format the disks in the WebUI, which I don’t want to do because I’ve already lost hours of my life setting up docker containers and plugins.

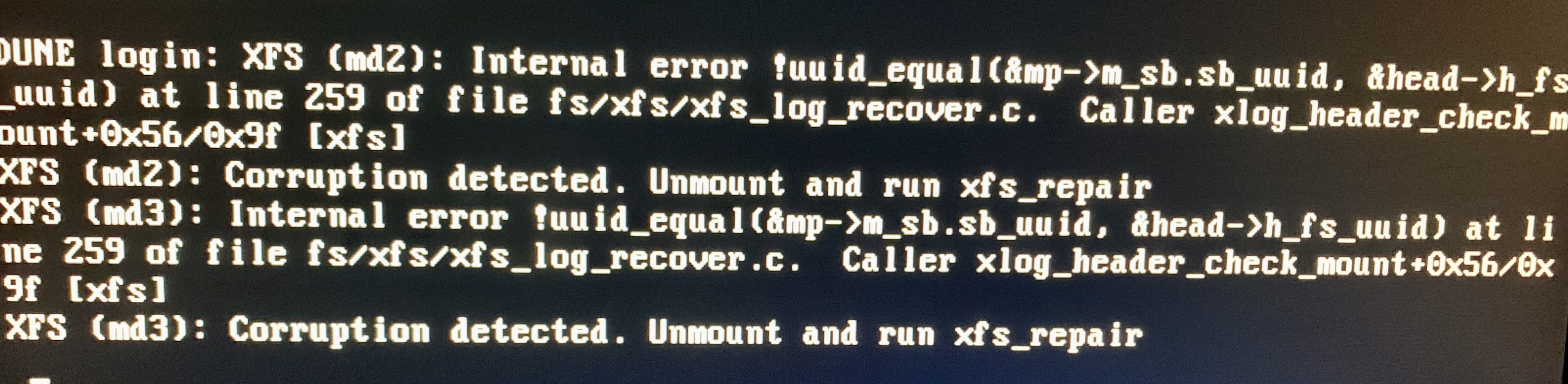

On the monitor connected to the server 2 separate errors

1. XFS (md2): Corruption detected. Unmount and run xfs_repair

2. XFS (md3): Internal error !uuid_equal(&mp->m_sb (see screenshot)







How can I fix this issue without starting from scratch?

[JorgeB]

Start by running memtest, also see here.

[trurl]

3 hours ago, victoryvj said:

reinstalled version 6.9.2 three times

No reason to expect that to fix, you should have asked for help sooner.



Attach Diagnostics to your NEXT post in this thread

[victoryvj]

I removed the Mover Tuning plugin and stopped C6 state through terminal command (/usr/local/sbin/zenstates --c6-disable).  The issue still persists. Attached is my diagnostic.

dune-diagnostics-20220304-1103.zip



I didn't reinstall version 6.9.2 three times to fix this issue.  I was saying I've gone through setting up Unraid 3 differnt time and I get it going and then I run into issues. I've only detailed this last issue.

Edited March 4, 2022 by victoryvj
for a complete response

[JorgeB]

Did you run memtest like asked?

[victoryvj]

Yes, no errors were found.

[JorgeB]

Check filesystem on those disks.

[victoryvj]

I did the check on both drives and it referred me to run XFS_REPAIR. I ran the terminal command and got the following results for both drives.



SB summary counter sanity check failed
Metadata corruption detected at 0x47518b, xfs_sb block 0x0/0x200
libxfs_bwrite: write verifier failed on xfs_sb bno 0x0/0x200
xfs_repair: Releasing dirty buffer to free list!
xfs_repair: Refusing to write a corrupt buffer to the data device!
xfs_repair: Lost a write to the data device!

fatal error -- File system metadata writeout failed, err=117



I'm going to just format the drives and add them back to the array.

[trurl]

16 hours ago, victoryvj said:

ran the terminal command

What terminal command exactly? Better to run it through the webUI so the command is run correctly.
