Windows 10 Sound Card - Insufficient system resource to complete the api (code 10)

[DEOVI]

Hey guys,

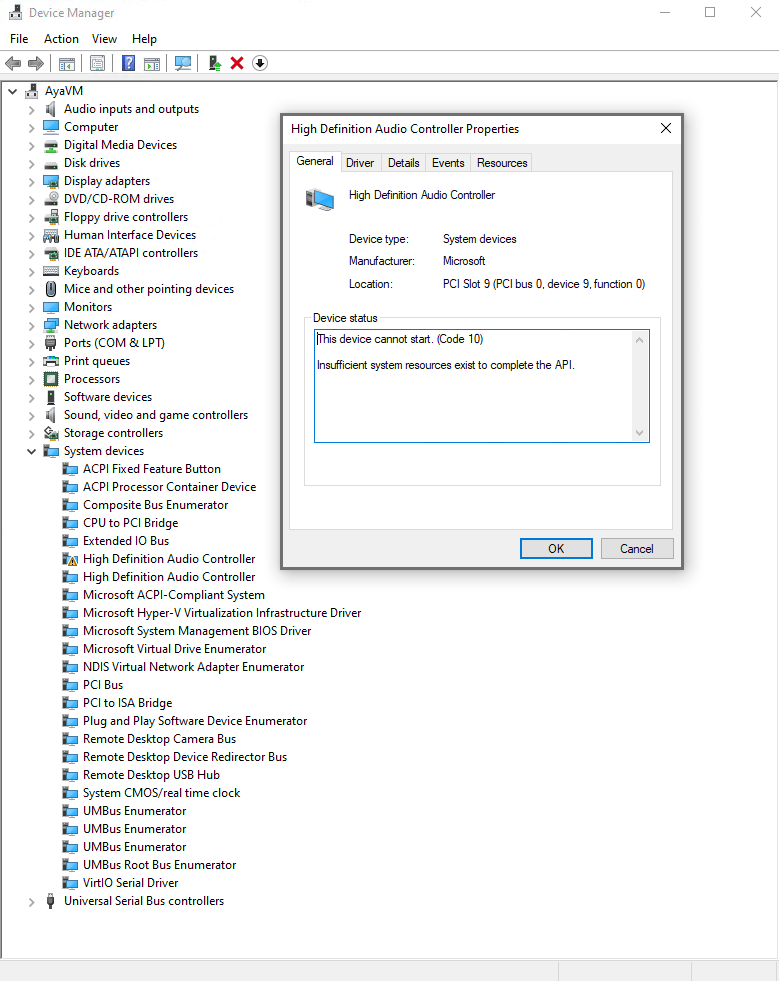

I managed to update my XML to have the sound card set on a separate bus. I managed to boot the VM with the sound card but now I'm getting this error.







I tried changing the bus and I still get the same error.

This is the device information: [13f6:5011] 0d:00.0 Audio device: C-Media Electronics Inc CM8888 [Oxygen Express]



and the XML



<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='2' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
  <name>Windows 10</name>
  <uuid>8e8a7f0b-ae27-ccc2-6b85-588cc0651f85</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>8388608</memory>
  <currentMemory unit='KiB'>8388608</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>8</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='1'/>
    <vcpupin vcpu='1' cpuset='9'/>
    <vcpupin vcpu='2' cpuset='3'/>
    <vcpupin vcpu='3' cpuset='11'/>
    <vcpupin vcpu='4' cpuset='5'/>
    <vcpupin vcpu='5' cpuset='13'/>
    <vcpupin vcpu='6' cpuset='7'/>
    <vcpupin vcpu='7' cpuset='15'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-i440fx-5.1'>hvm</type>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' cores='4' threads='2'/>
    <cache mode='passthrough'/>
    <feature policy='require' name='topoext'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/Windows 10/vdisk1.img' index='3'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/Windows/Windows 07072021.iso' index='2'/>
      <backingStore/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <boot order='2'/>
      <alias name='sata0-0-0'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.190-1.iso' index='1'/>
      <backingStore/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='qemu-xhci' ports='15'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'>
      <alias name='pci.0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='sata0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </controller>
    <controller type='pci' index='1' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='1'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </controller>
    <controller type='pci' index='2' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='2'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>
    </controller>
    <controller type='pci' index='3' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='3'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0a' function='0x0'/>
    </controller>
    <controller type='pci' index='4' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='4'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0b' function='0x0'/>
    </controller>
    <controller type='pci' index='5' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='5'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0c' function='0x0'/>
    </controller>
    <controller type='pci' index='6' model='pci-bridge'>
      <model name='pci-bridge'/>
      <target chassisNr='6'/>
      <alias name='pci.6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0d' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:a2:ab:8b'/>
      <source bridge='br0'/>
      <target dev='vnet0'/>
      <model type='virtio-net'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/0'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/0'>
      <source path='/dev/pts/0'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-2-Windows 10/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='connected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
      <address type='usb' bus='0' port='3'/>
    </input>
    <input type='mouse' bus='ps2'>
      <alias name='input1'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input2'/>
    </input>
    <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x10' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev0'/>
      <rom file='/mnt/user/isos/EVGA.GTX970.4096.140909.rom'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0' multifunction='on'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x10' slot='0x00' function='0x1'/>
      </source>
      <alias name='hostdev1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x1'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x0d' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev2'/>
      <address type='pci' domain='0x0000' bus='0x06' slot='0x09' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x046d'/>
        <product id='0xc52b'/>
        <address bus='1' device='5'/>
      </source>
      <alias name='hostdev3'/>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x28de'/>
        <product id='0x1142'/>
        <address bus='3' device='3'/>
      </source>
      <alias name='hostdev4'/>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
  <qemu:commandline>
    <qemu:arg value='-set'/>
    <qemu:arg value='device.hostdev2.x-msix-relocation=bar2'/>
  </qemu:commandline>
</domain>



I tried to install the sound cards driver but it will not recognize the card and installation fails.



Any help on why this is occurring would be appreciated.

Edited March 5, 2022 by DEOVI

[ghost82]

3 hours ago, DEOVI said:

Any help on why this is occurring would be appreciated.

Error 10 is a general error, unfortunately.

The fact that you need to relocate memory sounds like a crap firmware.

Or it could be an old or crap driver too.

If your device has a firmware upgrade, upgrade it.

If your device has new drivers apply newer.

It could worth a try also deleting Upperfilters and LowerFilters registry keys, they should be located under:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\

Here you need to find the sub class of your device (it could be 4D36E96C-E325-11CE-BFC1-08002BE10318, but double check it) and inside this you will find these 2 keys.



Edited March 5, 2022 by ghost82

[hett]

Hi. Same problem with Sound card with code 10. Sound card was working yesterday. 🥶
