Unraid freezes multiple times a week and I have to cold reboot it. (This isn't just the http server going down -- it won't respond to key presses from a keyboard directly connected to the server.) This configuration used to work for months at a time, but it seems something has gone wrong. I've run memtest86 overnight with no findings. I'm not sure what else to try. Any ideas?



truesource-diagnostics-20220620-1353.zip

Edited June 20, 20224 yr by DBJordan

Enable the syslog server and post that after a crash.

Good idea. I've set it up and started the array. It usually takes a few days, so I'll post once I see a freeze. Thanks!

It didn't hard crash yet, but after the parity check completed it did take the array offline for some reason. I started the array back up. Here are the logs at this point. I'll post again once I SyslogCatchAll-2022-06-21.txtSyslogCatchAll-2022-06-22.txtsee it go completely unresponsive.

Btrfs is detecting data corruption, more info here, you should set RAM to 1866MT/s as explained here, also check the power supply idle control setting, after RAM is correctly set reset the btrfs stats and keep monitoring, if more corruptions are found run memtest.

Thanks for the help!



I was able to set RAM to 1866 but couldn't find an option to handle power supply idle control or c-states. I tried this:

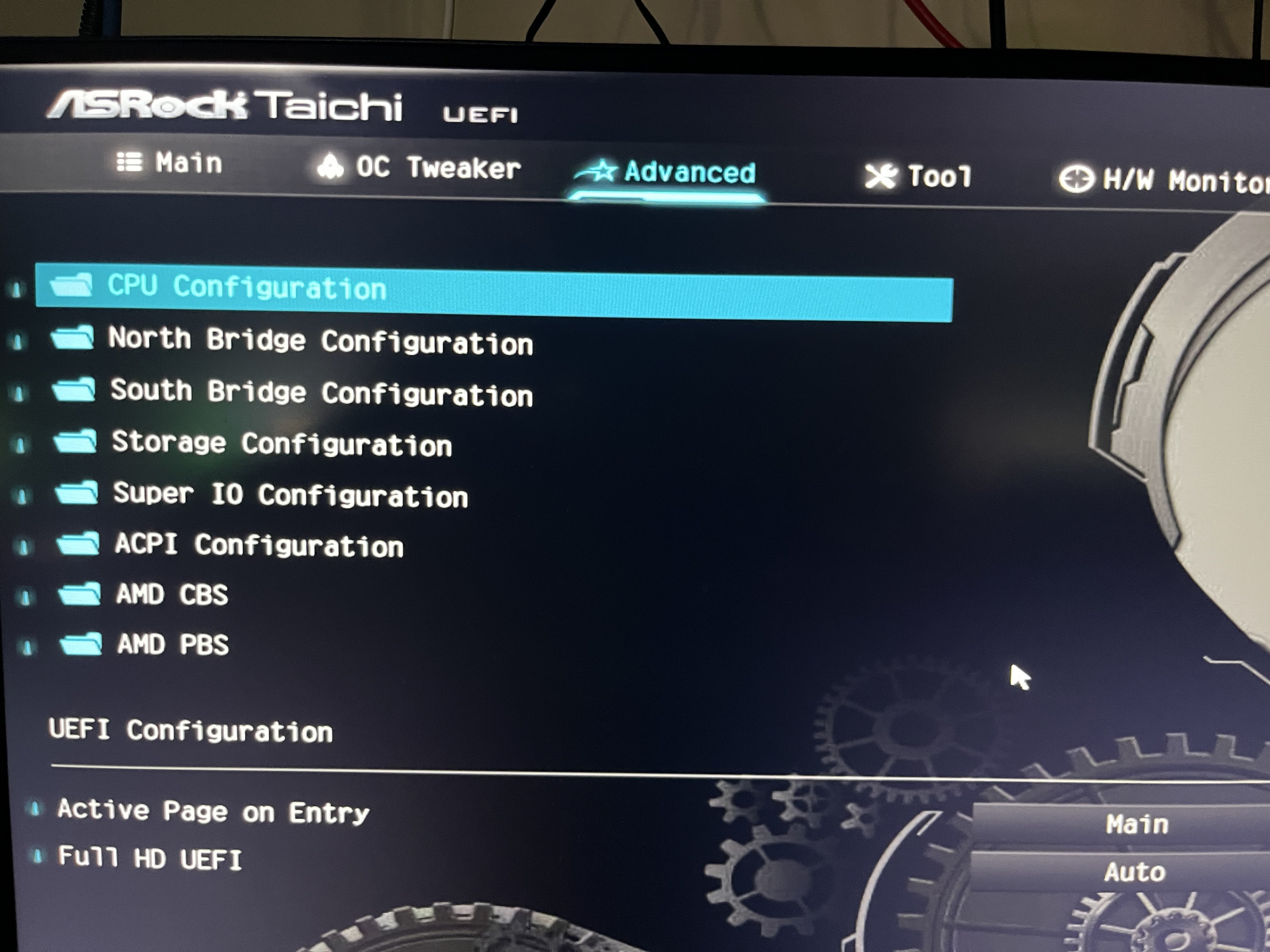

Started here and picked "CPU Configuration"

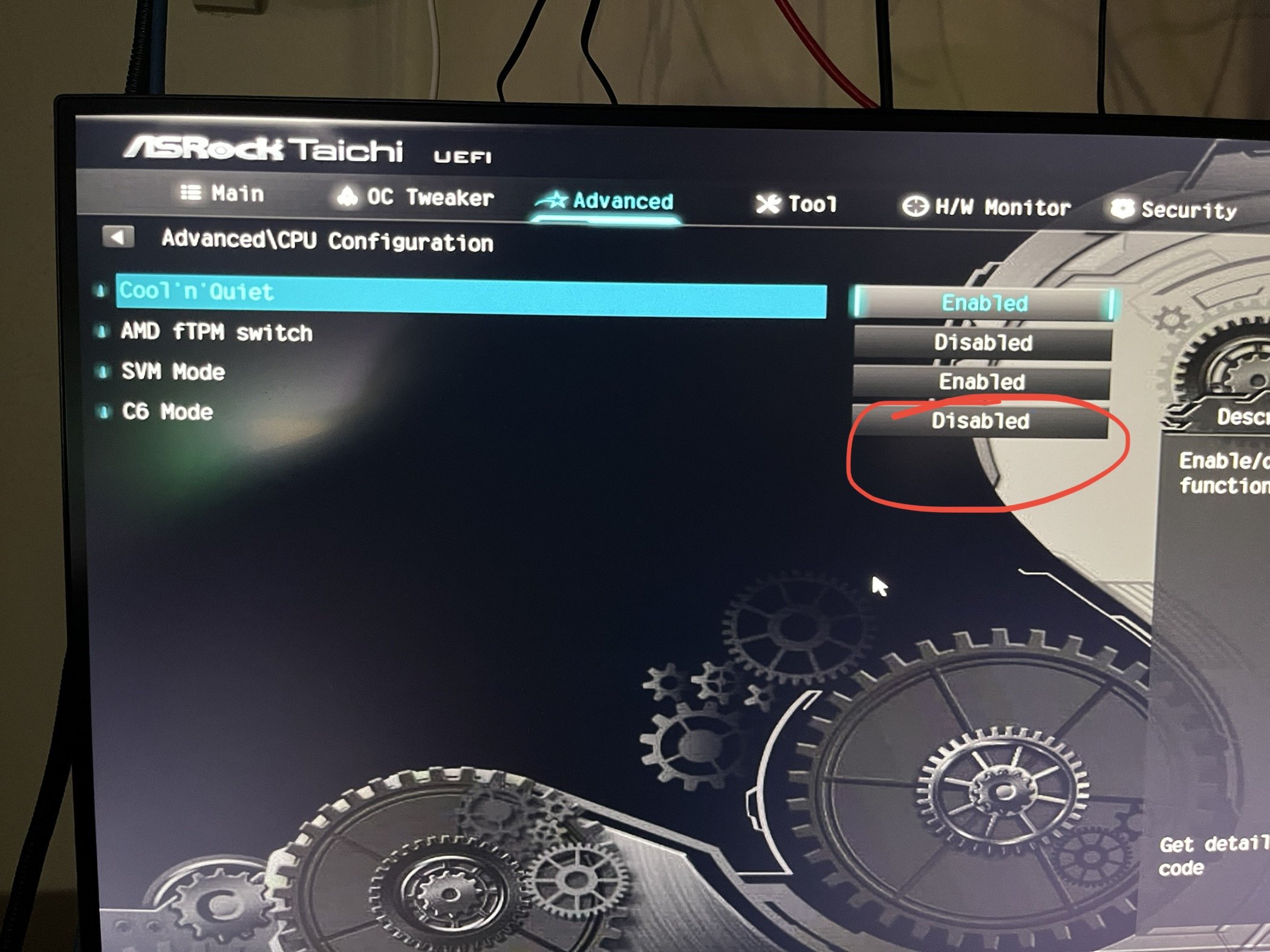

Once in there, I changed C6 mode from "enabled" to "disabled."





Also, btrfs scrub detected some irreparable errors in the syslog:

22-06-25 17:42:53    Kernel.Info    172.16.100.100    Jun 25 17:42:53 Truesource kernel: BTRFS info (device nvme0n1p1): device stats zeroed by btrfs (25391)
2022-06-25 17:42:53    Kernel.Info    172.16.100.100    Jun 25 17:42:53 Truesource kernel: BTRFS info (device nvme0n1p1): device stats zeroed by btrfs (25391)
2022-06-25 17:42:56    Kernel.Info    172.16.100.100    Jun 25 17:42:56 Truesource kernel: BTRFS info (device nvme0n1p1): device stats zeroed by btrfs (25402)
2022-06-25 17:42:56    Kernel.Info    172.16.100.100    Jun 25 17:42:56 Truesource kernel: BTRFS info (device nvme0n1p1): device stats zeroed by btrfs (25402)
2022-06-25 17:43:10    Kernel.Info    172.16.100.100    Jun 25 17:43:09 Truesource kernel: BTRFS info (device nvme0n1p1): scrub: started on devid 1
2022-06-25 17:43:10    Kernel.Info    172.16.100.100    Jun 25 17:43:09 Truesource kernel: BTRFS info (device nvme0n1p1): scrub: started on devid 2
2022-06-25 17:44:00    Kernel.Warning    172.16.100.100    Jun 25 17:44:00 Truesource kernel: BTRFS warning (device nvme0n1p1): checksum error at logical 932456402944 on dev /dev/nvme0n1p1, physical 222713057280, root 5, inode 6909694, offset 2324074496, length 4096, links 1 (path: PRIVATE)
2022-06-25 17:44:00    Kernel.Error    172.16.100.100    Jun 25 17:44:00 Truesource kernel: BTRFS error (device nvme0n1p1): bdev /dev/nvme0n1p1 errs: wr 0, rd 0, flush 0, corrupt 1, gen 0
2022-06-25 17:44:00    Kernel.Error    172.16.100.100    Jun 25 17:44:00 Truesource kernel: BTRFS error (device nvme0n1p1): unable to fixup (regular) error at logical 932456402944 on dev /dev/nvme0n1p1
2022-06-25 17:44:40    Kernel.Warning    172.16.100.100    Jun 25 17:44:40 Truesource kernel: BTRFS warning (device nvme0n1p1): checksum error at logical 1262362894336 on dev /dev/nvme0n1p1, physical 574094385152, root 5, inode 13617139, offset 347021312, length 4096, links 1 (path: PRIVATE)
2022-06-25 17:44:40    Kernel.Error    172.16.100.100    Jun 25 17:44:40 Truesource kernel: BTRFS error (device nvme0n1p1): bdev /dev/nvme0n1p1 errs: wr 0, rd 0, flush 0, corrupt 2, gen 0
2022-06-25 17:44:40    Kernel.Error    172.16.100.100    Jun 25 17:44:40 Truesource kernel: BTRFS error (device nvme0n1p1): unable to fixup (regular) error at logical 1262362894336 on dev /dev/nvme0n1p1
2022-06-25 17:44:41    Kernel.Warning    172.16.100.100    Jun 25 17:44:40 Truesource kernel: BTRFS warning (device nvme0n1p1): checksum error at logical 1280042659840 on dev /dev/nvme0n1p1, physical 591774150656, root 5, inode 14185170, offset 340320256, length 4096, links 1 (path: PRIVATE)
2022-06-25 17:44:41    Kernel.Error    172.16.100.100    Jun 25 17:44:40 Truesource kernel: BTRFS error (device nvme0n1p1): bdev /dev/nvme0n1p1 errs: wr 0, rd 0, flush 0, corrupt 3, gen 0
2022-06-25 17:44:41    Kernel.Error    172.16.100.100    Jun 25 17:44:40 Truesource kernel: BTRFS error (device nvme0n1p1): unable to fixup (regular) error at logical 1280042659840 on dev /dev/nvme0n1p1
2022-06-25 17:44:41    Kernel.Info    172.16.100.100    Jun 25 17:44:40 Truesource kernel: BTRFS info (device nvme0n1p1): scrub: finished on devid 1 with status: 0
2022-06-25 17:46:02    Kernel.Warning    172.16.100.100    Jun 25 17:46:02 Truesource kernel: BTRFS warning (device nvme0n1p1): checksum error at logical 932456402944 on dev /dev/nvme1n1p1, physical 222692085760, root 5, inode 6909694, offset 2324074496, length 4096, links 1 (path: PRIVATE)
2022-06-25 17:46:02    Kernel.Error    172.16.100.100    Jun 25 17:46:02 Truesource kernel: BTRFS error (device nvme0n1p1): bdev /dev/nvme1n1p1 errs: wr 0, rd 0, flush 0, corrupt 1, gen 0
2022-06-25 17:46:02    Kernel.Error    172.16.100.100    Jun 25 17:46:02 Truesource kernel: BTRFS error (device nvme0n1p1): unable to fixup (regular) error at logical 932456402944 on dev /dev/nvme1n1p1
2022-06-25 17:48:19    Kernel.Warning    172.16.100.100    Jun 25 17:48:19 Truesource kernel: BTRFS warning (device nvme0n1p1): checksum error at logical 1262362894336 on dev /dev/nvme1n1p1, physical 574073413632, root 5, inode 13617139, offset 347021312, length 4096, links 1 (path: PRIVATE)
2022-06-25 17:48:19    Kernel.Error    172.16.100.100    Jun 25 17:48:19 Truesource kernel: BTRFS error (device nvme0n1p1): bdev /dev/nvme1n1p1 errs: wr 0, rd 0, flush 0, corrupt 2, gen 0
2022-06-25 17:48:19    Kernel.Error    172.16.100.100    Jun 25 17:48:19 Truesource kernel: BTRFS error (device nvme0n1p1): unable to fixup (regular) error at logical 1262362894336 on dev /dev/nvme1n1p1
2022-06-25 17:48:22    Kernel.Warning    172.16.100.100    Jun 25 17:48:21 Truesource kernel: BTRFS warning (device nvme0n1p1): checksum error at logical 1280042659840 on dev /dev/nvme1n1p1, physical 591753179136, root 5, inode 14185170, offset 340320256, length 4096, links 1 (path: PRIVATE)
2022-06-25 17:48:22    Kernel.Error    172.16.100.100    Jun 25 17:48:21 Truesource kernel: BTRFS error (device nvme0n1p1): bdev /dev/nvme1n1p1 errs: wr 0, rd 0, flush 0, corrupt 3, gen 0
2022-06-25 17:48:22    Kernel.Error    172.16.100.100    Jun 25 17:48:21 Truesource kernel: BTRFS error (device nvme0n1p1): unable to fixup (regular) error at logical 1280042659840 on dev /dev/nvme1n1p1
2022-06-25 17:48:22    Kernel.Info    172.16.100.100    Jun 25 17:48:22 Truesource kernel: BTRFS info (device nvme0n1p1): scrub: finished on devid 2 with status: 0



Oh, lemme set memtest running, will let you know if anything pops up.

9 hours ago, DBJordan said:

Also, btrfs scrub detected some irreparable errors in the syslog:

Delete/replace affected files, then reset the stats and keep monitoring for more errors.

Ooo, sneaky. I'll give that a shot and see what happens. Thanks!



Update: no errors found during scrub. Will keep capturing syslogs and see what happens next. Thanks!

Edited June 26, 20224 yr by DBJordan

Hi,



I also have this issue after upgrading to 6.10.3. Typically:

• Server becomes unreachable on the network
• Physically, server is on but unresponsive - even via direct keyboard / mouse interaction
• I had to give it a hard reset a couple of times but it won't last 8 hours before freezing again, even the parity checks don't get a chance to complete

I have reverted to the previous version as my backups are stored on the Unraid environment and I couldn't afford to be without. After roll back, the server has been stable for just over 24 hours. I'll have a look at the BIOS settings as recommended above and change accordingly if needed.



12 hours ago, nadmax said:

I also have this issue after upgrading to 6.10.3. Typically:

You should start your own thread, and post the diagnostics and the log from the syslog server after a crash.

Still get some intermittent reboots a few times a week. Had a crash and reboot just before 0500. Auto-starting the array after unexpected shutdown is disabled, so the logs say nothing after reboot until I logged in to the webpage at 1123.



Have noticed the automated mover exits with a 1. When I run it manually, it completes with return code of 0. Any thoughts on whether this is an indicator as to why the system is subsequently rebooting?



Logs attached.



SyslogCatchAll-2022-07-17.txt

Hmm I'm going to try to replace the motherboard and cpu. They're getting long in the tooth, anyway. Will let you know how it goes!

There's nothing relevant in the log posted, that usually indicates a hardware problem.

No problems so far. Thanks for the help trying to get the old hardware working. Can you mark this one solved or whatever it is you do? I'll make a new topic if anything new pops up.
