External usb hdd on usb hub

Sildenafil
in General Support

Featured Replies

I have 10 external usb hdds connected via a powered usb hub and each of these hdd is powered by a smart plug so I can turn off or on the hdd I need.
I use them little, but I have a problem and a question.
The question is: how do I safely disconnect a usb hdd from unraid? just unmount from Unassigned Devices and turn off the disk?
The problem is: if I unmount a usb hdd and turn it off from the smart plug, when I turn it on again the system does not recognize it until I disconnect the usb socket of the hub and reconnect it to mobo.
Consider that I have used the same hardware on xpenology and have never had any problems with this procedure.
Thank you

  • Quote
    • Community Expert
    2 minutes ago, Sildenafil said:

    I have 10 external usb hdds connected via a powered usb hub and each of these hdd is powered by a smart plug so I can turn off or on the hdd I need.
    I use them little, but I have a problem and a question.
    The question is: how do I safely disconnect a usb hdd from unraid? just unmount from Unassigned Devices and turn off the disk?
    The problem is: if I unmount a usb hdd and turn it off from the smart plug, when I turn it on again the system does not recognize it until I disconnect the usb socket of the hub and reconnect it to mobo.
    Consider that I have used the same hardware on xpenology and have never had any problems with this procedure.
    Thank you

    Are you able to post your syslog when you power off the drive? Does the OS detect it being removed? or does it think it is still there as the USB controller in the disk is powered from the hub and its just the spinner that needs the additional power?

  • Quote
    • Author

    This is what I did:

    - physically disconnected and reconnect the usb socket of the hub

    - turn on via smart plug an hdd that has been correctly detected

    - mounted and subsequently unmounted the hdd

    - turn off the hdd from the smart plug

    - turn on again from the smart plug, the HDD was not recognized

    here is the log:

    Jul 17 00:33:02 giannas kernel: usb 1-3: USB disconnect, device number 2
Jul 17 00:33:02 giannas kernel: usb 1-3.4: USB disconnect, device number 4
Jul 17 00:33:02 giannas kernel: usb 1-3.4.4: USB disconnect, device number 5
Jul 17 00:33:05 giannas kernel: usb 1-3: new high-speed USB device number 6 using xhci_hcd
Jul 17 00:33:06 giannas kernel: hub 1-3:1.0: USB hub found
Jul 17 00:33:06 giannas kernel: hub 1-3:1.0: 4 ports detected
Jul 17 00:33:06 giannas kernel: usb 2-3: USB disconnect, device number 6
Jul 17 00:33:06 giannas kernel: usb 2-3.4: USB disconnect, device number 7
Jul 17 00:33:06 giannas kernel: usb 2-3.4.4: USB disconnect, device number 8
Jul 17 00:33:06 giannas kernel: usb 2-3: new SuperSpeed USB device number 9 using xhci_hcd
Jul 17 00:33:06 giannas kernel: hub 2-3:1.0: USB hub found
Jul 17 00:33:06 giannas kernel: hub 2-3:1.0: 4 ports detected
Jul 17 00:33:06 giannas kernel: usb 1-3.4: new high-speed USB device number 7 using xhci_hcd
Jul 17 00:33:06 giannas kernel: hub 1-3.4:1.0: USB hub found
Jul 17 00:33:06 giannas kernel: hub 1-3.4:1.0: 4 ports detected
Jul 17 00:33:06 giannas kernel: usb 2-3.4: new SuperSpeed USB device number 10 using xhci_hcd
Jul 17 00:33:07 giannas kernel: hub 2-3.4:1.0: USB hub found
Jul 17 00:33:07 giannas kernel: hub 2-3.4:1.0: 4 ports detected
Jul 17 00:33:07 giannas kernel: usb 1-3.4.4: new high-speed USB device number 8 using xhci_hcd
Jul 17 00:33:07 giannas kernel: hub 1-3.4.4:1.0: USB hub found
Jul 17 00:33:07 giannas kernel: hub 1-3.4.4:1.0: 4 ports detected
Jul 17 00:33:07 giannas kernel: usb 2-3.4.4: new SuperSpeed USB device number 11 using xhci_hcd
Jul 17 00:33:07 giannas kernel: hub 2-3.4.4:1.0: USB hub found
Jul 17 00:33:07 giannas kernel: hub 2-3.4.4:1.0: 4 ports detected
Jul 17 00:33:24 giannas kernel: usb 2-3.4.4.4: new SuperSpeed USB device number 12 using xhci_hcd
Jul 17 00:33:24 giannas kernel: usb-storage 2-3.4.4.4:1.0: USB Mass Storage device detected
Jul 17 00:33:24 giannas kernel: usb-storage 2-3.4.4.4:1.0: Quirks match for vid 152d pid 0578: 1000000
Jul 17 00:33:24 giannas kernel: scsi host37: usb-storage 2-3.4.4.4:1.0
Jul 17 00:33:25 giannas kernel: scsi 37:0:0:0: Direct-Access     External USB3.0           0104 PQ: 0 ANSI: 6
Jul 17 00:33:25 giannas kernel: scsi 37:0:0:0: Attached scsi generic sg11 type 0
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] 976773168 512-byte logical blocks: (500 GB/466 GiB)
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] Write Protect is off
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] Mode Sense: 47 00 00 08
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] Disabling FUA
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
Jul 17 00:33:25 giannas kernel: sdl: sdl1 sdl2
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] Attached SCSI disk
Jul 17 00:33:27 giannas unassigned.devices: Partition 'sdl1' does not have a file system and cannot be mounted.
Jul 17 00:33:27 giannas unassigned.devices: Adding partition 'sdl2'...
Jul 17 00:33:27 giannas unassigned.devices: Mounting partition 'sdl2' at mountpoint '/mnt/disks/HDD_2'...
Jul 17 00:33:27 giannas unassigned.devices: Mount drive command: /sbin/mount -t 'ntfs' -o rw,noatime,nodiratime,nodev,nosuid,nls=utf8,umask=000 '/dev/sdl2' '/mnt/disks/HDD_2'
Jul 17 00:33:27 giannas ntfs-3g[25763]: Version 2021.8.22 integrated FUSE 27
Jul 17 00:33:27 giannas ntfs-3g[25763]: Mounted /dev/sdl2 (Read-Write, label "HDD 2", NTFS 3.1)
Jul 17 00:33:27 giannas ntfs-3g[25763]: Cmdline options: rw,noatime,nodiratime,nodev,nosuid,nls=utf8,umask=000
Jul 17 00:33:27 giannas ntfs-3g[25763]: Mount options: nodiratime,nodev,nosuid,nls=utf8,allow_other,nonempty,noatime,rw,default_permissions,fsname=/dev/sdl2,blkdev,blksize=4096
Jul 17 00:33:27 giannas ntfs-3g[25763]: Global ownership and permissions enforced, configuration type 1
Jul 17 00:33:27 giannas unassigned.devices: Successfully mounted 'sdl2' on '/mnt/disks/HDD_2'.
Jul 17 00:33:27 giannas unassigned.devices: Adding SMB share 'HDD_2'.
Jul 17 00:33:27 giannas emhttpd: External_USB3.0_00000077893E-0:0 (sdl) 512 976773168
Jul 17 00:33:27 giannas emhttpd: read SMART /dev/sdl
Jul 17 00:33:28 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:33:32 giannas unassigned.devices: Adding partition 'sdh1'...
Jul 17 00:33:32 giannas unassigned.devices: Mounting partition 'sdh1' at mountpoint '/mnt/disks/ZA1FJFBR'...
Jul 17 00:33:32 giannas unassigned.devices: Mount drive command: /sbin/mount -t 'xfs' -o rw,noatime,nodiratime '/dev/sdh1' '/mnt/disks/ZA1FJFBR'
Jul 17 00:33:32 giannas kernel: XFS (sdh1): Mounting V5 Filesystem
Jul 17 00:33:32 giannas kernel: XFS (sdh1): Ending clean mount
Jul 17 00:33:32 giannas kernel: xfs filesystem being mounted at /mnt/disks/ZA1FJFBR supports timestamps until 2038 (0x7fffffff)
Jul 17 00:33:32 giannas unassigned.devices: Successfully mounted 'sdh1' on '/mnt/disks/ZA1FJFBR'.
Jul 17 00:33:47 giannas unassigned.devices: Unmounting partition 'sdh1' at mountpoint '/mnt/disks/ZA1FJFBR'...
Jul 17 00:33:47 giannas unassigned.devices: Synching file system on '/mnt/disks/ZA1FJFBR'.
Jul 17 00:33:47 giannas unassigned.devices: Unmount cmd: /sbin/umount '/dev/sdh1' 2>&1
Jul 17 00:33:47 giannas kernel: XFS (sdh1): Unmounting Filesystem
Jul 17 00:33:47 giannas unassigned.devices: Successfully unmounted 'sdh1'
Jul 17 00:33:55 giannas kernel: usb 2-3.4.4.4: Disable of device-initiated U1 failed.
Jul 17 00:33:55 giannas kernel: usb 2-3.4.4.4: Disable of device-initiated U2 failed.
Jul 17 00:33:55 giannas kernel: usb 2-3.4.4.4: USB disconnect, device number 12
Jul 17 00:33:55 giannas kernel: sd 37:0:0:0: [sdl] Synchronizing SCSI cache
Jul 17 00:33:55 giannas kernel: sd 37:0:0:0: [sdl] Synchronize Cache(10) failed: Result: hostbyte=0x01 driverbyte=DRIVER_OK
Jul 17 00:34:09 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:10 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:12 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:15 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:17 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:18 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:23 giannas unassigned.devices: Refreshed Disks and Configuration.



  • Quote
    • Community Expert
    1 hour ago, Sildenafil said:

    This is what I did:

    - physically disconnected and reconnect the usb socket of the hub

    - turn on via smart plug an hdd that has been correctly detected

    - mounted and subsequently unmounted the hdd

    - turn off the hdd from the smart plug

    - turn on again from the smart plug, the HDD was not recognized

    here is the log:

    Jul 17 00:33:02 giannas kernel: usb 1-3: USB disconnect, device number 2
Jul 17 00:33:02 giannas kernel: usb 1-3.4: USB disconnect, device number 4
Jul 17 00:33:02 giannas kernel: usb 1-3.4.4: USB disconnect, device number 5
Jul 17 00:33:05 giannas kernel: usb 1-3: new high-speed USB device number 6 using xhci_hcd
Jul 17 00:33:06 giannas kernel: hub 1-3:1.0: USB hub found
Jul 17 00:33:06 giannas kernel: hub 1-3:1.0: 4 ports detected
Jul 17 00:33:06 giannas kernel: usb 2-3: USB disconnect, device number 6
Jul 17 00:33:06 giannas kernel: usb 2-3.4: USB disconnect, device number 7
Jul 17 00:33:06 giannas kernel: usb 2-3.4.4: USB disconnect, device number 8
Jul 17 00:33:06 giannas kernel: usb 2-3: new SuperSpeed USB device number 9 using xhci_hcd
Jul 17 00:33:06 giannas kernel: hub 2-3:1.0: USB hub found
Jul 17 00:33:06 giannas kernel: hub 2-3:1.0: 4 ports detected
Jul 17 00:33:06 giannas kernel: usb 1-3.4: new high-speed USB device number 7 using xhci_hcd
Jul 17 00:33:06 giannas kernel: hub 1-3.4:1.0: USB hub found
Jul 17 00:33:06 giannas kernel: hub 1-3.4:1.0: 4 ports detected
Jul 17 00:33:06 giannas kernel: usb 2-3.4: new SuperSpeed USB device number 10 using xhci_hcd
Jul 17 00:33:07 giannas kernel: hub 2-3.4:1.0: USB hub found
Jul 17 00:33:07 giannas kernel: hub 2-3.4:1.0: 4 ports detected
Jul 17 00:33:07 giannas kernel: usb 1-3.4.4: new high-speed USB device number 8 using xhci_hcd
Jul 17 00:33:07 giannas kernel: hub 1-3.4.4:1.0: USB hub found
Jul 17 00:33:07 giannas kernel: hub 1-3.4.4:1.0: 4 ports detected
Jul 17 00:33:07 giannas kernel: usb 2-3.4.4: new SuperSpeed USB device number 11 using xhci_hcd
Jul 17 00:33:07 giannas kernel: hub 2-3.4.4:1.0: USB hub found
Jul 17 00:33:07 giannas kernel: hub 2-3.4.4:1.0: 4 ports detected
Jul 17 00:33:24 giannas kernel: usb 2-3.4.4.4: new SuperSpeed USB device number 12 using xhci_hcd
Jul 17 00:33:24 giannas kernel: usb-storage 2-3.4.4.4:1.0: USB Mass Storage device detected
Jul 17 00:33:24 giannas kernel: usb-storage 2-3.4.4.4:1.0: Quirks match for vid 152d pid 0578: 1000000
Jul 17 00:33:24 giannas kernel: scsi host37: usb-storage 2-3.4.4.4:1.0
Jul 17 00:33:25 giannas kernel: scsi 37:0:0:0: Direct-Access     External USB3.0           0104 PQ: 0 ANSI: 6
Jul 17 00:33:25 giannas kernel: scsi 37:0:0:0: Attached scsi generic sg11 type 0
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] 976773168 512-byte logical blocks: (500 GB/466 GiB)
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] Write Protect is off
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] Mode Sense: 47 00 00 08
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] Disabling FUA
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
Jul 17 00:33:25 giannas kernel: sdl: sdl1 sdl2
Jul 17 00:33:25 giannas kernel: sd 37:0:0:0: [sdl] Attached SCSI disk
Jul 17 00:33:27 giannas unassigned.devices: Partition 'sdl1' does not have a file system and cannot be mounted.
Jul 17 00:33:27 giannas unassigned.devices: Adding partition 'sdl2'...
Jul 17 00:33:27 giannas unassigned.devices: Mounting partition 'sdl2' at mountpoint '/mnt/disks/HDD_2'...
Jul 17 00:33:27 giannas unassigned.devices: Mount drive command: /sbin/mount -t 'ntfs' -o rw,noatime,nodiratime,nodev,nosuid,nls=utf8,umask=000 '/dev/sdl2' '/mnt/disks/HDD_2'
Jul 17 00:33:27 giannas ntfs-3g[25763]: Version 2021.8.22 integrated FUSE 27
Jul 17 00:33:27 giannas ntfs-3g[25763]: Mounted /dev/sdl2 (Read-Write, label "HDD 2", NTFS 3.1)
Jul 17 00:33:27 giannas ntfs-3g[25763]: Cmdline options: rw,noatime,nodiratime,nodev,nosuid,nls=utf8,umask=000
Jul 17 00:33:27 giannas ntfs-3g[25763]: Mount options: nodiratime,nodev,nosuid,nls=utf8,allow_other,nonempty,noatime,rw,default_permissions,fsname=/dev/sdl2,blkdev,blksize=4096
Jul 17 00:33:27 giannas ntfs-3g[25763]: Global ownership and permissions enforced, configuration type 1
Jul 17 00:33:27 giannas unassigned.devices: Successfully mounted 'sdl2' on '/mnt/disks/HDD_2'.
Jul 17 00:33:27 giannas unassigned.devices: Adding SMB share 'HDD_2'.
Jul 17 00:33:27 giannas emhttpd: External_USB3.0_00000077893E-0:0 (sdl) 512 976773168
Jul 17 00:33:27 giannas emhttpd: read SMART /dev/sdl
Jul 17 00:33:28 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:33:32 giannas unassigned.devices: Adding partition 'sdh1'...
Jul 17 00:33:32 giannas unassigned.devices: Mounting partition 'sdh1' at mountpoint '/mnt/disks/ZA1FJFBR'...
Jul 17 00:33:32 giannas unassigned.devices: Mount drive command: /sbin/mount -t 'xfs' -o rw,noatime,nodiratime '/dev/sdh1' '/mnt/disks/ZA1FJFBR'
Jul 17 00:33:32 giannas kernel: XFS (sdh1): Mounting V5 Filesystem
Jul 17 00:33:32 giannas kernel: XFS (sdh1): Ending clean mount
Jul 17 00:33:32 giannas kernel: xfs filesystem being mounted at /mnt/disks/ZA1FJFBR supports timestamps until 2038 (0x7fffffff)
Jul 17 00:33:32 giannas unassigned.devices: Successfully mounted 'sdh1' on '/mnt/disks/ZA1FJFBR'.
Jul 17 00:33:47 giannas unassigned.devices: Unmounting partition 'sdh1' at mountpoint '/mnt/disks/ZA1FJFBR'...
Jul 17 00:33:47 giannas unassigned.devices: Synching file system on '/mnt/disks/ZA1FJFBR'.
Jul 17 00:33:47 giannas unassigned.devices: Unmount cmd: /sbin/umount '/dev/sdh1' 2>&1
Jul 17 00:33:47 giannas kernel: XFS (sdh1): Unmounting Filesystem
Jul 17 00:33:47 giannas unassigned.devices: Successfully unmounted 'sdh1'
Jul 17 00:33:55 giannas kernel: usb 2-3.4.4.4: Disable of device-initiated U1 failed.
Jul 17 00:33:55 giannas kernel: usb 2-3.4.4.4: Disable of device-initiated U2 failed.
Jul 17 00:33:55 giannas kernel: usb 2-3.4.4.4: USB disconnect, device number 12
Jul 17 00:33:55 giannas kernel: sd 37:0:0:0: [sdl] Synchronizing SCSI cache
Jul 17 00:33:55 giannas kernel: sd 37:0:0:0: [sdl] Synchronize Cache(10) failed: Result: hostbyte=0x01 driverbyte=DRIVER_OK
Jul 17 00:34:09 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:10 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:12 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:15 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:17 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:18 giannas unassigned.devices: Refreshed Disks and Configuration.
Jul 17 00:34:23 giannas unassigned.devices: Refreshed Disks and Configuration.



    Can you confirm that the device disappears in lsusb?



    at what time stamp did you power the drive back on?

  • Quote
    • Author

    Jul 17 00:34:09 here, when i try multiple time to refresh unassigned device

  • Quote
    • Community Expert
    21 minutes ago, Sildenafil said:

    Jul 17 00:34:09 here, when i try multiple time to refresh unassigned device

    The issue seems to be that the USB connection is not being seen by the host, does it work if you connect to a direct port? Also which vers of unraid are you running?



    Not sure why the host is not seeing the port come back.

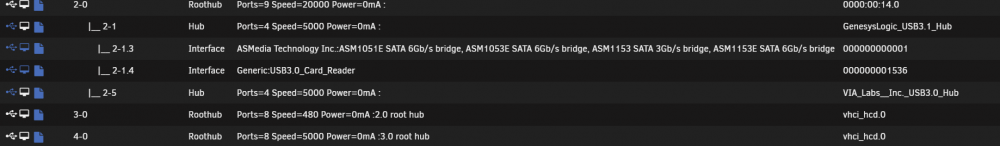

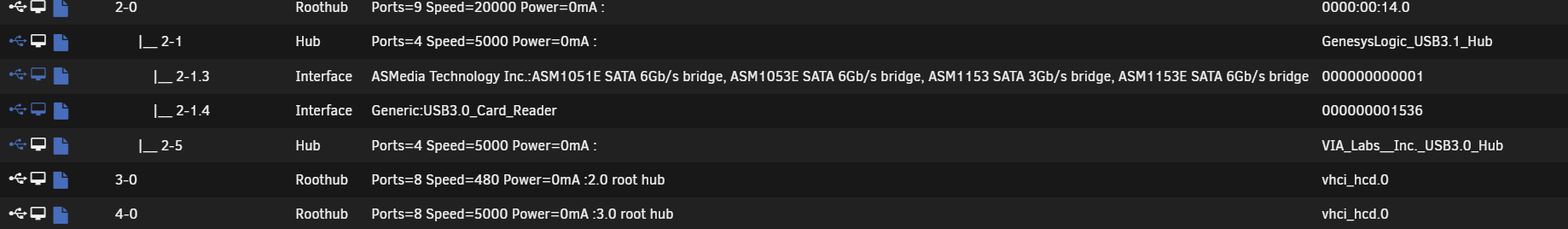

    This is my system with device connected via hub, not powered as I dont have one and removing the external power and adding back in. ASMedia is my USB to SATA port.






    Jul 17 10:25:59 computenode zed[6877]: zed_udev_monitor: skip /dev/sdc since it has a dos partition already
Jul 17 10:25:59 computenode usb_manager: Info: rc.usb_manager usb_remove  ASMT_ASM1153E_000000000001 /dev/bus/usb/002/011 002 011
Jul 17 10:25:59 computenode usb_manager: Info: rc.usb_manager Device Match 002/011 vm:   002 011
Jul 17 10:25:59 computenode usb_manager: Info: rc.usb_manager Removed 002/011 vm:  nostate 002 011
Jul 17 10:26:11 computenode kernel: usb 2-1.3: new SuperSpeed USB device number 12 using xhci_hcd
Jul 17 10:26:11 computenode kernel: usb-storage 2-1.3:1.0: USB Mass Storage device detected
Jul 17 10:26:11 computenode kernel: usb-storage 2-1.3:1.0: Quirks match for vid 174c pid 55aa: 400000
Jul 17 10:26:11 computenode kernel: scsi host1: usb-storage 2-1.3:1.0
Jul 17 10:26:11 computenode usb_manager: Info: rc.usb_manager usb_add ASMT_ASM1153E_000000000001 /dev/bus/usb/002/012 002 012
Jul 17 10:26:11 computenode usb_manager: Info: rc.usb_manager Autoconnect Parent 2-1
Jul 17 10:26:11 computenode usb_manager: Info: rc.usb_manager Autoconnect No Mapping found ASMT_ASM1153E_000000000001 /dev/bus/usb/002/012 002 012 port 2-1.3
Jul 17 10:26:12 computenode kernel: scsi 1:0:0:0: Direct-Access     ASMT     2115             0    PQ: 0 ANSI: 6
Jul 17 10:26:12 computenode kernel: sd 1:0:0:0: Attached scsi generic sg2 type 0
Jul 17 10:26:12 computenode kernel: sd 1:0:0:0: [sdc] Spinning up disk...
Jul 17 10:26:17 computenode kernel: .....ready
Jul 17 10:26:17 computenode kernel: sd 1:0:0:0: [sdc] 625142448 512-byte logical blocks: (320 GB/298 GiB)
Jul 17 10:26:17 computenode kernel: sd 1:0:0:0: [sdc] Write Protect is off
Jul 17 10:26:17 computenode kernel: sd 1:0:0:0: [sdc] Mode Sense: 43 00 00 00
Jul 17 10:26:17 computenode kernel: sd 1:0:0:0: [sdc] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
Jul 17 10:26:17 computenode kernel: sdc: sdc1
Jul 17 10:26:19 computenode emhttpd: spinning down /dev/sda
Jul 17 10:26:22 computenode kernel: sd 1:0:0:0: [sdc] Attached SCSI disk
Jul 17 10:26:23 computenode zed[6877]: zed_udev_monitor: skip /dev/sdc since it has a dos partition already
Jul 17 10:26:23 computenode unassigned.devices: Disk with ID 'ST3320310CS_9TX0L0HF (sdc)' is not set to auto mount.
Jul 17 10:26:23 computenode zed[6877]: zed_udev_monitor: skip /dev/sdc1 (in use by btrfs)
Jul 17 10:26:36 computenode emhttpd: spinning down /dev/sde
Jul 17 10:26:54 computenode emhttpd: spinning down /dev/sdg
Jul 17 10:26:56 computenode kernel: usb 2-1.3: USB disconnect, device number 12
Jul 17 10:26:56 computenode zed[6877]: zed_udev_monitor: skip /dev/sdc1 (in use by btrfs)
Jul 17 10:26:56 computenode kernel: sd 1:0:0:0: [sdc] Synchronizing SCSI cache
Jul 17 10:26:56 computenode kernel: sd 1:0:0:0: [sdc] Synchronize Cache(10) failed: Result: hostbyte=0x01 driverbyte=DRIVER_OK
Jul 17 10:26:57 computenode zed[6877]: zed_udev_monitor: skip /dev/sdc since it has a dos partition already
Jul 17 10:26:57 computenode usb_manager: Info: rc.usb_manager usb_remove  ASMT_ASM1153E_000000000001 /dev/bus/usb/002/012 002 012
Jul 17 10:26:57 computenode usb_manager: Info: rc.usb_manager Device Match 002/012 vm:   002 012
Jul 17 10:26:57 computenode usb_manager: Info: rc.usb_manager Removed 002/012 vm:  nostate 002 012
Jul 17 10:27:11 computenode kernel: usb 2-1.3: new SuperSpeed USB device number 13 using xhci_hcd
Jul 17 10:27:11 computenode kernel: usb-storage 2-1.3:1.0: USB Mass Storage device detected
Jul 17 10:27:11 computenode kernel: usb-storage 2-1.3:1.0: Quirks match for vid 174c pid 55aa: 400000
Jul 17 10:27:11 computenode kernel: scsi host1: usb-storage 2-1.3:1.0
Jul 17 10:27:11 computenode usb_manager: Info: rc.usb_manager usb_add ASMT_ASM1153E_000000000001 /dev/bus/usb/002/013 002 013
Jul 17 10:27:11 computenode usb_manager: Info: rc.usb_manager Autoconnect Parent 2-1
Jul 17 10:27:11 computenode usb_manager: Info: rc.usb_manager Autoconnect No Mapping found ASMT_ASM1153E_000000000001 /dev/bus/usb/002/013 002 013 port 2-1.3
Jul 17 10:27:12 computenode kernel: scsi 1:0:0:0: Direct-Access     ASMT     2115             0    PQ: 0 ANSI: 6
Jul 17 10:27:12 computenode kernel: scsi 1:0:0:0: Attached scsi generic sg2 type 0
Jul 17 10:27:12 computenode kernel: sd 1:0:0:0: [sdc] Spinning up disk...
Jul 17 10:27:24 computenode kernel: ............ready
Jul 17 10:27:24 computenode kernel: sd 1:0:0:0: [sdc] 2930277168 512-byte logical blocks: (1.50 TB/1.36 TiB)
Jul 17 10:27:24 computenode kernel: sd 1:0:0:0: [sdc] 4096-byte physical blocks
Jul 17 10:27:24 computenode kernel: sd 1:0:0:0: [sdc] Write Protect is off
Jul 17 10:27:24 computenode kernel: sd 1:0:0:0: [sdc] Mode Sense: 43 00 00 00
Jul 17 10:27:24 computenode kernel: sd 1:0:0:0: [sdc] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
Jul 17 10:27:24 computenode kernel: sdc: sdc1 sdc2 sdc3 sdc4
Jul 17 10:27:24 computenode kernel: sd 1:0:0:0: [sdc] Attached SCSI disk
Jul 17 10:27:26 computenode zed[6877]: zed_udev_monitor: skip /dev/sdc since it has a dos partition already
Jul 17 10:27:26 computenode unassigned.devices: Disk with ID 'WDC_WD15EARS-60MVWB0_WD-WCAZA8204270 (sdc)' is not set to auto mount.
Jul 17 10:27:26 computenode zed[6877]: zed_udev_monitor: skip /dev/sdc3 (in use by ntfs)
Jul 17 10:27:27 computenode unassigned.devices: Disk with ID 'WDC_WD15EARS-60MVWB0_WD-WCAZA8204270 (sdc)' is not set to auto mount.
Jul 17 10:27:27 computenode zed[6877]: zed_udev_monitor: skip /dev/sdc1 (in use by ntfs)
Jul 17 10:27:27 computenode unassigned.devices: Disk with ID 'WDC_WD15EARS-60MVWB0_WD-WCAZA8204270 (sdc)' is not set to auto mount.
Jul 17 10:27:27 computenode zed[6877]: zed_udev_monitor: skip /dev/sdc4 (in use by ntfs)
Jul 17 10:27:27 computenode unassigned.devices: Disk with ID 'WDC_WD15EARS-60MVWB0_WD-WCAZA8204270 (sdc)' is not set to auto mount.
Jul 17 10:27:27 computenode zed[6877]: zed_udev_monitor: skip /dev/sdc2 (in use by ntfs)



  • Quote
    • Author

    I'm running the last version 6.10.3.

    I can't figure out what the problem could be also because i have been installing unraid for two days, but the same hardware worked perfectly with xpenology until recently.

  • Quote
    • 1 year later...

    I'm having similar issues to what you described. I have a Sabrent 5 disk USB 3.2 enclosure for my unraid and it randomly disconnects during heavy I/O.

    Did you find a solution? I tried a few including powertop (validating no usb power saving setting on usb was enabled). I don't think the "usb-storage quirks" worked for me. I think we both have the same chipset `174c:55aa ASMedia Technology Inc. ASM1051E SATA 6Gb/s bridge, ASM1053E SATA 6Gb/s bridge, ASM1153 SATA 3Gb/s bridge, ASM1153E SATA 6Gb/s bridge` https://sabrent.com/community/xenforum/topic/106596/docking-station-on-linux-random-disconnects-with-hubextportstatus-failed-err-71-errors-unraid

  • Quote
    • Author

    no, I simply created a second NAS with old hardware and installed omv.

  • Quote

    • Join the conversation

    You can post now and register later. If you have an account, sign in now to post with your account.
    Note: Your post will require moderator approval before it will be visible.

    Guest
    Reply to this topic...
    Go to topic listing

    Account

    Navigation

    Search

    Search

    Configure browser push notifications
    Chrome (Android)
    1. Tap the lock icon next to the address bar.
    2. Tap Permissions → Notifications.
    3. Adjust your preference.
    Chrome (Desktop)
    1. Click the padlock icon in the address bar.
    2. Select Site settings.
    3. Find Notifications and adjust your preference.
