Replaced Parity Drive and now all Data drives are Unmountable

[fattrain]

Maybe I screwed up this process but here is what I did....

I have 2 parity drives (10tb each) and wanted to upgrade them to 16tb drives. I figured the best process was to do this one drive at a time and let each re-build.

- I stopped the array from the GUI
- physically removed Parity drive 1 (10tb)
- physically replaced with a new 16tb drive
- selected the new 16tb drive in the gui for Parity Drive

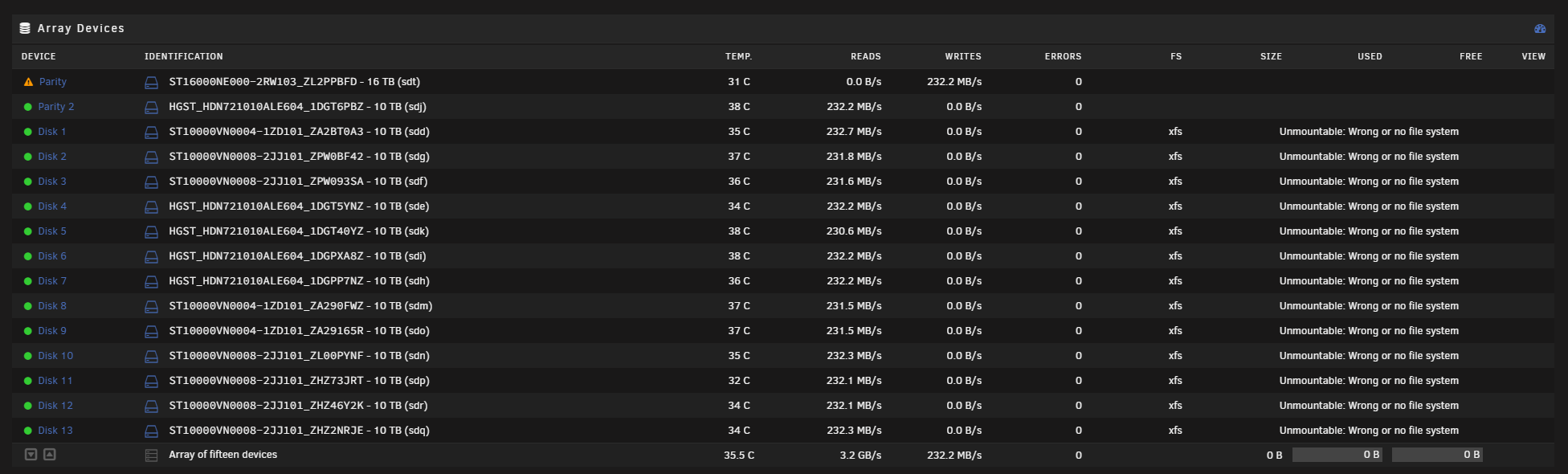

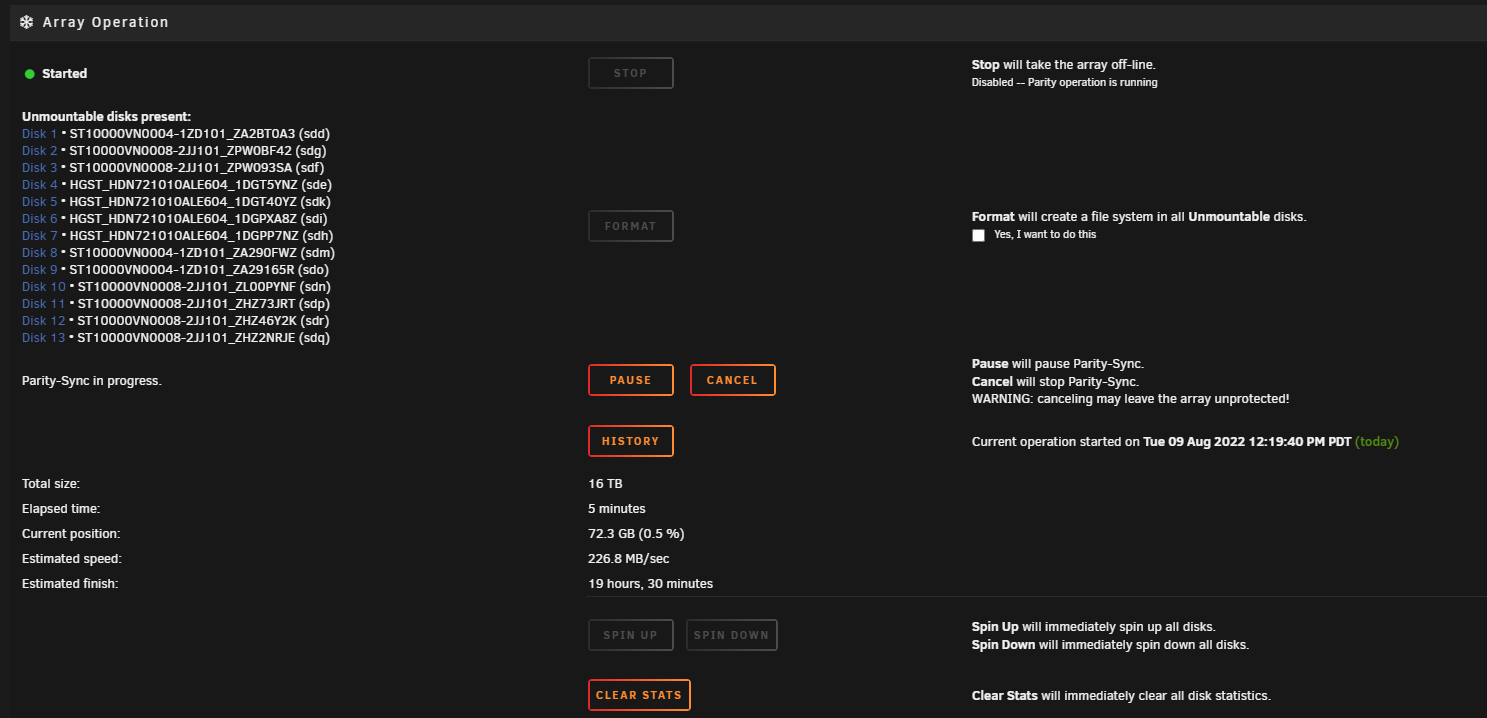

- started the array and now all my other disks give me the Unmountable: Wrong or no file system error

I'm trying to remain calm but definitely feel the nerves kicking in lol. Can anyone please point me in the right direction to not completely screw up my entire server haha. Please and thank you 🙂

Edited August 9, 2022 by fattrain

[trurl]

attach diagnostics to your NEXT post in this thread

[fattrain]

Thanks a ton in advance for your help!

Diagnostics Zip File Attached!

tower-diagnostics-20220809-1442.zip

[trurl]

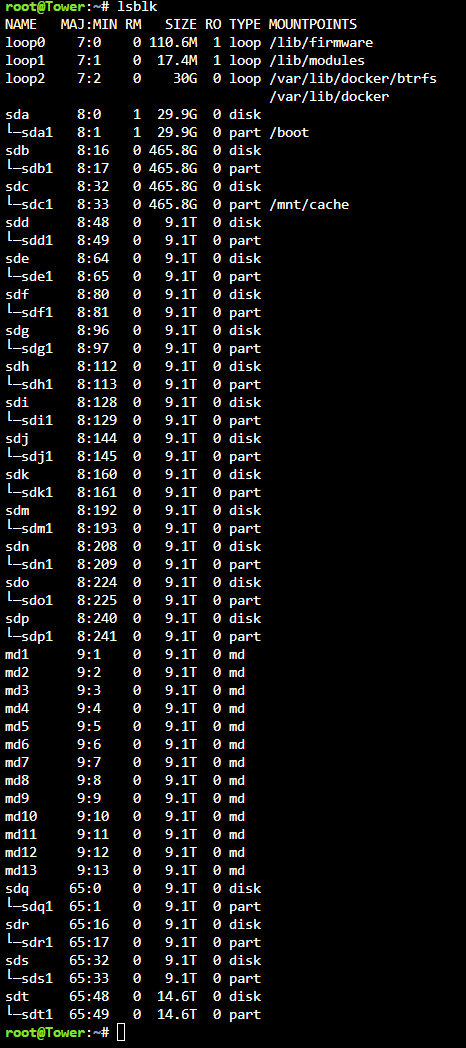

What do you get from command line with this?

lsblk



[fattrain]

[trurl]

That looks OK.



Of course, simply replacing parity will not have changed anything about the other disks so I don't know what's going on.



And your cache did mount.



There are call traces in syslog when it tries to mount each disk, maybe controller or power problem?



Shutdown and check all connections I guess, maybe reseat controllers.

[fattrain]

I mean I changed literally nothing other than removing the drive and replacing it with another drive and it's a in a pretty solid rack mount setup....

I will stop the parity rebuild and give the machine a fresh reboot and see if the problem persists



Was my procedure otherwise correct for replacing / upgrading my parity drive from a 10tb to 16tb ?

Edited August 9, 2022 by fattrain

[fattrain]

Welp, I guess you weren't kidding lol

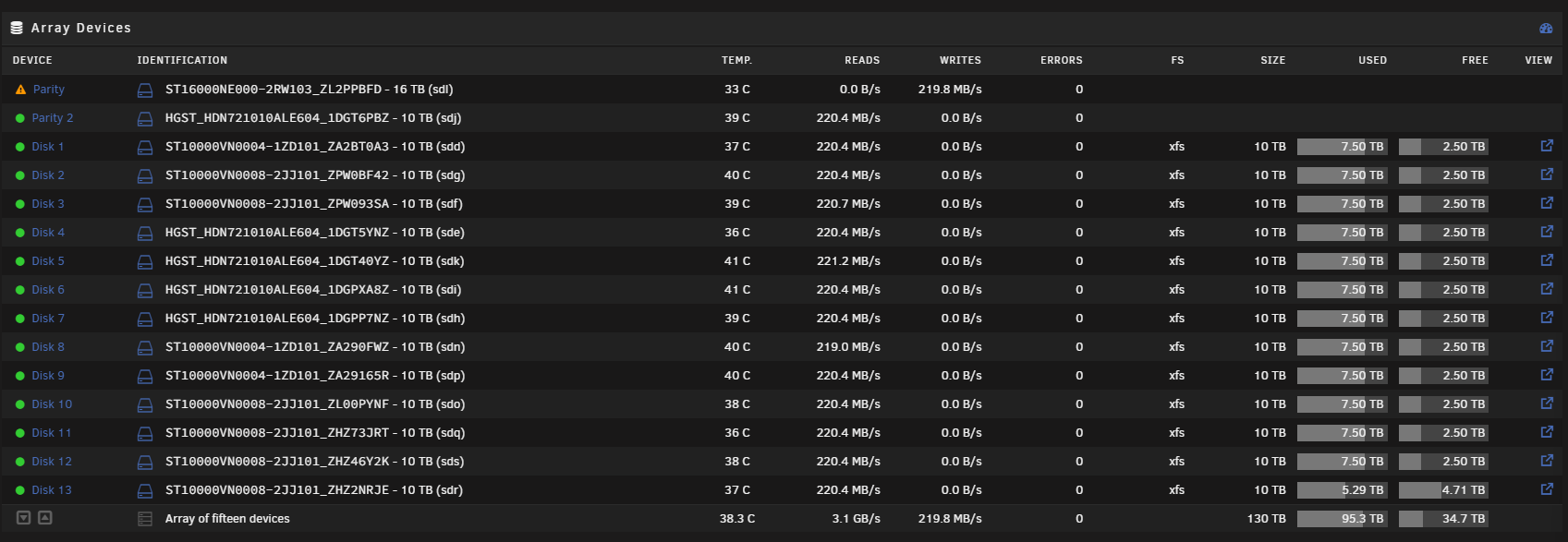

I shutdown the entire system, booted it back up a few minutes later and we're good I think





[fattrain]

Welllllll not quite solved....

All my docker containers are missing now 😞



Any idea there?

[fattrain]

Looks like I am able to go back and manually add them one by one via the Add Container -> Tempaltes Dropdown and my config settings are still there.

Scary Day but coming out unscathed I think. Thanks again.

[trurl]

2 minutes ago, fattrain said:

add them one by one

The Previous Apps feature on the Apps page is easier and lets you choose multiple

[trurl]

10 minutes ago, fattrain said:

Welllllll not quite solved....

All my docker containers are missing now 😞



Any idea there?

Makes me wonder if cache mounted this time.



Post new diagnostics

[fattrain]

Once again! Coming through with the knowledge! TY TY

[fattrain]

Just now, trurl said:

Makes me wonder if cache mounted this time.



Post new diagnostics



tower-diagnostics-20220809-1614.zip

[trurl]

Your system share has files on cache and disk1, must have created a new docker.img on either cache or disk1. Of course, you want it on cache, can't tell if it was on disk1 before since disk1 didn't mount.



New docker.img would make you have to install all your containers again but no harm in that if you reuse the templates since appdata is still there.

[fattrain]

What's the best method to make sure / migrate it all to cache?

[trurl]

Probably the files on cache are the current ones. You can examine with Dynamix File Manager which you already have installed.



Nothing can move or delete open files so if the files on disk1 are current you will have to disable Docker and VM Manager in Settings before you can move them to cache. I wouldn't bother with mover since there should only be a couple of files/folders in system share. And mover won't move duplicates anyway
