I want to install a 10gbe NIC in my unraid server to speed things up with my other PCs on my network (I have a Unify 10gb switch and 10gb Nics in my windows PCs. My unraid server has a onboard 2.5gb nic. Do I disable the onboard nic in the bios? And then how to I make sure that the new nic is set to the "old" IP address to insure I don't lose any access or functionality? Sorry if this is a dumb question, but I'd like to ask before I've dug a hole I can'tget out of

Set the new NIC as eth0 (Settings -> Network Settings -> Interface rules) then reboot, no need to disable the other one, you can leave not configured as eth1.

**edit**: I went ahead and disabled the previous nic in the bios. Not sure if that was advised, but it made it easier for me to sort out and re-assign the static IP. Now my problem is I'm only getting about 100mbs between my unraid server and my windows PC which is about the same as before.  Here are my setup:



Have a unifi 10gb switch

Have an asus 10gb nic in both my PC and Unraid

Server is in same rack as the switch, but tested cable: good

ran a new dedicated cat6a to my windows pc and cable is testing good.

Unraid is showing a 10gb connection, windows network adapter is showing 10gb connection, and unifi is showing a 10gb connection to both devices.

I'm not certain how to run iperf, I see there is a docker for it now. Should I start there?



Thanks @JorgeB.  Under "bonding members of bond0" it lists both cards after the change. Is that ok?  Also, do I want to leave enable bridging if I'm leaving both cards in there?  Sorry for the "dumb" questions, I've just never messed with the network aspects of unraid (never had a reason to)

Edited January 21, 20233 yr by crankyCowboy

Iperf comes with Unraid, iperf3 on the console, disable any bounds with non 10GbE NICs.

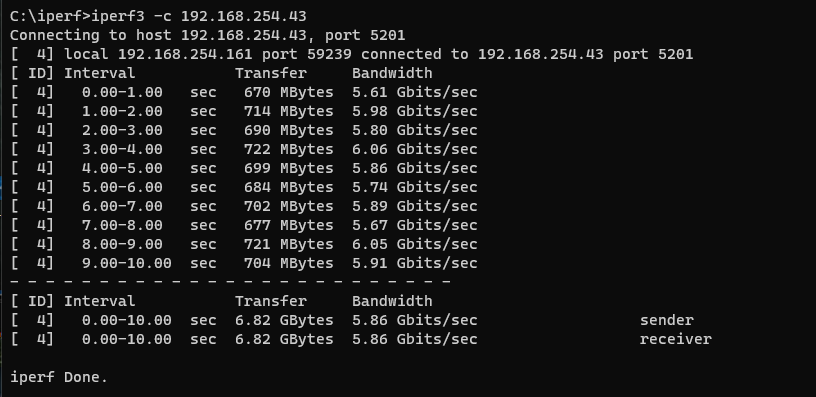

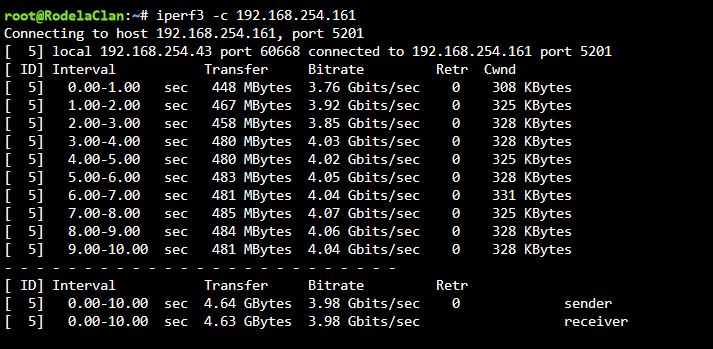

Thank you @JorgeB. I've run iperf in both directions. I'm getting about half the rated throughput; however, I put a movie file on my cache drive (nvme) and when I move it over the network to my windows pc, I cant get over 100 MB/s. Attached are the results from my iperf tests. Any suggestions as to what I can look at to try to rectify?

I really doubt you will get 10g speeds with your test. you are going to be limited in this case by either your speed of your nvme or the motherboards capability to transfer the data from the nvme.

iperf only tests lan bandwidth, you can try different cables, NICs, etc, lan settings also make a difference like mtu
