In an attempt to replace my existing cache pool disks, I seem to have lost the btrfs filesystem and data on the previous cache pool disks. I am hoping someone can assist me in recovering the btrfs filesystem and/or data on the previous pool disks.



Details:

• Previously working cache pool disk: 2 Sandisk 480GB SSDs with btrfs filesystem (device ids: sdc, sdf)
• New cache pool disks: 2 WD 2TB NVMEs (device ids: nvme0n1, nvme1n1)

Here is what I did to cause this:

1. Stopped array
2. Added Cache 3 and Cache 4 devices to the pool, 2TB NVME drives (device ids: nvme0n1, nvme1n1)
3. Started array (cache healthy and data present)
4. Waited about an hour for what I thought was a copy of data across all of the new disks
5. Stopped array
6. Removed Cache 2 device from cache pool, Sandisk SSD (device id: sdf)
7. Started array (cache healthy and data present)
8. Stopped array
9. Removed Cache 1 device from cache pool, Sandisk SSD (device id: sdc)
10. Started array (cache unhealthy and data not present)
11. Stopped array
12. Noticed that the new NVME disks were not yet formatted, formatted these new disks
13. Started array (cache healthy and data not present)
14. Stopped array
15. Removed the new NVME disks from the cache pool, leaving no cache
16. Started the array
17. Stopped the array
18. Added the old SSD disks back to the cache pool in their original device locations
19. Started the array (cache unhealthy with error Unmountable: No pool uuid)



Investigation/remediation attempts:


btrfs fi show

Label: none  uuid: 0ea24342-ffd0-439a-a136-2105a9c78903
        Total devices 1 FS bytes used 684.00KiB
        devid    1 size 1.00GiB used 126.38MiB path /dev/loop2

Label: none  uuid: e2f6c5b4-203f-4e32-ad8f-9c4c99c3f6a3
        Total devices 2 FS bytes used 768.24MiB
        devid    1 size 1.82TiB used 2.03GiB path /dev/nvme0n1p1
        devid    2 size 1.82TiB used 2.03GiB path /dev/nvme1n1p1



btrfs check -s1 /dev/sdc1

using SB copy 1, bytenr 67108864
Opening filesystem to check...
warning, device 4 is missing
bad tree block 4770155839488, bytenr mismatch, want=4770155839488, have=0
ERROR: cannot read chunk root
ERROR: cannot open file system



btrfs check -s1 /dev/sdf1

using SB copy 1, bytenr 67108864
Opening filesystem to check...
warning, device 4 is missing
bad tree block 4770155741184, bytenr mismatch, want=4770155741184, have=0
ERROR: cannot read chunk root
ERROR: cannot open file system



btrfs-select-super -s 1 /dev/sdc1

warning, device 4 is missing
ERROR: cannot read chunk root
ERROR: open ctree failed



tower-diagnostics-20230405-2052.zip

Edited April 6, 20233 yr by mountaindonky

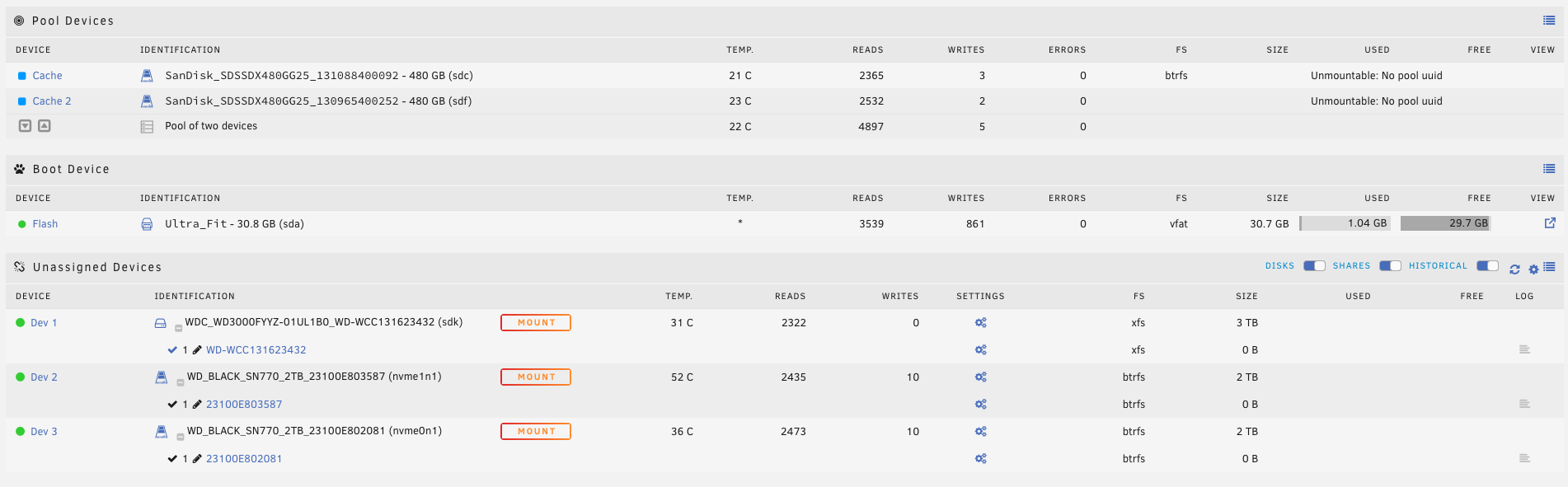

Adding screenshot

Diags are after rebooting so can't see exactly what happened, but this was likely the main mistake:

3 hours ago, mountaindonky said:

Noticed that the new NVME disks were not yet formatted, formatted these new disks

This created a new filesystem on those drives, and previous caches devices are still looking for the old one:

3 hours ago, mountaindonky said:

warning, device 4 is missing

Try this on the other device and post the output:

btrfs-select-super -s 1 /dev/sdf1

But most likely you will have to restore the pool from backups, if available
