Unmountable disk present

[safiedin]

Hi support,



I went out for a short trip few days back and when I got home my Unraid is not working properly.



On the dashboard i see error "unountable wrong or no file system"



and i see unmountable disk present DISK 1.



I have only 1 parity and DISK 1.



Here is the diagnostic.



How do i get back all the drive working?



Noob here so please bear with me.

komandos-diagnostics-20230411-2044.zip

[JorgeB]

Check filesystem on disk1.

[safiedin]

Phase 1 - find and verify superblock... Phase 2 - using internal log - zero log... ALERT: The filesystem has valuable metadata changes in a log which is being ignored because the -n option was used. Expect spurious inconsistencies which may be resolved by first mounting the filesystem to replay the log. - scan filesystem freespace and inode maps... - found root inode chunk Phase 3 - for each AG... - scan (but don't clear) agi unlinked lists... - process known inodes and perform inode discovery... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - process newly discovered inodes... Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - check for inodes claiming duplicate blocks... - agno = 0 - agno = 3 - agno = 1 - agno = 2 No modify flag set, skipping phase 5 Phase 6 - check inode connectivity... - traversing filesystem ... - traversal finished ... - moving disconnected inodes to lost+found ... Phase 7 - verify link counts... Maximum metadata LSN (2:233724) is ahead of log (2:233045). Would format log to cycle 5. No modify flag set, skipping filesystem flush and exiting.





this is the status with -n

Edited April 11, 2023 by safiedin

[JorgeB]

Run it again without -n or nothing will be done, and if it asks for it use -L.

[safiedin]

Phase 1 - find and verify superblock...
Phase 2 - using internal log
        - zero log...
ALERT: The filesystem has valuable metadata changes in a log which is being
destroyed because the -L option was used.
        - scan filesystem freespace and inode maps...
clearing needsrepair flag and regenerating metadata
        - found root inode chunk
Phase 3 - for each AG...
        - scan and clear agi unlinked lists...
        - process known inodes and perform inode discovery...
        - agno = 0
        - agno = 1
        - agno = 2
        - agno = 3
        - process newly discovered inodes...
Phase 4 - check for duplicate blocks...
        - setting up duplicate extent list...
        - check for inodes claiming duplicate blocks...
        - agno = 0
        - agno = 2
        - agno = 3
        - agno = 1
clearing reflink flag on inodes when possible
Phase 5 - rebuild AG headers and trees...
        - reset superblock...
Phase 6 - check inode connectivity...
        - resetting contents of realtime bitmap and summary inodes
        - traversing filesystem ...
        - traversal finished ...
        - moving disconnected inodes to lost+found ...
Phase 7 - verify and correct link counts...
Maximum metadata LSN (2:233777) is ahead of log (1:2).
Format log to cycle 5.
done



whats the next step sir

Edited April 11, 2023 by safiedin

[JorgeB]

Start the array in normal mode, disk should mount now.

[safiedin]

it seems to work now. thanks very much.



but i lost all my vm. dont know why. how do i fix it?

[JorgeB]

Are they missing from the VM page or they don't work? Also post new diags.

[safiedin]

it says no virtual machine installed.



i went to setting - vm manager. tried few directory that it was installed previously but cant seem to find it.



but i dont remember the directory (default) that i had in there. anyway that we can browse the vm setting previously?

[safiedin]

diag

komandos-diagnostics-20230412-0056.zip

[JorgeB]

A new libvirt.img was created, meaning the old is missing or not in the correct place:



Apr 12 00:45:34 komandos root: Creating new image file: '/mnt/maindrive/system/libvirt.img' size: 1G



Post the output of:

find /mnt -name libvirt.img



[safiedin]

/mnt/user/system/libvirt/libvirt.img
/mnt/user/system/libvirt.img
/mnt/user/libvirt.img
/mnt/maindrive/system/libvirt/libvirt.img
/mnt/maindrive/system/libvirt.img
/mnt/maindrive/libvirt.img





how to get the date ? so many

how about

Default VM storage path:

Default ISO storage path:

Edited April 11, 2023 by safiedin

[JorgeB]

15 minutes ago, safiedin said:

/mnt/maindrive/system/libvirt.img

This is the one you are using, try:

15 minutes ago, safiedin said:

/mnt/maindrive/system/libvirt/libvirt.img

and

15 minutes ago, safiedin said:

/mnt/maindrive/libvirt.img

To see if any of these has your VMs (the ones under /mnt/user are the same), also note that you should always have a current backup of this file.

[safiedin]

i found it again thanks for your advice.



That libvirt.img is it enough for 1 GB size. or should we increase it? or in what situation does it need to be increase more then 1gb.



I am planning to delete all libvirt and start a clean vm file.

[JorgeB]

1GB should be more than enough.

[itimpi]

9 hours ago, safiedin said:

That libvirt.img is it enough for 1 GB size. or should we increase it? or in what situation does it need to be increase more then 1gb

That only holds small files related to VMs and their configuration.   I would think in practice 100MB is more than enough so you should never outgrow the default 1GB unless you have hundreds of VMs.

[safiedin]

OK thanks for the information

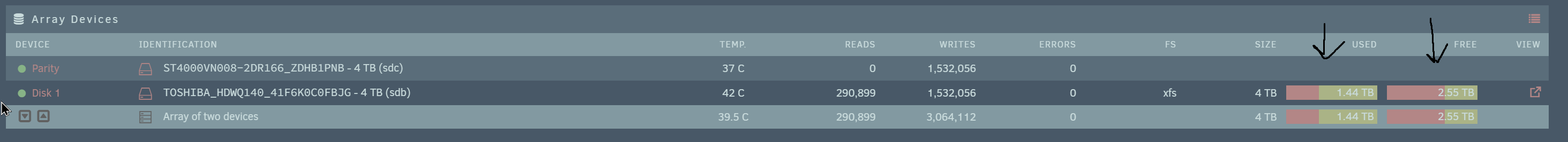

On the dashboard - main



why doesnt it shows used and free space for the parity?

[JorgeB]

Because parity doesn't have a filesystem.

[safiedin]

also why it doesnt show any disk share. i still have access to folders on users created. i thought its suppose to show here

[JorgeB]

Disk shares are disabled by default, you can enable on Settings -> Global Share Settings, but be aware of this:

https://wiki.unraid.net/Manual/Shares#Disk_Shares
