craigr Posted June 8, 2023 Share Posted June 8, 2023 Here is the X11SCZ-F motherboard: https://www.supermicro.com/en/products/motherboard/x11scz-f Through firmware upgrade the motherboard supports 4x32GB memory. I want ECC unbuffered. Most compatibility web sites seem to rely on old data before the board supported 32GB UDIMMs. Even the unRAID IPMI plugin says "Max Capacity 64GB," but I know it is wrong. I am currently using 4x16 Micron 18ASF2G72AZ-2G3B1, 16 GiB DDR4 @ 2400 MT/s. These have are 1GBx8 modules. https://www.micron.com/products/dram-modules/udimm/part-catalog/mta18asf2g72az-2g3 Is there any reason I could not use these: https://www.micron.com/products/dram-modules/udimm/part-catalog/mta18asf4g72az-3g2 They are 3200 MT/s 2GBx8 modules. I know the board only would run them at 2666MHz, but 3200 MT/s is waaaaay cheaper than 2400MT/s or 2666MT/s at less than half the price. There are only really two modules made in 2666MT/s ECC unbuffered; one Micron and one Samsung (three if you count the unfindable Hynix). There are zero 2400MT/s that I could find with unbuffered ECC. There is nemixram, but I really don't want to go there. It seems like it should work fine even though multiple compatibility web sites say no. Will it work? Am I fooling myself? Thank you! Quote Link to comment
craigr Posted June 8, 2023 Author Share Posted June 8, 2023 Right!?! There is no tested memory on Micron's site. Quote Link to comment
craigr Posted June 8, 2023 Author Share Posted June 8, 2023 (edited) 24 minutes ago, JorgeB said: They *should* work. Based on your good advice I ordered. $318 tax and shipped for four NEW returnable modules is too good a deal to pass up. Fingers crossed though because I ordered them on a VISA vanilla gift card so who knows what happens if I have to return them 😬. God I hope this works 🤞 Edited June 8, 2023 by craigr Quote Link to comment
JorgeB Posted June 8, 2023 Share Posted June 8, 2023 Let us know once you get them. 1 Quote Link to comment
craigr Posted June 8, 2023 Author Share Posted June 8, 2023 I most certainly will. I couldn't find the tech support on Supermicro's page anymore or I would have asked there before ordering. Guess what, I just found it. Sent them the question anyway. If they say "no" than I know. Most likely they will say the exact same thing you did with slightly different wording. We'll see! Exciting times! 1 Quote Link to comment
craigr Posted June 8, 2023 Author Share Posted June 8, 2023 There is Samsung M391A4G43MB1-CTD, but the cheapest I could find was $513 and questionable return policy. It’s slightly better for my application because it’s CL19 instead of just CL22. The Samsung is only 2666MHz, but that doesn’t matter in my application unless it means better chance of compatibility on my MB. But seriously, $300 was already too much, $500 is a tad to crazy. Quote Link to comment
craigr Posted June 9, 2023 Author Share Posted June 9, 2023 (edited) Dang, Supermicro wrote back. The Hynix HMAA4GU7CJR8N-XN is validated to work in their lab and is only $6 more per stick directly from Supermicro: https://store.supermicro.com/us_en/32gb-ddr4-3200-mem-dr432l-hl01-eu32.html Four sticks $344 tax and shipped. However, like you said, I think this means that the Micron MTA18ASF4G72AZ-3G2 that I ordered *should* work as it's essentially the same. Fingers crossed. Edited June 9, 2023 by craigr Quote Link to comment
craigr Posted June 9, 2023 Author Share Posted June 9, 2023 Man, and those efficient jerks at Crucial already shipped my Micron order, so I can't even try and cancel it 😉. Why do they have to be so darn efficient? Couldn't they just hold my money for days needlessly waiting to ship like most vendors 😆 2 Quote Link to comment

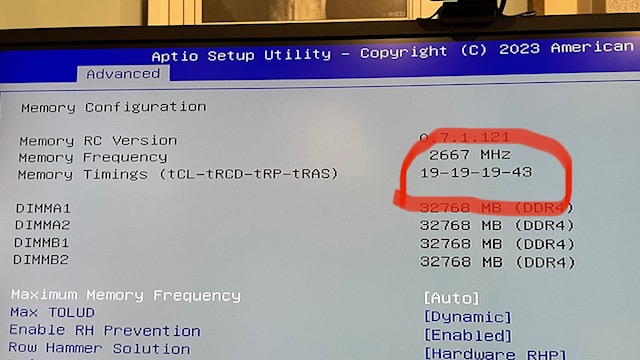

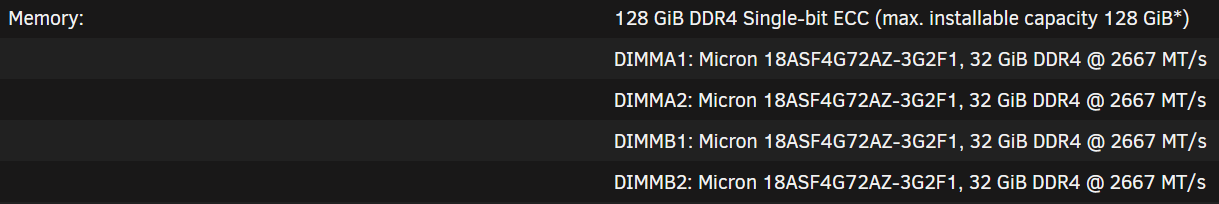

craigr Posted June 13, 2023 Author Share Posted June 13, 2023 So far so good. I've only been up 15 minutes. I rolled the dice and installed it while my family didn't need anything on the system because I didn't know when I would ever have time (my six-year-old daughter still came to me in tears because PLEX wasn't working). I'll run memtest tonight for a bit and watch IPMI for corrected errors. Also, a nice surprise... 2 Quote Link to comment
craigr Posted June 14, 2023 Author Share Posted June 14, 2023 (edited) Ran a pass of memtest and then restarted the server. No ECC corrected errors reported overnight, it’s been up about 16 hours. I’ve had a situation in the past on another system where a correctable error would happen once in a blue moon (that was hard to track down). So I don’t think I can be 100% confident until maybe a month of use. But I have a feeling this is all good 🤞. Edited June 14, 2023 by craigr Spelling… as usual Quote Link to comment
craigr Posted June 16, 2023 Author Share Posted June 16, 2023 Well still no problems 🤞🤞🤞 Quote Link to comment

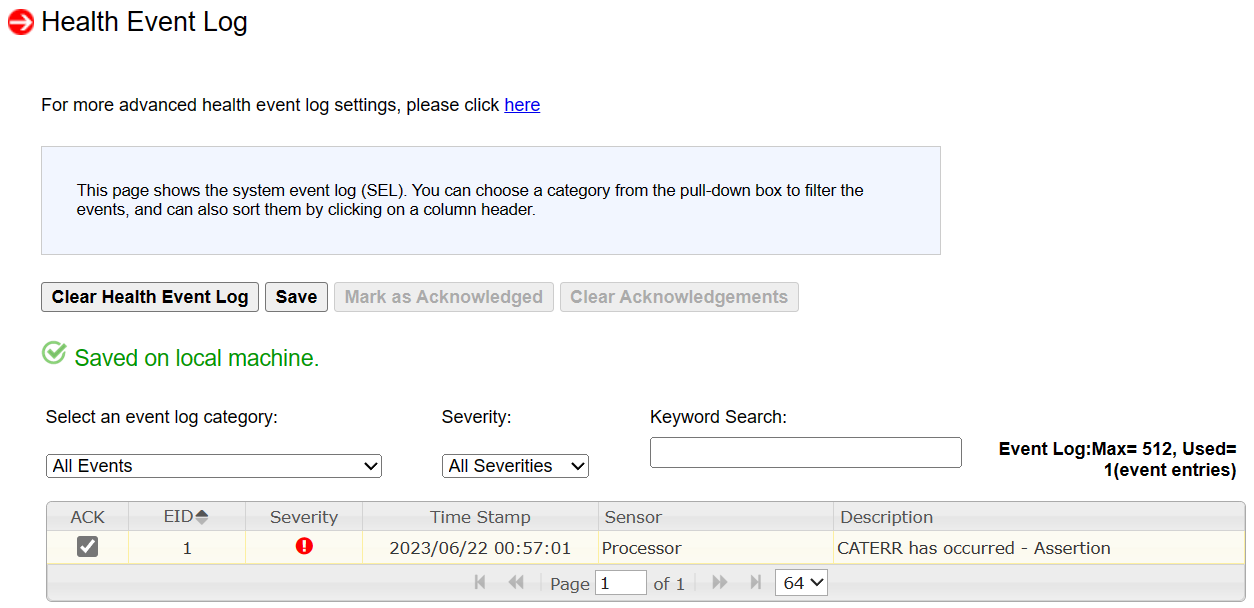

craigr Posted June 22, 2023 Author Share Posted June 22, 2023 (edited) Thoughts please: This time would have been about when I had to do a hard shutdown. Thanks Edited June 22, 2023 by craigr Quote Link to comment
craigr Posted June 22, 2023 Author Share Posted June 22, 2023 I'm trying to figure out how to get the log file, but it's late I just got back from a business trip, and I'm exhausted. Quote Link to comment
craigr Posted June 26, 2023 Author Share Posted June 26, 2023 (edited) Sold the old RAM on eBay for $200. Minus shipping and fees, I should clear $160. I guess ~$150 to go from 64GB to 128GB isn't so bad. My server really needed the memory badly. Edited June 26, 2023 by craigr Quote Link to comment
craigr Posted November 29, 2023 Author Share Posted November 29, 2023 In case anyone ever comes along and finds this helpful, the new memory has continued to work flawlessly. It's great! Quote Link to comment
