Basically what the title says, the unraid dashboard says Docker is using 72GB, but the containers are only 8GB.  Nothing *seems* to downloading to the image, but I'm at a loss.  Maybe I'm misunderstanding what this graph means.  Any help is greatly appreciated!



diagnostics-20230809-1617.zip

Edited August 9, 20232 yr by carefree-whinny7137

Looks like you removed a bunch of files / folders from the diagnostics.  We need them all.



Assuming though that you are using a docker image (Settings - Docker) then what you are seeing is correct.  You've set the image size to be 72G (bit large for 99% of users but besides the point) and the graph shows what is in use within that 72G



Docker image is pre-allocated to the size you set (and there is also overhead, which is why you're seeing more than 10% on the graph

Hello,

I am back once again.

I have recently moved from Zoneminder to Agent DVR as well as I have started using Cloudflare tunnels in place of Swag, for some dockers.

In doing all of this I fear I have screwed something up.



My docker container for Agent DVR on my server with 26 cameras is at 15.7gb abd my container on the system with 15 cameras is at 1.7gb



I do not see anything different on the two systems but I have been known to miss the obvious before.



I am attaching the diagnostic for the 26 camera 15.7gb docker



I am not sure if the answer is in the diagnostic but I'd really appreciate any assistance  that I could get on this



Chas



tower-diagnostics-20230930-1846.zip

You've set the docker image size to be 70Gig.  Doesn't matter how much size you're actually using inside the image (in your case 21G) the image will always take up 70G on your storage device.



If you don't want any wasted space and the "image" to always take up more or less the exact size of what's installed then you switch to a docker folder (Settings - Docker) and then reinstall everythig.



IE: Everything is correct.



Now if you're questioning the 21G total being utilized, the answers you're looking for will be shown on Docker, Container Size

Well yes and thank you. but i am really more concerned with the 15gb agentdvr docker, I just had the system freeze up I think it filled up the 75gb  I had just rebooted the system when I rebooted it was at 15.7 now its at 21gb.

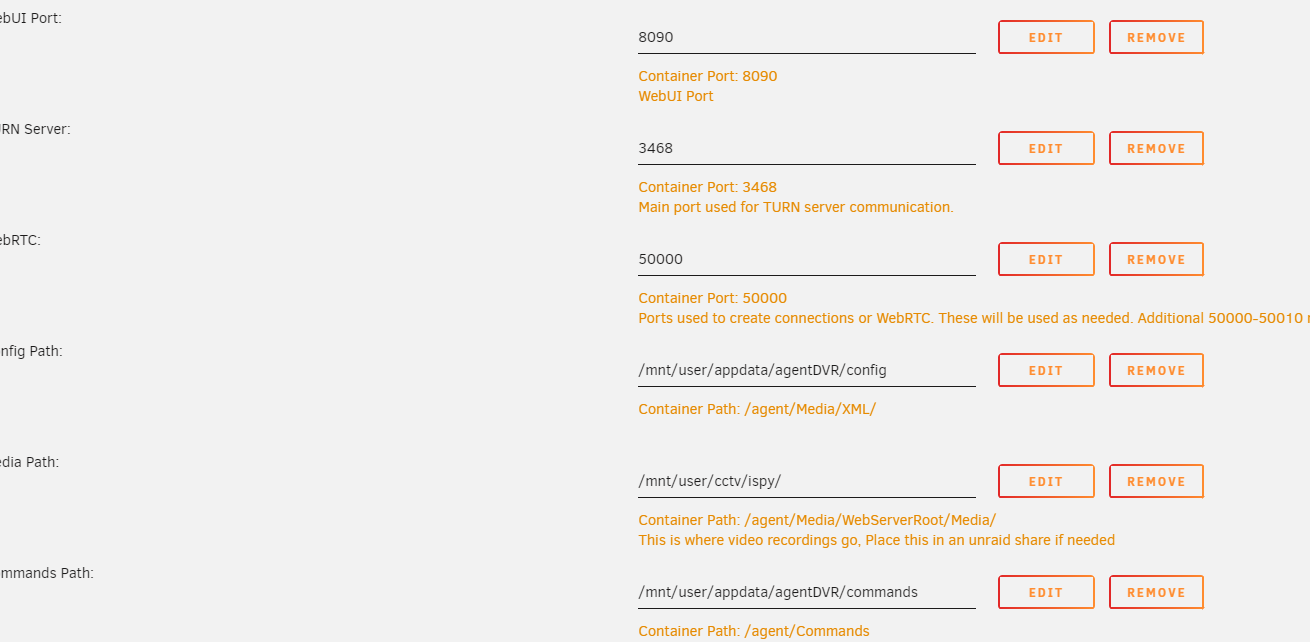

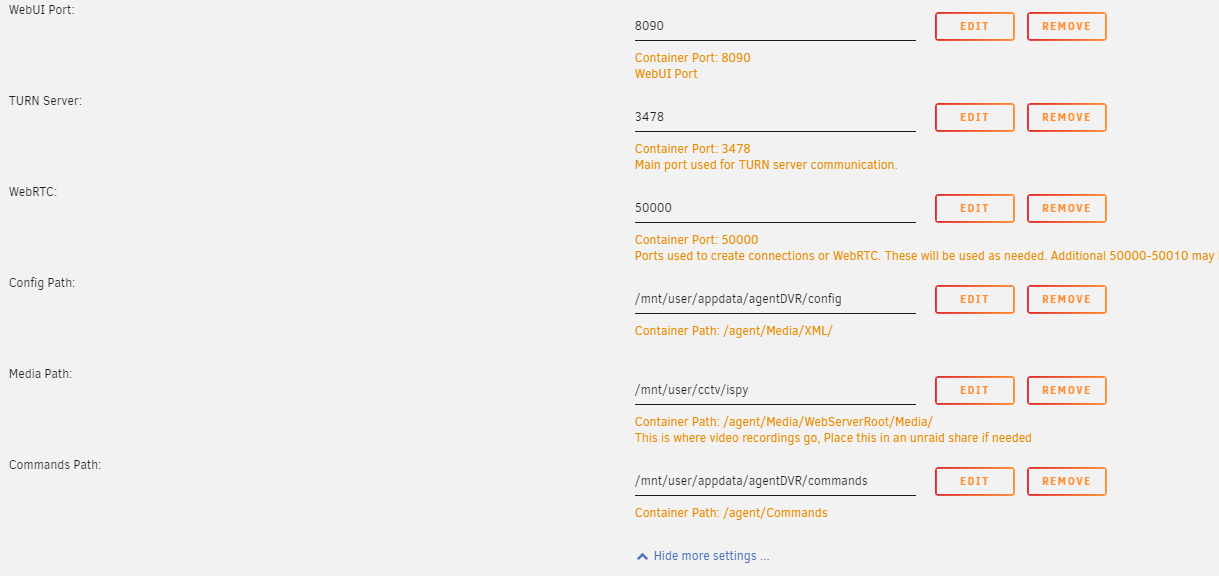

I have two machines running the same docker and posted the mapping from both.



I just can't figre out what is filling up the docker on that machine.



Thanks

Chas

I'm sorry, I wasn't clear. I have 2 machines, there are two mappings posted. the individual setting on agentdvr are the same.

One system has 1.57gb docker that doesn't grow and the other has 21gb and growing. I have no idea how to figure out where I went wrong.



Chas

30 minutes ago, kysdaddy said:

I just can't figre out what is filling up the docker on that machine.



Container size from the Docker Tab is where you'd begin.  Post the screenshot back

OK I know what the problem was because I recreated it on the server that the image wasn't growing. Agentdvr archive setting.

/mnt/user/cctv/spy_archive mapped in the main storage tab.

Individual cam storage setting has /mnt/user/cctv/spy_archive but it doesn't seem to be working as when I turned on archive, the docker image grew by 9gb overnight.



 At this point I can live without archiving the videos, I just need to delete the videos from the docker image?





Any chance you can point me in the right direction to find out how to do that?

Should I recreate the whole docker image?



Thanks

Chas

Sorry, you asked for this but I went on a tangent.

On 9/30/2023 at 8:30 PM, Squid said:

Container size from the Docker Tab is where you'd begin.  Post the screenshot back

Squid, Any chance you could advise me on where to find information on deleting folders from docker containers created by mistake?



Chas
