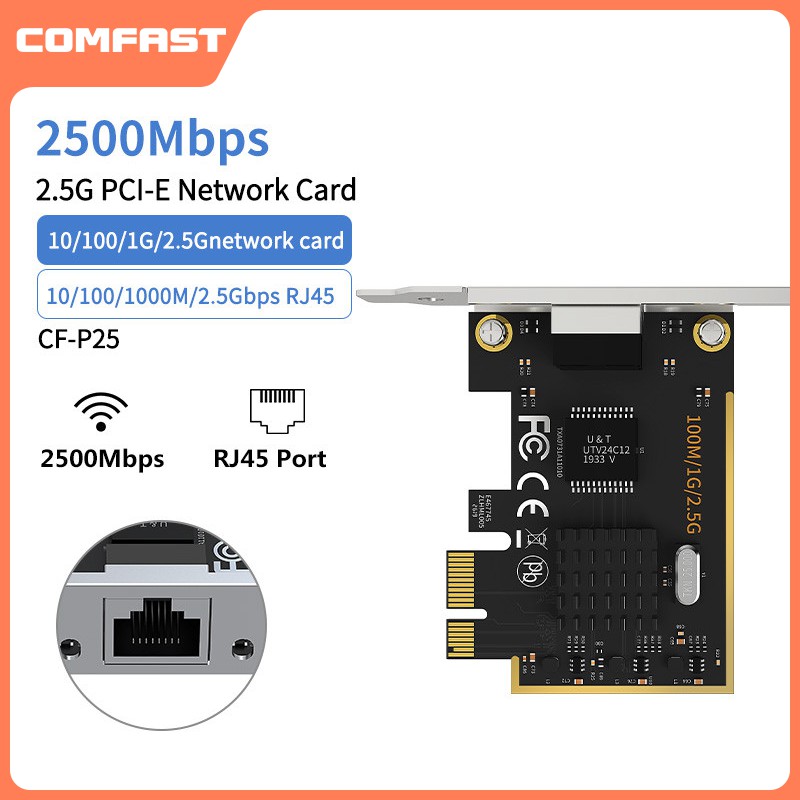

September 4, 20232 yr Hi, I want to hook up my new 2.5GB network card but unraid won't let me do it and the webgui will just down after that. I can connect to webgui when I disconnect the secondary ethernet port. here's my attached diagnostics. Help me. My 2.5Gb nic is : Specification: Port: 1*10/100/1000Mbps RJ45 Ethernet port, support adaptive network Chipset: RTL8125 Standard: IEEE 802.3 IEEE802.3u IEEE 802.3ab IEEE 802.3az IEEE 802.3bz Compatible slots: PCIE-16X/PCIE-18X /PCIE 4X/PCI-E-1X Internet speed: 10/100/1G/2.5Gbps paradyne-diagnostics-20230904-2016.zip

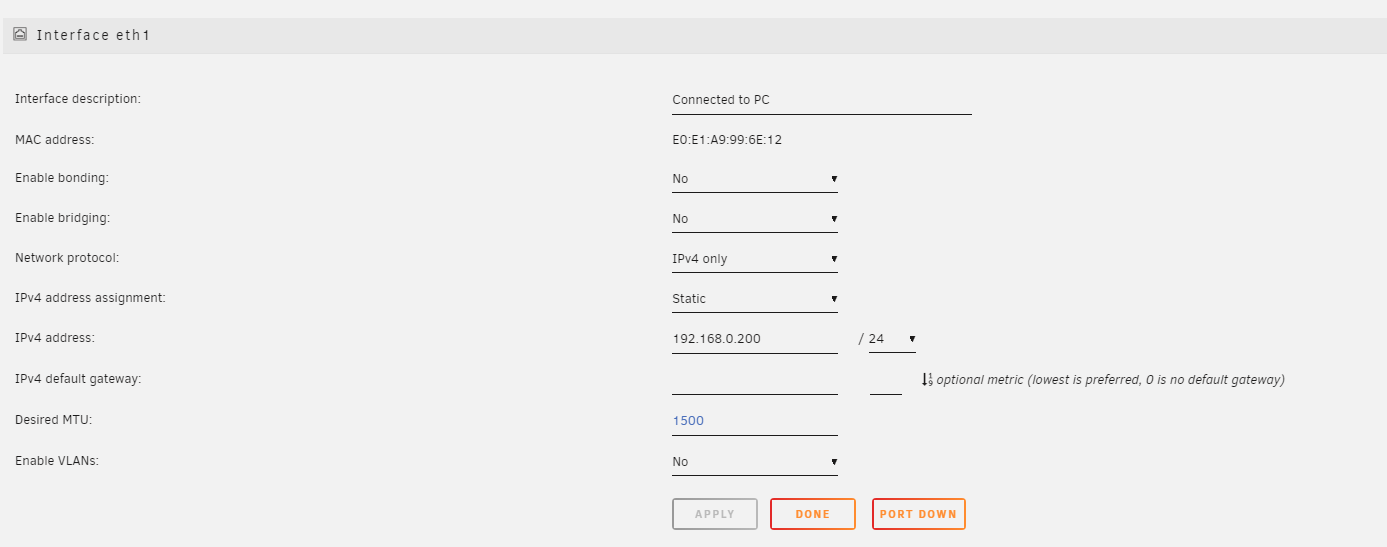

September 4, 20232 yr Community Expert Instead of a bond use the NICs separately, and use a different subnet for the other one, and no gateway.
September 4, 20232 yr Author I got it to eth1 and can access the smb but the transfer is limited to 113MB/s only. My nic is 2.5Gb network card

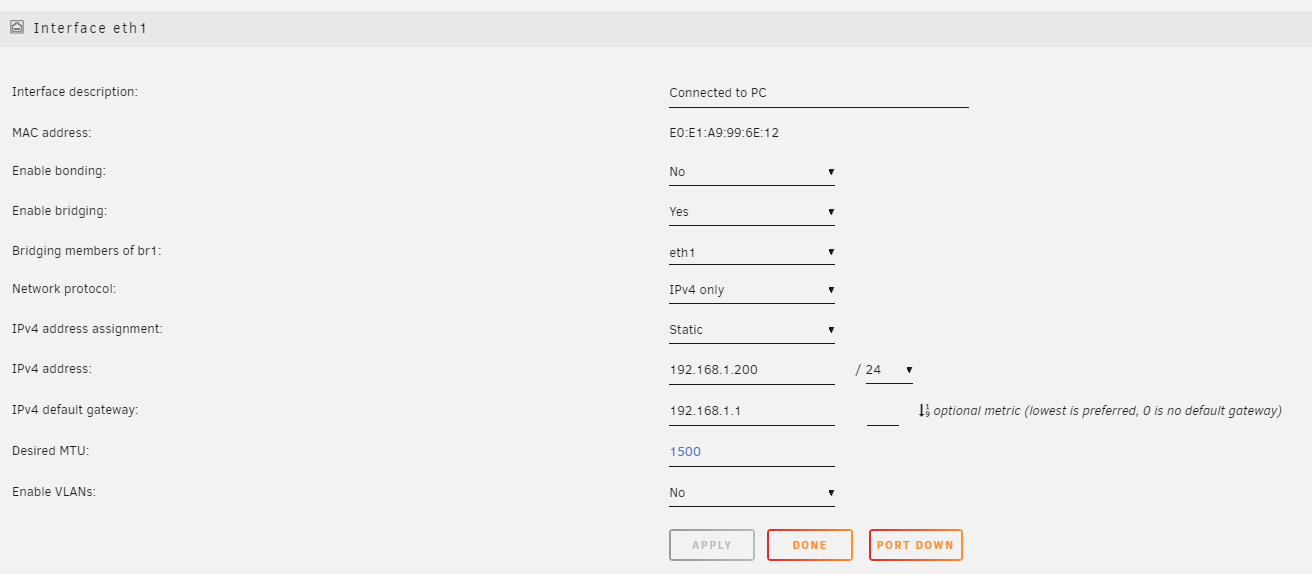

September 4, 20232 yr Author Solution got it!!! Sorry for the trouble. I make my new default gateway from 0.1 to 1.1 and set my address to .200 and now I can use my nic at full speed. Thank you.
September 4, 20232 yr Author The only problem is my nic is realtek and it's not that stable in transferring. I already using cache nvme drive and it's still not stable. Might need to change this nic later.
