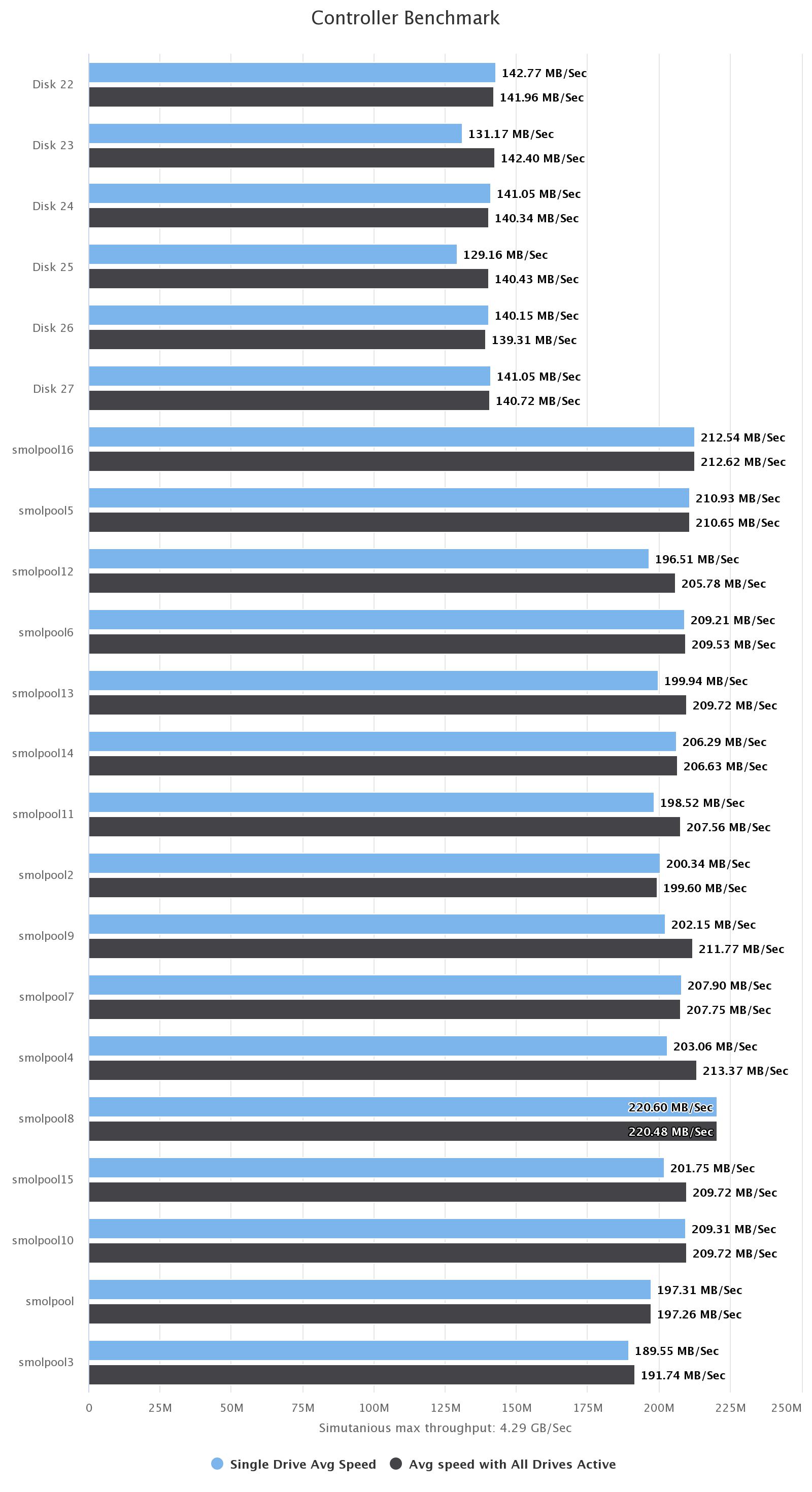

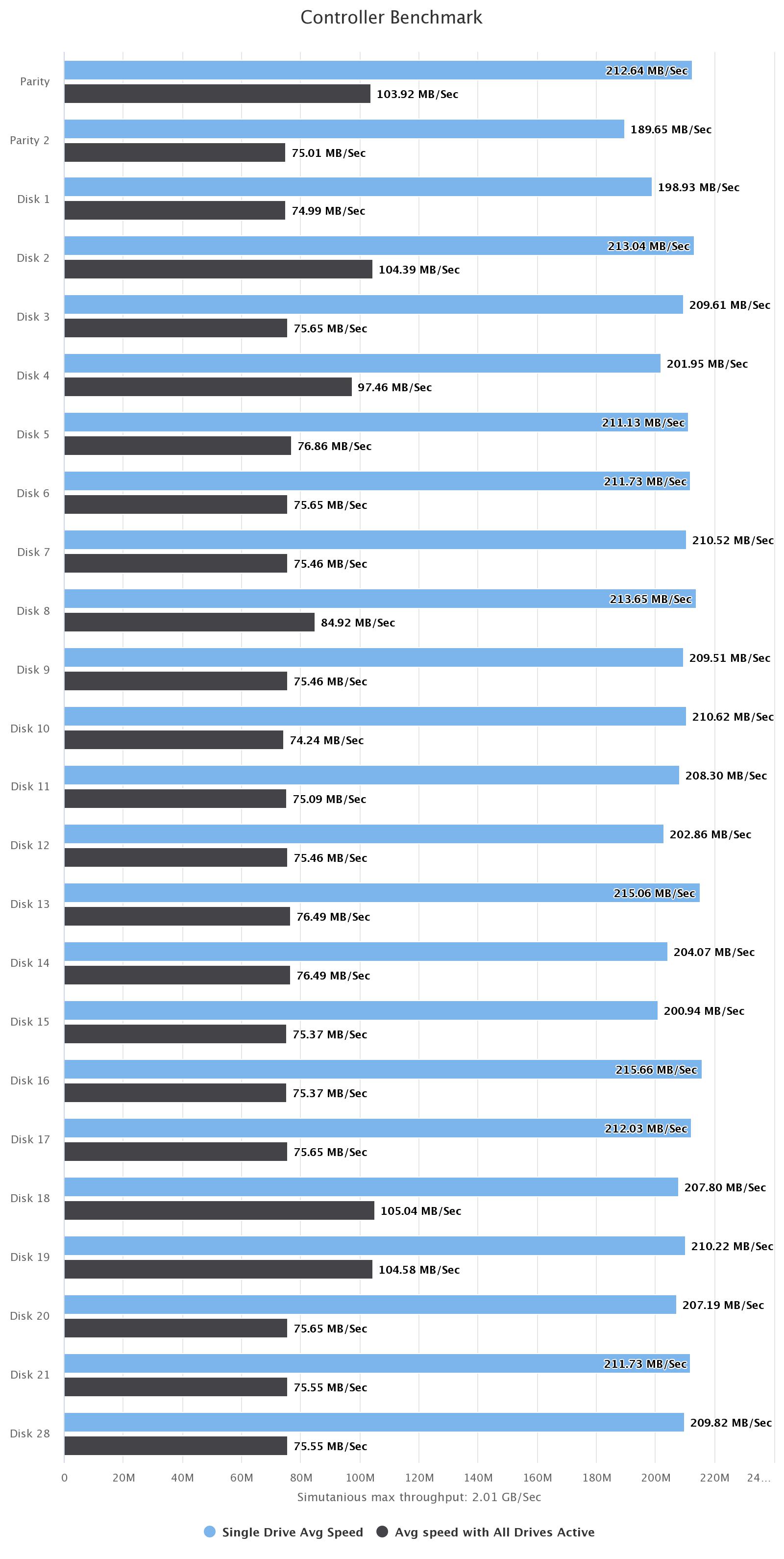

October 11, 20232 yr Hello all, is there a reason why I'm limited to 2 GB/s for this setup? Server is an R730 with 2x E5-2680 v4 "Problem" Controller is an LSI SAS9207-8e 8-Port External HBA and is on the far-right riser that also contains a x8 NIC. All drives are heavily used / refurbished HUH728080ALE604 contained in a DS4246 with an IOM6 controller connected via a QSFP SFF-8436 to SFF-8088 cable. DiskSpeed reads the following. Current Link Speed: (ok) width (ok) ( max throughput) Maximum Link Speed: 8GT/s width x8 (7.88 GB/s max throughput) Attempted to change tunables to over 4k with negative results. Reverted change to defaults. Connected both cables to disk shelf and rebooted, but since the drives aren't SAS I really wasn't expecting anything to change (and nothing did) Is there anything else I can look into? First image shows problem array Second image shows the onboard hba that services the R730's 2.5" drives as a comparison. Output of lspci -d 1000: -vv for the problem controller is also attached. Quote 81:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS2308 PCI-Express Fusion-MPT SAS-2 (rev 05) Subsystem: Broadcom / LSI 9207-8e SAS2.1 HBA Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 455 NUMA node: 1 IOMMU group: 6 Region 0: I/O ports at 9000 Region 1: Memory at c9240000 (64-bit, non-prefetchable) Region 3: Memory at c9200000 (64-bit, non-prefetchable) Expansion ROM at <ignored> [disabled] Capabilities: [50] Power Management version 3 Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [68] Express (v2) Endpoint, MSI 00 DevCap: MaxPayload 4096 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+ RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ FLReset- MaxPayload 256 bytes, MaxReadReq 4096 bytes DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr- TransPend- LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM L0s, Exit Latency L0s <64ns ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+ LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+ ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- LnkSta: Speed 8GT/s, Width x8 TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt- DevCap2: Completion Timeout: Range BC, TimeoutDis+ NROPrPrP- LTR- 10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix- EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit- FRS- TPHComp- ExtTPHComp- AtomicOpsCap: 32bit- 64bit- 128bitCAS- DevCtl2: Completion Timeout: 65ms to 210ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, AtomicOpsCtl: ReqEn- LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS- LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis- Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS- Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+ EqualizationPhase1+ EqualizationPhase2+ EqualizationPhase3+ LinkEqualizationRequest+ Retimer- 2Retimers- CrosslinkRes: unsupported Capabilities: [d0] Vital Product Data pcilib: sysfs_read_vpd: read failed: No such device Not readable Capabilities: [a8] MSI: Enable- Count=1/1 Maskable- 64bit+ Address: 0000000000000000 Data: 0000 Capabilities: [c0] MSI-X: Enable+ Count=16 Masked- Vector table: BAR=1 offset=0000e000 PBA: BAR=1 offset=0000f000 Capabilities: [100 v2] Advanced Error Reporting UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt+ UnxCmplt+ RxOF- MalfTLP- ECRC- UnsupReq- ACSViol- UESvrt: DLP+ SDES+ TLP+ FCP+ CmpltTO+ CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC+ UnsupReq- ACSViol- CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+ CEMsk: RxErr+ BadTLP+ BadDLLP+ Rollover+ Timeout+ AdvNonFatalErr+ AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn- MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap- HeaderLog: 04008001 8008200f 81080000 21726c32 Capabilities: [1e0 v1] Secondary PCI Express LnkCtl3: LnkEquIntrruptEn- PerformEqu- LaneErrStat: 0 Capabilities: [1c0 v1] Power Budgeting <?> Capabilities: [190 v1] Dynamic Power Allocation <?> Capabilities: [148 v1] Alternative Routing-ID Interpretation (ARI) ARICap: MFVC- ACS-, Next Function: 0 ARICtl: MFVC- ACS-, Function Group: 0 Kernel driver in use: mpt3sas Kernel modules: mpt3sas LSPCI.txt Edited October 11, 20232 yr by Spoir quoted LSPCI output
October 11, 20232 yr One possible explanation would be the enclosure linking at SAS1 speeds, that's 2.4GB/s, usually around 2.2GB/s usable.
October 11, 20232 yr Author Is that something that's configurable or visible somewhere? Or is that a limitation of a single link from the controller? I did some testing and it looks like the second shelf controller isn't even doing anything even if it's the only one connected, again I think this is just because I have SATA drives in there, but I wonder which side would be responsible for the limit. Ugh, I knew I should have leaned towards SAS drives. I'm leaning towards 2.4 GBps is the limit of a cable, 4 lanes that do ~600MB/s makes sense.

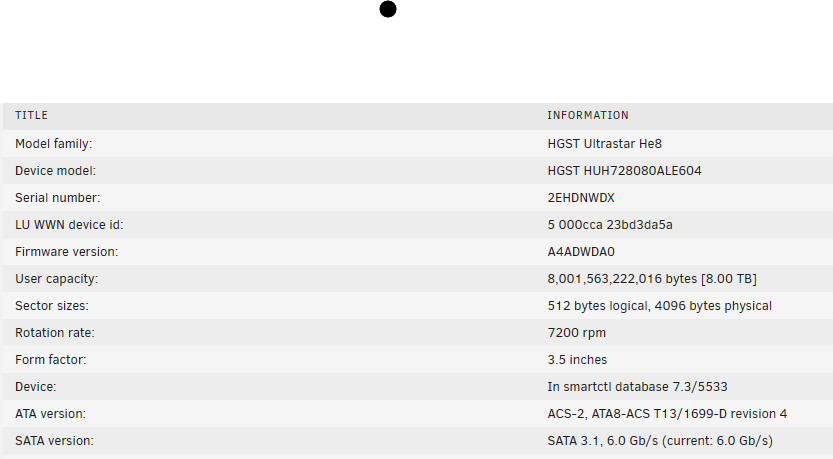

October 12, 20232 yr 8 hours ago, Spoir said: Is that something that's configurable or visible somewhere? AFAIK there's no way to check for sure, but usually related to the devices link speed, are all disks showing SATA3 link?
