Array disk unmountable: wrong or no file system

[Jakeklem]

I believe this began after a power loss.  I've attempted fixing it through hardware reconfiguration by changing the disk to 2 different known working drives, using a different SATA cable, and using a different SATA port.



I've also attempted to fix the issue by xfs_repair both through the GUI as well as command line.  I followed the steps I found in these threads:





I could use any help at this point and it's very much appreciated!



server-diagnostics-20231025-1339.zip

[JorgeB]

Post the output of:

blkid



[Jakeklem]

6 hours ago, JorgeB said:

Post the output of:

blkid





serverblkid.txt

[JorgeB]

No valid filesystem is being detected on disk2,. start the array in maintenance mode and post the output of:

xfs_repair -v /dev/md2



[Jakeklem]

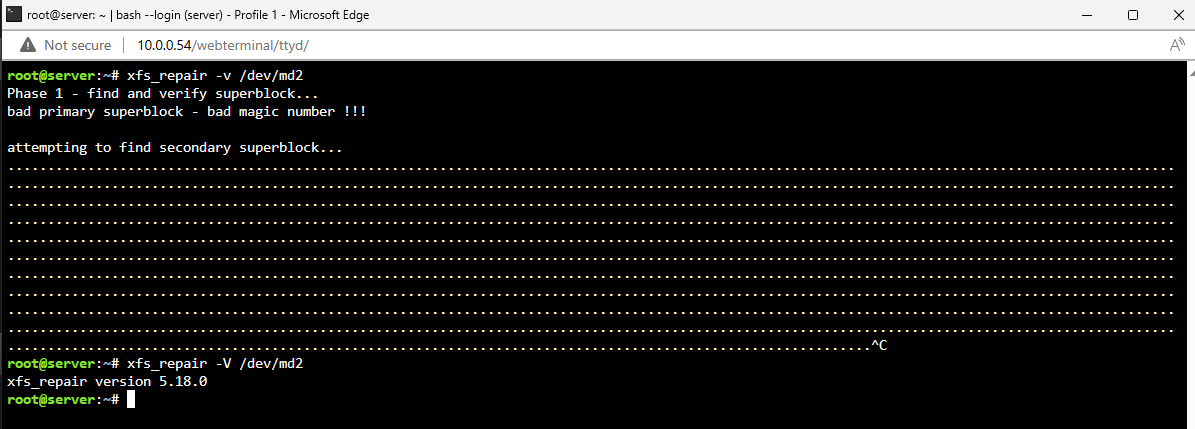

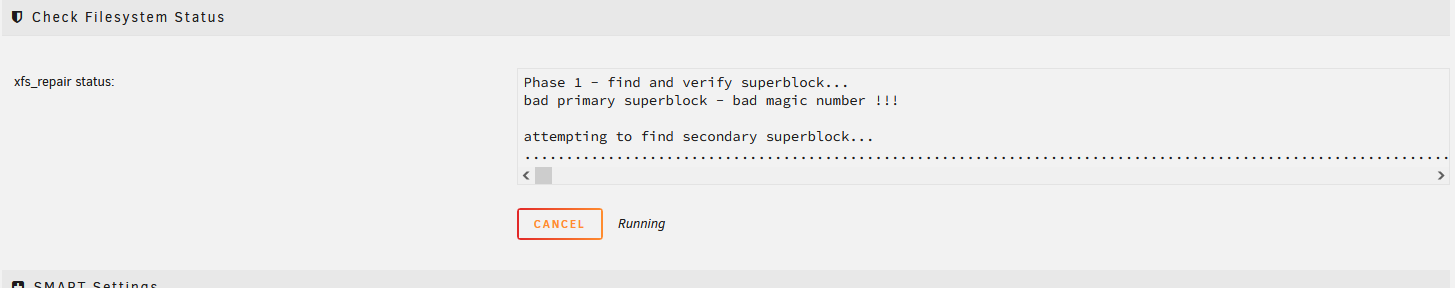

From the GUI, I've done this before and it just shows this with an exit message after running a while.



Also tried to run in terminal with Upper and lowercase "V".  Similar result and I'm not noticing any changes at this time.



Edited October 26, 2023 by Jakeklem

[JorgeB]

That's not very surprising since blkid doesn't show a filesystem but wanted to double check, if you have a backup use it to restore the data, if you don't something like UFS explorer may be able to recover some data, there's a free trial that show allow to see if any data is recoverable or not.

[Jakeklem]

15 hours ago, JorgeB said:

That's not very surprising since blkid doesn't show a filesystem but wanted to double check, if you have a backup use it to restore the data, if you don't something like UFS explorer may be able to recover some data, there's a free trial that show allow to see if any data is recoverable or not.

So no chance of fixing the existing?

[JorgeB]

Can't think of anything else other than the options mentioned above.
