when after MB boot，into unraid start up，stuck at first GUI

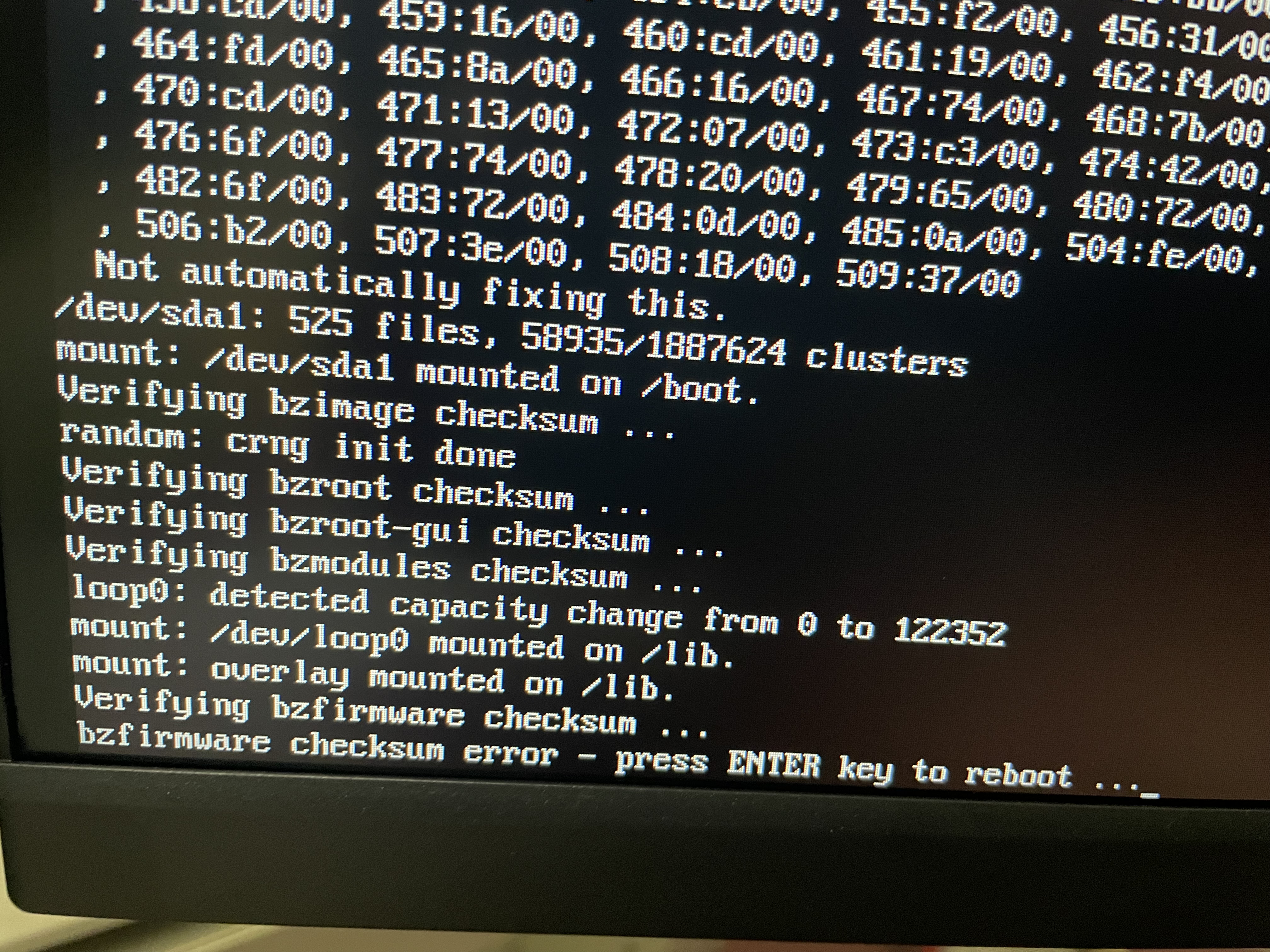

use reboot SW to reboot，show：bzfirmware checksum error - press enter key to reboot

press enter，then automatic reboot，at this time，i can successfully boot up



hard ware：

MSI X470 GAMING PRO

micron DDR4 3200 CL22

R9 5950X auto

MIAN GPU RX 5700XT

second GPU GTX980Ti

HDD：5x HGST HDD （8T 4Tx3 3T）4 DISK use pcie X1 to SATA to connect，1 DISK use onboard SATA

SSD：KIOXIA 500G（M.2） Maxsun 1TB（M.2）   PLEXTOR 128GB（msata）

monitor：K7B X1   K7E x1 TV x1 (65inch 4K）



unraid 6.12.4，unraid os plus



please help me，thanks！

ay-tower-diagnostics-20231120-1915.zip

The error suggest a problem reading the file specified off the flash drive.   I would recommend rewriting all the bz* type files on the flash drive as described here in the online documentation accessible via the ‘Manual’ link at the bottom of the GUI or the DOCS link at the top of each forum page.

7 minutes ago, itimpi said:

The error suggest a problem reading the file specified off the flash drive.   I would recommend rewriting all the bz* type files on the flash drive as described here in the online documentation accessible via the ‘Manual’ link at the bottom of the GUI or the DOCS link at the top of each forum page.

so，is my flash drive broken？

36 minutes ago, AYS said:

so，is my flash drive broken？

Not necessarily.   As that link mentions rewriting the bz* files frequently fixes the issue and you then exhibit no further problems.

On 11/20/2023 at 8:50 PM, itimpi said:

Not necessarily.   As that link mentions rewriting the bz* files frequently fixes the issue and you then exhibit no further problems.

this days ，when I want start my system，require boot four times

first time，after MB self test，stuck，display nothing，keyboard not response，then I MANUAL reboot

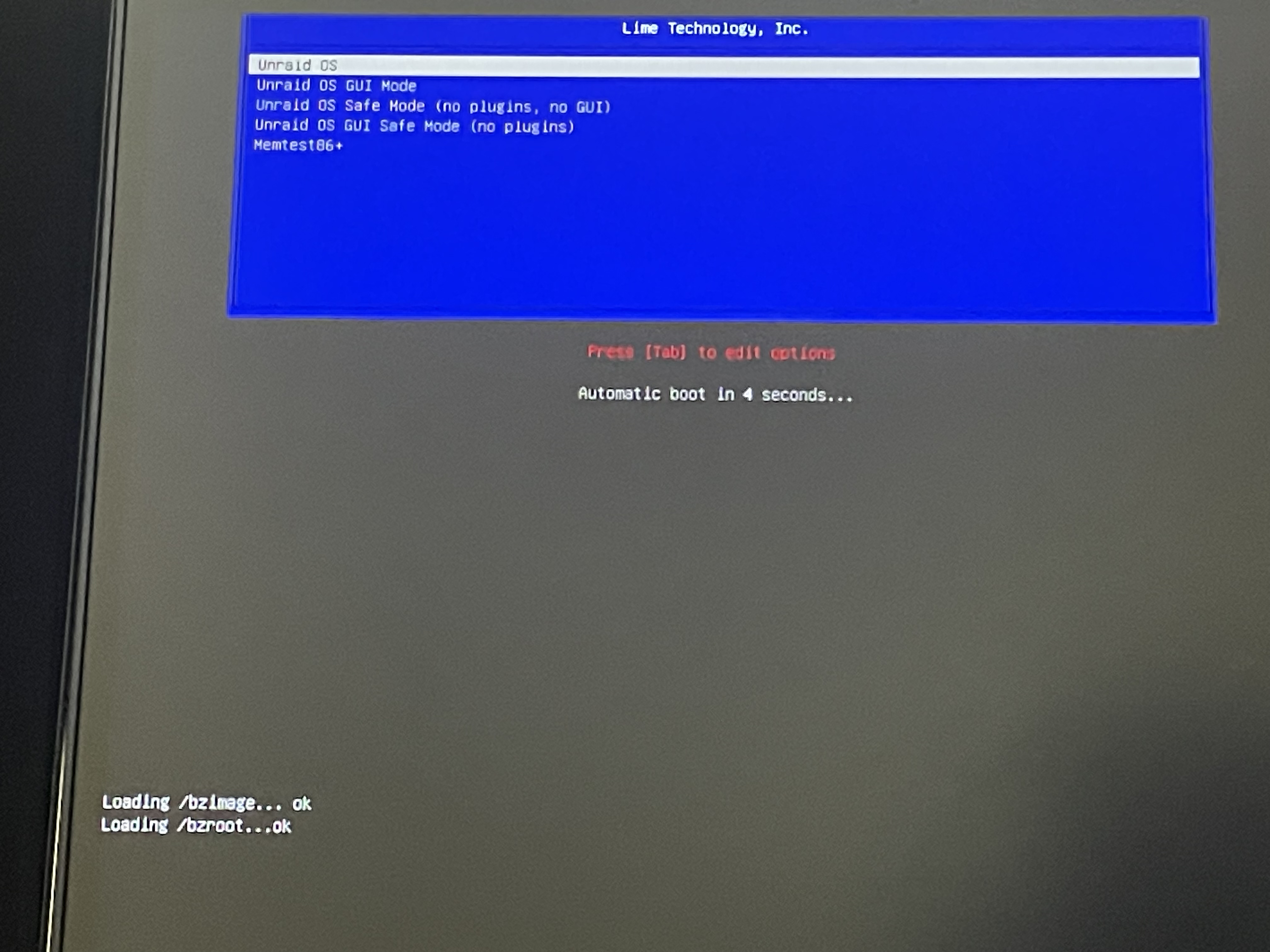

second time，after show bzroot ... ok，stuck at select boot Options interface，MANUAL reboot again

third time，display： bzfirmware checksum error - press enter key to reboot， MANUAL reboot again

fourth time，finally，boot successfully。



so，I don't know what happening



if I shutdown my computer at second or third time for 2 or 3 minute，It back to Original status，I had do it from beginning



please help me！be grateful！



Run memtest, bad RAM can also cause that.

26 minutes ago, JorgeB said:

Run memtest, bad RAM can also cause that.

RAM is good

32Gig DDR4 3200 running at 2666



Try booting the flash drive in another PC to see if it's a flash or server problem.

On 11/22/2023 at 10:08 PM, JorgeB said:

Try booting the flash drive in another PC to see if it's a flash or server problem.

i'm booting the flash drive in another pc，not the same，only booting two times to boot up，then i take flash drive back to original pc ，booting successfully in one time。

strange，still try find the problem。

thanks！
