Version: 6.12.6 -- Disk 1 is wrong after rebooting every time

[Syzygy]

After rebooting the server, Disk 1 always shows missing drive after reboot even though it is the exact same drive and nothing has changed. I've tried rebooting a couple times and I've changed all the sata port cables on the motherboard.

System Log

Disk 1

Parity

[trurl]

Attach Diagnostics to your NEXT post in this thread.

[Syzygy]

Attached the full diagnostic zip file

atlas-diagnostics-20240117-0021.zip

[JorgeB]

Try this:



sgdisk -o -n 1:1M:0 /dev/sdX



Replace X with correct letter, then reboot and the disk should no longer show as wrong.

[Syzygy]

On 1/17/2024 at 9:28 AM, JorgeB said:

Try this:



sgdisk -o -n 1:1M:0 /dev/sdX



Replace X with correct letter, then reboot and the disk should no longer show as wrong.

This fixed the wrong drive issue thank you!

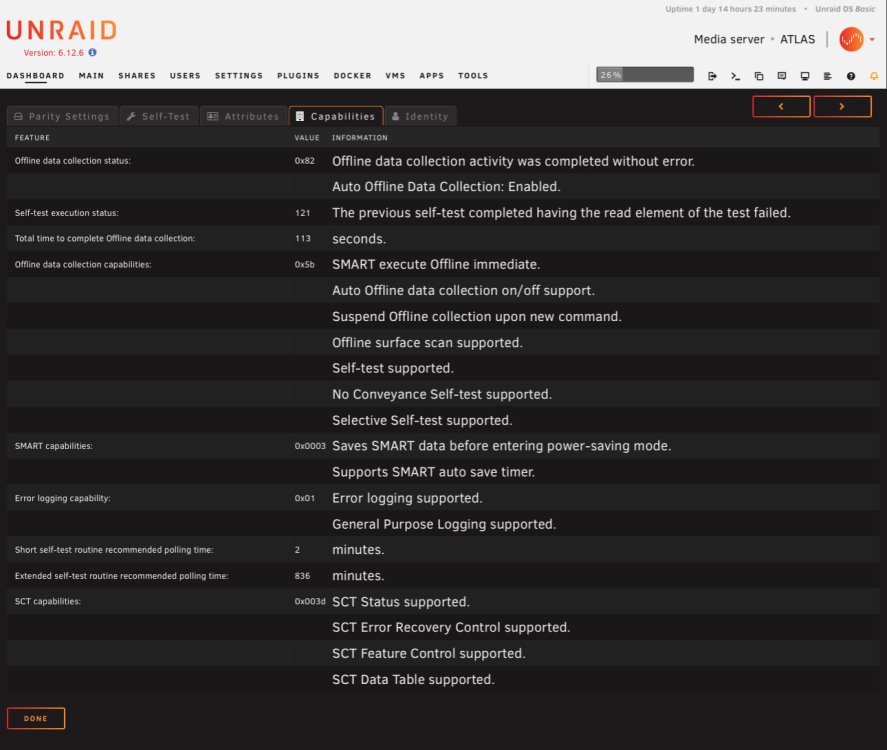

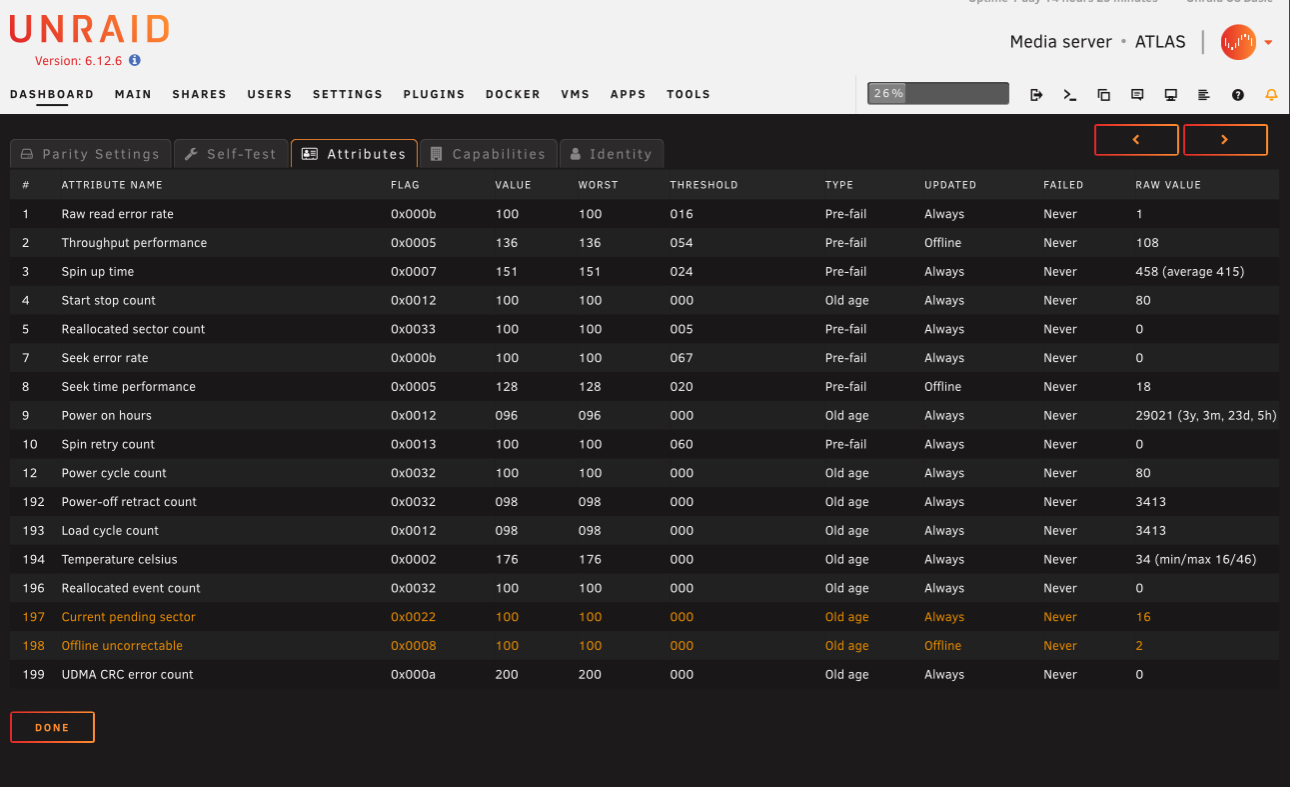

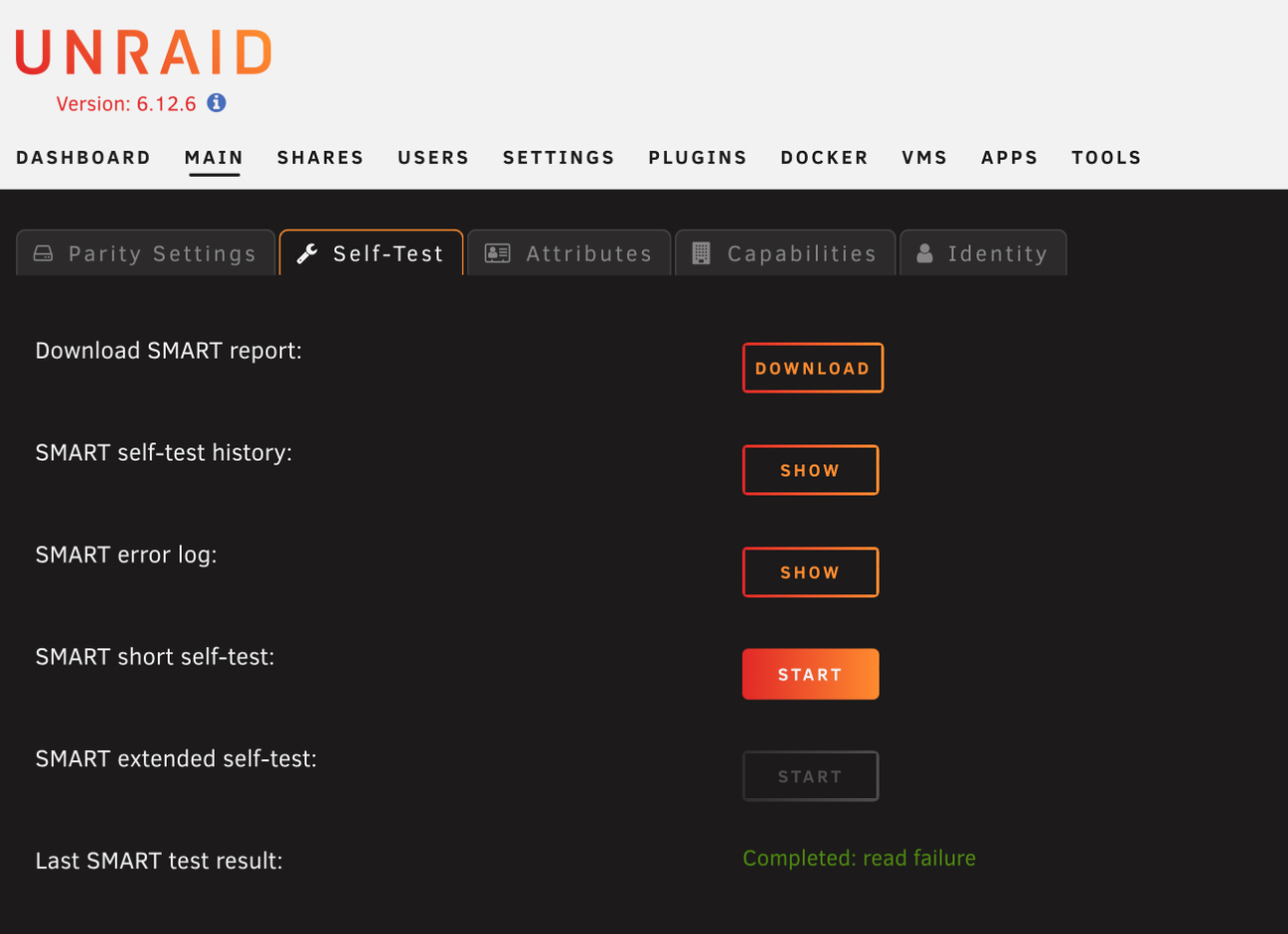

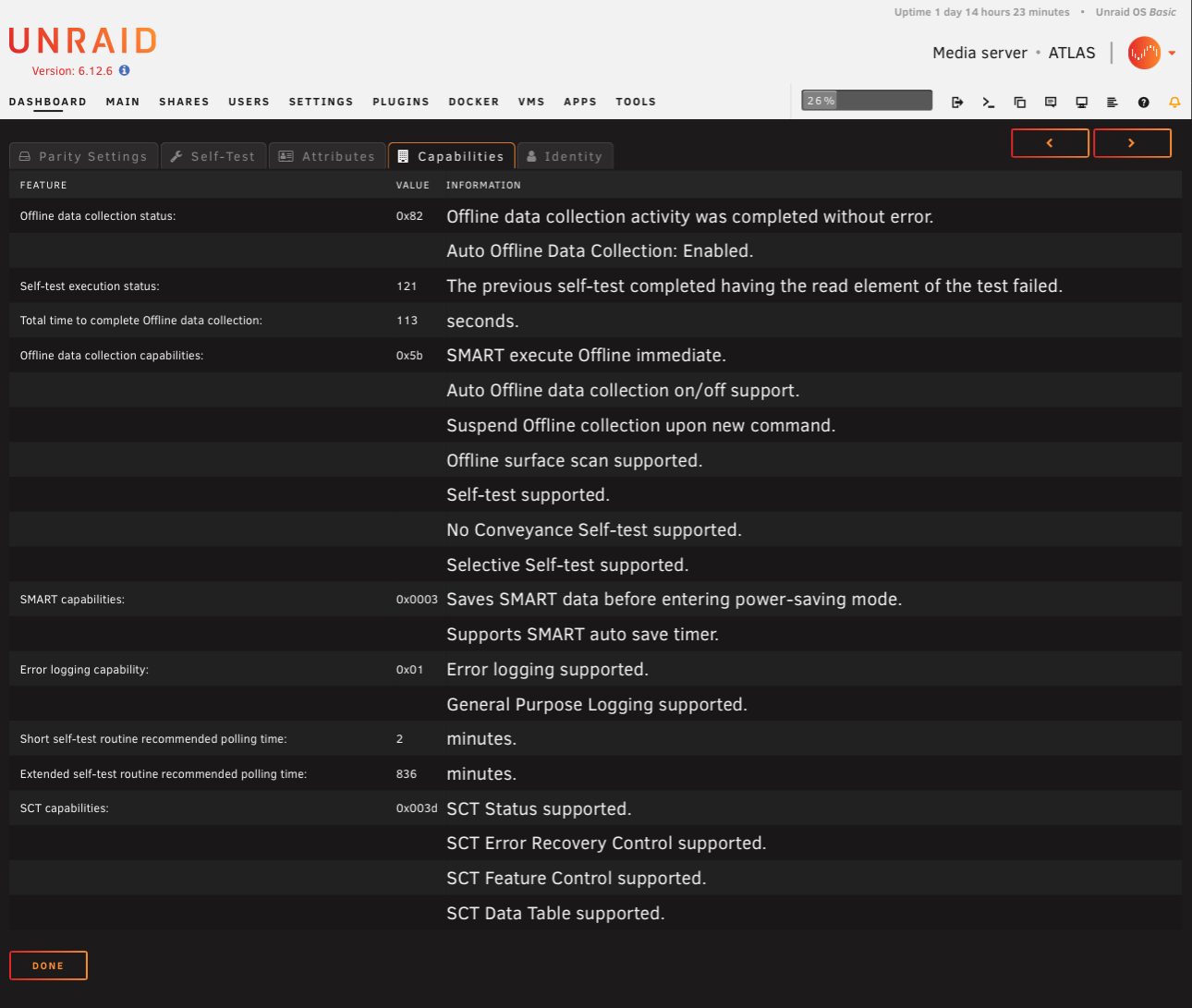

Now that this is fixed, on the parity drive i’m noticing a “read failure” error when performing a SMART check. Could this be related to the original issue by chance or a separate issue entirely.



(Apologies if the attached images are redundant)

Edited January 19 by Syzygy

[JorgeB]

5 hours ago, Syzygy said:

Now that this is fixed, on the parity drive i’m noticing a “read failure” error when performing a SMART check. Could this be related to the original issue by chance or a separate issue entirely.

This is just a bad disk, and since it failed the SMART test it should be replaced.
