Hart Posted February 8 Share Posted February 8 Hallo; I try to use unraid from several usb sticks on 2 barebones from asus PN42 (see below). Boths sticks were made with and wihout the installer or manually and are recognised in Bios. When booting with them bootng doesn't work. On an old dell bussiness laptop the same usb stick works fine and Unraid OS gui etc could be mounted. in the Asus Bios both sticks are ignored, while a clonezilla live stick is used, when difining the unraid sticks first, clonezille second and the HDD as the latest. using WIndows UEFI or other OS in bios makes no difference . QUick bios is off, USB slot (2.0 or 3.1. front or back make no difference). Bios version 1.09 is the latest and was flashed today I made some photos of BIOS setting but ar enot able to load them . details on the Barebone etc. below. Any help or links to existing threads would be appreciated. thanks Hartmut System: Kernel: 5.15.0-94-generic x86_64 bits: 64 compiler: gcc v: 11.4.0 Desktop: Cinnamon 6.0.4 tk: GTK 3.24.33 wm: muffin vt: 7 dm: LightDM 1.30.0 Distro: Linux Mint 21.3 Virginia base: Ubuntu 22.04 jammy Machine: Type: Mini-pc System: ASUSTeK product: MINIPC PN42 v: N/A serial: <superuser required> Mobo: ASUSTeK model: PN42 serial: <superuser required> UEFI: ASUSTeK v: 1.09.00 date: 08/08/2023 CPU: Info: quad core model: Intel N100 bits: 64 type: MCP smt: <unsupported> arch: N/A rev: 0 cache: L1: 384 KiB L2: 2 MiB L3: 6 MiB Speed (MHz): avg: 1214 high: 1334 min/max: 700/3400 cores: 1: 1334 2: 1223 3: 1058 4: 1244 bogomips: 6451 Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx Graphics: Device-1: Intel vendor: ASUSTeK driver: N/A bus-ID: 00:02.0 chip-ID: 8086:46d1 class-ID: 0300 Display: x11 server: X.Org v: 1.21.1.4 driver: X: loaded: vesa unloaded: fbdev,modesetting gpu: N/A display-ID: :0 screens: 1 Screen-1: 0 s-res: 1920x1080 s-dpi: 96 s-size: 508x286mm (20.0x11.3") s-diag: 583mm (23") Monitor-1: default res: 1920x1080 hz: 77 size: N/A OpenGL: renderer: llvmpipe (LLVM 15.0.7 256 bits) v: 4.5 Mesa 23.0.4-0ubuntu1~22.04.1 direct render: Yes Audio: Device-1: Intel vendor: ASUSTeK driver: snd_hda_intel v: kernel bus-ID: 00:1f.3 chip-ID: 8086:54c8 class-ID: 0403 Sound Server-1: ALSA v: k5.15.0-94-generic running: yes Sound Server-2: PulseAudio v: 15.99.1 running: yes Sound Server-3: PipeWire v: 0.3.48 running: yes Network: Device-1: Intel driver: iwlwifi v: kernel port: N/A bus-ID: 00:14.3 chip-ID: 8086:54f0 class-ID: 0280 IF: wlo1 state: up mac: <filter> Device-2: Realtek RTL8125 2.5GbE vendor: ASUSTeK driver: r8169 v: kernel pcie: speed: 5 GT/s lanes: 1 port: 3000 bus-ID: 01:00.0 chip-ID: 10ec:8125 class-ID: 0200 IF: enp1s0 state: down mac: <filter> IF-ID-1: br-795c1e578682 state: up speed: 10000 Mbps duplex: unknown mac: <filter> IF-ID-2: docker0 state: down mac: <filter> IF-ID-3: veth5af75c0 state: up speed: 10000 Mbps duplex: full mac: <filter> IF-ID-4: veth6402251 state: up speed: 10000 Mbps duplex: full mac: <filter> IF-ID-5: vethc2bf55a state: up speed: 10000 Mbps duplex: full mac: <filter> Bluetooth: Device-1: Intel AX201 Bluetooth type: USB driver: btusb v: 0.8 bus-ID: 1-10:6 chip-ID: 8087:0026 class-ID: e001 Report: hciconfig ID: hci0 rfk-id: 0 state: up address: <filter> bt-v: 3.0 lmp-v: 5.2 sub-v: 356b hci-v: 5.2 rev: 356b Drives: Local Storage: total: 1.37 TiB used: 418.93 GiB (30.0%) ID-1: /dev/nvme0n1 vendor: Samsung model: SSD 980 PRO 1TB size: 931.51 GiB speed: 63.2 Gb/s lanes: 4 type: SSD serial: <filter> rev: 5B2QGXA7 temp: 53.9 C scheme: GPT ID-2: /dev/sda type: USB vendor: Seagate model: ST9500325AS size: 465.76 GiB type: HDD rpm: 5400 serial: <filter> rev: 0002 scheme: MBR ID-3: /dev/sdb type: USB model: 2.0 6387 size: 961 MiB type: N/A serial: <filter> rev: 8.07 scheme: MBR Partition: ID-1: / size: 915.32 GiB used: 240.9 GiB (26.3%) fs: ext4 dev: /dev/nvme0n1p2 ID-2: /boot/efi size: 511 MiB used: 6.1 MiB (1.2%) fs: vfat dev: /dev/nvme0n1p1 Swap: ID-1: swap-1 type: file size: 2 GiB used: 0 KiB (0.0%) priority: -2 file: /swapfile USB: Hub-1: 1-0:1 info: Hi-speed hub with single TT ports: 12 rev: 2.0 speed: 480 Mb/s chip-ID: 1d6b:0002 class-ID: 0900 Device-1: 1-3:2 info: ASMedia ASM1051E SATA 6Gb/s bridge ASM1053E ASM1153 3Gb/s ASM1153E bridge type: Mass Storage driver: usb-storage interfaces: 1 rev: 2.1 speed: 480 Mb/s chip-ID: 174c:55aa class-ID: 0806 serial: <filter> Device-2: 1-6:3 info: Dell KB216 Wired Keyboard type: Keyboard,HID driver: hid-generic,usbhid interfaces: 2 rev: 1.1 speed: 1.5 Mb/s power: 100mA chip-ID: 413c:2113 class-ID: 0300 Device-3: 1-7:4 info: Pixart Imaging Optical Mouse type: Mouse driver: hid-generic,usbhid interfaces: 1 rev: 2.0 speed: 1.5 Mb/s power: 100mA chip-ID: 093a:2510 class-ID: 0301 Device-4: 1-8:5 info: Alcor Micro Flash Drive type: Mass Storage driver: usb-storage interfaces: 1 rev: 2.0 speed: 480 Mb/s power: 100mA chip-ID: 058f:6387 class-ID: 0806 serial: <filter> Device-5: 1-10:6 info: Intel AX201 Bluetooth type: Bluetooth driver: btusb interfaces: 2 rev: 2.0 speed: 12 Mb/s power: 100mA chip-ID: 8087:0026 class-ID: e001 Hub-2: 2-0:1 info: Super-speed hub ports: 4 rev: 3.1 speed: 10 Gb/s chip-ID: 1d6b:0003 class-ID: 0900 Sensors: System Temperatures: cpu: 69.0 C mobo: N/A Fan Speeds (RPM): N/A Repos: Packages: 2685 note: see --pkg apt: 2666 flatpak: 19 No active apt repos in: /etc/apt/sources.list Active apt repos in: /etc/apt/sources.list.d/docker.list 1: deb [arch=amd64 signed-by=/etc/apt/keyrings/docker.gpg] https: //download.docker.com/linux/debian bookworm stable Active apt repos in: /etc/apt/sources.list.d/google-chrome.list 1: deb [arch=amd64] https: //dl.google.com/linux/chrome/deb/ stable main Active apt repos in: /etc/apt/sources.list.d/mkusb-ppa-jammy.list 1: deb [signed-by=/etc/apt/keyrings/mkusb-ppa-jammy.gpg] https: //ppa.launchpadcontent.net/mkusb/ppa/ubuntu jammy main Active apt repos in: /etc/apt/sources.list.d/official-package-repositories.list 1: deb https: //ftp-stud.hs-esslingen.de/pub/Mirrors/packages.linuxmint.com virginia main upstream import backport 2: deb http: //ftp-stud.hs-esslingen.de/ubuntu jammy main restricted universe multiverse 3: deb http: //ftp-stud.hs-esslingen.de/ubuntu jammy-updates main restricted universe multiverse 4: deb http: //ftp-stud.hs-esslingen.de/ubuntu jammy-backports main restricted universe multiverse 5: deb http: //security.ubuntu.com/ubuntu/ jammy-security main restricted universe multiverse Active apt repos in: /etc/apt/sources.list.d/opera-stable.list 1: deb https: //deb.opera.com/opera-stable/ stable non-free Active apt repos in: /etc/apt/sources.list.d/teamviewer.list 1: deb [signed-by=/usr/share/keyrings/teamviewer-keyring.gpg] https: //linux.teamviewer.com/deb stable main Info: Processes: 253 Uptime: 1m wakeups: 0 Memory: 15.35 GiB used: 1.56 GiB (10.2%) Init: systemd v: 249 runlevel: 5 Compilers: gcc: 11.4.0 alt: 11/12 Client: Cinnamon v: 6.0.4 inxi: 3.3.13 Quote Link to comment
JorgeB Posted February 8 Share Posted February 8 54 minutes ago, Hart said: When booting with them bootng doesn't work. Is the problem before or after the OS starts to boot? Do you see the Unraid boot menu? Quote Link to comment
Hart Posted February 8 Author Share Posted February 8 Unraid OS does not appear at all. Quote Link to comment
JorgeB Posted February 8 Share Posted February 8 Since you know the flash drive is good it suggests a BIOS issue, make sure fast boot and Secure boot are disabled, also post a photo of the BIOS boot menu, with Asus you usually need to press F8. Quote Link to comment

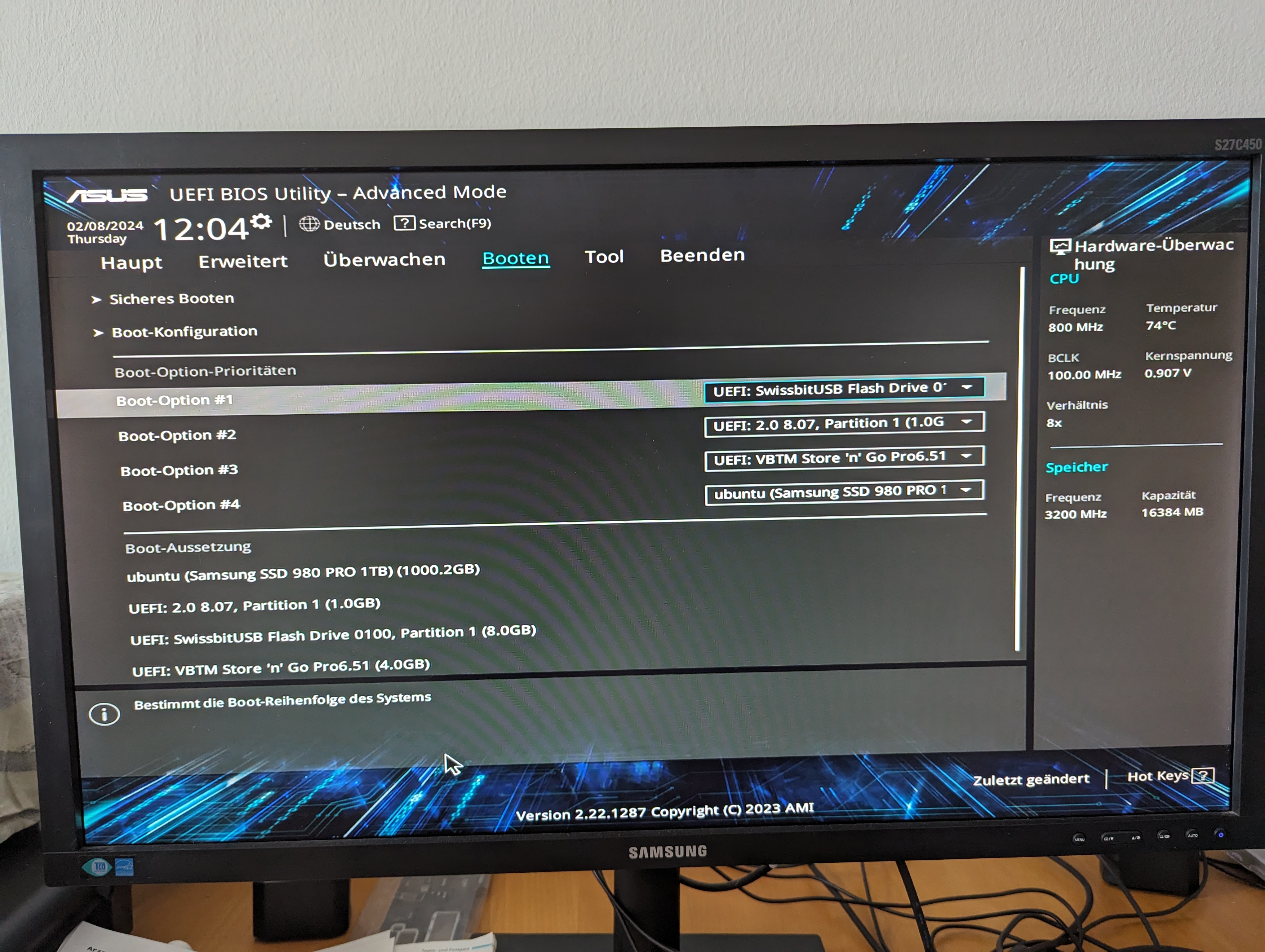

Hart Posted February 8 Author Share Posted February 8 (edited) I disabled fast boot and secure boot. in picture 1 all devices are seen ( swissbit manualy installed, works on an old dell laptop but not on this asus barebone PN42; second usb stick , installed with unraid installer, 3.VBTM has a clonezilla live system , which works on the asus barebone PN42 when the first 2 sticks don't . 4 ubuntu SSD (working) Edited February 9 by Hart too much info on photo Quote Link to comment

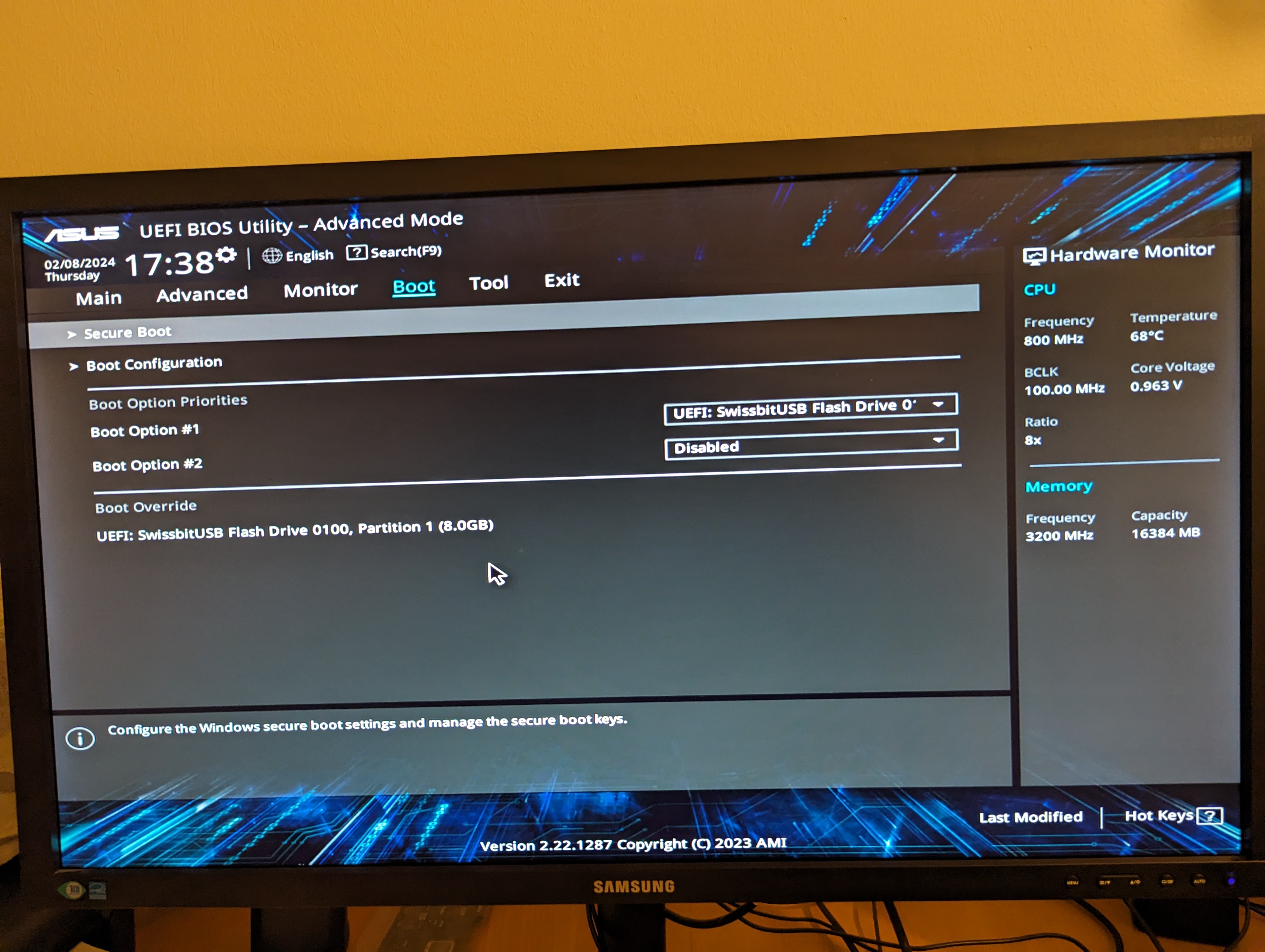

Solution JorgeB Posted February 8 Solution Share Posted February 8 Select the Unraid flash drive in Boot Override, I assume it's the SwissbitUSB? If UEFI boot is enabled in the flash drive (an EFI folder must exist, not EFI-), and it boots UEFI on a different PC and still doesn't on that one I'm sorry but I don't have more ideas. Quote Link to comment

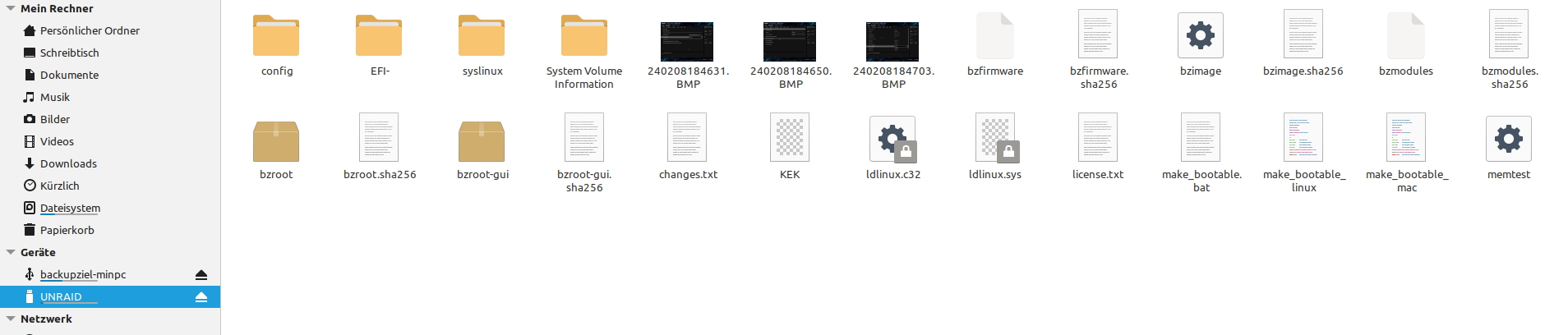

Hart Posted February 8 Author Share Posted February 8 yes it the swissbitUSB I would like to use; on this I see an EFI- folder not EFI??. I used the zip file from the unraid page, extracted it to the Usb Stick, ran the make bootable bat. what else could i do (better)? Quote Link to comment
itimpi Posted February 8 Share Posted February 8 2 hours ago, Hart said: on this I see an EFI- folder not EFI??. If you have an EFI- folder on the flash drive then you need to rename it to remove the trailing - character for UEFI boot to work. 1 Quote Link to comment
Hart Posted February 9 Author Share Posted February 9 I did the renaming and the issue is solved. THANK you all for your patience and quick help. Remark: the EFI- comes with the unRAIDServer-6.12.6-x86_64.zip file. maybe it is worthwile to check? regards Hart Quote Link to comment
itimpi Posted February 9 Share Posted February 9 18 minutes ago, Hart said: Remark: the EFI- comes with the unRAIDServer-6.12.6-x86_64.zip file. maybe it is worthwile to check? That is expected. When you run the make_bootable.bat file it should have asked if you want UEFI booting and if you said you did it would rename that folder. Having said that I do agree that it would probably better for the zip to be set up so it automatically enabled UEFI booting by default and only rename that folder if the user explicitly says they did not want that option. In most cases it is OK to leave both legacy and UEFI booting options enabled Quote Link to comment
JorgeB Posted February 9 Share Posted February 9 I believe the next release will come with EFI as the default. Quote Link to comment
