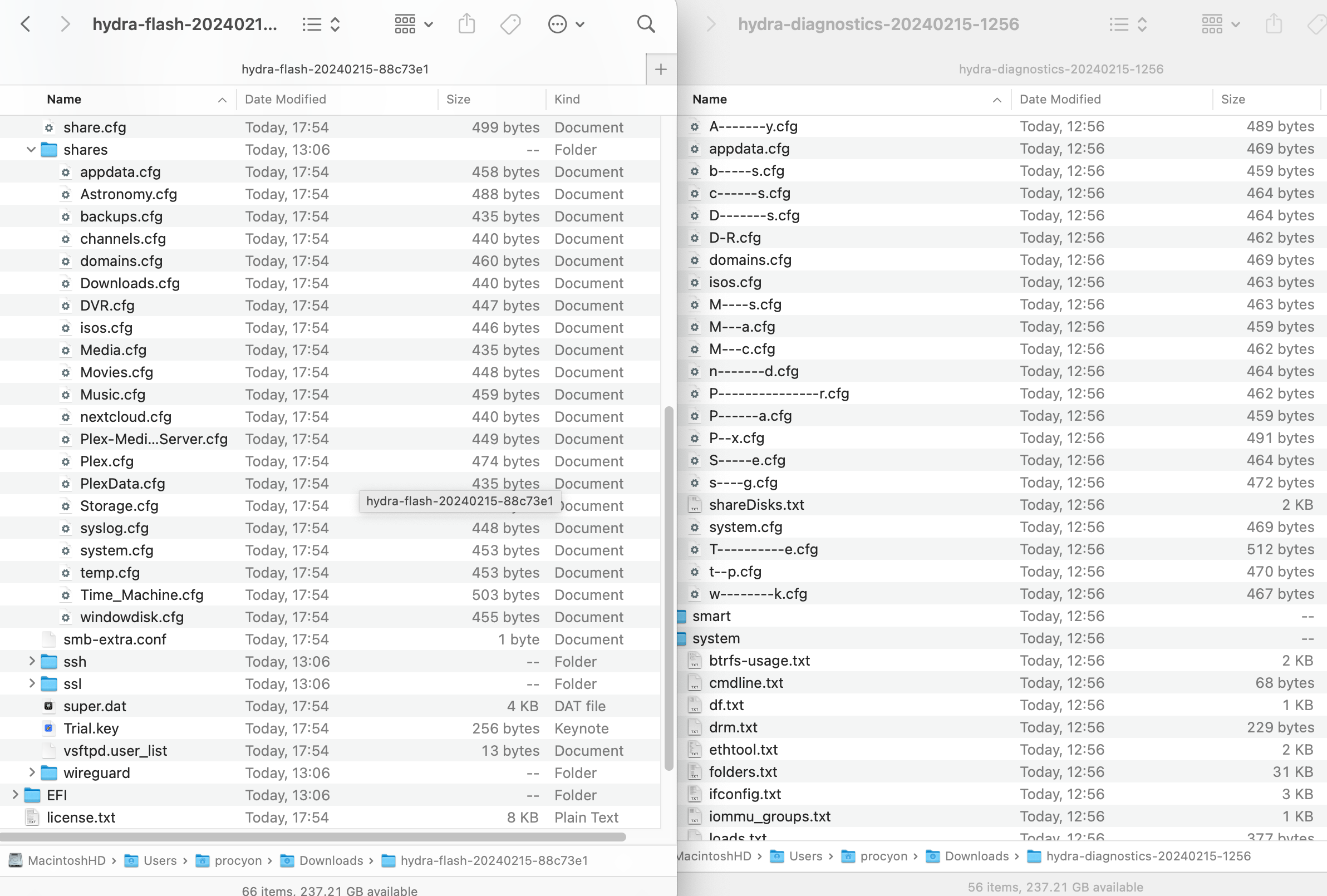

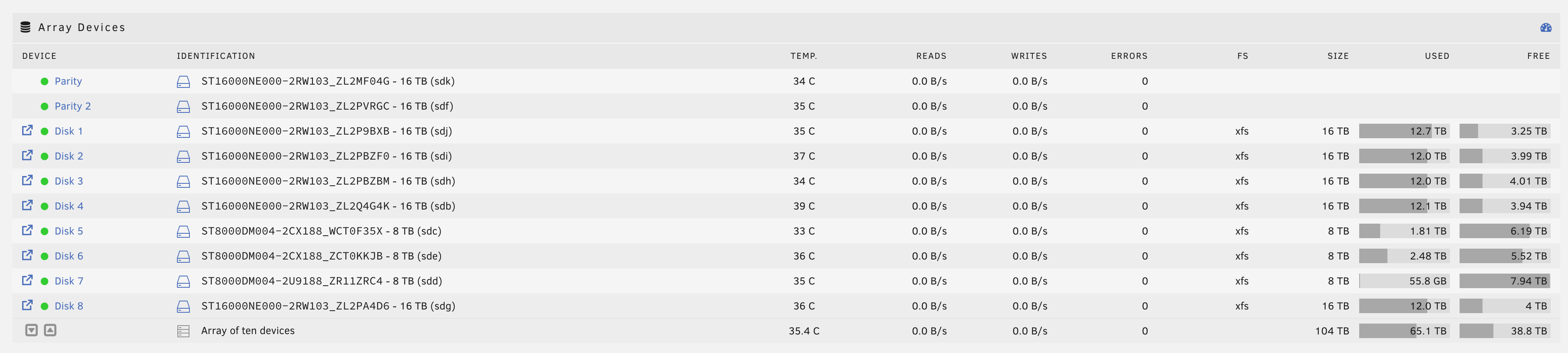

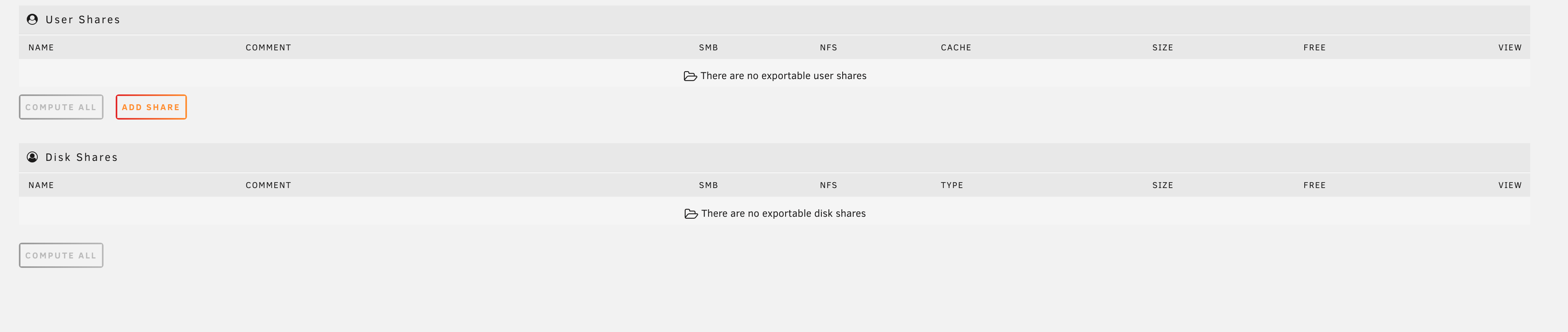

February 15, 20242 yr Hi everyone, we had a snow storm which resulted in a power outage overnight. I have an UPS which is set to shut down my UnRAID server and it looks like something went awry. This morning when I woke up and turned it back on, I do not see any of my shares. When I go to my shares, it says "There are no exportable user shares" Docker and VM's say "Docker/Libvirt service failed to start" I can still see the array and all my files. The data appears to be intact. I have a backup of the flash drive and it seems to have the share listed properly, but the diagnostics show missing information. I hope it makes sense. I don't mind making new shares and resetting up everything. I just don't want to lose data. The drives pass diagnostics and most of the drives are new. hydra-diagnostics-20240215-1256.zip
February 15, 20242 yr Community Expert Check filesystem on disk1. Be sure to use the webUI and not the command line, and post the output.
February 15, 20242 yr Author 23 minutes ago, trurl said: Check filesystem on disk1. Be sure to use the webUI and not the command line, and post the output. Phase 1 - find and verify superblock... Phase 2 - using internal log - zero log... - scan filesystem freespace and inode maps... - found root inode chunk Phase 3 - for each AG... - scan (but don't clear) agi unlinked lists... - process known inodes and perform inode discovery... - agno = 0 - agno = 1 inode 2147483777 - bad extent starting block number 4494803803541339, offset 5699399040681087 correcting nextents for inode 2147483777 bad data fork in inode 2147483777 would have cleared inode 2147483777 - agno = 2 - agno = 3 - agno = 4 - agno = 5 - agno = 6 - agno = 7 - agno = 8 - agno = 9 - agno = 10 - agno = 11 - agno = 12 - agno = 13 - agno = 14 - process newly discovered inodes... Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - check for inodes claiming duplicate blocks... - agno = 0 - agno = 2 - agno = 1 - agno = 7 - agno = 4 - agno = 5 - agno = 8 - agno = 3 - agno = 10 - agno = 9 - agno = 11 entry "docker.img" in shortform directory 2147483776 references free inode 2147483777 would have junked entry "docker.img" in directory inode 2147483776 - agno = 6 inode 2147483777 - bad extent starting block number 4494803803541339, offset 5699399040681087 correcting nextents for inode 2147483777 bad data fork in inode 2147483777 would have cleared inode 2147483777 - agno = 12 - agno = 13 - agno = 14 No modify flag set, skipping phase 5 Phase 6 - check inode connectivity... - traversing filesystem ... entry "docker.img" in shortform directory inode 2147483776 points to free inode 2147483777 would junk entry - traversal finished ... - moving disconnected inodes to lost+found ... Phase 7 - verify link counts... No modify flag set, skipping filesystem flush and exiting.
February 15, 20242 yr Community Expert Do it again, this time without -n. If it ask for it, use -L. Post the output.
February 15, 20242 yr Author 1 minute ago, trurl said: Do it again, this time without -n. If it ask for it, use -L. Post the output. withont -n Phase 1 - find and verify superblock... Phase 2 - using internal log - zero log... - scan filesystem freespace and inode maps... - found root inode chunk Phase 3 - for each AG... - scan and clear agi unlinked lists... - process known inodes and perform inode discovery... - agno = 0 - agno = 1 inode 2147483777 - bad extent starting block number 4494803803541339, offset 5699399040681087 correcting nextents for inode 2147483777 bad data fork in inode 2147483777 cleared inode 2147483777 - agno = 2 - agno = 3 - agno = 4 - agno = 5 - agno = 6 - agno = 7 - agno = 8 - agno = 9 - agno = 10 - agno = 11 - agno = 12 - agno = 13 - agno = 14 - process newly discovered inodes... Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - check for inodes claiming duplicate blocks... - agno = 0 - agno = 1 - agno = 8 entry "docker.img" in shortform directory 2147483776 references free inode 2147483777 junking entry "docker.img" in directory inode 2147483776 - agno = 4 - agno = 6 - agno = 2 - agno = 7 - agno = 9 - agno = 11 - agno = 5 - agno = 10 - agno = 3 - agno = 12 - agno = 13 - agno = 14 clearing reflink flag on inodes when possible Phase 5 - rebuild AG headers and trees... - reset superblock... Phase 6 - check inode connectivity... - resetting contents of realtime bitmap and summary inodes - traversing filesystem ... - traversal finished ... - moving disconnected inodes to lost+found ... Phase 7 - verify and correct link counts... done with -L Phase 1 - find and verify superblock... Phase 2 - using internal log - zero log... - scan filesystem freespace and inode maps... clearing needsrepair flag and regenerating metadata - found root inode chunk Phase 3 - for each AG... - scan and clear agi unlinked lists... - process known inodes and perform inode discovery... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - agno = 4 - agno = 5 - agno = 6 - agno = 7 - agno = 8 - agno = 9 - agno = 10 - agno = 11 - agno = 12 - agno = 13 - agno = 14 - process newly discovered inodes... Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - check for inodes claiming duplicate blocks... - agno = 0 - agno = 4 - agno = 7 - agno = 2 - agno = 5 - agno = 6 - agno = 8 - agno = 9 - agno = 10 - agno = 11 - agno = 1 - agno = 3 - agno = 12 - agno = 13 - agno = 14 Phase 5 - rebuild AG headers and trees... - reset superblock... Phase 6 - check inode connectivity... - resetting contents of realtime bitmap and summary inodes - traversing filesystem ... - traversal finished ... - moving disconnected inodes to lost+found ... Phase 7 - verify and correct link counts... Maximum metadata LSN (68:3418958) is ahead of log (1:2). Format log to cycle 71. done
February 15, 20242 yr Community Expert Start the array in normal (not maintenance) mode and post new diagnostics.
February 15, 20242 yr Author 14 minutes ago, trurl said: Start the array in normal (not maintenance) mode and post new diagnostics. hydra-diagnostics-20240215-1744.zip
February 15, 20242 yr Community Expert Can you see your shares now? I see them in diagnostics, unlike those earlier. Repair of disk1 filesystem didn't put anything in lost+found so it should all be good. Looks like disk7 is empty or mostly so, I assume this is expected. Your appdata, domains, and system shares have files on the array. Ideally, these Docker/VM related shares would have all files on fast pool with nothing on the array, so Dockers/VMs will perform better, and so array disks can spin down since these files are always open. You have those set with nothing as Secondary, so Mover will ignore them. Might be simplest to just install Dynamix File Manager plugin and move them yourself. Nothing can move open files, so you will have to disable Docker (already disabled) and VM Manager in Settings before these can be moved.
February 16, 20242 yr Author 1 hour ago, trurl said: Can you see your shares now? I see them in diagnostics, unlike those earlier. Repair of disk1 filesystem didn't put anything in lost+found so it should all be good. Looks like disk7 is empty or mostly so, I assume this is expected. So yes, I do see the shares now, however, it seems like Docker is still not working. Under Apps, it looks like I have to install the Community Applications Plugin again Disk 7 is empty, Disk 5, 6 & 7 are my older drives, so I'm working through getting them upgraded to new drives with more storage 1 hour ago, trurl said: Your appdata, domains, and system shares have files on the array. Ideally, these Docker/VM related shares would have all files on fast pool with nothing on the array, so Dockers/VMs will perform better, and so array disks can spin down since these files are always open. That's how I initially setup the server, but my nVME drive started failing SMART. I think I moved it to prevent interruption in usage. Then we had a baby and I lost track of time and things I did. So, my question is, what's the best way to go about replacing the drive? I purchased a new drive already, just need to change it and do whatever is needed on UnRAID to get it setup.
February 16, 20242 yr Community Expert 20 minutes ago, rupeshjoy143 said: have to install the Community Applications Plugin again That's odd. I see lots of plugins in your diagnostics, and I even see the folder for CA, but I don't see the .plg file for CA. That makes me wonder if you don't have some flash drive corruption. What do you get from command line with this? ls -lah /boot Do you have a current backup of flash? 23 minutes ago, rupeshjoy143 said: nVME drive started failing SMART. I think I moved it to prevent interruption in usage. Diagnostics shows you currently have 2 pools with data /dev/nvme0n1p1 932G 354G 577G 39% /mnt/cache_1tb /dev/nvme1n1p1 466G 155G 312G 34% /mnt/cache_500gb Looks like the 1TB is failing, but seems to be readable. Since it is not a redundant pool, you will have to try to copy it so you can restore it to another drive. I wouldn't try to move its data since moving would require writing to it to delete the files. Just see if you can copy it somewhere on the array or an unassigned device. After you get CA back, you could install Dynamix File Manager plugin and use that to do the copying. Then 19 minutes ago, rupeshjoy143 said: Docker is still not working. https://docs.unraid.net/unraid-os/manual/docker-management/#re-create-the-docker-image-file https://docs.unraid.net/unraid-os/manual/docker-management/#re-installing-docker-applications
February 16, 20242 yr Author 15 hours ago, trurl said: What do you get from command line with this? ls -lah /boot Do you have a current backup of flash? I do have a backup of the flash drive. The flash backup seems to have the .plg file on there. Here is the readout from the requested CLI total 429M drwx------ 11 root root 8.0K Dec 31 1969 ./ drwxr-xr-x 20 root root 440 Feb 15 17:44 ../ drwx------ 8 root root 8.0K Feb 15 17:44 .git/ -rw------- 1 root root 180 Aug 16 2022 .gitattributes drwx------ 3 root root 8.0K Aug 7 2022 EFI/ -rw------- 1 root root 8.0K Jan 1 1980 FSCK0000.REC -rw------- 1 root root 24K Jan 1 1980 FSCK0001.REC -rw------- 1 root root 8.0K Jan 1 1980 FSCK0002.REC -rw------- 1 root root 8.0K Jan 1 1980 FSCK0003.REC -rw------- 1 root root 8.0K Jan 1 1980 FSCK0004.REC drwx------ 2 root root 8.0K Aug 7 2022 System\ Volume\ Information/ -rw------- 1 root root 334M Nov 27 12:11 bzfirmware -rw------- 1 root root 65 Nov 27 12:12 bzfirmware.sha256 -rw------- 1 root root 6.3M Nov 27 12:10 bzimage -rw------- 1 root root 65 Nov 27 12:12 bzimage.sha256 -rw------- 1 root root 61M Nov 27 12:11 bzmodules -rw------- 1 root root 65 Nov 27 12:12 bzmodules.sha256 -rw------- 1 root root 29M Nov 27 12:12 bzroot -rw------- 1 root root 1.2K Nov 27 12:12 bzroot-gui -rw------- 1 root root 65 Nov 27 12:12 bzroot-gui.sha256 -rw------- 1 root root 65 Nov 27 12:12 bzroot.sha256 -rw------- 1 root root 2.5K Nov 27 17:10 changes.txt drwx------ 11 root root 8.0K Feb 16 11:16 config/ drwx------ 2 root root 8.0K Dec 19 2022 extra/ -rw------- 1 root root 4.5K Jan 31 19:33 hardware -r-------- 1 root root 120K Aug 7 2022 ldlinux.c32 -r-------- 1 root root 68K Aug 7 2022 ldlinux.sys -rw------- 1 root root 7.8K Nov 27 17:10 license.txt drwx------ 2 root root 8.0K Feb 15 17:44 logs/ -rw------- 1 root root 1.8K Nov 27 17:10 make_bootable.bat -rw------- 1 root root 3.3K Nov 27 17:10 make_bootable_linux -rw------- 1 root root 2.4K Nov 27 17:10 make_bootable_mac -rw------- 1 root root 142K Nov 27 17:10 memtest drwx------ 2 root root 8.0K Nov 15 2022 preclear_reports/ drwx------ 2 root root 8.0K Feb 15 13:47 previous/ drwx------ 2 root root 8.0K Sep 27 2022 syslinux/ -rw------- 1 root root 492 Nov 27 17:10 syslinux.cfg-
February 16, 20242 yr Community Expert Those FSCK files are from repair of corrupt files. You might be able to examine them and see what they might have been. Many config files are text.
February 16, 20242 yr Author 4 hours ago, trurl said: Those FSCK files are from repair of corrupt files. You might be able to examine them and see what they might have been. Many config files are text. Would you say at this point the best thing to do is replacing the cache drive and then try to rebuild the docker image? Or would you do that now and then replace the drive?
February 17, 20242 yr Community Expert You want docker related appdata and system shares all on fast pool so get cache fixed first.
February 26, 20242 yr Author On 2/16/2024 at 9:29 PM, trurl said: You want docker related appdata and system shares all on fast pool so get cache fixed first. Hi there, just want to let you know that the THIS issue has been resolved. There are some unexpected shut downs happening, now, trying to troubleshoot it now
February 26, 20242 yr Community Expert 1 hour ago, rupeshjoy143 said: unexpected shut downs Setup syslog server Also, attach diagnostics to your NEXT post in this thread.
