New unraid install loses remote connection randomly

[UCX]

Hi all,

I just installed Unraid on my server, but I'm encountering a problem with the connection.

I randomly lose connection to my remote connection.

I have tried using DHCP, various static IPs, and also set a static IP on my ASUS router, but none have worked.

It is freshly installed and works for the first 2-3 minutes, but then it suddenly loses connection.

Also tried different cables and routers.



*In the BIOS settings, only the 10G LAN is enabled; the other is disabled.

*IPv6 is disabled

*Bonding = disabled



static

IPv4: 10.0.0.201 /24

gateway: 10.0.0.1

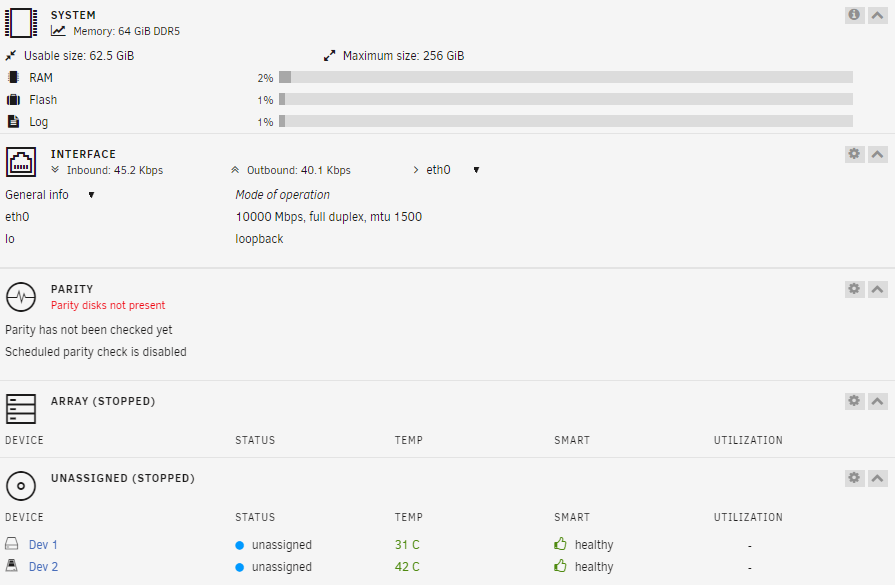

eth0: 10000 Mbps, full duplex, MTU: 1500



After getting disconnected ill get: Destination Host Unreachable



I have the following hardware:

-Asus ProArt Z790-CREATOR

-2xCorsair Vengeance CMK32GX5M2B7000C40 32 GB 2 x 16 GB DDR5

-Intel Core i7 14700K

-Samsung Bar Plus 64GB



-Samsung 990 PRO 2TB M.2 SSD (as cache)

-1xSeagate HDD NAS 3.5" 8TB

-4xSeagate HDD NAS 3.5" 6TB (not installed yet)



this is the error ill get in diagnostics/syslogs:

Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0: PCIe Bus Error: severity=Corrected, type=Physical Layer, (Receiver ID)
Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0:   device [8086:7a38] error status/mask=00002041/00002000
Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0:    [ 0] RxErr
Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0:    [ 6] BadTLP
Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0: AER: Multiple Corrected error message received from 0000:00:1c.0
Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0: AER: found no error details for 0000:00:1c.0
Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0: AER: Multiple Corrected error message received from 0000:00:1c.0
Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0: PCIe Bus Error: severity=Corrected, type=Physical Layer, (Receiver ID)
Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0:   device [8086:7a38] error status/mask=00002041/00002000
Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0:    [ 0] RxErr
Apr 29 15:49:40 UCX kernel: pcieport 0000:00:1c.0:    [ 6] BadTLP

The pci=noaer did fix this error but still no luck on the connection



The disconnection happens in here:

Apr 29 16:19:58 UCX webGUI: Successful login user root from 10.0.0.206
Apr 29 16:20:26 UCX network: reload service: nginx
Apr 29 16:21:11 UCX kernel: atlantic 0000:03:00.0 eth0: atlantic: link change old 10000 new 0
Apr 29 16:21:11 UCX kernel: br0: port 1(eth0) entered disabled state
Apr 29 16:21:14 UCX ntpd[1504]: Deleting interface #1 br0, 10.0.0.201#123, interface stats: received=7, sent=7, dropped=0, active_time=94 secs
Apr 29 16:21:14 UCX ntpd[1504]: 216.XXX.XXX.8 local addr 10.0.0.201 -> <null>
Apr 29 16:22:02 UCX login: pam_unix(login:session): session opened for user root(uid=0) by LOGIN(uid=0)
Apr 29 16:22:02 UCX login: ROOT LOGIN ON tty1



and in ifconfig it says:

br0              DOWN           10.0.0.201/24 metric 1

it disables itself???







Edited April 29 by UCX
more information

[JorgeB]

1 hour ago, UCX said:

it disables itself???

The NIC is detecting a link change/drop:



1 hour ago, UCX said:

link change old 10000 new 0



Try a different NIC if possible.

[UCX]

ASUS ProArt Marvel AQtion 10Gb port and the 2.5Gb port were problematic. After using another NIC, the problem was resolved.

Using Intel X550-T2👌

Edited May 13 by UCX
