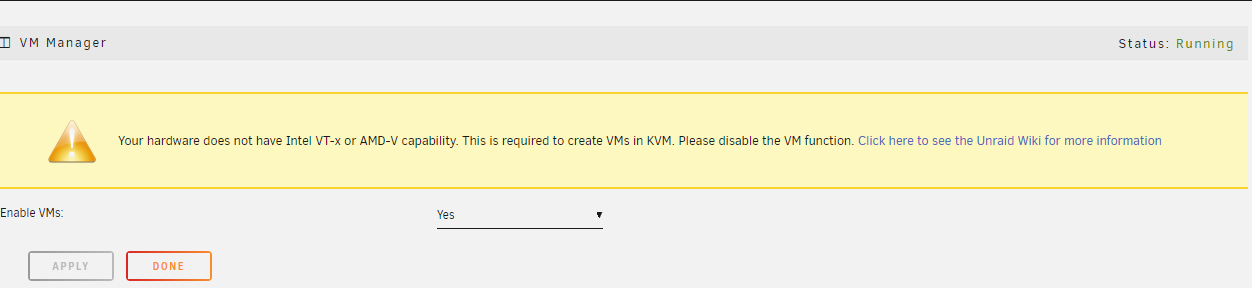

athawut Posted June 21 Share Posted June 21 (edited) Intel® Xeon® CPU E5-2696 v3 Intel® Xeon® CPU E5-2699 v3 x99 dual cpu china intel i cant create new vm Edited June 21 by athawut Quote Link to comment
SimonF Posted June 21 Share Posted June 21 20 minutes ago, athawut said: Intel® Xeon® CPU E5-2696 v3 Intel® Xeon® CPU E5-2699 v3 x99 dual cpu china intel i cant create new vm What is exact motherboard model? Looks like vtd is not enabled. What does system info show. Click on monitor icon on menu bar on right hand side. Quote Link to comment
athawut Posted June 21 Author Share Posted June 21 i don't sure motherboard model i think KLLISRE X99 ZX DU99D4 Quote Link to comment
JorgeB Posted June 22 Share Posted June 22 According to the screenshot virtualization is disabled, look in the board BIOS for an "Intel Virtualization" or similar option an enable it. Quote Link to comment

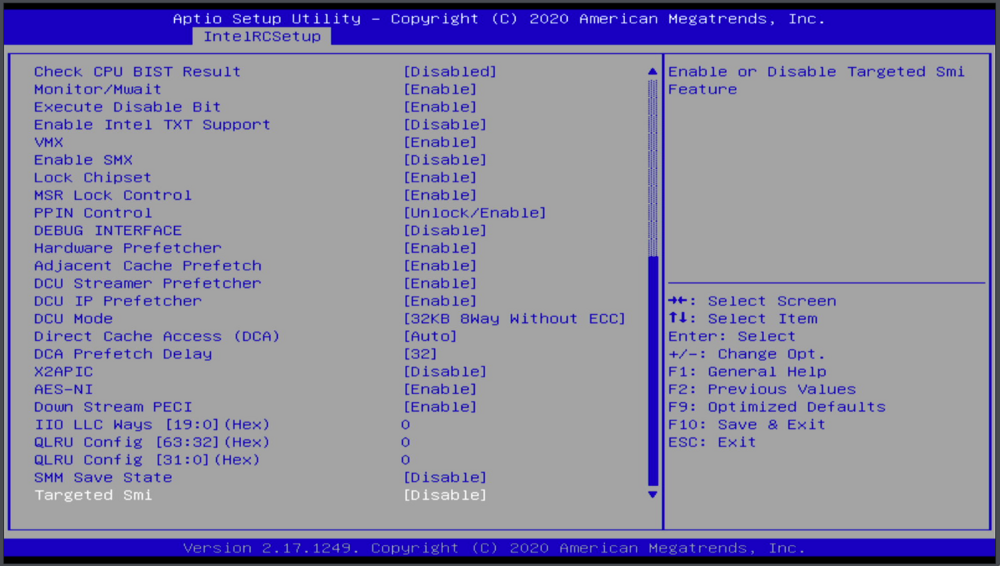

SimonF Posted June 22 Share Posted June 22 10 hours ago, athawut said: i don't sure motherboard model i think KLLISRE X99 ZX DU99D4 What is this setting. Quote Link to comment

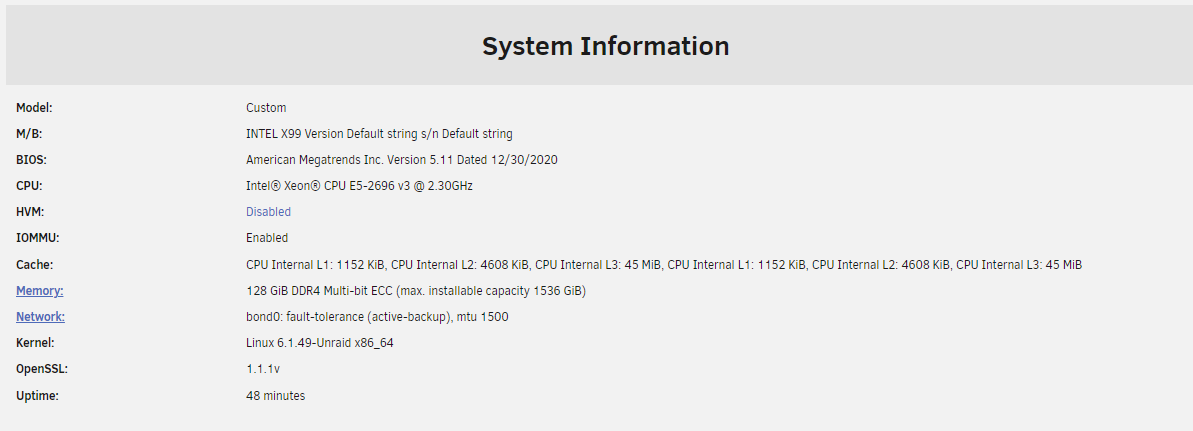

JorgeB Posted June 22 Share Posted June 22 Hmm, based on the sysinfo screenshot, VT-d (IOMMU) is already enabled, but not Virtualization in general. Quote Link to comment

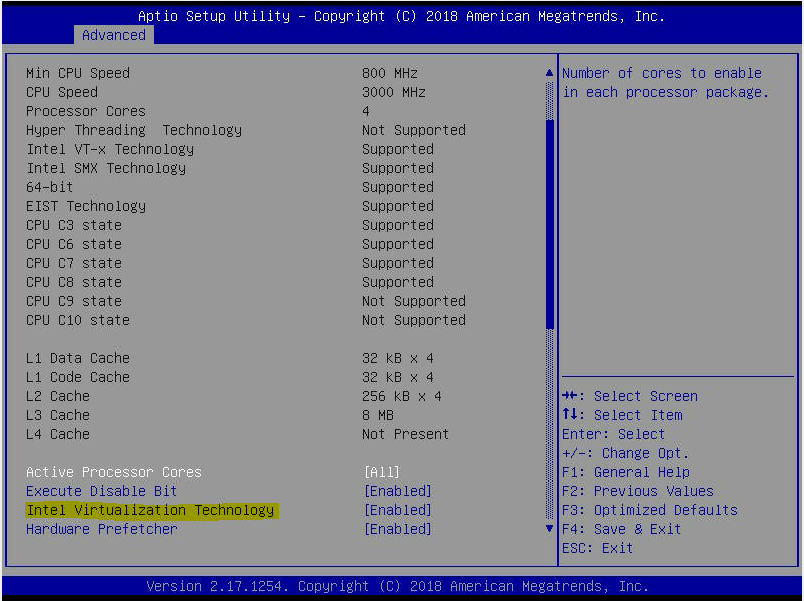

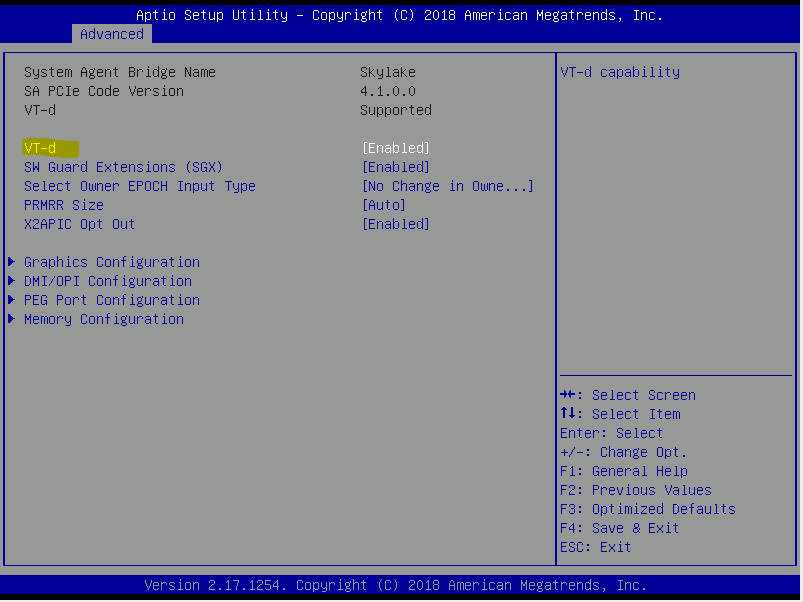

JorgeB Posted June 22 Share Posted June 22 Example from one of my servers: This is to enable virtualization in general (HVM) This is to enable VT-d (IOMMU) To use KVM without any PCIe pass-through you just need the 1st one, for pass-trough support you need both. Quote Link to comment

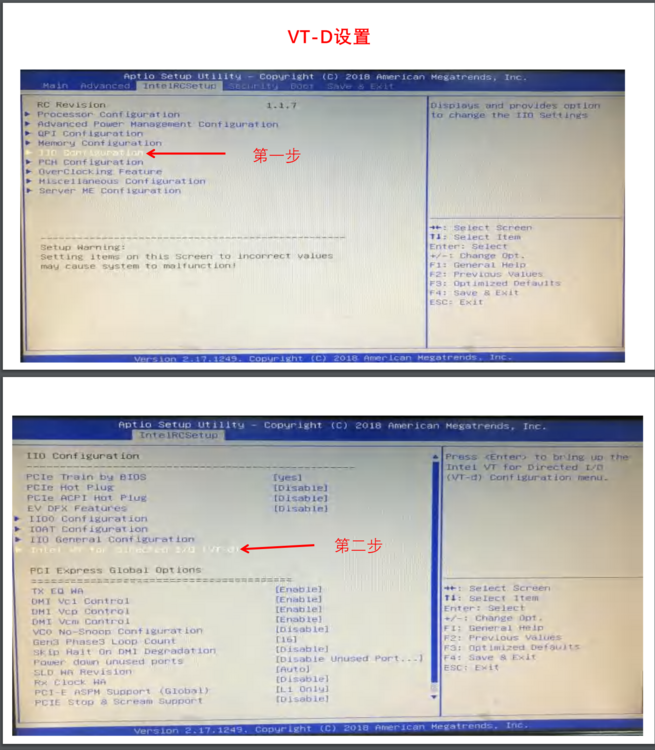

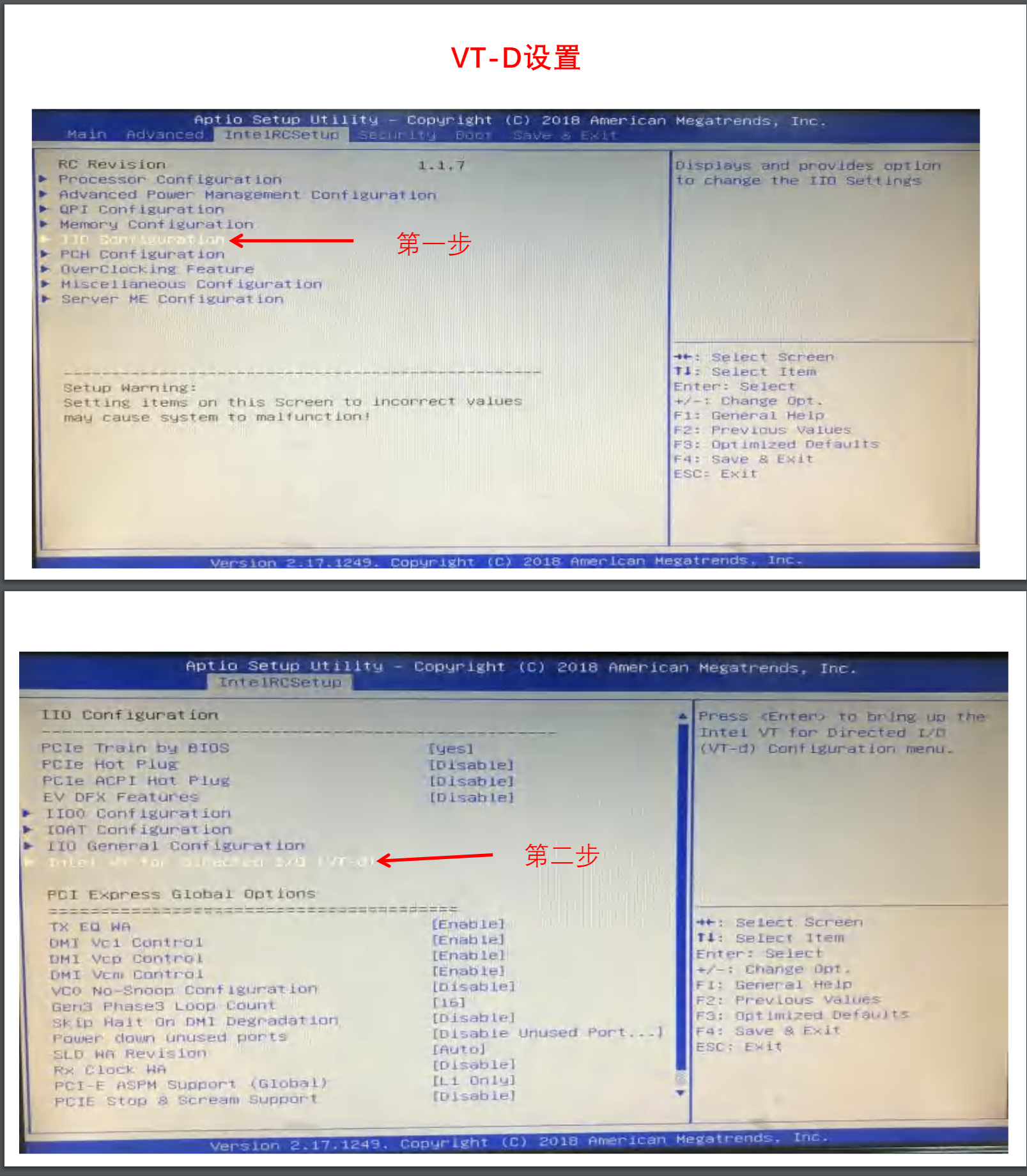

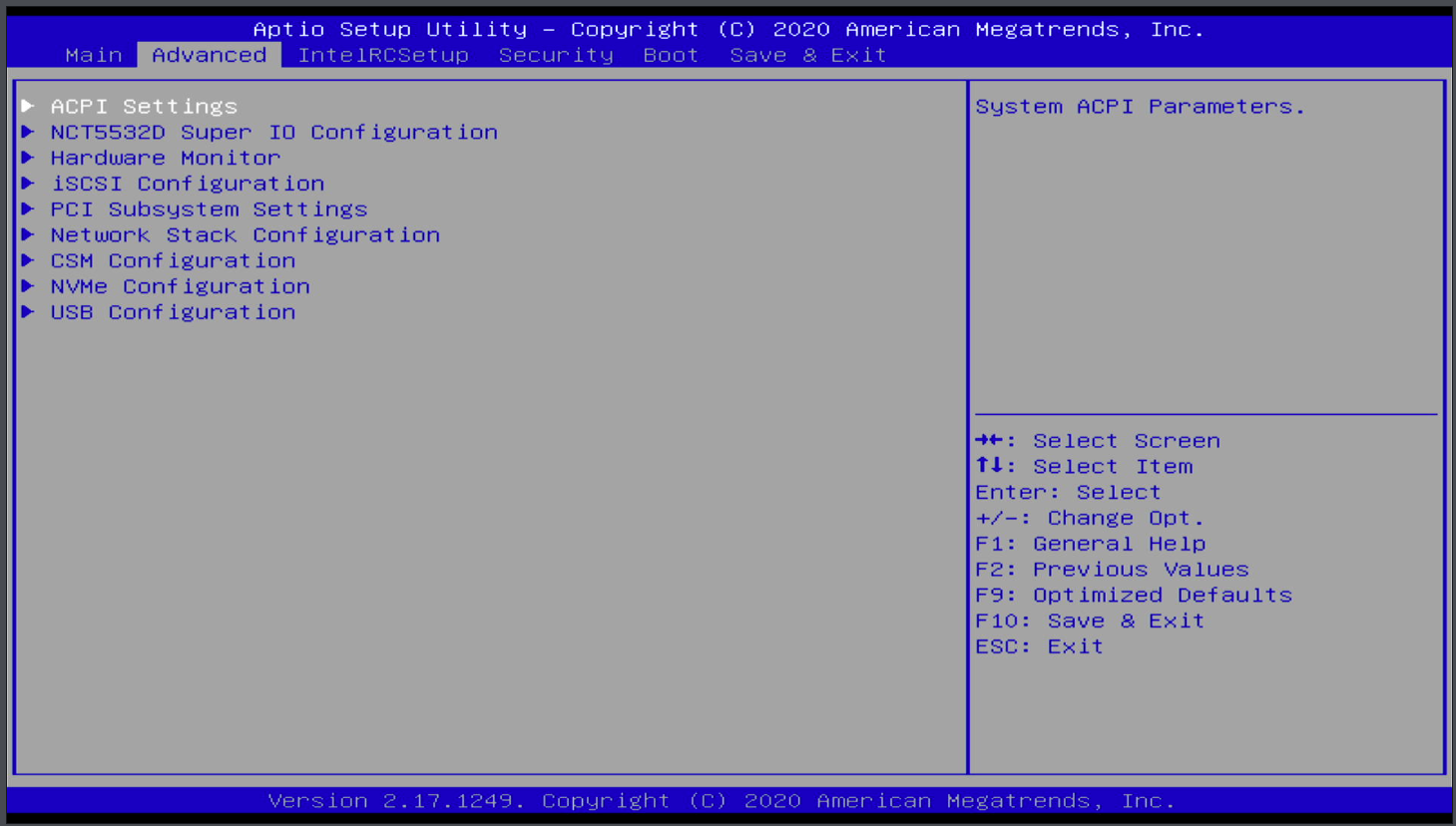

athawut Posted June 22 Author Share Posted June 22 check all menu in advanced not have "intel virtualization technology" or "VT-d" Quote Link to comment

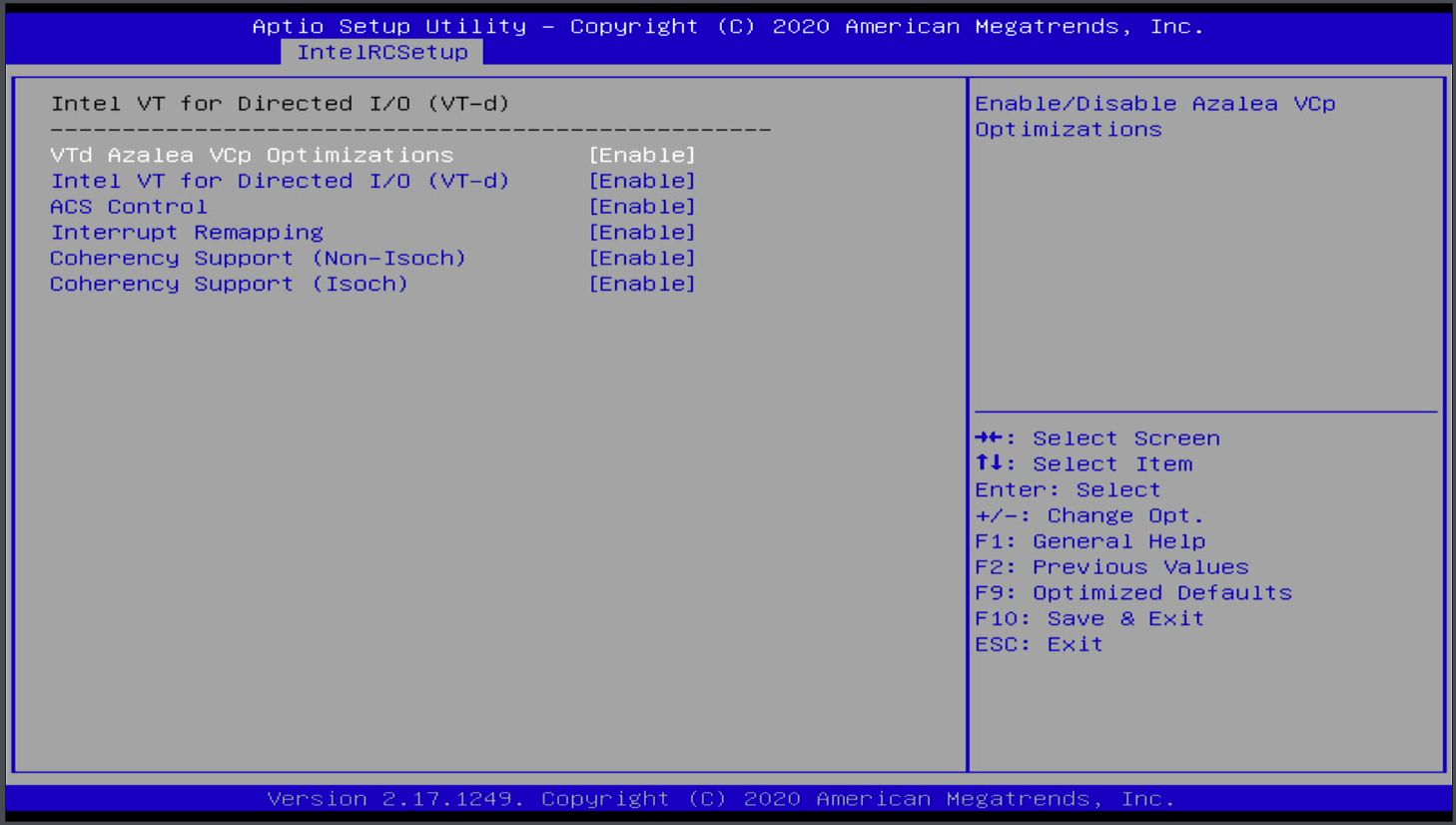

JorgeB Posted June 22 Share Posted June 22 VT-d is this one, and it's enabled: I should also have the other one, usually it's in the CPU settings, together with hyper-threading for example, but if there isn't, you won't be able to use VMs, look for a BIOS update. Quote Link to comment

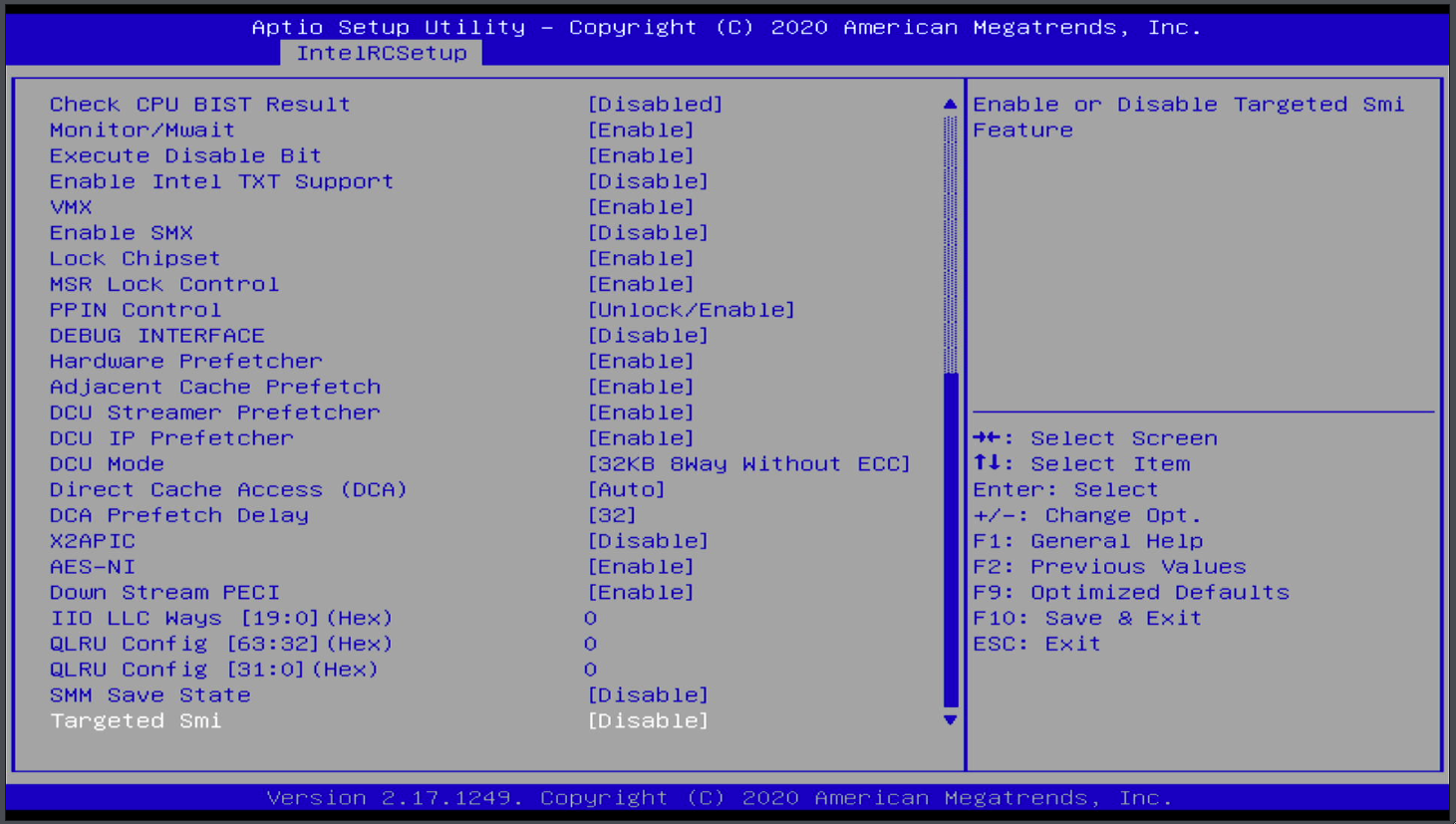

SimonF Posted June 22 Share Posted June 22 44 minutes ago, JorgeB said: VT-d is this one, and it's enabled: I should also have the other one, usually it's in the CPU settings, together with hyper-threading for example, but if there isn't, you won't be able to use VMs, look for a BIOS update. I think it is VMX which is already enabled so not sure why does not show. /etc/rc.d/rc.libvirt test does this provide an output? and lsmod | grep kvm root@computenode:/mnt/user/appdata/gpustat-unraid# lsmod | grep kvm kvm_intel 348160 10 kvm 1196032 9 kvm_intel root@computenode:/mnt/user/appdata/gpustat-unraid# Quote Link to comment
athawut Posted June 22 Author Share Posted June 22 root@Athawut-Tower:~# /etc/rc.d/rc.libvirt Usage: /etc/rc.d/rc.libvirt (test|start|stop|restart|status) root@Athawut-Tower:~# /etc/rc.d/rc.libvirt test modprobe: ERROR: could not insert 'kvm_intel': Input/output error root@Athawut-Tower:~# /etc/rc.d/rc.libvirt status root@Athawut-Tower:~# lsmod | grep kvm kvm 983040 0 root@Athawut-Tower:~# im afraid to update the BIOS. i never do it. Quote Link to comment
