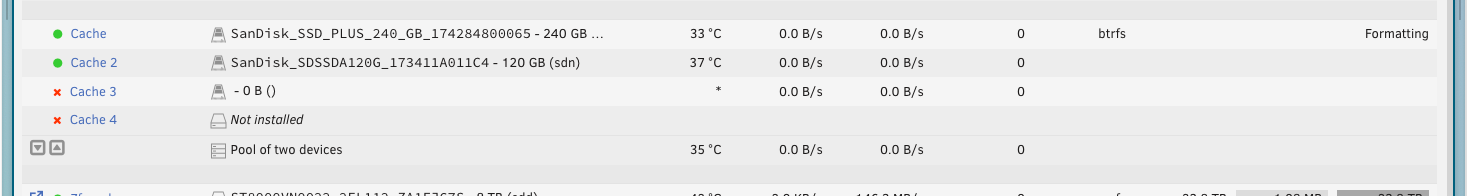

July 19, 20241 yr Hey folks, I am trying to make a zsf pool that's just a stripe pool to handle downloads I am doing. I started formatting them to do this 2 days ago - but its sitting and formatting. Is there something going on thats stopping this? what am I missing? Thanks Ansible Diagnostics 20240719.zip
July 19, 20241 yr Community Expert emhttp segfaulted, you will need to reboot. Â P.S. disk1 appears to be failing: Â Jul 18 04:15:44 Ansible kernel: md: disk1 read error, sector=31305196440 Jul 18 04:15:44 Ansible kernel: md: disk1 read error, sector=31305196448 Jul 18 04:15:44 Ansible kernel: md: disk1 read error, sector=31305196456 Jul 18 04:15:44 Ansible kernel: md: disk1 read error, sector=31305196464 Jul 18 04:15:44 Ansible kernel: md: disk1 read error, sector=31305196472 Jul 18 04:15:44 Ansible kernel: md: disk1 read error, sector=31305196480 Â
July 19, 20241 yr Author Ansible Diagnostics 20240720.zip I have restarted the server twice -- but I keep getting the same problems. Is there anything else i can look at that's causing this? Thanks!

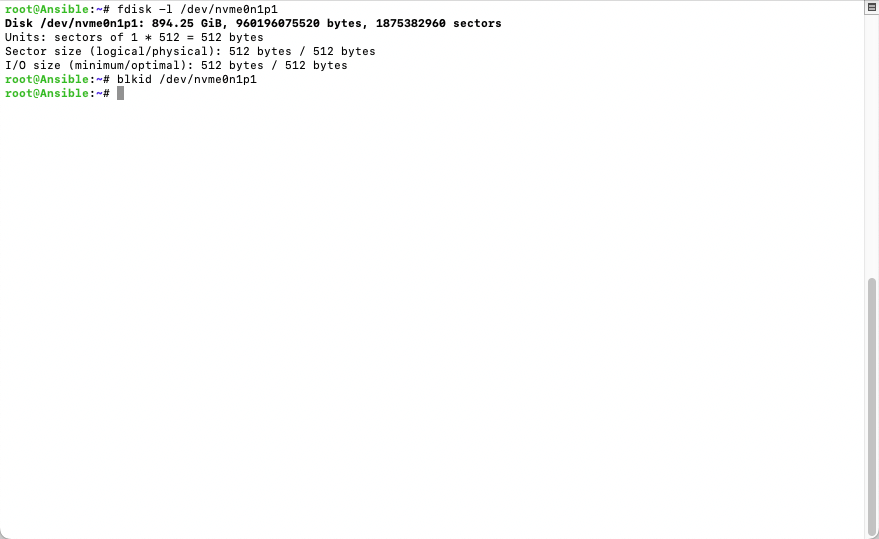

July 20, 20241 yr Community Expert emhttp crashed again, reboot and before attempting another format, post the output of:  fdisk -l /dev/nvme0n1p1 and blkid /dev/nvme0n1p1 Â
July 20, 20241 yr Author I am wondering if I should just wipe and redo the whole server? it'd be a shame to do so, but I had changed some of the configs of the hdds to try to reorient stuff, and its been a bit sketchy ever since. I did the process of making a 'new config' and then starting into that new config, and its been running in this loop ever since. Edited July 20, 20241 yr by grizzlemt
July 20, 20241 yr Author Here they are! Thank you so incredibly much for helping me. Ansible Diagnostics 20240720 (2).zip
July 20, 20241 yr Community Expert That device still has a partition being detected, despite fdisk showing nothing: Â Jul 20 01:05:18 Ansible kernel: nvme0n1: p1 Â Post the output of: Â lsblk Â
July 20, 20241 yr Author NAME    MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS loop0     7:0  0 65.8M 1 loop /lib loop1     7:1  0 373.6M 1 loop /usr loop2     7:2  0  20G 0 loop /var/lib/docker/btrfs                    /var/lib/docker loop3     7:3  0   1G 0 loop /etc/libvirt sda      8:0  1 14.3G 0 disk └─sda1    8:1  1 14.3G 0 part /boot sdb      8:16  0 16.4T 0 disk └─sdb1    8:17  0 16.4T 0 part sdc      8:32  0 14.6T 0 disk └─sdc1    8:33  0 14.6T 0 part sdd      8:48  0  7.3T 0 disk └─sdd1    8:49  0  7.3T 0 part sde      8:64  0 16.4T 0 disk └─sde1    8:65  0 16.4T 0 part sdf      8:80  0  7.3T 0 disk └─sdf1    8:81  0  7.3T 0 part sdg      8:96  0  7.3T 0 disk └─sdg1    8:97  0  7.3T 0 part sdh      8:112 0 16.4T 0 disk └─sdh1    8:113 0 16.4T 0 part sdi      8:128 0 16.4T 0 disk └─sdi1    8:129 0 16.4T 0 part sdj      8:144 0 16.4T 0 disk └─sdj1    8:145 0 16.4T 0 part sdk      8:160 0 18.2T 0 disk └─sdk1    8:161 0 18.2T 0 part sdl      8:176 0 10.9T 0 disk └─sdl1    8:177 0 10.9T 0 part sdm      8:192 0 232.9G 0 disk └─sdm1    8:193 0 232.9G 0 part sdn      8:208 0 111.8G 0 disk └─sdn1    8:209 0 111.8G 0 part sdo      8:224 0 223.6G 0 disk └─sdo1    8:225 0 223.6G 0 part md1p1     9:1  0 16.4T 0 md  /mnt/disk1 md2p1     9:2  0 16.4T 0 md  /mnt/disk2 md3p1     9:3  0 16.4T 0 md  /mnt/disk3 md5p1     9:5  0 16.4T 0 md  /mnt/disk5 md6p1     9:6  0 14.6T 0 md  /mnt/disk6 md9p1     9:9  0 10.9T 0 md  /mnt/disk9 nvme0n1   259:0  0 894.3G 0 disk └─nvme0n1p1 259:1  0 894.3G 0 part nvme1n1   259:2  0  1.9T 0 disk └─nvme1n1p1 259:3  0  1.9T 0 part nvme2n1   259:4  0  1.9T 0 disk └─nvme2n1p1 259:5  0  1.9T 0 part /mnt/appcache  Â
July 20, 20241 yr Community Expert dooh, just noticed I gave you the wrong command before, should have been:  fdisk -l /dev/nvme0n1  I assume that shows the partition?
July 20, 20241 yr Author Disk /dev/nvme0n1: 894.25 GiB, 960197124096 bytes, 1875385008 sectors Disk model: Force MP510               Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Disklabel type: dos Disk identifier: 0x00000000  Device     Boot Start    End  Sectors  Size Id Type /dev/nvme0n1p1    2048 1875385007 1875382960 894.3G 83 Linux Yes it does!
July 20, 20241 yr Community Expert Solution Now run blkdiscard -f /dev/nvme0n1 then again fdisk -l /dev/nvme0n1 Â
July 20, 20241 yr Author root@Ansible:~# blkdiscard -f /dev/nvme0n1 blkdiscard: Operation forced, data will be lost! root@Ansible:~#Â I dont know how to force it to do it? Â Disk /dev/nvme0n1: 894.25 GiB, 960197124096 bytes, 1875385008 sectors Disk model: Force MP510Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Maybe it did? I can't tell! hah
July 20, 20241 yr Author NAME    MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS loop0     7:0  0 65.8M 1 loop /lib loop1     7:1  0 373.6M 1 loop /usr loop2     7:2  0  20G 0 loop /var/lib/docker/btrfs                    /var/lib/docker loop3     7:3  0   1G 0 loop /etc/libvirt sda      8:0  1 14.3G 0 disk └─sda1    8:1  1 14.3G 0 part /boot sdb      8:16  0 16.4T 0 disk └─sdb1    8:17  0 16.4T 0 part sdc      8:32  0 14.6T 0 disk └─sdc1    8:33  0 14.6T 0 part sdd      8:48  0  7.3T 0 disk └─sdd1    8:49  0  7.3T 0 part sde      8:64  0 16.4T 0 disk └─sde1    8:65  0 16.4T 0 part sdf      8:80  0  7.3T 0 disk └─sdf1    8:81  0  7.3T 0 part sdg      8:96  0  7.3T 0 disk └─sdg1    8:97  0  7.3T 0 part sdh      8:112 0 16.4T 0 disk └─sdh1    8:113 0 16.4T 0 part sdi      8:128 0 16.4T 0 disk └─sdi1    8:129 0 16.4T 0 part sdj      8:144 0 16.4T 0 disk └─sdj1    8:145 0 16.4T 0 part sdk      8:160 0 18.2T 0 disk └─sdk1    8:161 0 18.2T 0 part sdl      8:176 0 10.9T 0 disk └─sdl1    8:177 0 10.9T 0 part sdm      8:192 0 232.9G 0 disk └─sdm1    8:193 0 232.9G 0 part sdn      8:208 0 111.8G 0 disk └─sdn1    8:209 0 111.8G 0 part sdo      8:224 0 223.6G 0 disk └─sdo1    8:225 0 223.6G 0 part md1p1     9:1  0 16.4T 0 md  /mnt/disk1 md2p1     9:2  0 16.4T 0 md  /mnt/disk2 md3p1     9:3  0 16.4T 0 md  /mnt/disk3 md5p1     9:5  0 16.4T 0 md  /mnt/disk5 md6p1     9:6  0 14.6T 0 md  /mnt/disk6 md9p1     9:9  0 10.9T 0 md  /mnt/disk9 nvme0n1   259:0  0 894.3G 0 disk nvme1n1   259:2  0  1.9T 0 disk └─nvme1n1p1 259:3  0  1.9T 0 part nvme2n1   259:4  0  1.9T 0 disk └─nvme2n1p1 259:5  0  1.9T 0 part /mnt/appcache
July 20, 20241 yr Author Okay I decided to try formatting! It worked on the ZFS Cache - but not the cache itself.  Disk /dev/nvme0n1: 894.25 GiB, 960197124096 bytes, 1875385008 sectors Disk model: Force MP510               Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes  NAME    MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS loop0     7:0  0 65.8M 1 loop /lib loop1     7:1  0 373.6M 1 loop /usr loop2     7:2  0  20G 0 loop /var/lib/docker/btrfs                    /var/lib/docker loop3     7:3  0   1G 0 loop /etc/libvirt sda      8:0  1 14.3G 0 disk └─sda1    8:1  1 14.3G 0 part /boot sdb      8:16  0 16.4T 0 disk └─sdb1    8:17  0 16.4T 0 part sdc      8:32  0 14.6T 0 disk └─sdc1    8:33  0 14.6T 0 part sdd      8:48  0  7.3T 0 disk └─sdd1    8:49  0  7.3T 0 part sde      8:64  0 16.4T 0 disk └─sde1    8:65  0 16.4T 0 part sdf      8:80  0  7.3T 0 disk └─sdf1    8:81  0  7.3T 0 part sdg      8:96  0  7.3T 0 disk └─sdg1    8:97  0  7.3T 0 part sdh      8:112 0 16.4T 0 disk └─sdh1    8:113 0 16.4T 0 part sdi      8:128 0 16.4T 0 disk └─sdi1    8:129 0 16.4T 0 part sdj      8:144 0 16.4T 0 disk └─sdj1    8:145 0 16.4T 0 part sdk      8:160 0 18.2T 0 disk └─sdk1    8:161 0 18.2T 0 part sdl      8:176 0 10.9T 0 disk └─sdl1    8:177 0 10.9T 0 part sdm      8:192 0 232.9G 0 disk └─sdm1    8:193 0 232.9G 0 part sdn      8:208 0 111.8G 0 disk └─sdn1    8:209 0 111.8G 0 part sdo      8:224 0 223.6G 0 disk └─sdo1    8:225 0 223.6G 0 part md1p1     9:1  0 16.4T 0 md  /mnt/disk1 md2p1     9:2  0 16.4T 0 md  /mnt/disk2 md3p1     9:3  0 16.4T 0 md  /mnt/disk3 md5p1     9:5  0 16.4T 0 md  /mnt/disk5 md6p1     9:6  0 14.6T 0 md  /mnt/disk6 md9p1     9:9  0 10.9T 0 md  /mnt/disk9 nvme0n1   259:0  0 894.3G 0 disk nvme1n1   259:2  0  1.9T 0 disk └─nvme1n1p1 259:3  0  1.9T 0 part nvme2n1   259:4  0  1.9T 0 disk └─nvme2n1p1 259:5  0  1.9T 0 part /mnt/appcache I just re-ran the commands you asked me for earlier - just in case that helps and reprinted a diagnostic Ansible Diagnostics 20240720 (3).zip
July 20, 20241 yr Author Something borky is happening with that. Now its unassigned the NVMEÂ Â Ansible Diagnostics 20240720 (1).zip
July 20, 20241 yr Author But honestly - I may just skip this cache idea and just use my strange version of a ZFS cache - later ill get bigger SSDs to use as a proper cache.  I am a bit worried about that NVME though - does that mean its borked and no longer works?
July 20, 20241 yr Community Expert Something weird is happening with that device, suggest trying with a different one.
November 24, 20241 yr I had the same problem today. I recreated the partitions table (i believe). Â 1. In the terminal: Â ```bash fdisk /dev/nvme0n1 g n w ``` Â 2. Recreated the pool with the drive and started the array. Unraid displayed a message about not having a partition, I start the formatting and it was ready after a few seconds. Â I'm using the beta 4 and in the same machine I was testing something with another NVME a few days ago and had no problems. This one I was using on windows, so maybe there is something related with the old OS.
