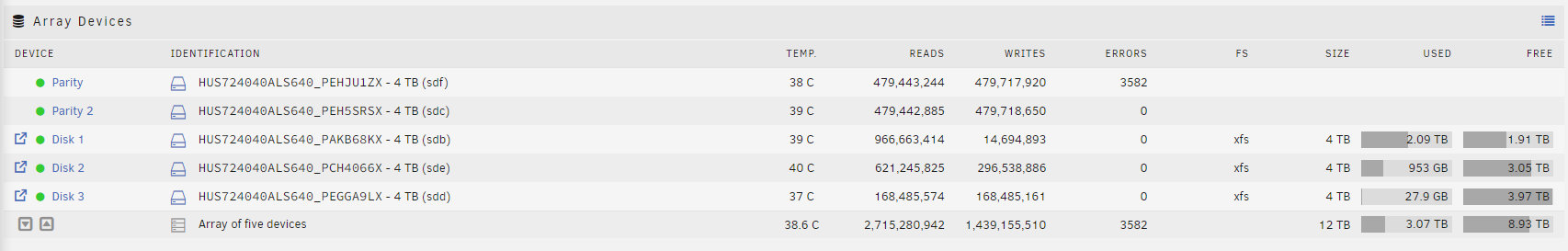

Mugs Posted August 15 Share Posted August 15 Hi All, I'm new to the unraid community, still learning and trying to figure it out, so please be gentle I've listed my questions below but please add anything else if needed. I've just noticed that I have some read errors on one of my drives. When I noticed I tried to run a SMART extended test (twice) but it failed in segment both times. I have 5 x 4tb hard drives installed in my system, they are old server drives so I expected they may not be the most stable of drives so I have set 2 of them up as a parity. 1. Should I replace the drive with read errors, or perform some other tests? I have other spare drives available 2. My parity check was done 30 days ago, will this have any effect on my rebuilding the cache Quote Link to comment
trurl Posted August 15 Share Posted August 15 Attach Diagnostics to your NEXT post in this thread. Quote Link to comment
Mugs Posted August 15 Author Share Posted August 15 smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.1.79-Unraid] (local build) Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Vendor: HGST Product: HUS724040ALS640 Revision: A280 Compliance: SPC-4 User Capacity: 4,000,787,030,016 bytes [4.00 TB] Logical block size: 512 bytes LU is fully provisioned Rotation Rate: 7200 rpm Form Factor: 3.5 inches Logical Unit id: 0x5000cca07356ee1c Serial number: PEHJU1ZX Device type: disk Transport protocol: SAS (SPL-4) Local Time is: Thu Aug 15 13:36:39 2024 AEST SMART support is: Available - device has SMART capability. SMART support is: Enabled Temperature Warning: Enabled Read Cache is: Enabled Writeback Cache is: Disabled === START OF READ SMART DATA SECTION === SMART Health Status: OK Current Drive Temperature: 39 C Drive Trip Temperature: 85 C Manufactured in week 44 of year 2015 Specified cycle count over device lifetime: 50000 Accumulated start-stop cycles: 38 Specified load-unload count over device lifetime: 600000 Accumulated load-unload cycles: 1892 Elements in grown defect list: 132 Vendor (Seagate Cache) information Blocks sent to initiator = 5113223527268352 Error counter log: Errors Corrected by Total Correction Gigabytes Total ECC rereads/ errors algorithm processed uncorrected fast | delayed rewrites corrected invocations [10^9 bytes] errors read: 1097210 45 0 1097255 205385743 389969.089 101 write: 0 0 0 0 17266 26205.738 0 verify: 6 0 0 6 19624 0.000 0 Non-medium error count: 0 SMART Self-test log Num Test Status segment LifeTime LBA_first_err [SK ASC ASQ] Description number (hours) # 1 Background long Failed in segment --> 7 50961 536858403 [0x3 0x5d 0x1] # 2 Background long Failed in segment --> 7 50961 536845737 [0x3 0x5d 0x1] # 3 Background long Completed - 50471 - [- - -] # 4 Background long Failed in segment --> 7 50461 593312290 [0x3 0x5d 0x1] Long (extended) Self-test duration: 37452 seconds [10.4 hours] Background scan results log Status: waiting until BMS interval timer expires Accumulated power on time, hours:minutes 50962:13 [3057733 minutes] Number of background scans performed: 136, scan progress: 0.00% Number of background medium scans performed: 136 # when lba(hex) [sk,asc,ascq] reassign_status 1 50533:40 00000000d9f2047f [3,11,0] Recovered via rewrite in-place 2 50529:35 00000000235ecaf8 [3,11,0] Reassigned by app, has valid data 3 50529:35 00000000235ebf3a [3,11,0] Reassigned by app, has valid data 4 50529:35 00000000235eb37c [3,11,0] Recovered via rewrite in-place 5 50529:35 00000000235e9c00 [3,11,0] Reassigned by app, has valid data 6 50529:35 00000000235e9042 [3,11,0] Reassigned by app, has valid data 7 50529:35 00000000235e8483 [3,11,0] Reassigned by app, has valid data 8 50529:35 00000000235e78c5 [3,11,0] Reassigned by app, has valid data 9 50529:35 00000000235e6d07 [3,11,0] Reassigned by app, has valid data 10 50529:35 00000000235e6149 [3,11,0] Reassigned by app, has valid data 11 50529:35 00000000235e558b [3,11,0] Reassigned by app, has valid data 12 50529:35 00000000235e3185 [3,11,0] Reassigned by app, has valid data 13 50529:35 00000000235da49c [3,11,0] Reassigned by app, has valid data 14 50529:35 00000000235d98de [3,11,0] Reassigned by app, has valid data 15 50529:35 00000000235d691a [3,11,0] Reassigned by app, has valid data 16 50529:35 00000000235d5d5c [3,11,0] Reassigned by app, has valid data 17 50529:35 00000000235d519e [3,11,0] Reassigned by app, has valid data 18 50529:35 00000000235d2e64 [3,11,0] Reassigned by app, has valid data 19 50529:35 00000000235d16e8 [3,11,0] Reassigned by app, has valid data 20 50529:35 00000000235cf3ad [3,11,0] Reassigned by app, has valid data 21 50529:35 00000000235ce7ef [3,11,0] Reassigned by app, has valid data 22 50529:35 00000000235cd073 [3,11,0] Reassigned by app, has valid data 23 50529:35 00000000235cb82b [3,11,0] Reassigned by app, has valid data 24 50529:34 00000000235cac6d [3,11,0] Reassigned by app, has valid data 25 50529:34 00000000235ca0af [3,11,0] Reassigned by app, has valid data 26 50529:34 00000000235c94f1 [3,11,0] Reassigned by app, has valid data 27 50529:34 00000000235c8933 [3,11,0] Reassigned by app, has valid data 28 50529:34 00000000235c7d75 [3,11,0] Reassigned by app, has valid data 29 50529:34 00000000235c71b7 [3,11,0] Reassigned by app, has valid data 30 50529:34 000000002330b070 [3,11,0] Reassigned by app, has valid data 31 50529:34 000000002330a4b2 [3,11,0] Reassigned by app, has valid data 32 50529:34 0000000023308c6b [3,11,0] Reassigned by app, has valid data 33 50529:34 00000000233080ad [3,11,0] Reassigned by app, has valid data 34 50529:34 00000000233074ef [3,11,0] Reassigned by app, has valid data 35 50529:34 0000000023306931 [3,11,0] Reassigned by app, has valid data 36 50529:34 0000000023305d73 [3,11,0] Reassigned by app, has valid data 37 50529:34 00000000233051b4 [3,11,0] Reassigned by app, has valid data 38 50529:34 00000000233016fe [3,11,0] Reassigned by app, has valid data 39 50529:34 0000000023300b40 [3,11,0] Reassigned by app, has valid data 40 50529:34 00000000232ff3c4 [3,11,0] Reassigned by app, has valid data 41 50529:34 00000000232fe805 [3,11,0] Reassigned by app, has valid data 42 50529:34 00000000232fc400 [3,11,0] Reassigned by app, has valid data 43 50529:34 00000000232fb842 [3,11,0] Reassigned by app, has valid data 44 50529:34 00000000232fac84 [3,11,0] Reassigned by app, has valid data 45 50529:34 00000000232fa0c6 [3,11,0] Reassigned by app, has valid data 46 50529:34 00000000232f9507 [3,11,0] Reassigned by app, has valid data 47 50529:33 00000000232f8949 [3,11,0] Reassigned by app, has valid data 48 50529:33 00000000232f7d8b [3,11,0] Reassigned by app, has valid data 49 50529:33 00000000232f660f [3,11,0] Recovered via rewrite in-place 50 50529:30 000000002001ccbf [3,11,0] Reassigned by app, has valid data 51 50529:30 000000002001c060 [3,11,0] Reassigned by app, has valid data 52 50529:30 000000002001b402 [3,11,0] Reassigned by app, has valid data 53 50529:30 000000002001a7a4 [3,11,0] Reassigned by app, has valid data 54 50529:30 0000000020010604 [3,11,0] Reassigned by app, has valid data 55 50529:29 000000002000f9a5 [3,11,0] Reassigned by app, has valid data 56 50529:29 000000002000ed47 [3,11,0] Reassigned by app, has valid data 57 50529:29 000000002000e0e9 [3,11,0] Reassigned by app, has valid data 58 50529:29 0000000020004ba8 [3,11,0] Reassigned by app, has valid data 59 50529:29 0000000020003f49 [3,11,0] Reassigned by app, has valid data 60 50529:29 00000000200032eb [3,11,0] Reassigned by app, has valid data 61 50529:29 000000002000268c [3,11,0] Recovered via rewrite in-place 62 50529:29 000000001fffb666 [3,11,0] Recovered via rewrite in-place 63 50529:29 000000001fff84ed [3,11,0] Reassigned by app, has valid data 64 50529:29 000000001fff6c30 [3,11,0] Recovered via rewrite in-place 65 50529:29 000000001fff5373 [3,11,0] Recovered via rewrite in-place 66 50461:34 00000000235e25c7 [3,11,0] Reassigned by app, has valid data General statistics and performance log page: General access statistics and performance: Number of read commands: 953716376 Number of write commands: 304771872 number of logical blocks received: 51183082305 number of logical blocks transmitted: 761658377039 read command processing intervals: 0 write command processing intervals: 0 weighted number of read commands plus write commands: 0 weighted read command processing plus write command processing: 0 Idle time: Idle time intervals: 1842511514 in seconds: 92125575.700 in hours: 25590.437 Protocol Specific port log page for SAS SSP relative target port id = 1 generation code = 8 number of phys = 1 phy identifier = 0 attached device type: SAS or SATA device attached reason: unknown reason: unknown negotiated logical link rate: phy enabled; 6 Gbps attached initiator port: ssp=1 stp=1 smp=1 attached target port: ssp=0 stp=0 smp=0 SAS address = 0x5000cca07356ee1d attached SAS address = 0x500605b005e43d54 attached phy identifier = 7 Invalid DWORD count = 299 Running disparity error count = 284 Loss of DWORD synchronization count = 75 Phy reset problem count = 0 relative target port id = 2 generation code = 8 number of phys = 1 phy identifier = 1 attached device type: no device attached attached reason: unknown reason: power on negotiated logical link rate: phy enabled; unknown attached initiator port: ssp=0 stp=0 smp=0 attached target port: ssp=0 stp=0 smp=0 SAS address = 0x5000cca07356ee1e attached SAS address = 0x0 attached phy identifier = 0 Invalid DWORD count = 0 Running disparity error count = 0 Loss of DWORD synchronization count = 0 Phy reset problem count = 0 Quote Link to comment
JorgeB Posted August 15 Share Posted August 15 That disk is failing the SMART test, so it should be replaced. Quote Link to comment
