Hi guys, hope someone can point me in the right direction here. I was running UnRaid on a Minisforum MS-01 with the same JBOD enclosure from QNAP and it was working flowless. The JBOD enclosure is meant to be connected to the server by means of a PCIe card (QXP-800e-A1164 card) with 2 x SFF-8088 to SFF-8088  cables. On the Minisforum I never had any issues.



Now, I am in need of adding a GPU (still looking for something) but since the MS-01 had only one PCIe slot I decided to sell it and get an Dell Optiplex 7050 with an i7-7700. The computer is much slower than the Minisforum of course but gives me more expansion.



Now the problem is that I can't get my array to start with this new computer, I have tried different PCIe slots and it's hit and miss. On boot it always recognises the QXP-800e-A1164 card however when I start the array sometimes it is starting but with one drive disabled (usually parity or first disk), then i rebuild the array and everything looks fine until next restart.



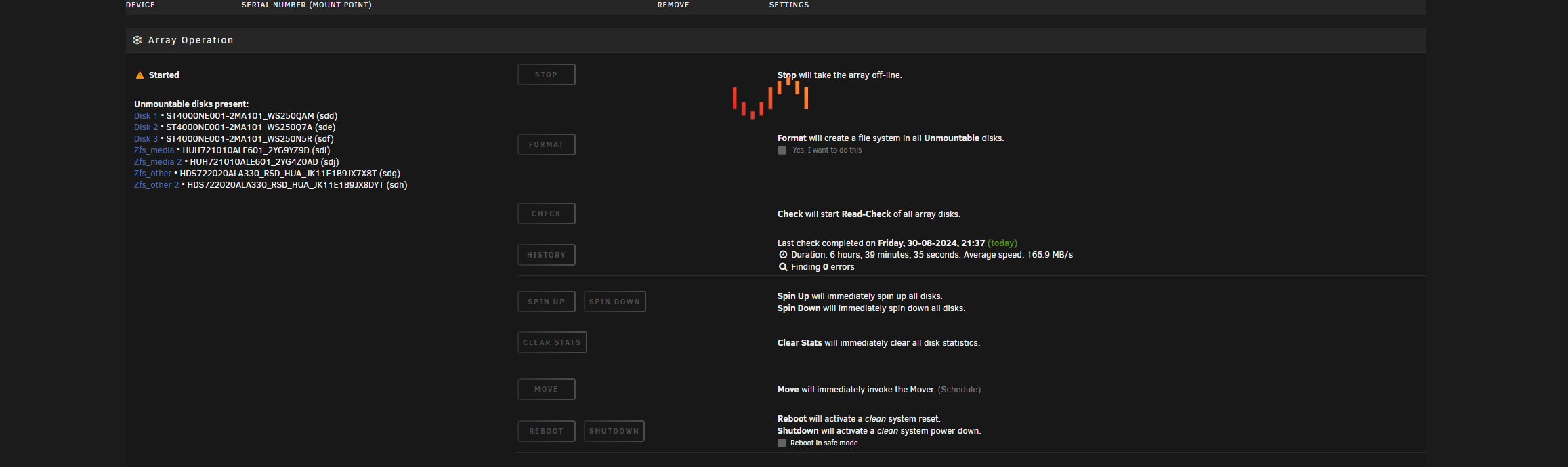

I have rebuild the parity drive 2 times already and after rebuilding and doing a parity check I don't get any errors but when I restart the server, this happens again. Sometimes i get: Unmountable: Unsupported or no file system on all drives.



I don't know what to do anymore, tried booting in safe mode, tried upgrading to the latest BIOS, nothing seems to work and every time I manage to make it work after a few reboots whenever I restart the server this happens again. I was also swapping the cables between them because I was not sure if the cables order is important so maybe that mess things up...

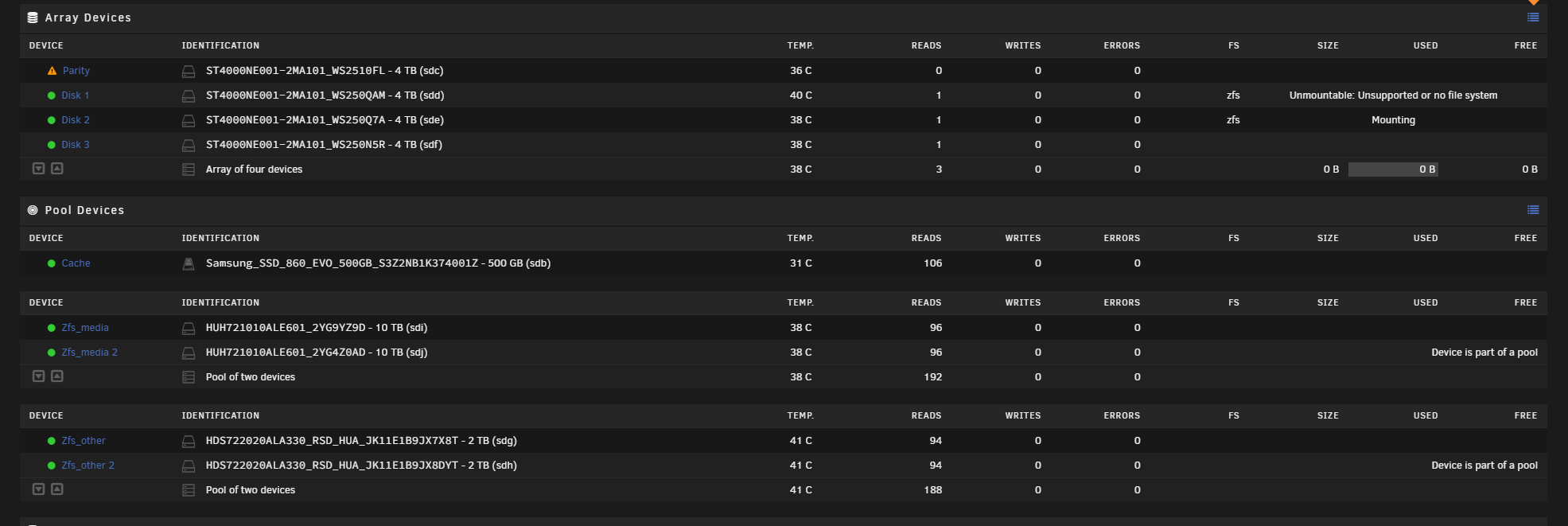

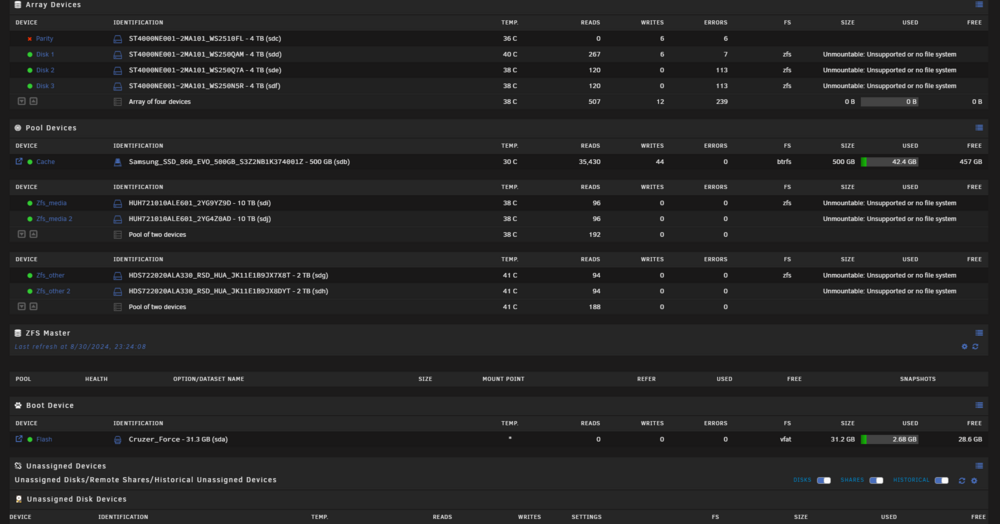

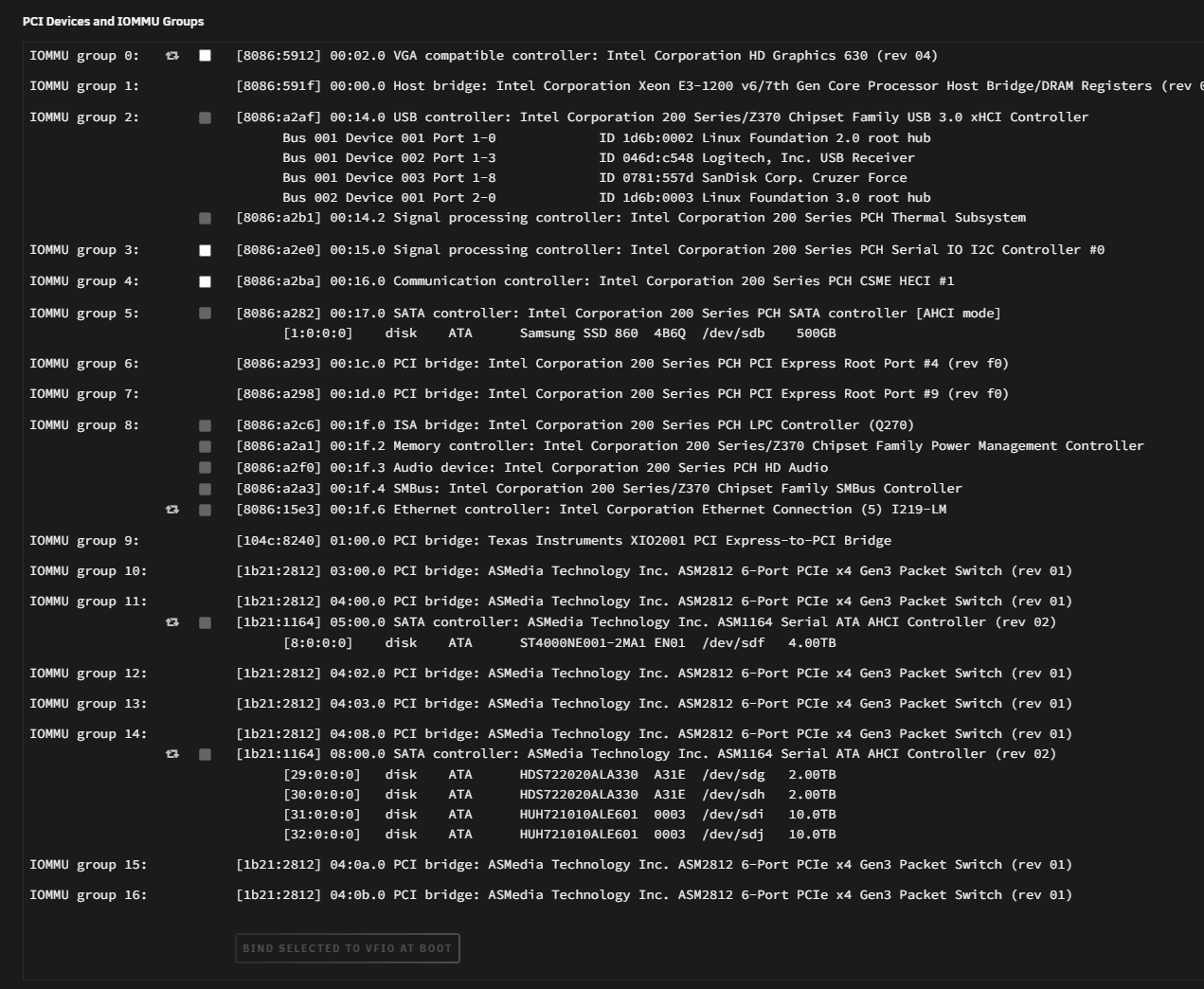

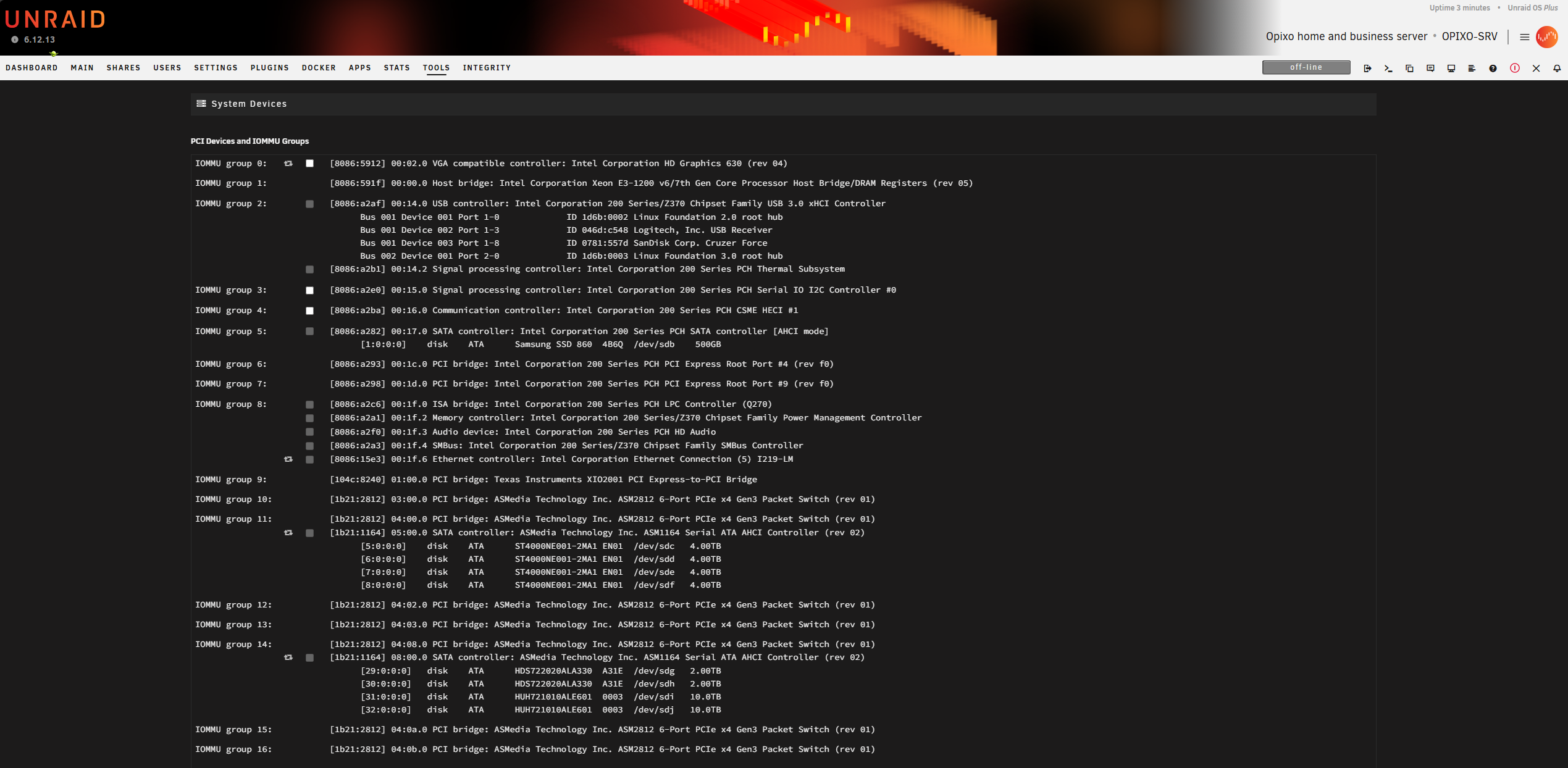

Note that in the screenshot with a red X marked this is how I see the JBOD before trying to initialize the array. Once I initialize the array the disks keep disappearing from there.

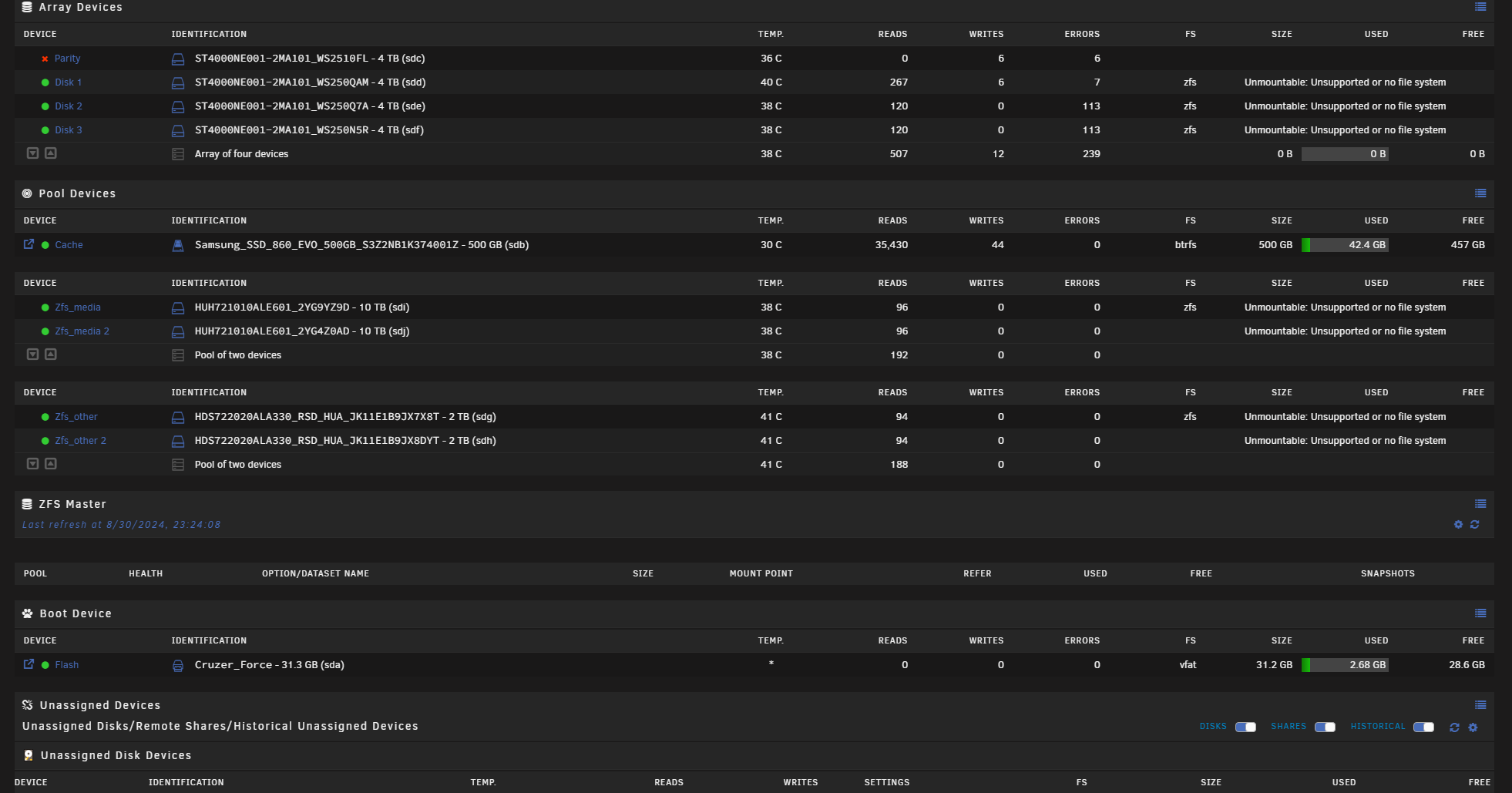

The second log .zip (2336.zip) is before starting the array.



I really hope someone can give me a hand on this one because i am truly lost here. Thanks all!





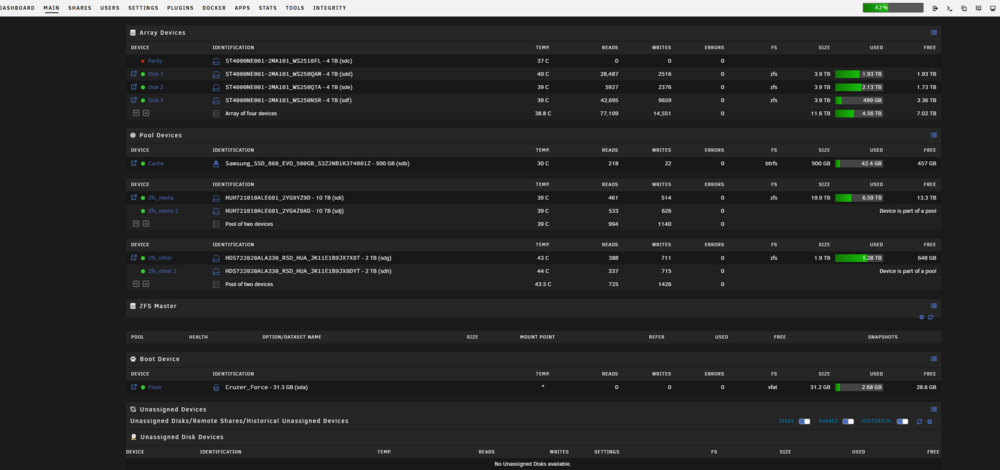

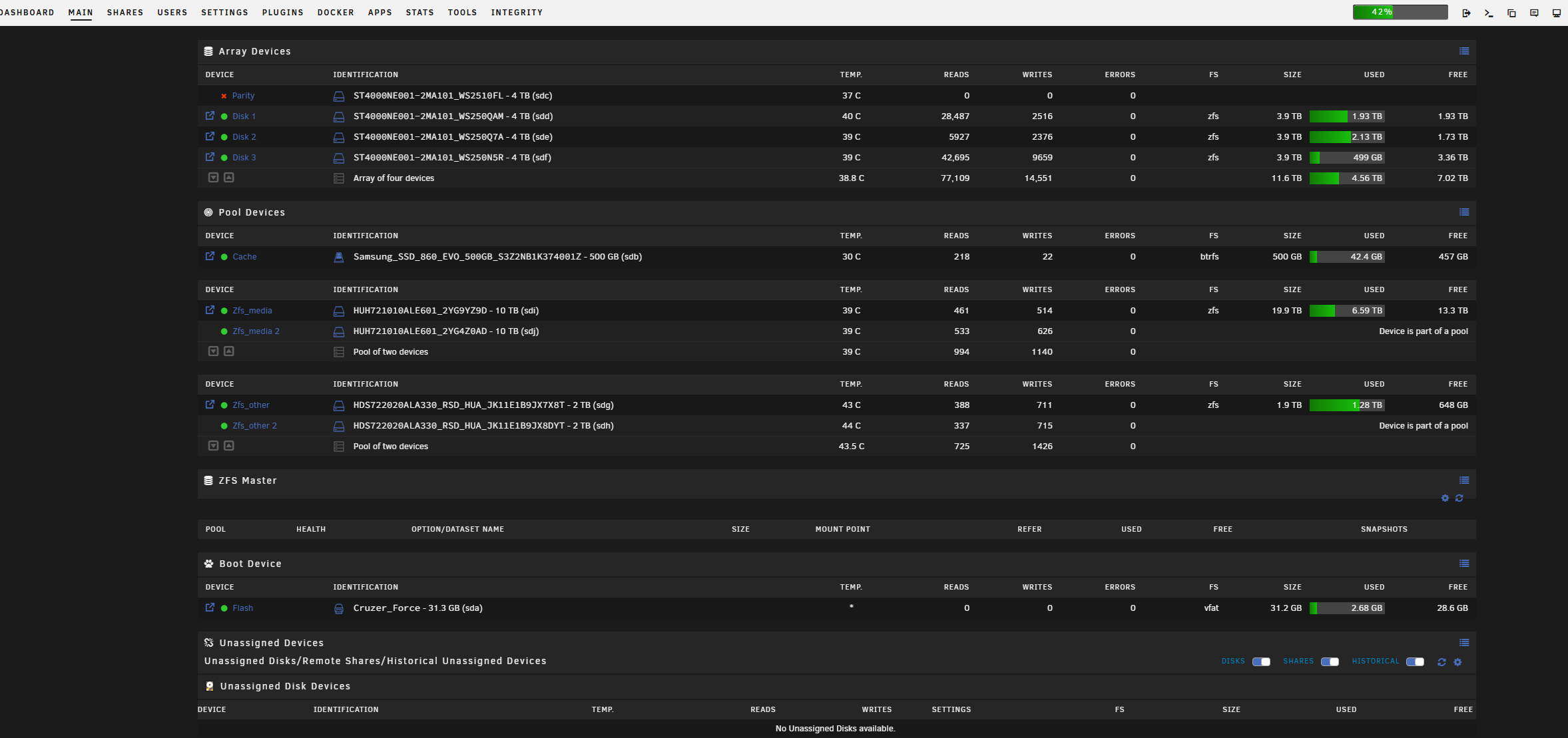

P.S.: Now while writing this after downloading the second diagnostics file, the array started, again without the parity but started anyhow, see last screenshot...

opixo-srv-diagnostics-20240830-2304.zip opixo-srv-diagnostics-20240830-2336.zip

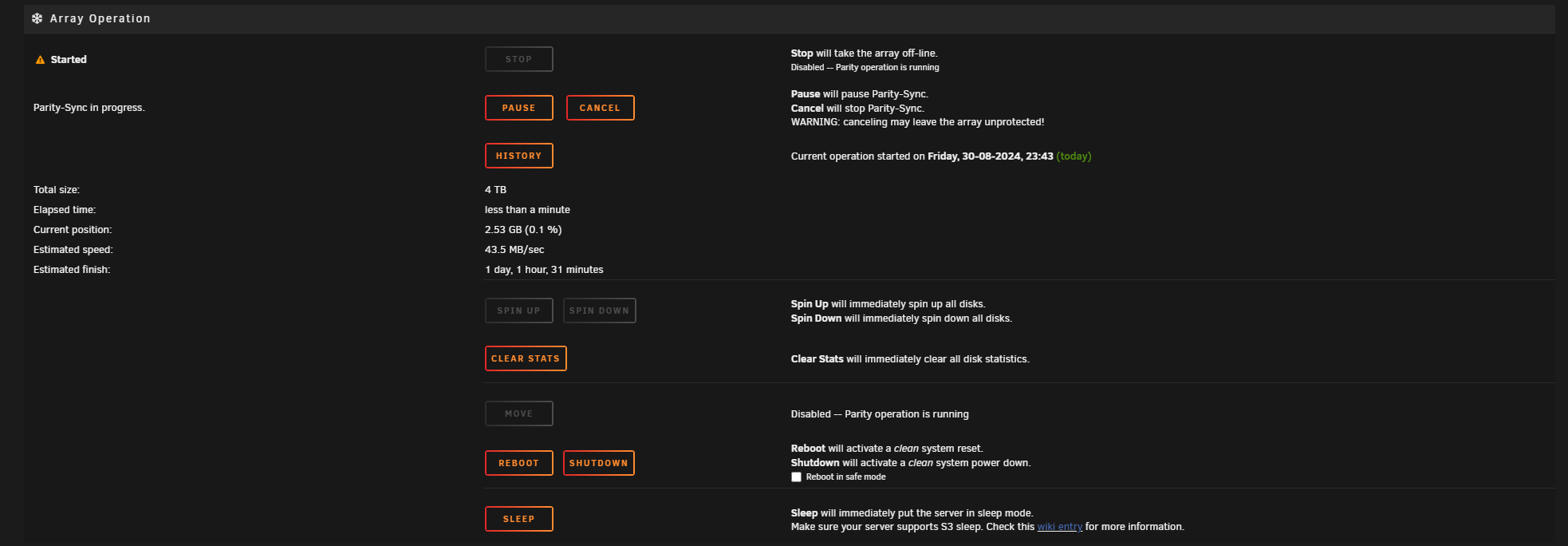

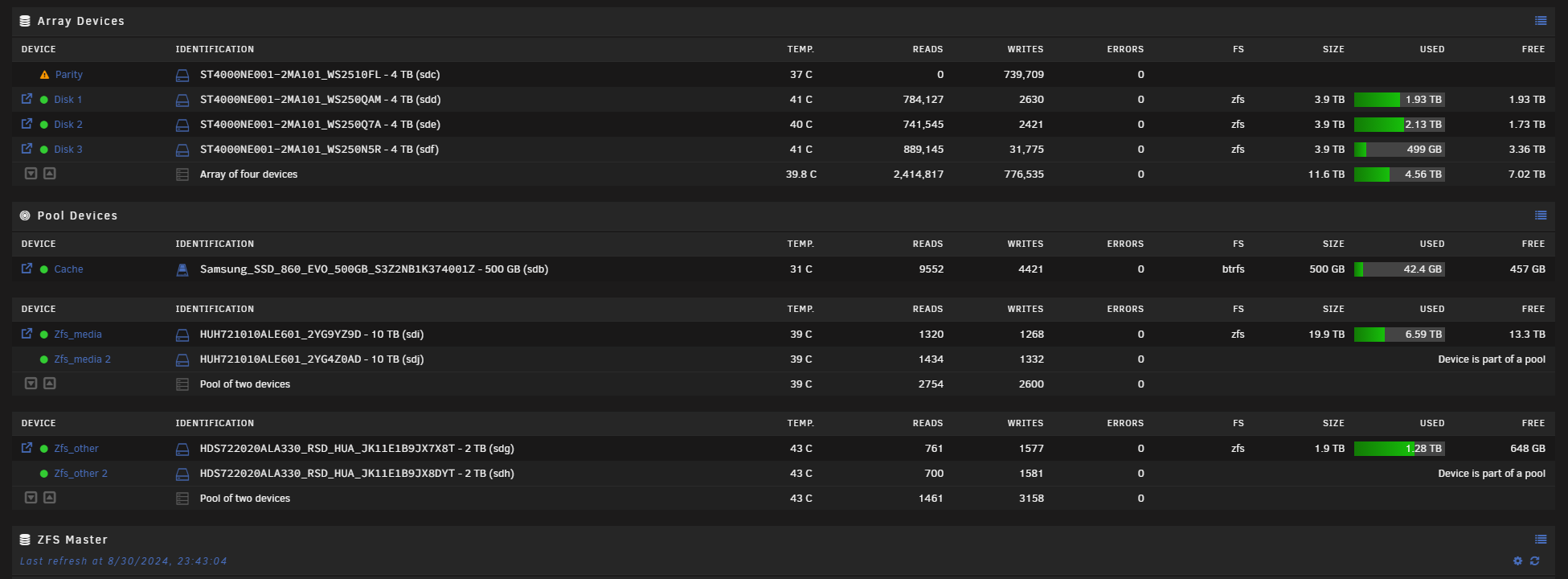

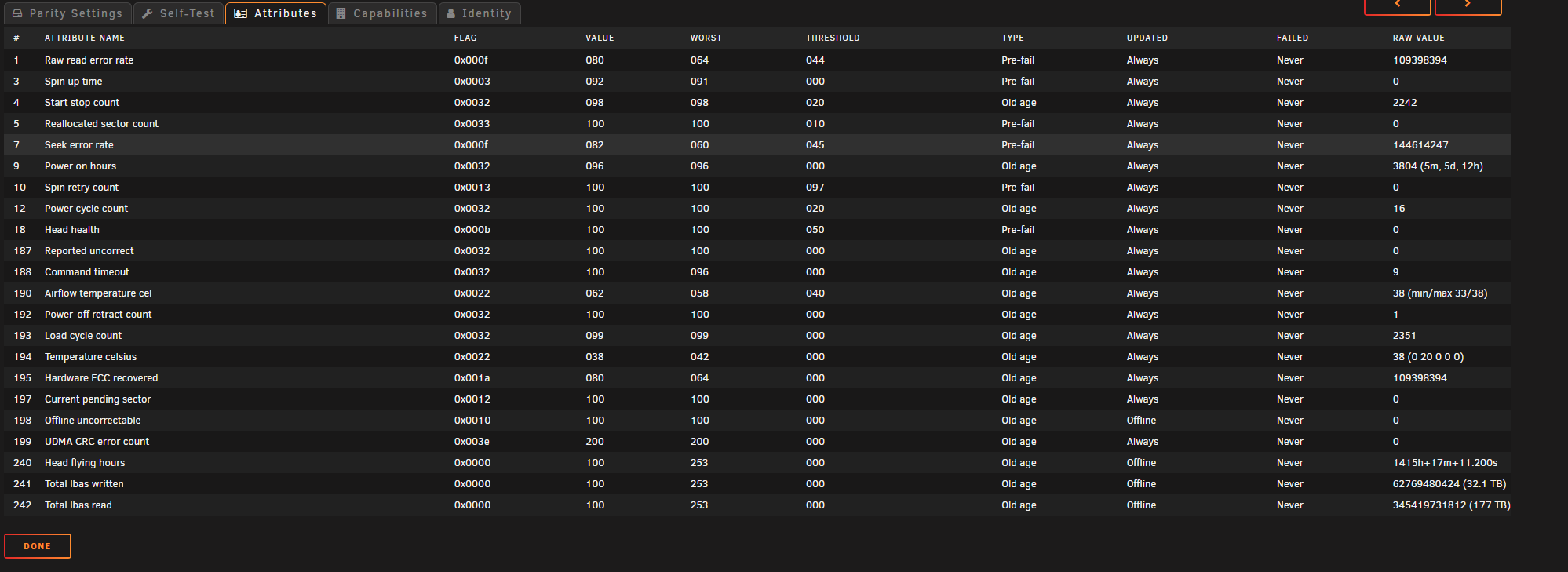

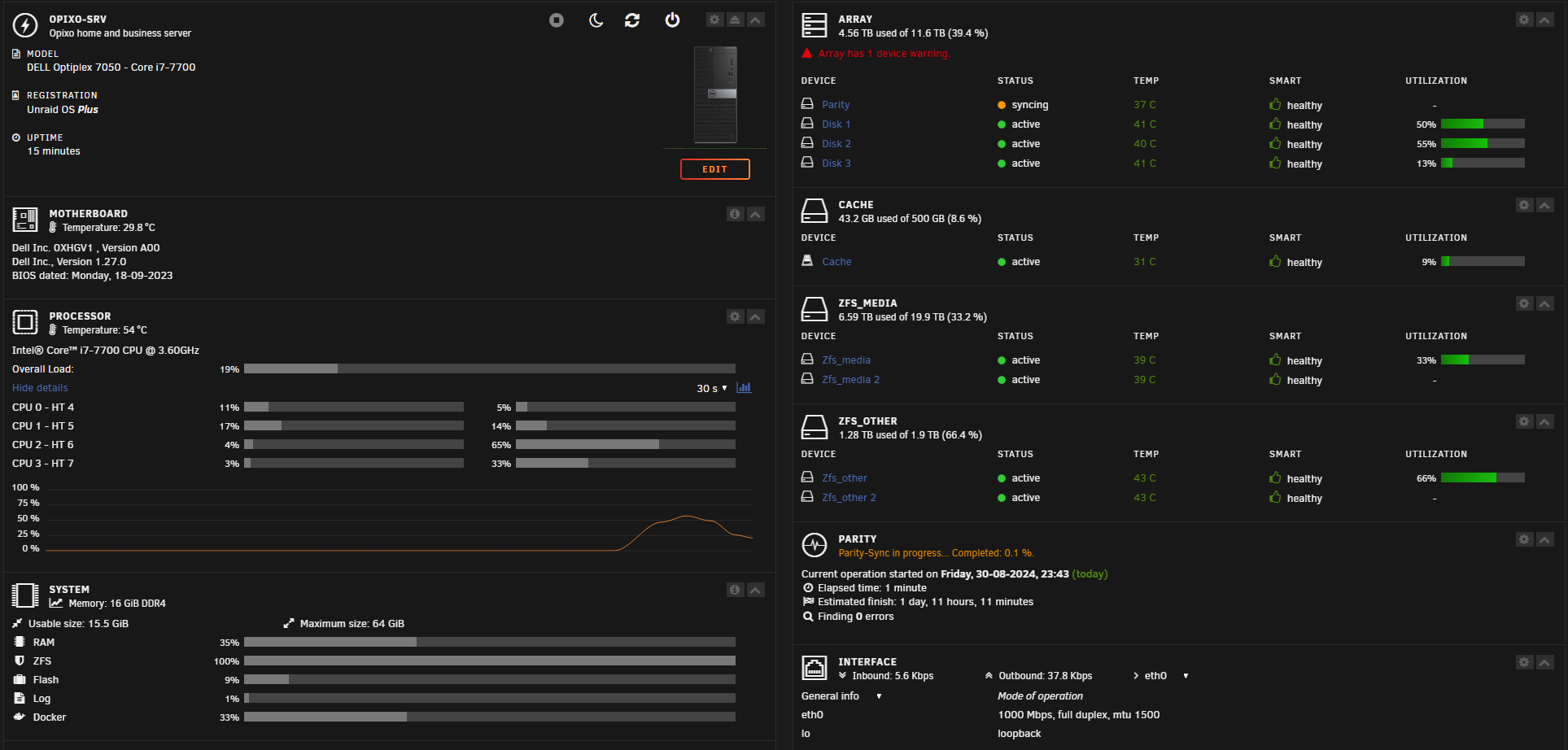

Now, I have stopped the array after managing to strat it as you can see in the last picture above, and removed the parity, started the array in maintenance mode without it and then stopped again, I then reselected the parity drive and started the array normally. It is now rebuilding the parity. Forgot to mention, because of this stuff I also got a lot of SMART errors on my drives now (188 Command timeout) for the parity drive and Disk 1 (seems that only these 2 drives are affected) and 199 - CRC error count for the cache SSD.

Any PCIe AER error ? I will try test by force Dell Optiplex 7050 PCIe to 2.0 in BIOS.

Thank you so much Vr2Io, yes I saw some PCIe AER errors in the logs I think. I looked in the BIOS couldn't find an option to switch to PCIe 2.0 unfortunately.



This is what I am getting regarding PCIe AER, but it's so strange because its not always, it's random when rebooting





Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:00:1d.0: AER: Multiple Uncorrected (Fatal) error message received from 0000:03:00.0
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:03:00.0: AER: PCIe Bus Error: severity=Uncorrected (Fatal), type=Inaccessible, (Unregistered Agent ID)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:03:00.0: AER:   Error of this Agent is reported first
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:02.0: PCIe Bus Error: severity=Uncorrected (Fatal), type=Transaction Layer, (Requester ID)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:02.0:   device [1b21:2812] error status/mask=00100000/04400000
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:02.0:    [20] UnsupReq               (First)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:02.0: AER:   TLP Header: 04000001 0000000f 06000006 00000000
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:03.0: PCIe Bus Error: severity=Uncorrected (Fatal), type=Transaction Layer, (Requester ID)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:03.0:   device [1b21:2812] error status/mask=00100000/04400000
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:03.0:    [20] UnsupReq               (First)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:03.0: AER:   TLP Header: 04000001 0000000f 07000007 00000000
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:0a.0: PCIe Bus Error: severity=Uncorrected (Fatal), type=Transaction Layer, (Requester ID)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:0a.0:   device [1b21:2812] error status/mask=00100000/04400000
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:0a.0:    [20] UnsupReq               (First)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:0a.0: AER:   TLP Header: 04000001 0000000f 09000009 00000000
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:0b.0: PCIe Bus Error: severity=Uncorrected (Fatal), type=Transaction Layer, (Requester ID)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:0b.0:   device [1b21:2812] error status/mask=00100000/04400000
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:0b.0:    [20] UnsupReq               (First)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:0b.0: AER:   TLP Header: 04000001 0000000f 0a00000a 00000000
Aug 30 22:56:29 OPIXO-SRV kernel: ahci 0000:05:00.0: AER: can't recover (no error_detected callback)
Aug 30 22:56:29 OPIXO-SRV kernel: ahci 0000:08:00.0: AER: can't recover (no error_detected callback)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:00:1d.0: AER: Root Port link has been reset (0)
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:00:1d.0: AER: device recovery failed
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:02.0: Unable to change power state from D0 to D3hot, device inaccessible
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:03.0: Unable to change power state from D0 to D3hot, device inaccessible
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:0a.0: Unable to change power state from D0 to D3hot, device inaccessible
Aug 30 22:56:29 OPIXO-SRV kernel: pcieport 0000:04:0b.0: Unable to change power state from D0 to D3hot, device inaccessible


1 minute ago, opixo said:

Thank you so much Vr2Io, yes I saw some PCIe AER errors in the logs I think. I looked in the BIOS couldn't find an option to switch to PCIe 2.0 unfortunately.

Then coulldn't confirm does problem really  PCIe signal issue related. Sorry, no much idea what you can do.

Just now, opixo said:

severity=Uncorrected (Fatal),

Really bad, usually it will be correctable, but it is fatal.

I will try tomorrow to put the PCIe card in my main PC and try to boot UnRaid there, see if this happens there as well, might be that the Optiplex has an issue with PCIe. I recently bought it from eBay...

Anyways, thank you so much. will write after the test on the other computer.

Really trouble seems corrupt file system too. Pls use some dummy disk for test, and best got a trial Unraid on new USB stick for testing.

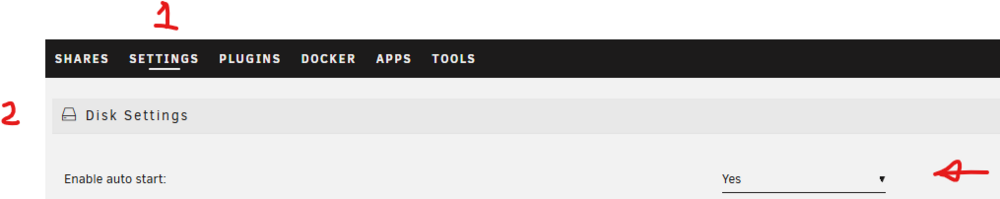

As an experiment, try setting the array autostart to "No".  This will require that you manually start the array from the MAIN tab.





What may be happening is that things are not properly initialized when the array attempts to auto start on boot up.  Don't be a big rush to start the array, wait at least thirty to forty seconds.



EDIT: Second thought.  Make sure BIOS is not set on Fast boot option.

Edited August 30, 20241 yr by Frank1940

This is a very old post, but maybe will help someone in same situation as me. Today, i finally had some time to troubleshoot it and togheder with my friend the AI who is also writing the solution below we manage to fix it. Here is what we did:

🔧 [RESOLVED] Dell OptiPlex 7050 + QNAP TL-D800S JBOD — Complete Fix Guide

Hey everyone, follow-up to my original post from August 2024. After a LOT more troubleshooting (and almost losing my mind), I've fully resolved the cold boot drive failure issue with the QNAP QXP-800eS-A1164 PCIe card.

First — thank you to @Vr2Io and @Frank1940 for the suggestions in the original thread. You were both pointing in the right direction:

• @Vr2Io: The PCIe AER Fatal errors WERE the key symptom. Couldn't force PCIe 2.0 in the Dell BIOS, but the fix was disabling power management features that were destabilizing the PCIe link.

• @Frank1940: Disabling array autostart + waiting before starting was absolutely the right instinct. The go script solution below is essentially an automated version of that, plus NCQ disable.

Posting this in detail because I found very few resources for this specific combination and hopefully it saves someone else days of headaches.

---

🖥️ Hardware

Server	Dell OptiPlex 7050 Tower (i7-7700, 32GB DDR4, BIOS v1.27.0)
JBOD	QNAP TL-D800S (8-bay, SFF-8088 connection)

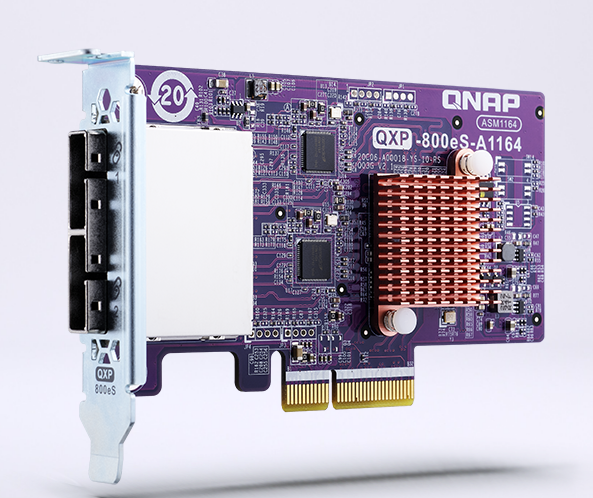

PCIe Card	QNAP QXP-800eS-A1164 (ASM2812 switch + 2x ASM1164 AHCI controllers)
OS	Unraid 7.2.3, kernel 6.12.54-Unraid
Array Drives	4x Seagate ST4000NE001 4TB (1 parity + 3 data)
Pool Drives	2x Hitachi 2TB (ZFS mirror) + 2x HGST 10TB (ZFS stripe)

---

💥 The Problem

Every cold boot, array drives on ASM1164 controller #1 would fail. Two types of errors depending on what was going wrong:

Type 1 — PCIe AER Fatal errors (from original post, Aug 2024):

pcieport 0000:00:1d.0: AER: Multiple Uncorrected (Fatal) error received from 0000:03:00.0
pcieport 0000:04:02.0: device [1b21:2812] error status/mask=00100000/04400000
pcieport 0000:04:02.0: [20] UnsupReq (First)
ahci 0000:05:00.0: AER: can't recover (no error_detected callback)
pcieport 0000:00:1d.0: AER: device recovery failed

Type 2 — SATA/AHCI errors (after PCIe stabilized with BIOS fixes):

ata5.00: exception Emask 0x0 SAct 0x7fffffff SErr 0x0 action 0x6 frozen
ata5.00: failed command: WRITE FPDMA QUEUED
ata5: hard resetting link
ata5.00: failed to IDENTIFY (I/O error, err_mask=0x4)

Both types would crash ALL 4 ports on the same ASM1164 chip simultaneously, cascade into hard reset loops, and disable all drives. The array would hang during start and require SysRq reboot (echo b > /proc/sysrq-trigger) because ZFS import processes get stuck in uninterruptible D-state.

Warm reboots sometimes worked. Safe mode always worked. 100% reproducible on cold boot under any I/O load.

---

🔍 Root Cause — THREE Issues Stacked Together

1. ASM1164 NCQ Bug

The ASM1164 has a known bug with Native Command Queuing (NCQ). Commands sent as WRITE FPDMA QUEUED (NCQ) would timeout and crash the controller. This is documented across multiple platforms — Raspberry Pi Linux, openSUSE forums, various NAS communities.

2. Dell BIOS Power Management

The OptiPlex 7050's default BIOS settings include aggressive power saving that destabilizes PCIe devices:

• Deep Sleep Control: enabled by default (cuts power to PCIe in S4/S5)

• C-States: enabled (CPU power states affect PCIe link stability)

• Block Sleep: disabled (allows S3 sleep which kills PCIe)

• AC Recovery: Off (no auto-restart after power loss)

3. PCIe Remove/Rescan Hack Breaking BIOS Initialization

This was the hardest to find. I had a workaround in /boot/config/go that did:

echo 1 > /sys/bus/pci/devices/0000:04:00.0/remove
sleep 5
echo 1 > /sys/bus/pci/rescan

This was supposed to "reset" the card. What it ACTUALLY did was destroy the proper firmware initialization that BIOS performed during POST. The Linux PCIe rescan does NOT perform the full firmware handshake — it just re-enumerates the device. The controller appeared to work for light I/O but would crash under sustained mixed read+write workloads (like parity rebuild).

The smoking gun was in dmesg timestamps: all drives were detected at 3–9 seconds (BIOS init), then the go script removed the card at ~35s and re-scanned at ~147s, causing drives to be detected a SECOND time with degraded initialization.

---

✅ The Complete Fix

All three issues needed to be addressed:

Fix 1: JBOD Firmware Update

Updated TL-D800S firmware: 1.4.1 → 1.5.0

Download from QNAP website. I had to temporarily move the QXP card to a Windows PC to run the QNAP firmware update utility. The JBOD firmware update is separate from the QXP card firmware.

Fix 2: Dell BIOS Settings (F2 at boot)

Section	Setting	Value	Priority
Power Management	Deep Sleep Control	DISABLED	⚠️ Critical
Power Management	AC Recovery	Last Power State	Recommended
Power Management	Block Sleep	ENABLED	Recommended
Performance	Intel SpeedStep	DISABLED	Recommended
Performance	C-States Control	DISABLED	⚠️ Critical
POST Behavior	Fastboot	Thorough	Recommended

These settings prevent the motherboard from doing anything that could affect PCIe link stability during boot or runtime.

Fix 3: Go Script — NCQ Disable Only (NO PCIe hack!)

File: /boot/config/go

#!/bin/bash

# === ASM1164 / QXP-800eS Workaround v4 ===
# BIOS fixes (Deep Sleep off, C-States off, ASPM off) + JBOD firmware 1.5.0
# now allow proper cold boot detection. PCIe remove/rescan REMOVED — it was
# breaking the BIOS-initialized controller state.

QXP_BRIDGE="0000:04:00.0"
ASM_VENDOR="1b21:1164"

if lspci -d $ASM_VENDOR &>/dev/null; then
    logger "go: ASM1164 QXP card detected"

    # Phase 1: Let drives fully spin up and settle (BIOS already detected them)
    logger "go: Phase 1 — 30s drive settle..."
    sleep 30

    # Phase 2: Disable NCQ for all drives on the QXP card
    # ASM1164 has known issues with NCQ (WRITE FPDMA QUEUED timeouts)
    logger "go: Phase 2 — Disabling NCQ for ASM1164 drives..."
    for dev in /sys/block/sd*; do
        devpath=$(readlink -f "$dev")
        if echo "$devpath" | grep -q "$QXP_BRIDGE"; then
            echo 1 > "$dev/device/queue_depth" 2>/dev/null
            logger "go: NCQ disabled for $(basename $dev) (queue_depth=1)"
        fi
    done

    logger "go: ASM1164 workaround complete — starting emhttp"
else
    logger "go: No ASM1164 detected — normal boot"
fi

# Start the Management Utility
/usr/local/sbin/emhttp

Key points about the go script:

• 🚫 DO NOT do PCIe remove/rescan — it breaks the BIOS initialization

• queue_depth=1 forces commands to DMA mode instead of FPDMA (NCQ). Verify with: dmesg | grep "ata[5-8]" — commands should show READ DMA / WRITE DMA EXT, NOT WRITE FPDMA QUEUED

• 30s settle time gives drives time to fully spin up after BIOS detection

• The script auto-detects drives behind the QXP bridge, so it won't affect onboard SATA drives

Kernel Boot Parameters

In syslinux config (append line):

pcie_aspm=off pcie_port_pm=off

Disables PCIe Active State Power Management at the kernel level. Belt and suspenders with the BIOS ASPM disable.

---

🎉 After the Fix

Did a New Config (Tools → New Config → Preserve All → Apply) to get a clean super.dat, then started the array normally (not maintenance mode, parity NOT already valid).

Results:

• ✅ All 8 drives detected cleanly in 3–9 seconds during boot

• ✅ Zero ATA errors in dmesg

• ✅ Parity rebuild running at 224 MB/s with zero errors

• ✅ All ZFS pools mounted with zero checksum errors

• ✅ SMB shares working, Docker containers running

• ✅ Array fully stable under sustained I/O for the first time

---

❌ What Didn't Work (save yourself the time)

1. SATA link power management (max_performance) — no effect

2. PCIe device remove + rescan in go script — MADE IT WORSE

3. Longer delays alone (90s, 125s) — didn't help without BIOS fixes

4. Starting in maintenance mode — controller still crashed after ~30s

5. Direct dd write tests to diagnose — just kills drives when controller crashes

---

🔎 How to Diagnose If You Have This Issue

1. Check if errors say WRITE FPDMA QUEUED — that's the NCQ bug

2. Check dmesg for duplicate drive detection (drives appearing twice = PCIe rescan issue)

3. Check if ALL ports on one ASM1164 die simultaneously — that's the controller, not individual drives

4. Test drives individually with dd reads when array is stopped — if they read fine, the drives are healthy

5. Look for hostbyte=0x04 (DID_ERROR) — that means host adapter error, not drive error

6. ZFS checksum verification: zpool status shows 0 errors = your data is intact regardless of md errors

---

🛠️ Useful Commands

Check NCQ is disabled (should show queue_depth=1):

for d in /sys/block/sd*; do
  echo "$(basename $d): $(cat $d/device/queue_depth 2>/dev/null)"
done

Check for ATA errors:

dmesg | grep -iE "ata[0-9]+.*(error|fail|reset|frozen)" | tail -20

Check parity rebuild progress:

mdcmd status | grep -E "mdResyncPos|mdResyncSize|rdevNumErrors"

Emergency reboot when array hangs (D-state processes block normal reboot):

echo b > /proc/sysrq-trigger

---

💡 Hardware Notes

The ASM1164 is a known problematic controller. If you're building new, avoid it and get an LSI 9211-8i or similar HBA instead. But if you already have the QNAP QXP-800eS + TL-D800S combo, the fix above makes it work reliably.

The Dell OptiPlex 7050 is a solid Unraid server otherwise — the i7-7700 handles transcoding, VMs, and Docker well. Just fix the BIOS power management settings.

Hope this helps someone. Happy to answer questions! 🤙

5 hours ago, opixo said:

This is a very old post, but maybe will help someone in same situation as me. Today, i finally had some time to troubleshoot it and togheder with my friend the AI who is also writing the solution below we manage to fix it. Here is what we did:

🔧 [RESOLVED] Dell OptiPlex 7050 + QNAP TL-D800S JBOD — Complete Fix Guide

Hey everyone, follow-up to my original post from August 2024. After a LOT more troubleshooting (and almost losing my mind), I've fully resolved the cold boot drive failure issue with the QNAP QXP-800eS-A1164 PCIe card.

First — thank you to @Vr2Io and @Frank1940 for the suggestions in the original thread. You were both pointing in the right direction:

• @Vr2Io: The PCIe AER Fatal errors WERE the key symptom. Couldn't force PCIe 2.0 in the Dell BIOS, but the fix was disabling power management features that were destabilizing the PCIe link.

• @Frank1940: Disabling array autostart + waiting before starting was absolutely the right instinct. The go script solution below is essentially an automated version of that, plus NCQ disable.

Posting this in detail because I found very few resources for this specific combination and hopefully it saves someone else days of headaches.

---

🖥️ Hardware

Server	Dell OptiPlex 7050 Tower (i7-7700, 32GB DDR4, BIOS v1.27.0)
JBOD	QNAP TL-D800S (8-bay, SFF-8088 connection)
PCIe Card	QNAP QXP-800eS-A1164 (ASM2812 switch + 2x ASM1164 AHCI controllers)
OS	Unraid 7.2.3, kernel 6.12.54-Unraid
Array Drives	4x Seagate ST4000NE001 4TB (1 parity + 3 data)
Pool Drives	2x Hitachi 2TB (ZFS mirror) + 2x HGST 10TB (ZFS stripe)

---

💥 The Problem

Every cold boot, array drives on ASM1164 controller #1 would fail. Two types of errors depending on what was going wrong:

Type 1 — PCIe AER Fatal errors (from original post, Aug 2024):

pcieport 0000:00:1d.0: AER: Multiple Uncorrected (Fatal) error received from 0000:03:00.0
pcieport 0000:04:02.0: device [1b21:2812] error status/mask=00100000/04400000
pcieport 0000:04:02.0: [20] UnsupReq (First)
ahci 0000:05:00.0: AER: can't recover (no error_detected callback)
pcieport 0000:00:1d.0: AER: device recovery failed

Type 2 — SATA/AHCI errors (after PCIe stabilized with BIOS fixes):

ata5.00: exception Emask 0x0 SAct 0x7fffffff SErr 0x0 action 0x6 frozen
ata5.00: failed command: WRITE FPDMA QUEUED
ata5: hard resetting link
ata5.00: failed to IDENTIFY (I/O error, err_mask=0x4)

Both types would crash ALL 4 ports on the same ASM1164 chip simultaneously, cascade into hard reset loops, and disable all drives. The array would hang during start and require SysRq reboot (echo b > /proc/sysrq-trigger) because ZFS import processes get stuck in uninterruptible D-state.

Warm reboots sometimes worked. Safe mode always worked. 100% reproducible on cold boot under any I/O load.

---

🔍 Root Cause — THREE Issues Stacked Together

1. ASM1164 NCQ Bug

The ASM1164 has a known bug with Native Command Queuing (NCQ). Commands sent as WRITE FPDMA QUEUED (NCQ) would timeout and crash the controller. This is documented across multiple platforms — Raspberry Pi Linux, openSUSE forums, various NAS communities.

2. Dell BIOS Power Management

The OptiPlex 7050's default BIOS settings include aggressive power saving that destabilizes PCIe devices:

• Deep Sleep Control: enabled by default (cuts power to PCIe in S4/S5)

• C-States: enabled (CPU power states affect PCIe link stability)

• Block Sleep: disabled (allows S3 sleep which kills PCIe)

• AC Recovery: Off (no auto-restart after power loss)

3. PCIe Remove/Rescan Hack Breaking BIOS Initialization

This was the hardest to find. I had a workaround in /boot/config/go that did:

echo 1 > /sys/bus/pci/devices/0000:04:00.0/remove
sleep 5
echo 1 > /sys/bus/pci/rescan

This was supposed to "reset" the card. What it ACTUALLY did was destroy the proper firmware initialization that BIOS performed during POST. The Linux PCIe rescan does NOT perform the full firmware handshake — it just re-enumerates the device. The controller appeared to work for light I/O but would crash under sustained mixed read+write workloads (like parity rebuild).

The smoking gun was in dmesg timestamps: all drives were detected at 3–9 seconds (BIOS init), then the go script removed the card at ~35s and re-scanned at ~147s, causing drives to be detected a SECOND time with degraded initialization.

---

✅ The Complete Fix

All three issues needed to be addressed:

Fix 1: JBOD Firmware Update

Updated TL-D800S firmware: 1.4.1 → 1.5.0

Download from QNAP website. I had to temporarily move the QXP card to a Windows PC to run the QNAP firmware update utility. The JBOD firmware update is separate from the QXP card firmware.

Fix 2: Dell BIOS Settings (F2 at boot)

Section	Setting	Value	Priority
Power Management	Deep Sleep Control	DISABLED	⚠️ Critical
Power Management	AC Recovery	Last Power State	Recommended
Power Management	Block Sleep	ENABLED	Recommended
Performance	Intel SpeedStep	DISABLED	Recommended
Performance	C-States Control	DISABLED	⚠️ Critical
POST Behavior	Fastboot	Thorough	Recommended

These settings prevent the motherboard from doing anything that could affect PCIe link stability during boot or runtime.

Fix 3: Go Script — NCQ Disable Only (NO PCIe hack!)

File: /boot/config/go

#!/bin/bash

# === ASM1164 / QXP-800eS Workaround v4 ===
# BIOS fixes (Deep Sleep off, C-States off, ASPM off) + JBOD firmware 1.5.0
# now allow proper cold boot detection. PCIe remove/rescan REMOVED — it was
# breaking the BIOS-initialized controller state.

QXP_BRIDGE="0000:04:00.0"
ASM_VENDOR="1b21:1164"

if lspci -d $ASM_VENDOR &>/dev/null; then
    logger "go: ASM1164 QXP card detected"

    # Phase 1: Let drives fully spin up and settle (BIOS already detected them)
    logger "go: Phase 1 — 30s drive settle..."
    sleep 30

    # Phase 2: Disable NCQ for all drives on the QXP card
    # ASM1164 has known issues with NCQ (WRITE FPDMA QUEUED timeouts)
    logger "go: Phase 2 — Disabling NCQ for ASM1164 drives..."
    for dev in /sys/block/sd*; do
        devpath=$(readlink -f "$dev")
        if echo "$devpath" | grep -q "$QXP_BRIDGE"; then
            echo 1 > "$dev/device/queue_depth" 2>/dev/null
            logger "go: NCQ disabled for $(basename $dev) (queue_depth=1)"
        fi
    done

    logger "go: ASM1164 workaround complete — starting emhttp"
else
    logger "go: No ASM1164 detected — normal boot"
fi

# Start the Management Utility
/usr/local/sbin/emhttp

Key points about the go script:

• 🚫 DO NOT do PCIe remove/rescan — it breaks the BIOS initialization

• queue_depth=1 forces commands to DMA mode instead of FPDMA (NCQ). Verify with: dmesg | grep "ata[5-8]" — commands should show READ DMA / WRITE DMA EXT, NOT WRITE FPDMA QUEUED

• 30s settle time gives drives time to fully spin up after BIOS detection

• The script auto-detects drives behind the QXP bridge, so it won't affect onboard SATA drives

Kernel Boot Parameters

In syslinux config (append line):

pcie_aspm=off pcie_port_pm=off

Disables PCIe Active State Power Management at the kernel level. Belt and suspenders with the BIOS ASPM disable.

---

🎉 After the Fix

Did a New Config (Tools → New Config → Preserve All → Apply) to get a clean super.dat, then started the array normally (not maintenance mode, parity NOT already valid).

Results:

• ✅ All 8 drives detected cleanly in 3–9 seconds during boot

• ✅ Zero ATA errors in dmesg

• ✅ Parity rebuild running at 224 MB/s with zero errors

• ✅ All ZFS pools mounted with zero checksum errors

• ✅ SMB shares working, Docker containers running

• ✅ Array fully stable under sustained I/O for the first time

---

❌ What Didn't Work (save yourself the time)

1. SATA link power management (max_performance) — no effect

2. PCIe device remove + rescan in go script — MADE IT WORSE

3. Longer delays alone (90s, 125s) — didn't help without BIOS fixes

4. Starting in maintenance mode — controller still crashed after ~30s

5. Direct dd write tests to diagnose — just kills drives when controller crashes

---

🔎 How to Diagnose If You Have This Issue

1. Check if errors say WRITE FPDMA QUEUED — that's the NCQ bug

2. Check dmesg for duplicate drive detection (drives appearing twice = PCIe rescan issue)

3. Check if ALL ports on one ASM1164 die simultaneously — that's the controller, not individual drives

4. Test drives individually with dd reads when array is stopped — if they read fine, the drives are healthy

5. Look for hostbyte=0x04 (DID_ERROR) — that means host adapter error, not drive error

6. ZFS checksum verification: zpool status shows 0 errors = your data is intact regardless of md errors

---

🛠️ Useful Commands

Check NCQ is disabled (should show queue_depth=1):

for d in /sys/block/sd*; do
  echo "$(basename $d): $(cat $d/device/queue_depth 2>/dev/null)"
done

Check for ATA errors:

dmesg | grep -iE "ata[0-9]+.*(error|fail|reset|frozen)" | tail -20

Check parity rebuild progress:

mdcmd status | grep -E "mdResyncPos|mdResyncSize|rdevNumErrors"

Emergency reboot when array hangs (D-state processes block normal reboot):

echo b > /proc/sysrq-trigger

---

💡 Hardware Notes

The ASM1164 is a known problematic controller. If you're building new, avoid it and get an LSI 9211-8i or similar HBA instead. But if you already have the QNAP QXP-800eS + TL-D800S combo, the fix above makes it work reliably.

The Dell OptiPlex 7050 is a solid Unraid server otherwise — the i7-7700 handles transcoding, VMs, and Docker well. Just fix the BIOS power management settings.

Hope this helps someone. Happy to answer questions! 🤙

Great and so many useful message 👍
